Anti vandal 22mm ring led stainless steel pushbutton light switch 6 pins terminal with connector
▶Product Description:
The perfect solution for your illumination control needs. With a robust design, this switch is ready to handle it all. It's rated at 5A/250V, making it suitable for a wide range of applications.
Waterproof and Durable
The IP65 waterproof rating ensures that it can stand up to challenging environments, where exposure to moisture or dust is a concern. The switch features a 1NO1NC contact type with pin terminals for easy installation.
Customizable Blue LED
What truly sets this switch apart is the vivid blue LED indicator. With options for 6V, 12V, 24V, and even 220V, you can customize the illumination to suit your specific requirements. The flat head ring LED design provides a sleek and modern appearance, perfect for applications where aesthetics matter.
Includes Supporting Connector
For added convenience, this product comes with a supporting connector. This feature streamlines installation, saving you time and effort.
Order Now
Whether you're in need of reliable control in industrial or commercial settings, this Pushbutton Light Switch has you covered. Its momentary operation adds to its versatility. Trust in its quality, as it's designed to meet your demands while offering an aesthetic edge with its striking blue LED.
Elevate your control and illumination systems with our 22mm Pushbutton Light Switch. It's not just a switch; it's a statement of quality and performance. Make your order today!

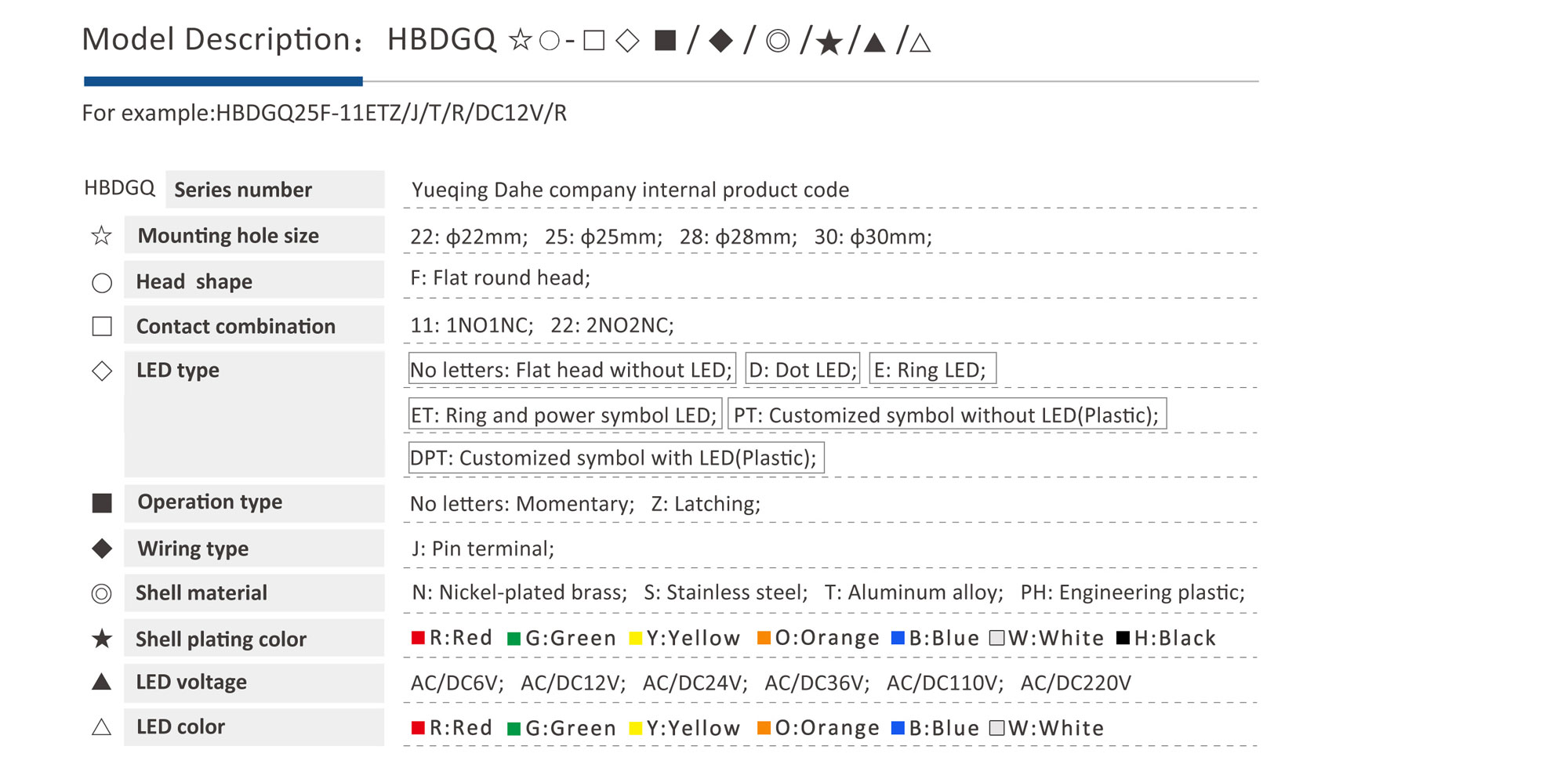

▶Product Model Specification:
▶Product Size:
▶Technical Parameter:
HBDGQ22-11 Series pushbutton light switch |
|
Product model : | HBDGQ22F-11E/J/S/B/T2 |
Mounting hole size : | 22mm |
Switch value: | Ith:5A,UI:250V |
Operation type: | Momentary,Latching |
Contact configuration: | 1NO1NC |
Appearance material: | Head:Stainless steel; Switch button surface:Stainless steel; Pedestal: PBT; Contact:Silver alloy; |
Terminal type: | Pin terminal |
Connection form: | Supporting connector/Welding wire |
Protection grade: | IP65 |
Electrical resistance: | AC2500V, 1min, no flicker and breakdown |
Life | |
Electrical part: Operate 50,000 times under rated load without any abnormality | |
Mechanical part: No abnormal movement for 1000,000 times |
