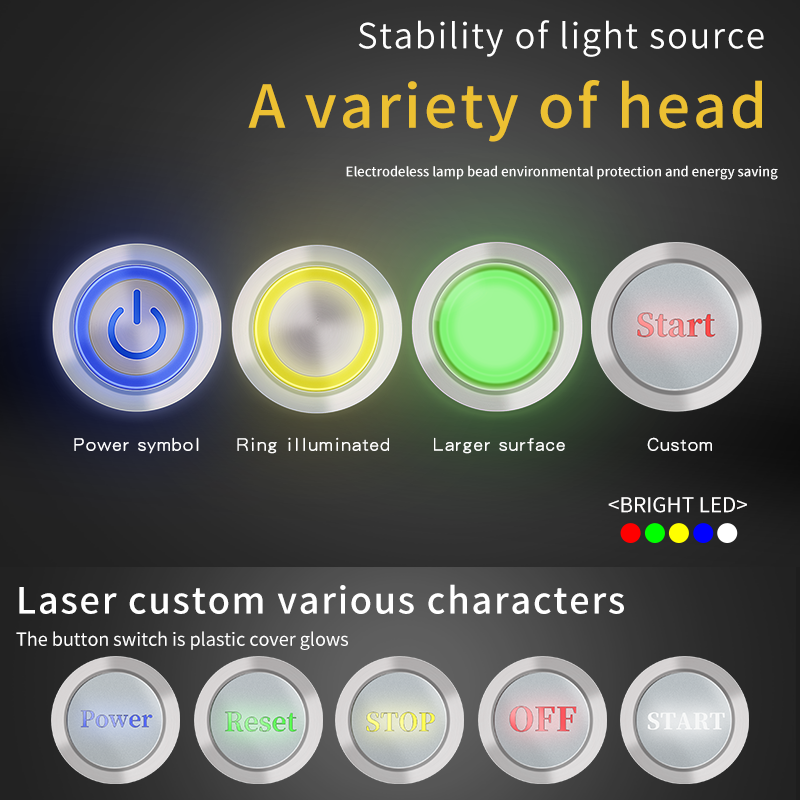

metal anti vandal push the button 22MM 1no1nc ring led illumainted red switch for control panel
▶Product Description:

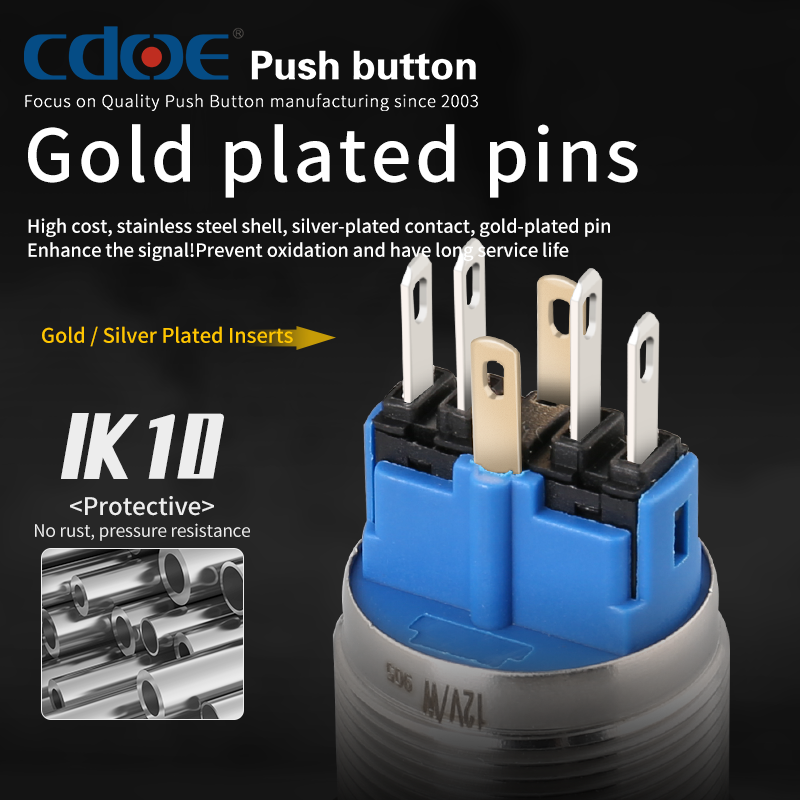

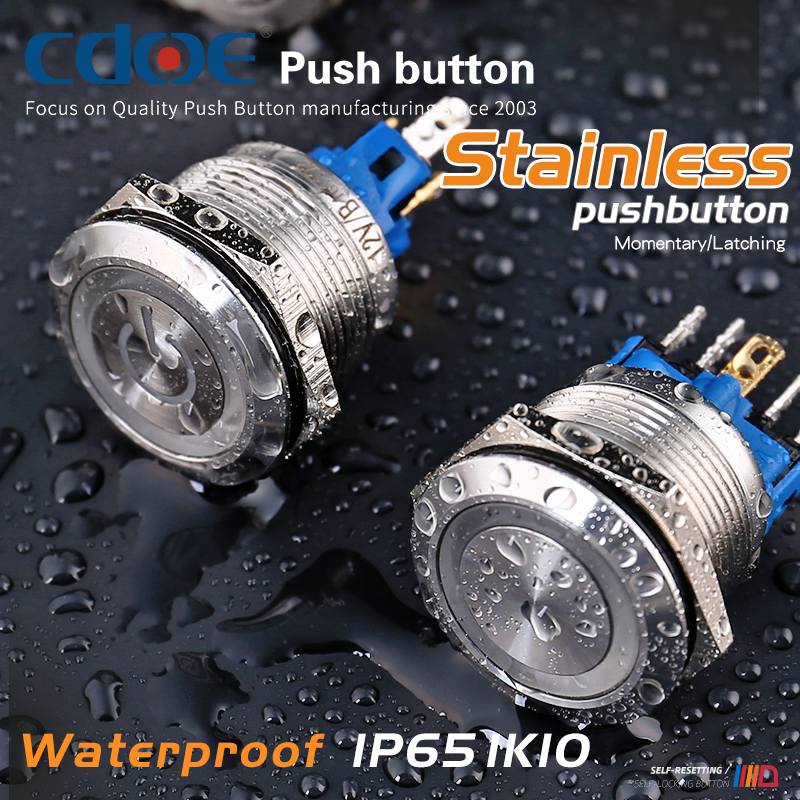

Button stop and start 22MM mounting hole switch normally open normally closed contact, equipped with waterproof rubber ring, switch head waterproof ip65.Switches have modular contacts and lamp terminal gold-plated pins, easy to distinguish function terminal and lamp bead terminal. Supporting the production of special connectors, the wiring is simple and fast.
▶Product Model Specification:

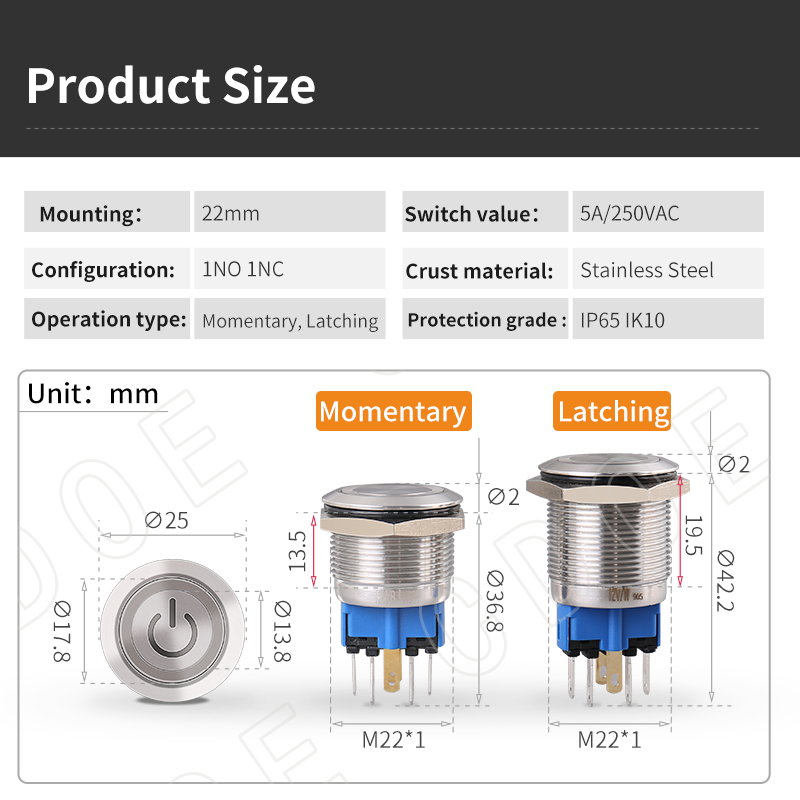

▶Product Size:
▶Technical Parameter:
|
HBDGQ Series stop and start control buttons |
|
| Product model : | HBDGQ22F-□(Z)/J/S |
| Mounting hole size : | 22mm |
| Switch value: | Ith:5A,UI:250V |
| Operation type: | Momentary,Latching |
| Contact configuration: | 1NO1NC |
| Appearance material: | Head:Stainless steel; Switch button surface:Stainless steel; Pedestal: PBT; Contact:Silver alloy; |
| Terminal type: | Pin terminal |
| Working environment temperature: | -25℃～+65℃ |
| Movement stroke: | About 2.8mm |
| Connection form: | Supporting connector/Welding wire |
| Protection grade: | IP65 |
| Contact resistance: | ≤50mΩ |
| Insulation resistance: | ≥100MΩ |
| Electrical resistance: | AC2500V, 1min, no flicker and breakdown |
| Life | |
| Electrical part: Operate 50,000 times under rated load without any abnormality | |
| Mechanical part: No abnormal movement for 1000,000 times | |
▶Problems Encountered By Buyers:
Q: Meet 22mm1no1nc lathcing, how long is the shortest button?
A:“The shortest 22mm latching 1no1nc shortest length is about 44.4mm.”
Q: Is there a button for a square 10a with a 22MM mounting hole?
A:“Sorry, we can support 22mm mounting holes for square buttons, but can't meet the high current 10A, we have 5A switches.”
Q: What is the maximum switching current?
A:“At present, the maximum rated current of our main product categories can reach 20A magnetic blowing arc extinguishing device metal head plastic body.”
