High Quality Black Oxide Button 22mm switch Ring LED RGB Tri-Color with 10Amp

Short Description:

Product Model: HBDS1-D22C-□E(Z)/J/T

Mounting Hole Size: 22MM

Switch Value: Ith: 10A, UI: 6-48V,220V

Operation Type: Momentary, Latching

Min.Order Quantity: 20 Piece/Pieces

Method Of Payment: T/T(Wire transfer), Paypal, Credit card

Related video:  Click

PDF file:  Click

Available equipment: Elevators, charging piles, automation equipment, motor vehicles, yachts, access control, automatic guided vehicles, lathes, lifts, lawn mowers

Product Detail

Why choose us?

Product Tags

The head of the product home page

Product Description:

Introducing our latest 22mm Black Oxide Button - designed for high current applications of up to 10Amps. With a sleek and modern design, this button supports flat head, ring LED and power symbol, as well as RGB tri-color options for added versatility. The black oxide finish provides added durability, making it ideal for use in rugged environments. This button is easy to install and compatible with a wide range of applications, including industrial control systems, automation equipment, and automotive electronics. Experience the quality and reliability of our 22mm Black Oxide Button, designed to meet your high-performance needs.

Product Model Specification:


Product Size:

HBDS1-D22C-11E Product size

Technical Parameter:

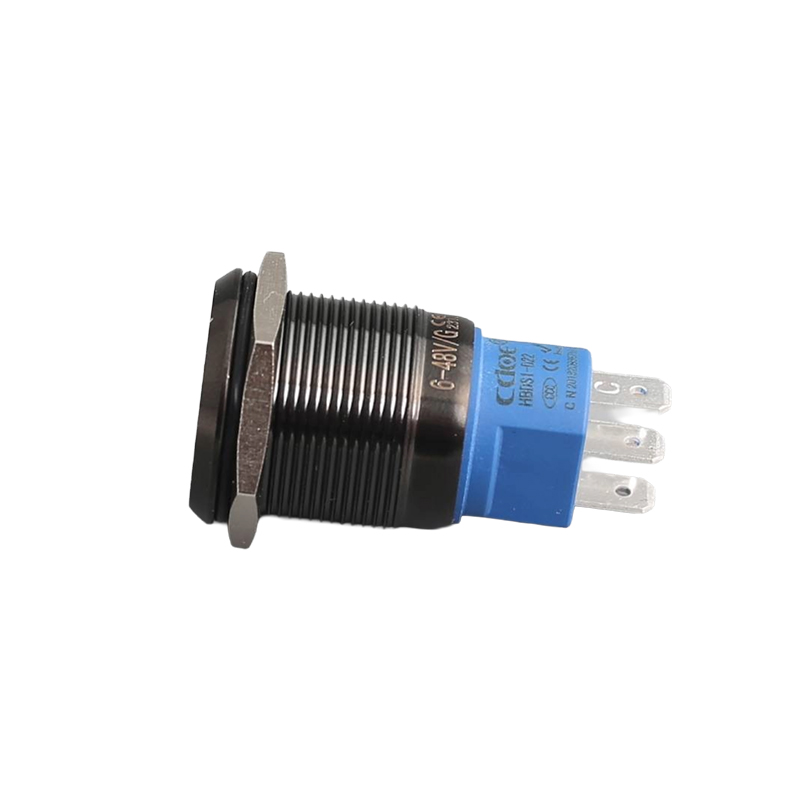

HBDS1-D22C black oxide button 22mm switch

Product model : HBDS1-D22C-□E(Z)/J/T
Mounting hole size : 22mm
Switch value: Ith:5A(10A),UI:250V

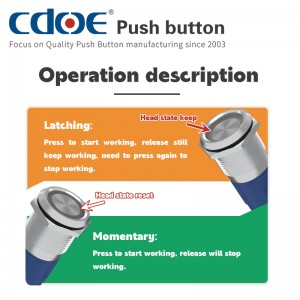

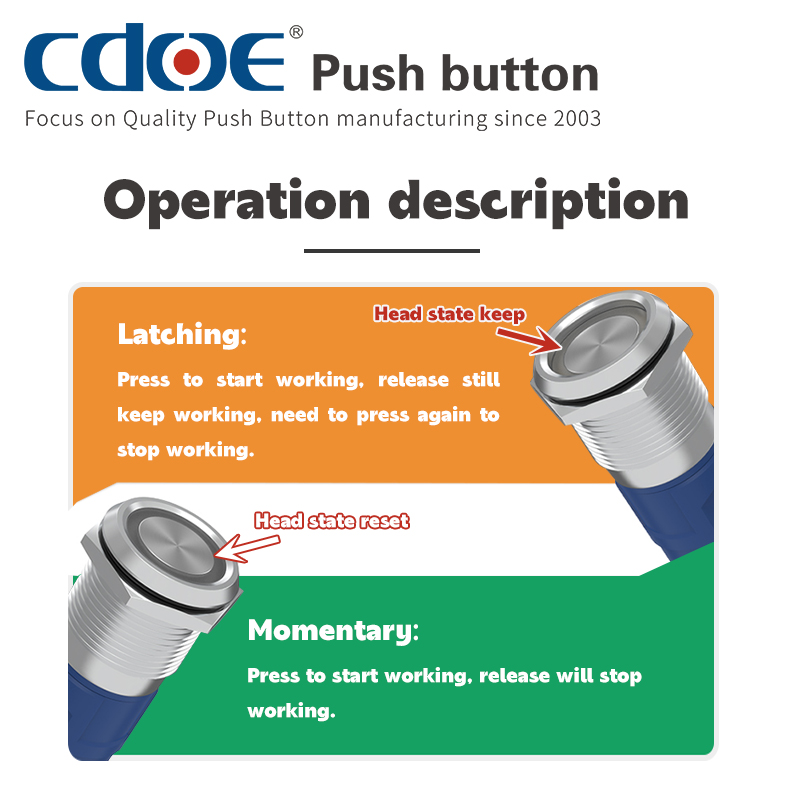

Operation type: Momentary,Latching
Contact configuration: 1NO1NC
Appearance material: Head:Aluminum alloy color plating;
Switch button surface:Aluminum alloy color plating;
Base:Plastic PA66;
Contact:Silver alloy;

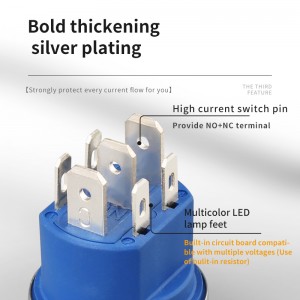

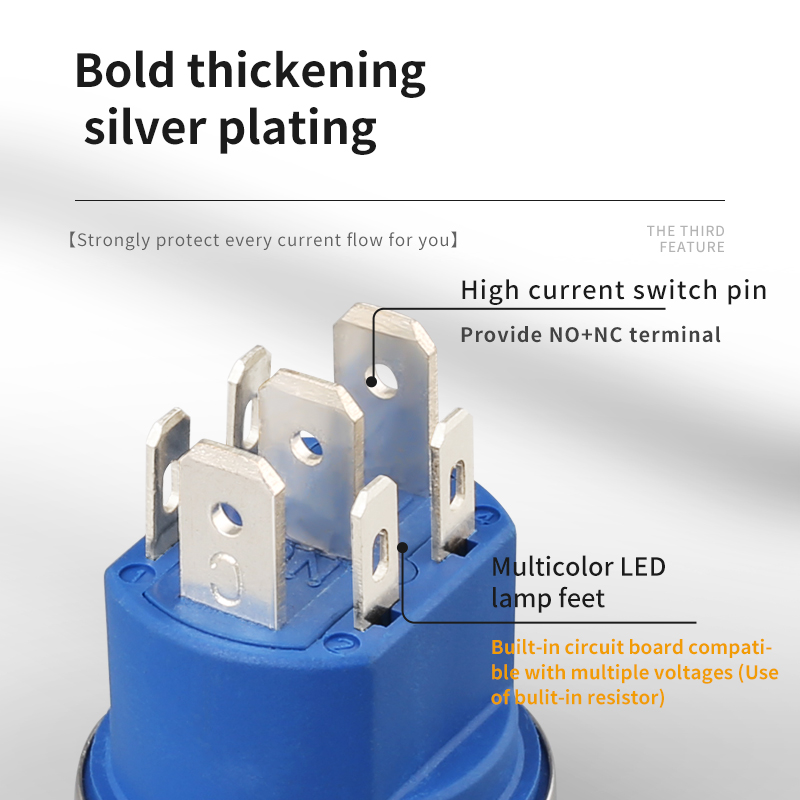

Terminal type: Pin terminal
Working environment temperature: -25℃~+65℃
Connection form: Supporting connector/Welding wire;
Lamp bead parameters
Rated voltage : 6V/12V/24V/36V/110V/220V;(Other voltages can be customized)
Rated current: ≤20mA

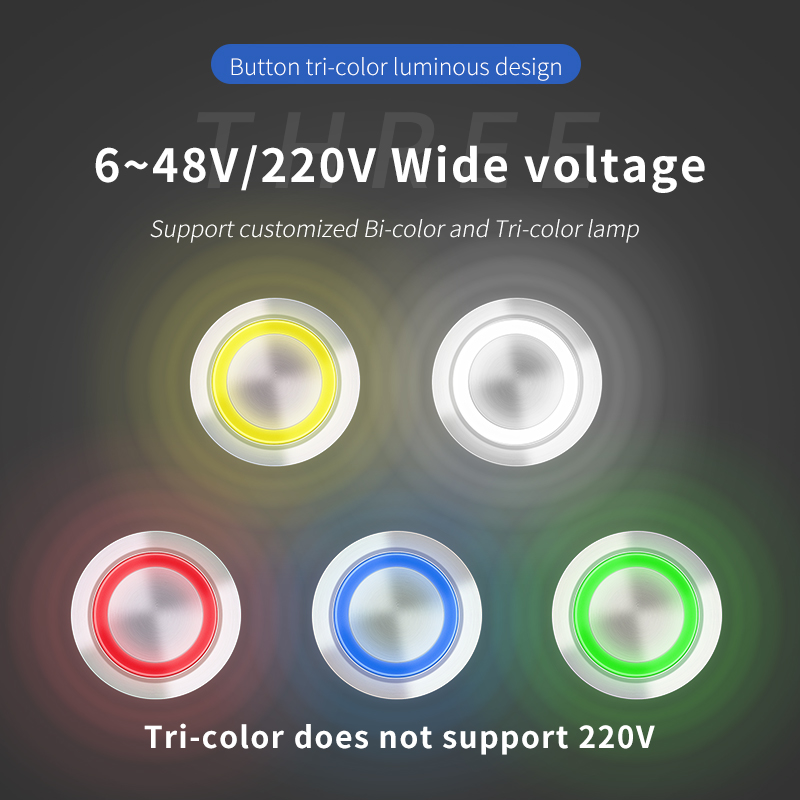

Led color: Red/Green/Yellow/Orange/Blue/White/RG/RB/RGB
Led life: 50000 hours

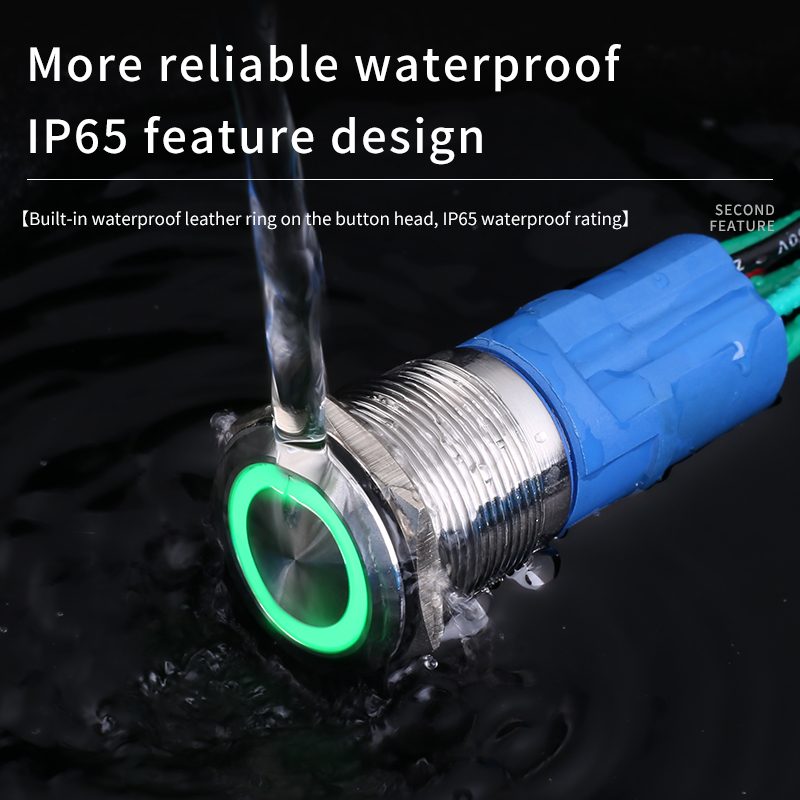

Protection grade: IP65
Contact resistance: ≤50mΩ
Insulation resistance: ≥100MΩ
Electrical resistance: AC2500V, 1min, no flicker and breakdown;
Mechanical Life: 0.5 million times for latching,One million times for momentary

Problems Encountered By Buyers:

Q:Can this button be illuminated?

A:“Yes, this button is designed to support ring LED illumination and power symbol options for added functionality and convenience.”

Q: Can the color of the illumination be changed?

A:“Yes, this button supports RGB tri-color options for added versatility and customization.”

Q:Can this button be customized with a specific logo or design?

A:“Thank you for your interest in our black oxide button. We do offer the option for customers to include a specific symbol header on the button. To proceed with this option, we would require a file of the symbol to be provided to us. The file should be in a specific format that meets our requirements, and we can provide you with the specifications for this file. Please contact us for more information on how to proceed with a custom symbol for your button.”
