push button suppliers 22mm flat head ring led power symbol metal ip67 switches with connector

Short Description:

Product Model: HBDS1-AGQ22F-11ET(Z)/J/S/B/T1

Mounting Hole Size: 22MM

Switch Value: Ith: 5A, UI: 250V

Operation Type: Momentary,Latching

Min.Order Quantity: 40 Piece/Pieces

Method Of Payment: T/T(Wire transfer), Paypal, Credit card

Related video:  Click

Available equipment: Elevators, charging piles, automation equipment, motor vehicles, yachts, access control, automatic guided vehicles, lathes, lifts, lawn mowers


Product Detail

Why choose us?

Product Tags

youtube
The head of the product home page

▶ Product Description:

Leading Push Button Suppliers: Elevate Your Control Systems

Precision at Your Fingertips: 22mm Mounting Hole

Unlock precise control with our push button switches, meticulously designed with a 22mm mounting hole for seamless integration into your systems.

Reliability Redefined: Rated at 5A/250V

Experience unparalleled reliability with a high rating of 5A/250V, ensuring consistent and efficient electrical control in every push.

Built to Endure Challenges: IP65 Waterproof Class

Our switches are engineered to withstand the toughest environments, boasting an IP65 waterproof class for durability and resilience.

Versatile Configuration: 1NO1NC Contact

Adapt to diverse circuit requirements with the flexibility of a 1NO1NC contact configuration, offering versatility for your specific needs.

Stable Connections: Pin Terminal Contact

Ensure stability with a secure pin terminal contact, guaranteeing a reliable connection for uninterrupted performance.

Illuminating Control: Vibrant LED Colors

Enhance your control panel aesthetics with LED colors like red, green, and blue. The flat head ring featuring a power symbol adds a sophisticated touch.

Your Control, Your Way: Momentary or Latching Operation

Tailor your control experience with the freedom to choose between momentary or latching operation, providing flexibility to suit your unique requirements.

Durable Excellence: Stainless Steel or Nickel-Plated Brass

Crafted from premium materials such as stainless steel or nickel-plated brass, our switches ensure durability and longevity, setting a new standard for quality.

Reimagining Precision Control: Your Trusted Supplier

Whether for industrial machinery or control panels, our push button switches redefine precision and reliability. Trust the leaders for a seamless control experience.

▶ Product Model Specification:

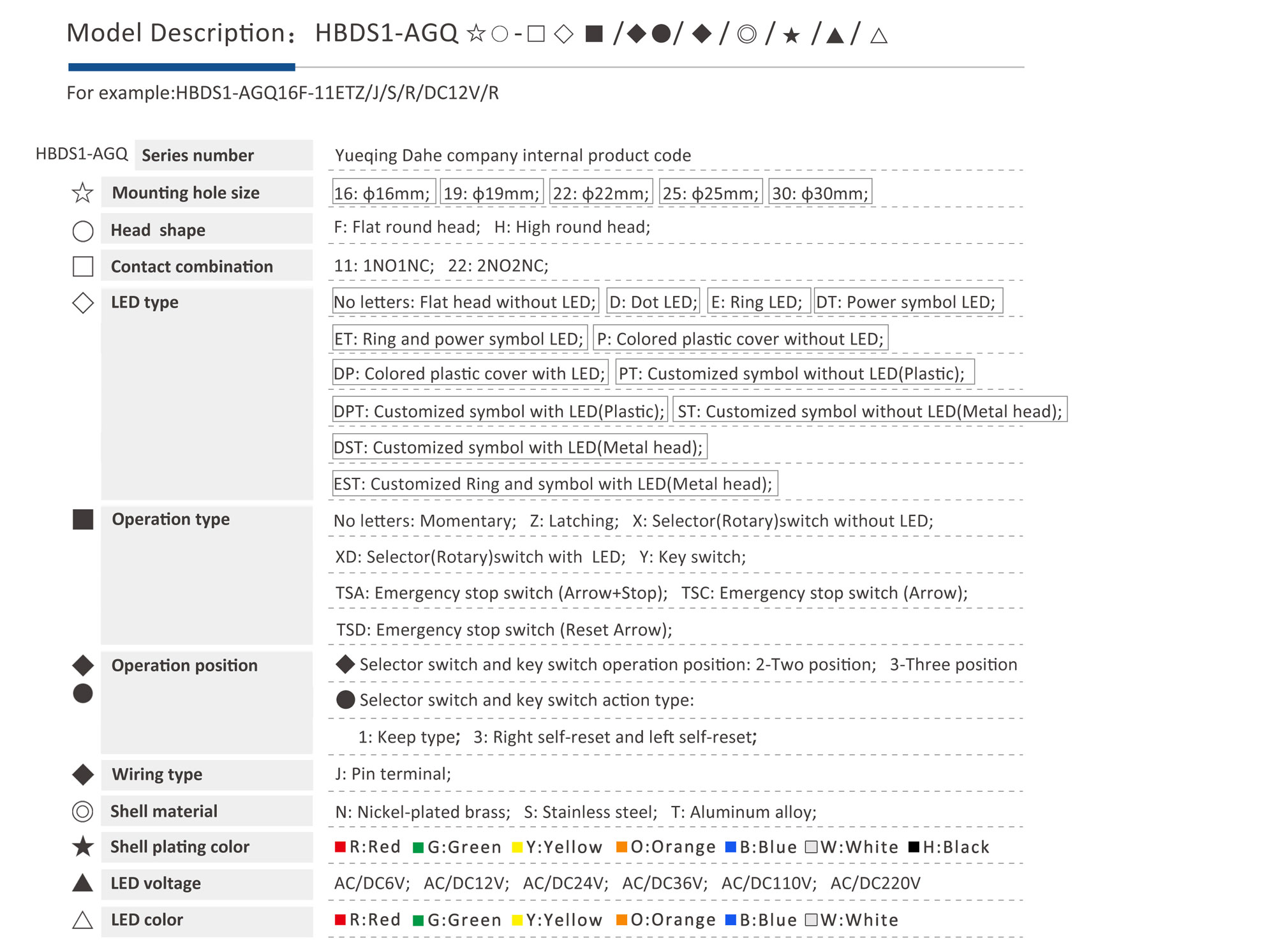

HBDS1-AGQ-Product-Model-specification2

Product Size:

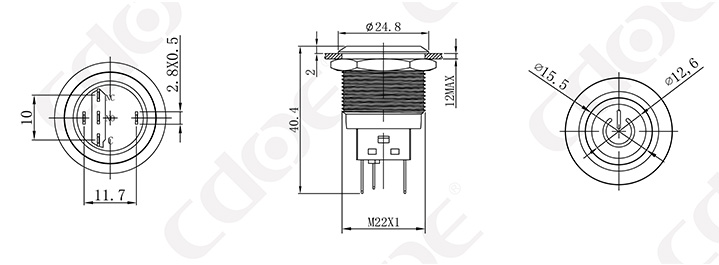

HBDS1-AGQ22F-11ET push button 22mm ring led power symbol

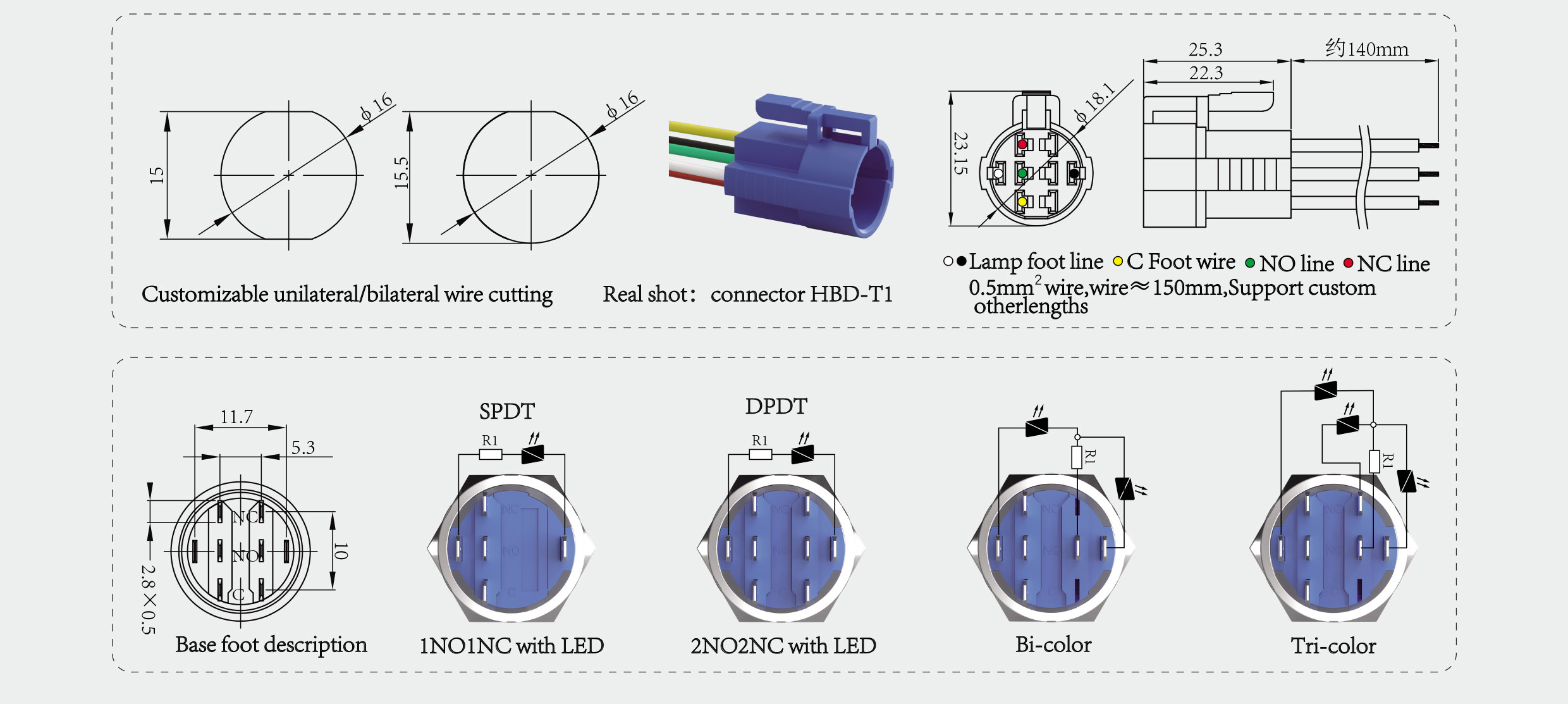

HBDS1-AGQ19F-11ET-J-S Product size 2

Technical Parameter:

HBDS1-AGQ22F-11ET(Z)/J/S(N)/T1 Series push button product

Product model : HBDS1-AGQ22F-11ET(Z)/J/S(N)/T1
Mounting hole size : 22MM
Switch value: Ith:5A,UI:250V
Operation type: Momentary,Latching
Contact configuration: 1NO1NC
Appearance material: Head:Stainless steel
Switch button surface:Stainless steel
Pedestal: PBT;
Contact:Silver alloy;
Terminal type: Pin terminal
Lamp bead parameters
Led voltage : 6V/12V/24V/36V/110V/220V
Led color: Red/Green/Yellow/Orange/Blue/White
Led life: 50000 hours
Protection grade: IP67
