on and off switch 22mm pushbutton ring and power symbol 5a 220v metal ip67
▶ Product Description:
The 22mm On and Off Switch is a reliable and convenient solution for controlling various applications. Designed with a 22mm mounting hole, it offers easy installation and integration into control panels and machinery. This switch is rated for 5A/250V, making it suitable for a wide range of electrical circuits.
Waterproof and Durable
One of the key features of this switch is its waterproof rating of IP67, ensuring protection against dust and water ingress. This makes it suitable for both indoor and outdoor use, even in challenging environments.
Flexible Wiring Configurations
The contact type includes one normally open and one normally closed contact, providing flexibility in wiring configurations. The pin terminal contact ensures secure and reliable connections, minimizing the risk of accidental disconnection.
Clear Visibility with LED Illumination
The head of the switch is illuminated with a green ring and power LED, offering clear visibility and indicating the switch status. This enhances user convenience and allows for easy identification, especially in low-light conditions.
Momentary Operation
Operating in a momentary mode, the On and Off Switch provides quick and responsive control. Its ergonomic design ensures comfortable operation, making it ideal for applications that require frequent switching.
Durable Construction
With its durable construction and high-quality materials, this 22mm On and Off Switch guarantees reliable performance and long-lasting use. Whether used in industrial automation, machinery control, or other applications, this switch delivers excellent functionality.
Conclusion
Choose the 22mm On and Off Switch for your control needs and experience the benefits of its versatility and efficiency. Trust in its capability to enhance your operational control and make your projects more streamlined and productive. The combination of waterproof design, flexible wiring configurations, LED illumination, and durable construction makes this switch a valuable addition to various applications. Make your control processes more efficient and reliable with the 22mm On and Off Switch.
▶ Product Model Specification:

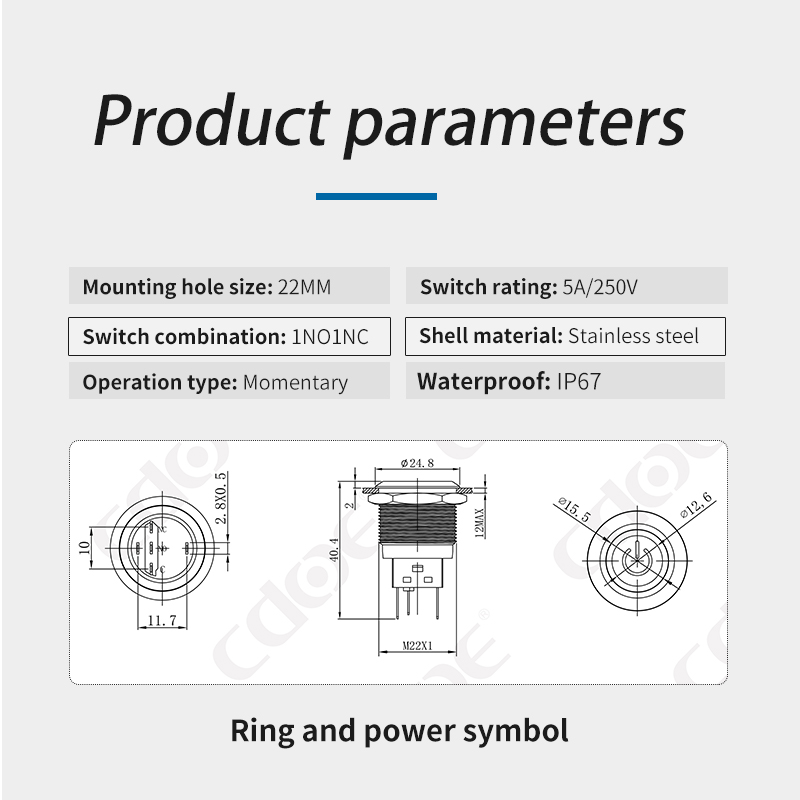

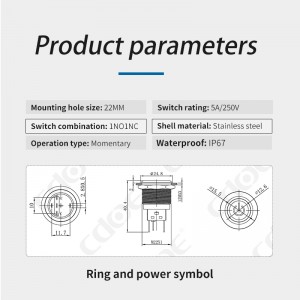

▶Product Size:
▶Technical Parameter:
|
HBDS1-AGQ22 Series on and off switch 22mm |
|
| Product model : | HBDS1-AGQ22F-□ET(Z)/J/S(N) |
| Mounting hole size : | 22MM |
| Switch value: | Ith:5A,UI:250V |
| Operation type: | Momentary,Latching |
| Contact configuration: | 1NO1NC |
| Appearance material: | Head:Stainless steel Switch button surface:Stainless steel/Nickel plated brass; Pedestal: PBT; Contact:Silver alloy; |
| Terminal type: | Pin terminal |
| Lamp bead parameters | |
| Rated voltage : | 6V/12V/24V/36V/110V/220V |
| Rated current: | ≤20mA |
| Led color: | Red/Green/Yellow/Orange/Blue/White |
| Led life: | 50000 hours |
| Protection grade: | IP67 |
▶ Problems encountered by buyers:
Q: Is the LED illumination always on, or does it indicate the switch status?
A:"This button has a normally open and normally closed function. If the switch terminal you connect to the power supply is a normally closed terminal and the lamp foot is also connected to it, the light color represents the work by quality when it is working normally. You can choose whether the light stays on or not depending on the effect you want to achieve."
Q: Can the switch be operated with gloves or in harsh conditions?
A:"22mm metal button switch pressing area is still relatively large, you can wear gloves to operate it."
Q:Does the momentary operation mean that the switch springs back to its original position after being pressed?
A:"Yes, it is restored to its original position after the release of the momentary button. The latching button needs to be pressed again before it can be restored."
