Momenatry push button light switch 22mm flat head normally open ip67 5 pins stainless steel
▶ Product Description:
Our button light switch is a reliable and flexible solution designed to meet your control needs. With its durable construction and user-friendly design, this switch ensures smooth operation and precise control in various applications.
Key Features
1. Versatile Application: The button light switch is suitable for a wide range of industrial and commercial uses, providing seamless control in machinery, equipment, and control panels.
2. Robust Design: Built to withstand demanding environments, the switch features an IP67 waterproof rating, protecting it from dust and water ingress.
3. Flexible Contact Type: With a 1NO1NC contact type, this switch offers multiple wiring configurations for different control requirements.
4. Secure Connection: The switch comes with five-pin terminals, ensuring a secure and stable electrical connection.
5. Easy Operation: Designed for momentary reset operation, the switch springs back to its original position when released.
6. Simple Installation: The 22mm mounting hole allows for easy integration into your existing systems or new installations.
Product Details
The button light switch with a flat head design does not include LED illumination, providing a clean and minimalistic appearance. Its compact size and ergonomic shape make it easy to operate and suitable for various control applications.
Quality Assurance
At our company, we take pride in delivering high-quality products that meet industry standards. The 22mm button light switch undergoes rigorous testing to ensure reliable performance and longevity, providing you with a durable and efficient control solution.
Experience the Convenience
Unlock control and power up your applications with our versatile button light switch. Whether you need precise control in machinery or a reliable reset switch in your control panels, our product is designed to meet your needs. Trust in our expertise and quality to enhance your operational efficiency.
Contact us now to explore the possibilities with our button light switch.

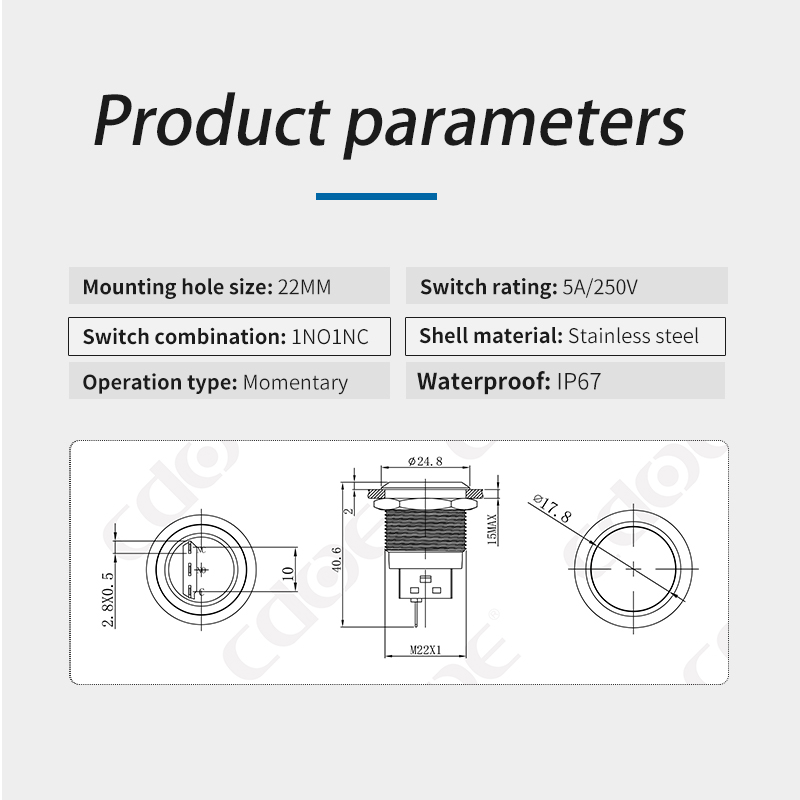

▶ Product Model Specification:

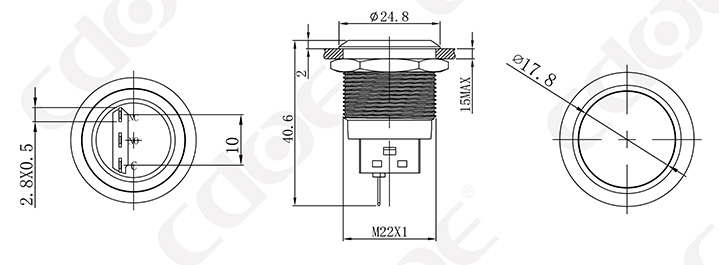

▶Product Size:
▶Technical Parameter:
|
HBDS1-AGQ22 Series push button momentary switch |
|
| Product model : | HBDS1-AGQ22F-□(Z)/J/S(N) |
| Mounting hole size : | 22MM |
| Switch value: | Ith:5A,UI:250V |
| Operation type: | Momentary,Latching |
| Contact configuration: | 1NO1NC |
| Appearance material: | Head:Stainless steel Switch button surface:Stainless steel/Nickel plated brass; Pedestal: PBT; Contact:Silver alloy; |
| Terminal type: | Pin terminal |
| Lamp bead parameters | |
| Rated voltage : | 6V/12V/24V/36V/110V/220V |
| Rated current: | ≤20mA |
| Led color: | Red/Green/Yellow/Orange/Blue/White |
| Led life: | 50000 hours |
| Protection grade: | IP67 |
▶ Problems encountered by buyers:
Q:What type of wiring connection does the push button momentary switch have, and is it easy to connect to the electrical system?
A:"The terminal wiring method is in the form of inserts, which are usually welded or purchased for use with special connectors."
Q: Is the flat head design without LED illumination suitable for applications where visual indicators are not required?
A:"Yes, if you don't need a visual indication of the environment, buy the unlit version."
Q:Can the push button momentary switch be used for safety applications, such as emergency stop systems or safety interlocks?
A:"It is not recommended to use metal buttons for installing equipment, it is recommended that you directly purchase emergency stop buttons to use."
