22mm Push Button Switch Manufacturers green red blue micro travel momentary 12v led light

Short Description:

Product Model: HBDGQ22C-11WE/J/S/▲/△

Mounting hole size: 22MM

Switch Value:Ith: 1A, UI: 125V

Operation Type: Momentary

Min.Order Quantity: 20 Piece/Pieces

Method Of Payment: T/T(Wire transfer), Paypal, Credit card

Related video:  Click

Available equipment: Elevator, subway drying button, epidemic prevention and exhaust button


Product Detail

Why choose us?

Product Tags

youtube
The head of the product home page

Product Description:

Are you in need of reliable and high-quality micro push button switches for your control systems? Look no further! Our 22mm Pushbutton Micro Switches are designed to meet your precise requirements and deliver exceptional performance. With a wide range of features and options, these switches are the ideal choice for various applications.

Let's explore the key details and benefits of our 22mm Pushbutton Micro Switches.Exceptional Design and Durability: Our 22mm Pushbutton Micro Switches are built to withstand demanding environments. With a robust construction and high-quality materials, these switches offer excellent durability and long-lasting performance. The IP67 waterproof rating ensures protection against moisture and dust, making them suitable for both indoor and outdoor applications.Versatile Contact Options:These micro switches feature a 1NO1NC (SPDT) contact configuration, providing you with flexible control options. The single-pole double-throw design allows for a variety of electrical connections, enabling you to easily integrate them into your control systems. The contact terminal type is pin, ensuring a secure and reliable connection.

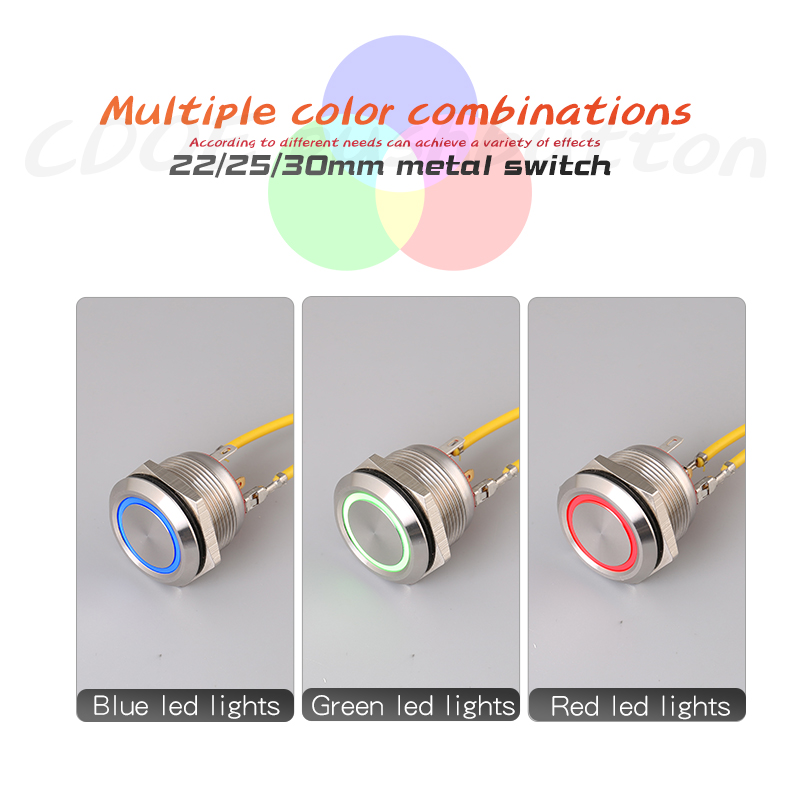

Wide Range of Head Colors:

We understand the importance of visual indication in control applications. That's why our 22mm Pushbutton Micro Switches come in a variety of head colors, including yellow, red, green, blue, and even RGB tri-color options. You can choose the color that best suits your application's needs, providing clear and intuitive feedback to users.Convenient and Eye-Catching Ring LED:Enhance the visual appeal and functionality of your control panels with our Ring LED feature. The 22mm Pushbutton Micro Switches come with a built-in Ring LED that illuminates when activated. This eye-catching LED not only adds a professional touch to your control systems but also provides clear visibility, even in low-light environments.

Easy Installation and Integration:

Our 22mm Pushbutton Micro Switches are designed for hassle-free installation and seamless integration. The 22mm mounting hole size ensures compatibility with standard panel cutouts, allowing for straightforward installation. Whether you're replacing existing switches or designing new control systems, our switches are the perfect fit.

Trusted Push Button Switch Manufacturers:

As leading push button switch manufacturers, we prioritize quality and customer satisfaction. Our 22mm Pushbutton Micro Switches are meticulously engineered and thoroughly tested to meet the highest industry standards. With our commitment to excellence, you can trust in the reliability and performance of our products.In conclusion, our 22mm Pushbutton Micro Switches offer exceptional design, durability, and versatility for your control applications. With a wide range of head colors, convenient Ring LED, and easy installation, these switches provide an ideal solution for various industries. Trust our expertise as push button switch manufacturers and elevate the performance of your control systems with our 22mm Pushbutton Micro Switches.

▶Product Model Specification:

HBDGQ-Product-Model-specification0

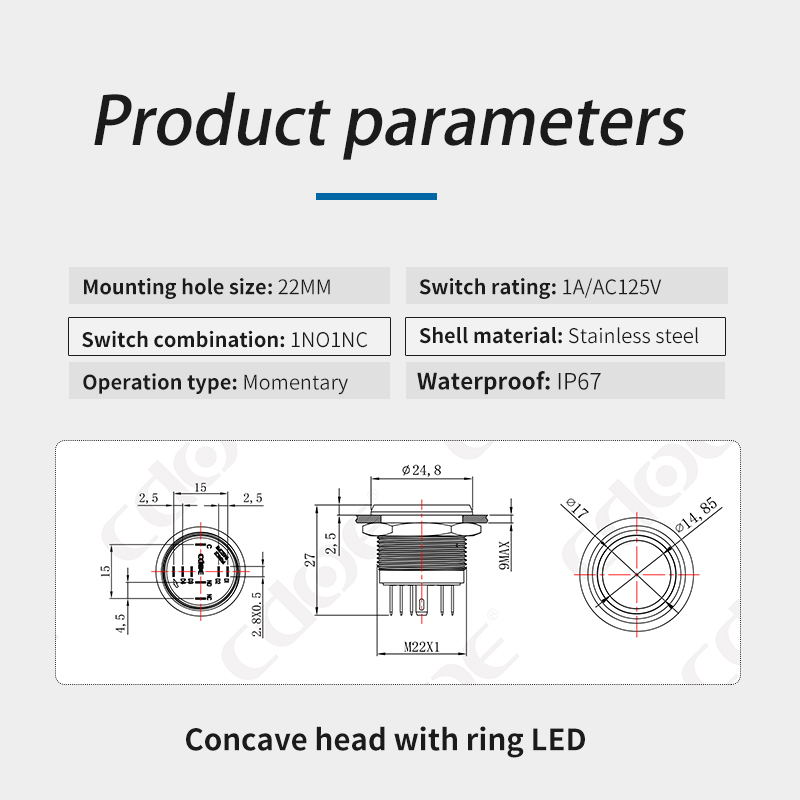

Product Size:

Micro travel button push button

Technical Parameter:

HBDGQ22C Series multicolor reset push button

Product model:

HBDGQ22C-11WE/J/▲/△

Mounting hole size :

22mm

Switch value:

Ith: 1A,UI: 125V

Operation type:

Momentary

Contact configuration:

1NO

Appearance material:

Switch button surface: Stainless steel

Case: Stainless steel

Working environment temperature:

-25℃~+65℃;

Connection form:

Pin terminal

Lamp bead parameters

Protection grade:

IP67

Contact resistance:

≤50mΩ

Insulation resistance:

≥100MΩ

Electrical resistance:

AC2500V, 1min, no flicker and breakdown;

Life

Electrical part: Operate 100,000 times under rated load without any abnormality

Mechanical part: No abnormal movement for 1000,000 times

Problems Encountered By Buyers:

Q: Does this switch come with an installation tool that will make it easier for me to install it?

A: “We have manufactured threaded handles that are convenient and labor-saving during installation.



Q: Is it possible to customize the LED color with other colors? I want White, Red and Green?

A: “We support red and green lighting colors. Blue and white. Orange, regular multi-color beads red green blue, other colors should be answered according to the stock at the time.”



Q: Do these switches come with any certifications or compliance with industry standards?

A: “This push-button switch has CCC, CE, waterproof and other certificates.”
