RGB Tri-color 35mm sos elevator push buttons switch momentary with wire
▶Elevator push buttons Product Description:
In the world of elevators, precision and reliability are paramount. Elevator push buttons play a crucial role in ensuring smooth operation and passenger safety. Introducing our cutting-edge elevator push buttons, designed to meet the highest standards of quality and functionality. This article will delve into the features and applications of these buttons, highlighting their importance in elevator systems.
Product Features
1.35mm Mounting Hole: Our elevator push buttons are designed with a standard 35mm mounting hole, ensuring easy installation in elevator control panels.

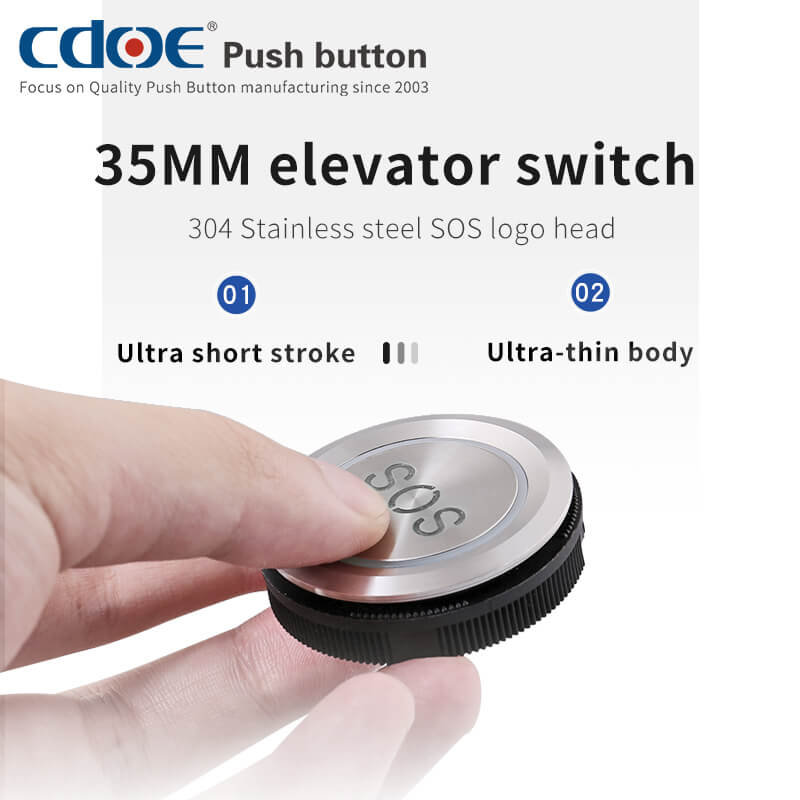

2.SOS Symbol Ultra-Thin Self-Recovering Button: Featuring an ultra-thin design with an SOS symbol, these buttons provide a sleek appearance while ensuring quick recovery after each press.
3.Selectable Contact Types: Users can choose from a variety of contact types, including single pole, to suit their specific elevator system requirements.
4.Maximum Rated Value of 50mA, 12V: With a maximum rated value of 50mA at 12V, our elevator push buttons offer reliable performance for elevator control applications.

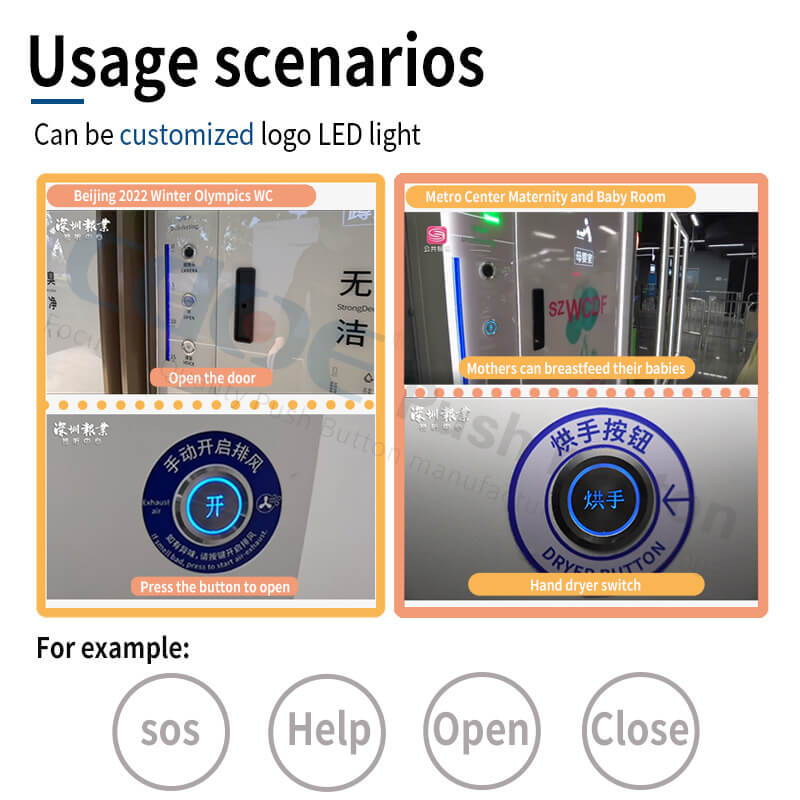

Applications
Our elevator push buttons are commonly used in various elevator systems, including:
1.Residential buildings
2.Commercial complexes
3.Hospitals
4.Hotels
5.Shopping malls
Conclusion
As the backbone of elevator control systems, our elevator push buttons combine durability, functionality, and aesthetic appeal. With a focus on safety and efficiency, these buttons are ideal for modern elevator installations. Elevator manufacturers and building contractors trust our products to deliver reliable performance and passenger satisfaction.
▶Product Model Specification:
▶Product Size:

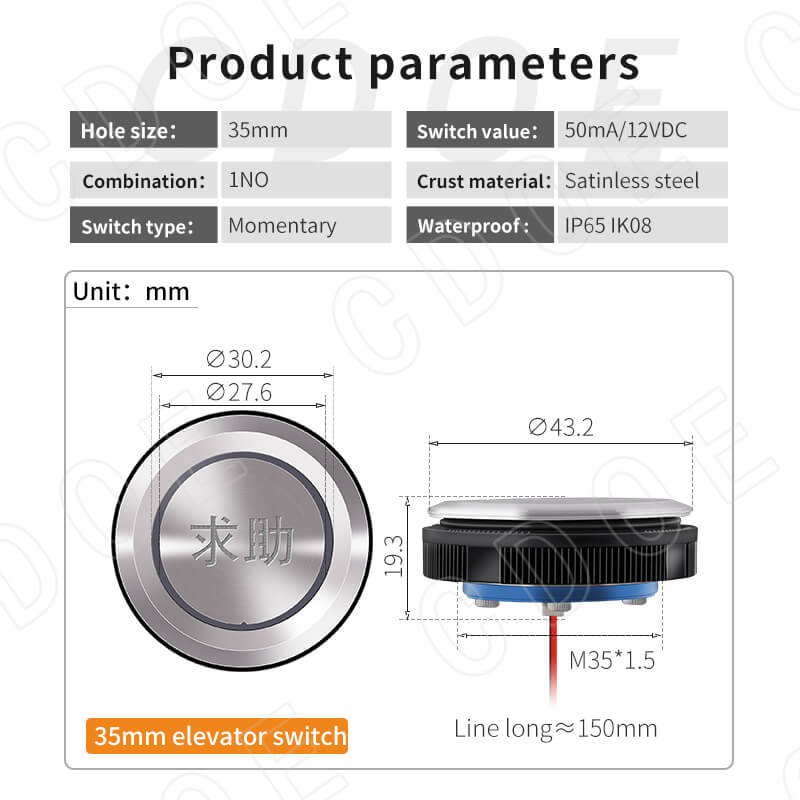

▶Technical Parameter:
|
HBDGQ35SF Series reset Elevator push buttons |
|
|
Product model： |
HBDGQ35SF-10WE/P/▲/△ |
|
Mounting hole size : |
35mm |
|
Switch value: |
Ith: 50mA,UI: DC12V |
|
Operation type: |
Momentary |
|
Contact configuration: |
1NO |
|
Appearance material: |
Switch button surface: Stainless steel Case: Stainless steel |
| Working environment temperature: |
-25℃～+65℃； |
|
Connection form: |
With wire |
|

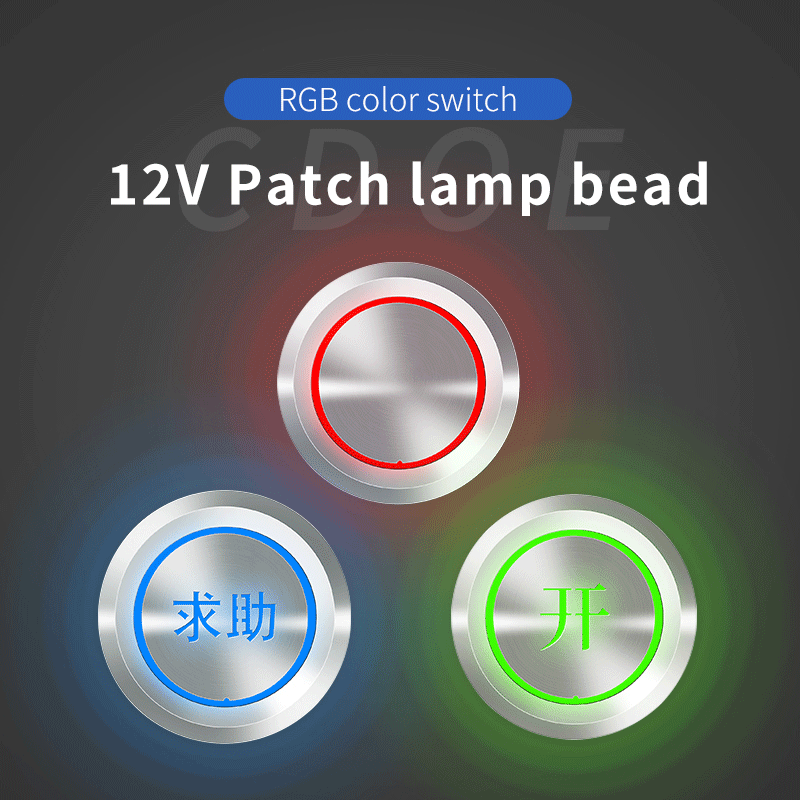

Lamp bead parameters |
|
|
Protection grade: |
IP65 |
|
Contact resistance: |
≤50mΩ |
|
Insulation resistance: |
≥100MΩ |
|
Electrical resistance: |
AC2500V, 1min, no flicker and breakdown; |
|
Life |
|
|
Electrical part: Operate 100,000 times under rated load without any abnormality |
|
|
Mechanical part: No abnormal movement for 1000,000 times |
|
▶Problems Encountered By Buyers:
Q: Do you have a circuit diagram for this Elevator push buttons?
A: “Yes,The button will have six wires.The lines are red, green, white, black, white and blue respectively.
[1: Blue=Blue LED];
[2: White=Normally open wire];
[3: Black=VDD Led public foot];
[4: White=Normally close wire];
[5: Green=Green LED];
[6: Red=Red LED].”
 |
 |
Q: I want to customize the pattern I want. What is the minimum order quantity?
A: “We have the button for General symbol , and the MOQ only needs 10 pieces. If you want to customize the pictures you want, the MOQ will be judged according to the actual difficulty of symbols. For details, you need to contact us for further communication before you can tell us”
Q: Do you have any Elevator push buttons with braille type?
A: “Are you referring to this kind of elevator button? If so, I'm sorry. The company doesn't make this one anymore.”
