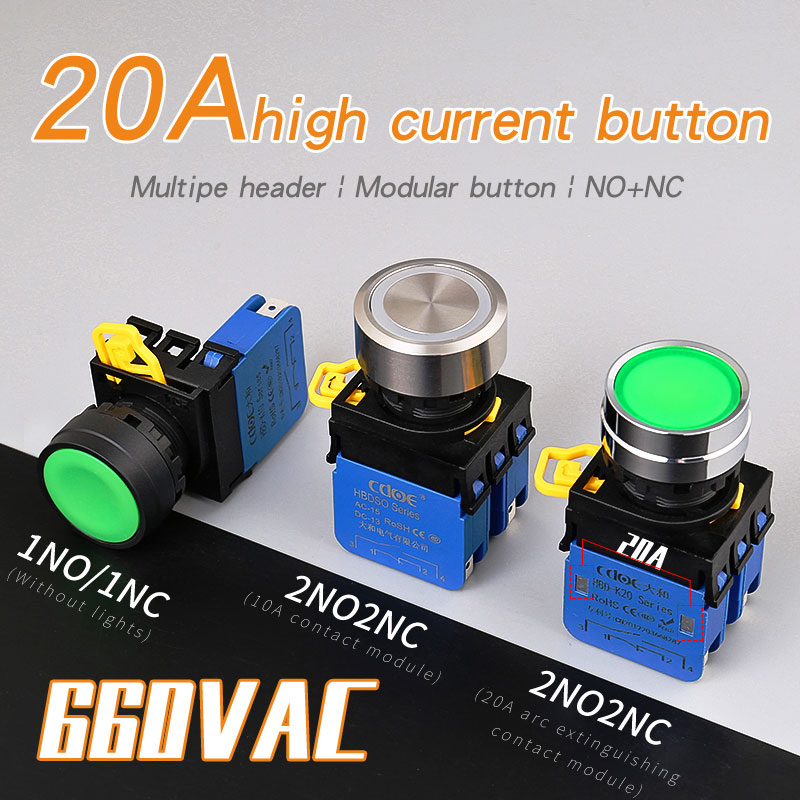

20a High Current Waterproof Momentary push button 1no1nc 2no2nc 22mm Plastic switch with Lights

Short Description:

Product Model: HBD-K20A-□(D)

Mounting Hole size: 22MM

Switch Value: Ith: 20A,UI:660V

Operation Type: Momentary,Latching

Min.Order Quantity: 20 Piece/Pieces

Method Of Payment: T/T(Wire transfer),Paypal,Credit card

Related video: Click

Available equipment: Elevators, charging piles, automation equipment, motor vehicles, yachts, access control, automatic guided vehicles, lathes, lifts, lawn mowers

Product Detail

Why choose us?

Product Tags

The head of the product home page

▶ Product Description:

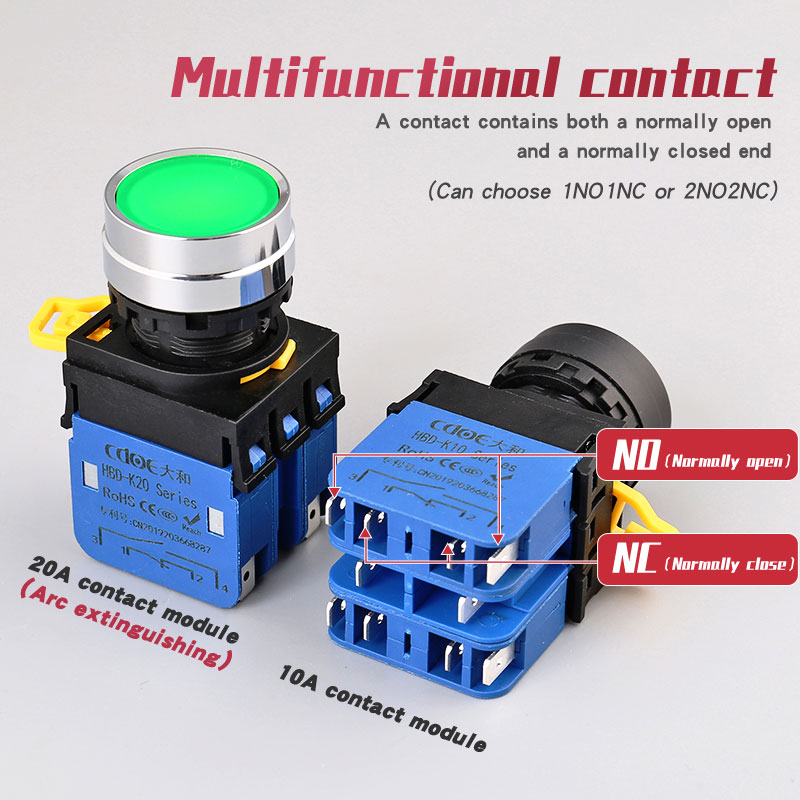

High current arc extinguishing device Button switch 660V voltage, magnetic arc blowing device can reduce the spark caused by high current when disconnecting. 22MM mounting hole, supporting multi-functional contact type, one contact contains normally open and normally closed.

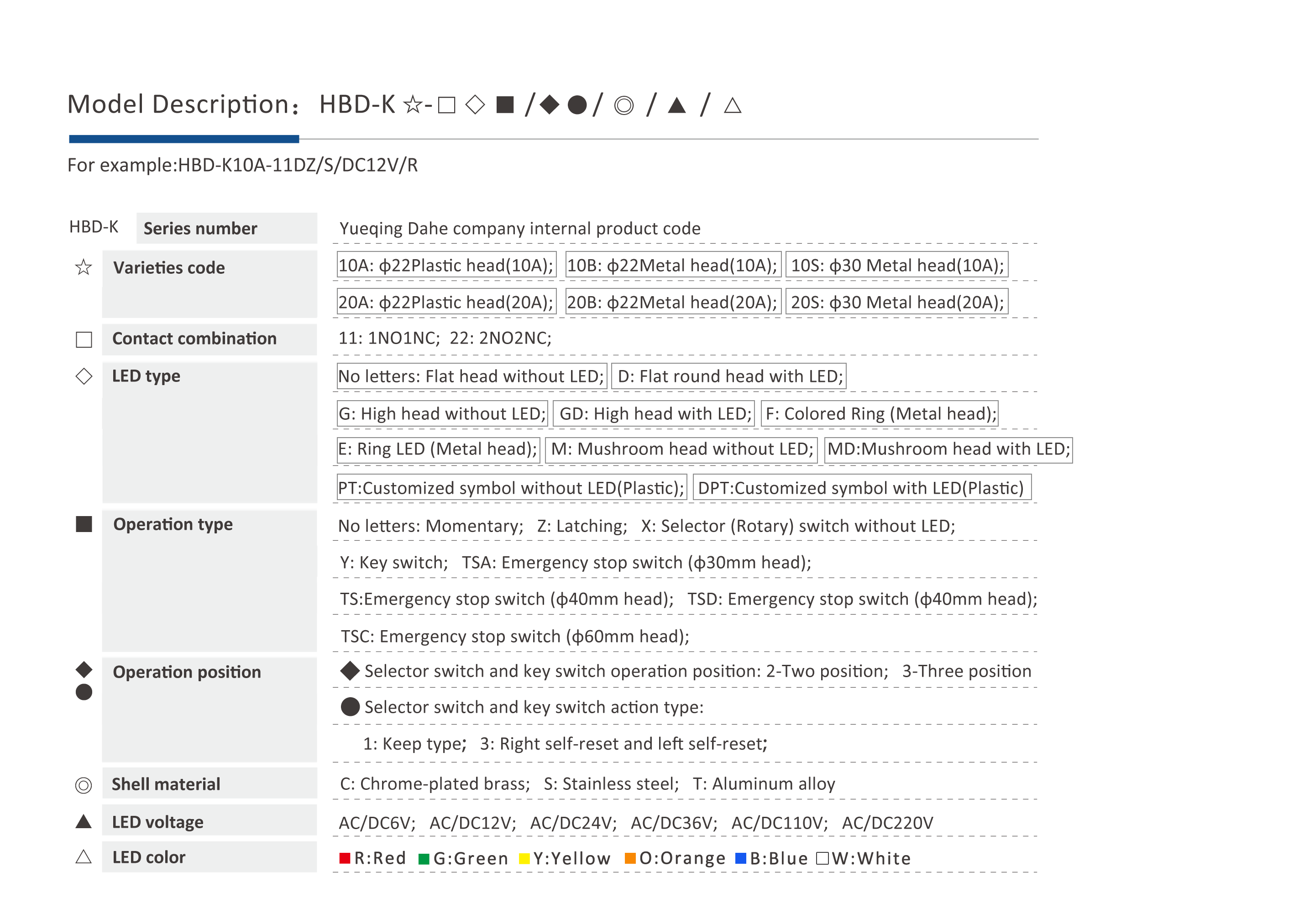

▶ Product Model Specification:

Model specification

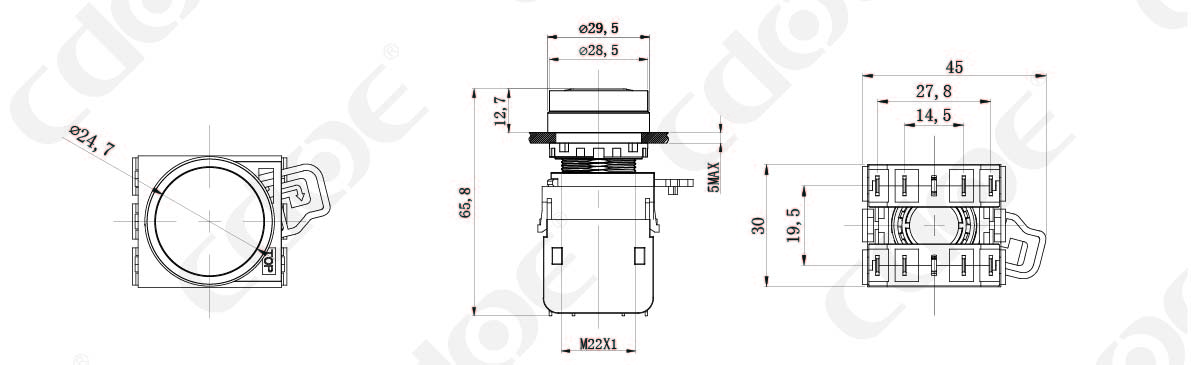

▶ Product Size:

HBD-K20A-22Product size

▶ Technical Parameter:

HBD-K20A series Flat round head push button switch

Product model : HBD-K20A-□(D)
Mounting hole size : 22mm
Switch value: Ith:20A,UI:660V
Operation type: Momentary,Latching

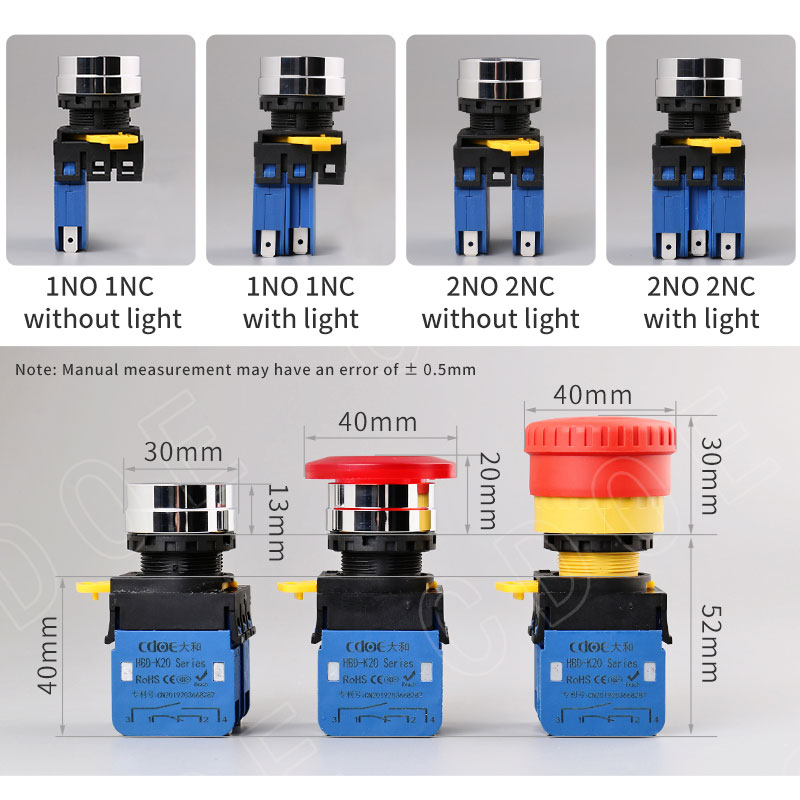

Contact configuration: 1NO1NC,2NO2NC
Appearance material: Head:PA66;
Switch button surface:PC;
Contact:Silver alloy;
Terminal type: Screw terminal
Working environment temperature: -25℃~+65℃;
Connection form: With wire;
Lamp bead parameters
Rated voltage : 6V/12V/24V/36V/110V/220V;(Other voltages can be customized)
Rated current: ≤20mA
Led color: Red/Green/Yellow/Orange/Blue/White
Led life: 50000 hours
Protection grade: IP65
Contact resistance: ≤50mΩ
Insulation resistance: ≥100MΩ
Electrical resistance: AC2500V,1min,no flicker and breakdown
Electrical part: Operate 50,000 times under rated load without any abnormality
Mechanical part: No abnormal movement for 1000,000times

▶ Problems encountered by buyers:

Q: Can you provide samples? Are the samples free?

A:“Yes, we can provide samples. We will collect samples fee (1-3 pcs) and you have to pay for the shipping cost. When you place an official order, we will refund the sample fee to you.”

Q: I want a normally open contact, will this one do?

A:“Yes,no problem. You only need connect normally open contact, the other contact is not connected.”

Q: What is the maximum waterproof rating of this model?

A:“The waterproof rating of this model is up to IP65.”
