IP65 Emergency stop button 22mm one normally open push switch lay5 for new energy machine
▶Product Description:
The HBDY5-KA-TS series of push button switch from Yueqing Dahe Electric Co.,Ltd this is a new emergency stop button, which will have a yellow buckle type component, without screw fixation. Simply pull the yellow component and it can be easily fixed.Shell material environmental protection economy, waterproof IP65. Price concessions.
▶Technical Parameter:
HBDY5-KA Series emergency stop switch |
|

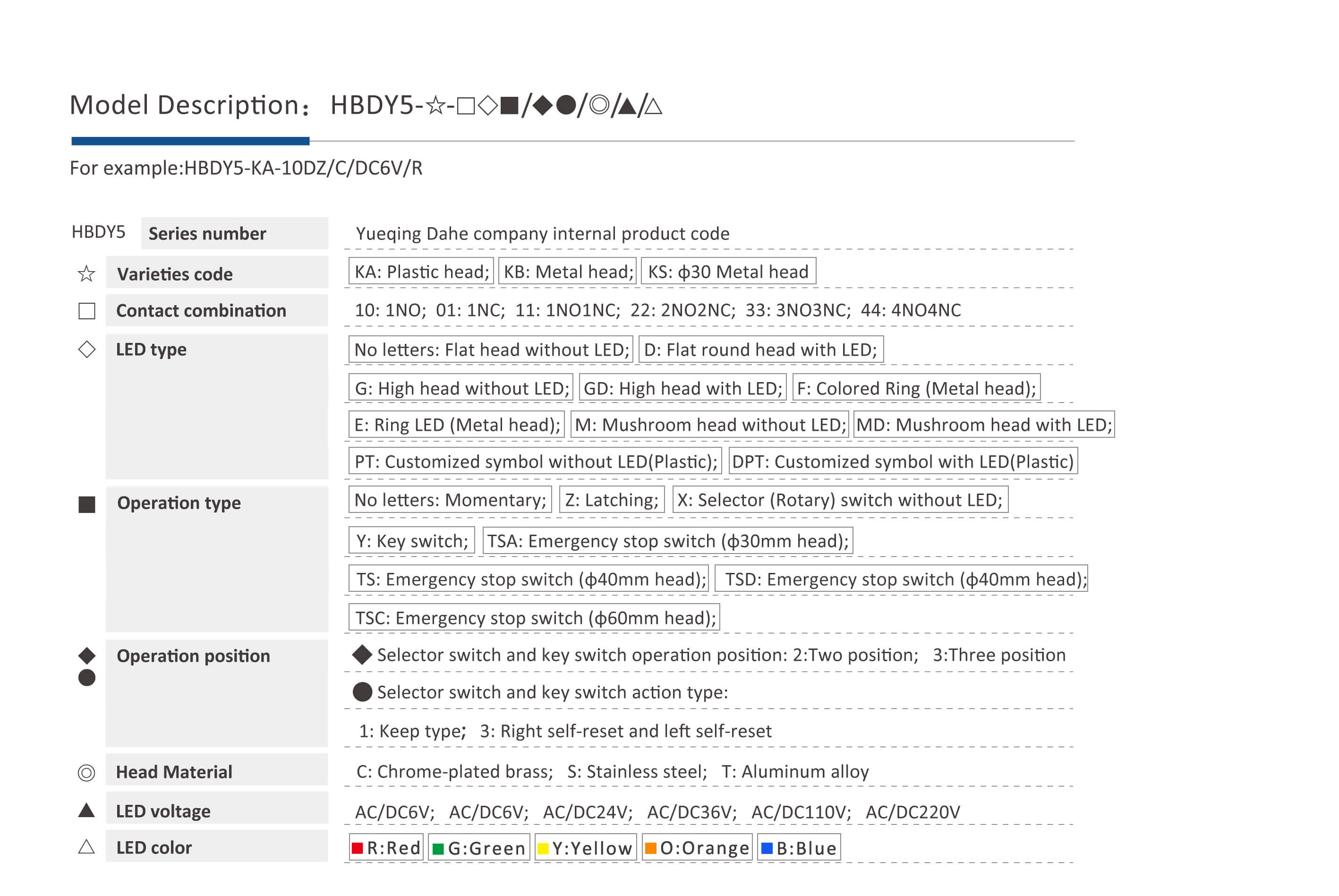

Product model: |
HBDY5-KA-□TS |
Mounting hole size : |
22mm |
Switch value: |
Ith:10A,UI:600V |
Operation type: |
Latching |
Contact configuration: |
1NO,1NC |

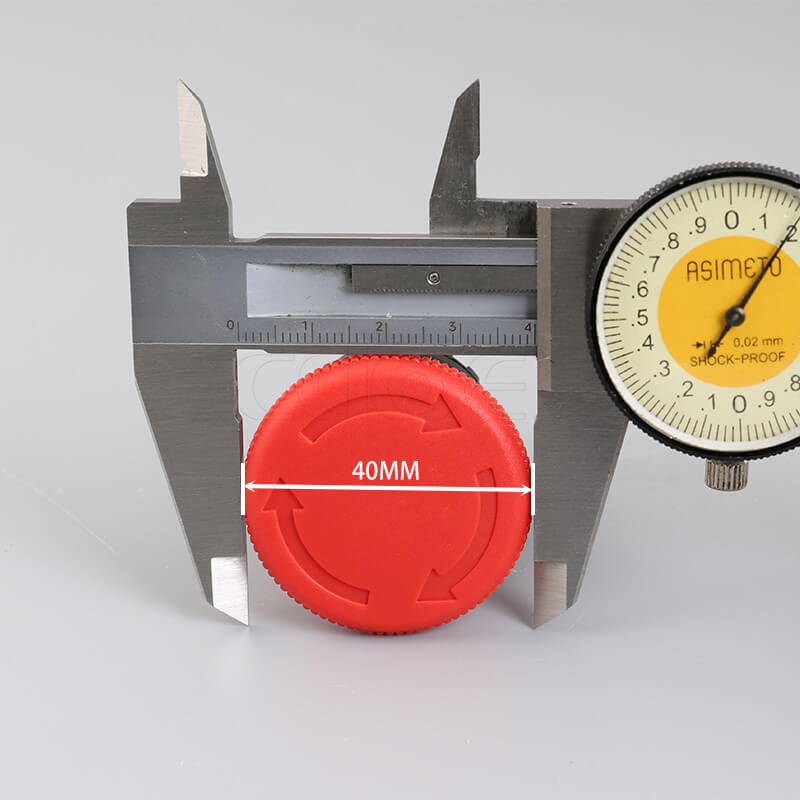

Head Surface dimension: |
40mm |
Appearance material: |
Head:PA66; Switch button surface:PC; Contact:Silver alloy; |
Terminal type: |
Screw terminal |
Working environment temperature: |
-25℃~+65℃; |
Connection form: |
With wire |
Lamp bead parameters |
|
Protection grade: |
IP65 |
Contact resistance: |
≤50mΩ |
Insulation resistance: |
≥100MΩ |
Electrical resistance: |
AC2500V, 1min, no flicker and breakdown; |
Life |
|
Electrical part: Operate 50,000 times under rated load without any abnormality |
|
Mechanical part: No abnormal movement for 1000,000 times |
▶Problems encountered by buyers:
Q:What are emergency shut off buttons?
A: “The Emergency Power Off (EPO) button, also called an EPO switch or EPO panel, is a safety measure for snappily decoupling electrical power to a particular piece of outfit, or to an entire installation, in the event of an exigency.”
Q:What is emergency push button?
A: “An exigency stop drive button switch is used as a safety measure to stop dangerous corridor (loads). An Exigency Stop Switch must be largely visible in color and shape, and must be easy to operate in exigency situations .”
Q:How do I use the emergency stop button?
A:“The emergency stop button usually uses its normally closed function. In case of an emergency, just press the switch head to make the device stop immediately.Rotate to release the red head and restart the device.”
Thank you for your trust and support!
* Founded in 2003 and experienced in the field of pushbutton switches for more than 20 years.
* We have a complete production line, advanced production equipment, experimental equipment and testing instruments, in strict accordance with the requirements of IS09001 quality assurance system.
* And the world’s top 500 enterprises have cooperation.
* Main production buttons: Anti-vandal metal push button switches(which are waterproof), plastic push button switches, high current switches for equipment control and panel mounting, micro travel switches(which can be used in elevator),touch switch ,20a high current switch, signal lamp(indicator), buzzers and push button accessories.
* Large quantity can enjoy a certain discount.
*Where can our push button switches be used?Control box,elevator,moving train,industrial lathe machine,New energy machine Charging pile,ice cream machine,blender,Coffee machine,control panel,motorcycle,Cutting Machine,Machine tool equipment,Medicalequipment,automation equipment,solar equipment,yacht,security check equipment,heating equipment,CNC equipment,control handles,Audio equipment,diy panel.,etc
Our buttons are widely used, directly sold by manufacturers, more assured of quality, and have sufficient product inventory for you to choose. One-to-one sales, if you have any dissatisfaction, you can complain
* Pay attention to our official social media, send subscribed pictures, you can enjoy discounts and some products 10% off discount!!!
We will conduct live product explanation every Tuesday or Thursday from time to time. If you have any questions about the product, you can watch our live broadcast to learn more~Welcome new and old customers to watch!
The latest live broadcast will start at 4 p.m on August 11th(China time)
Thank you for your support!
