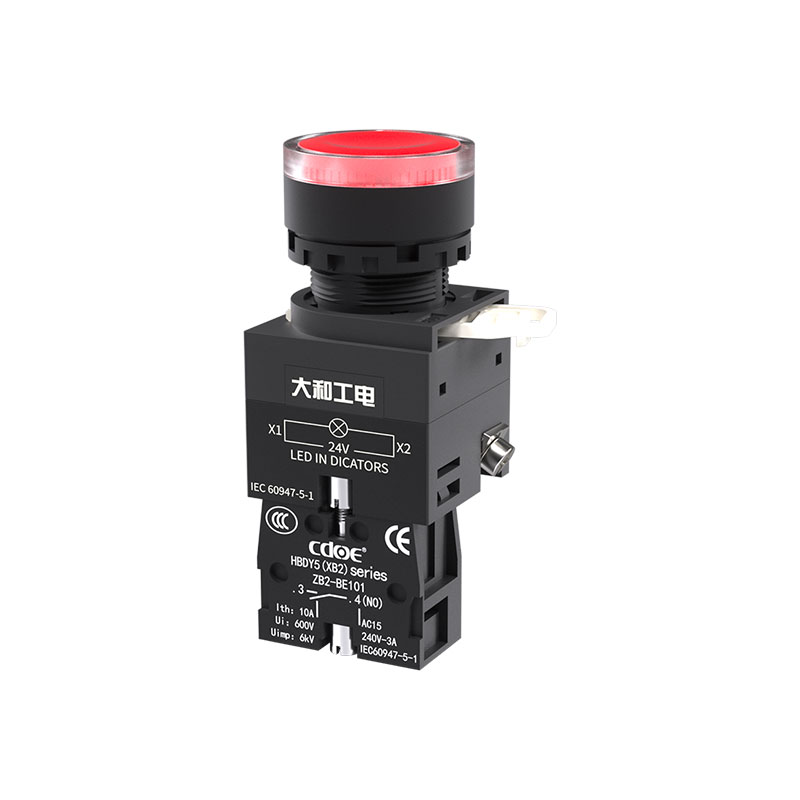

Xb2 Lay5 Screw Terminal Waterproof 22mm Momentary Led Illuminated Pushbutton Switches 10a

Short Description:

Product Model: HBDY5-KA-□D

Mounting Hole Size: 22MM

Switch Value: Ith: 10A, UI: 600V

Operation Type: Momentary, Latching

Min.Order Quantity: 10 Piece/Pieces

Method Of Payment: T/T(Wire transfer), Paypal, Credit card

Related video: Click

Available equipment: Elevators, charging piles, automation equipment, motor vehicles, yachts, access control, automatic guided vehicles, lathes, lifts, lawn mowers

Product Detail

Why choose us?

Product Tags

The head of the product home page

Product Description:

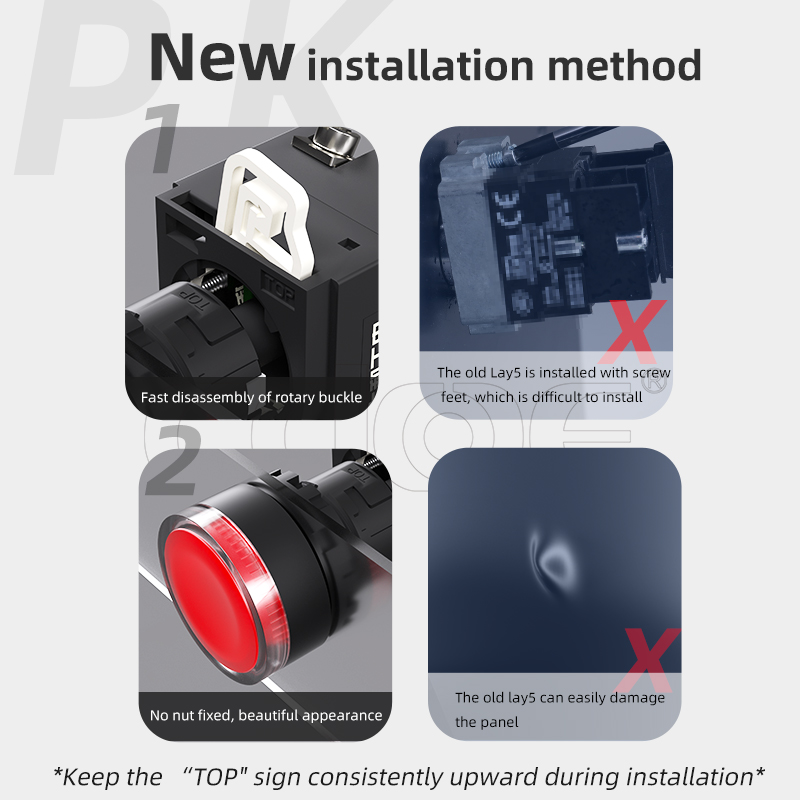

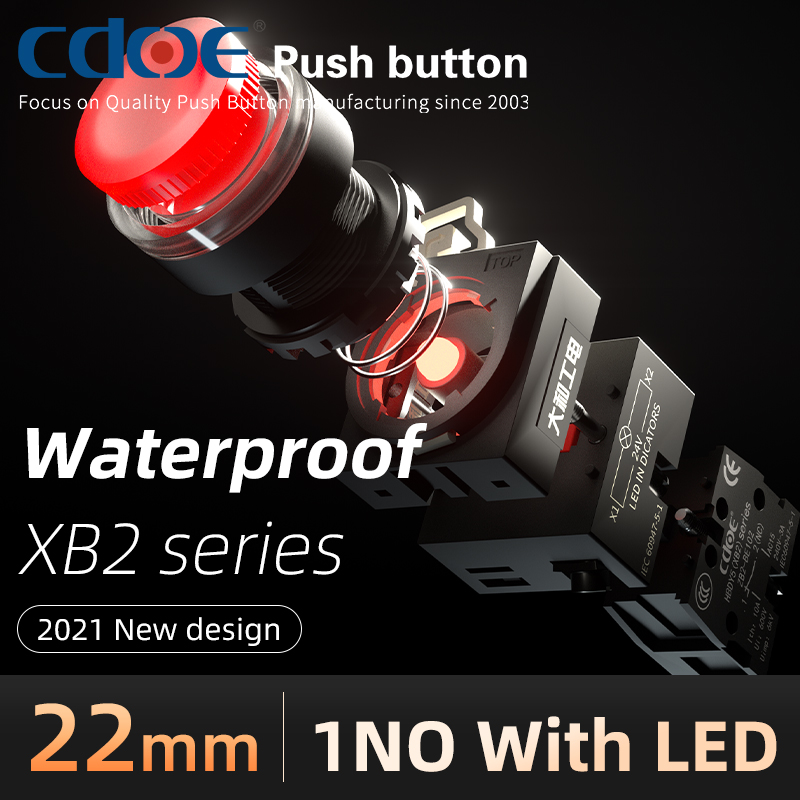

New HBDY5 series plastic buttons, installation aperture 22mm. Say goodbye to the complicated screw installation method of the old model, and upgrade the buckle installation, which can be quickly installed in just 2 steps: 1. Align the top mark on the head, and place the top mark on the base. 2. Pull the buckle and rotate it. No need to worry about the button head being unstable and give up choosing it.

The screw-column connection method adopts 45-degree elevation angle screws, which is more convenient and quicker to connect without disassembling and assembling the base. The whole body is made of environmentally friendly materials to reduce environmental pollution and use it with confidence, 10A high current, 660V voltage, and the head is waterproof up to IP65 level, which can better adapt to the outdoor humid environment.

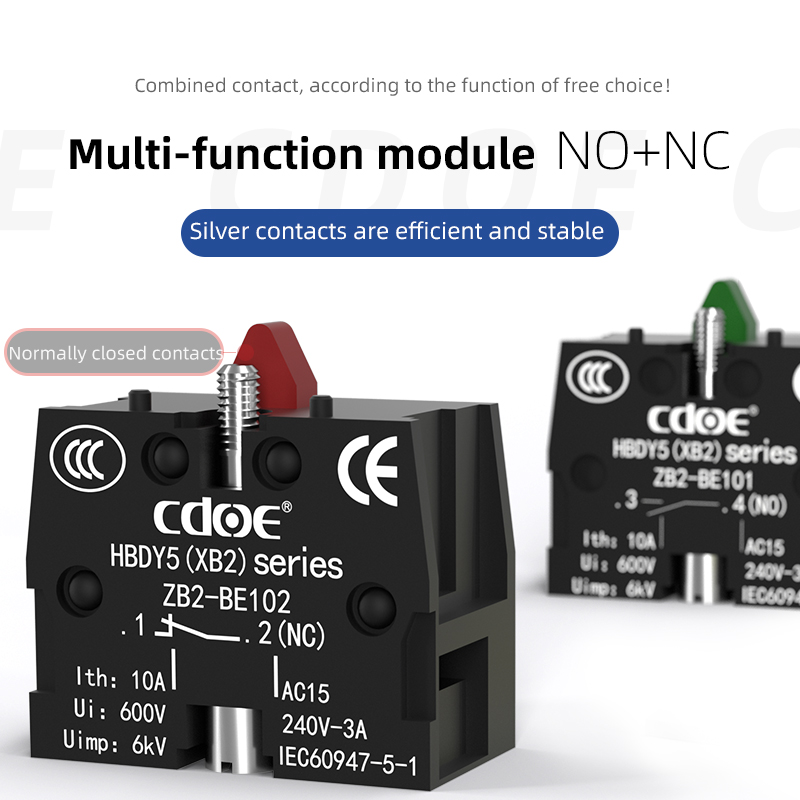

The experimental data is obtained after testing,and it has a mechanical life of one million times, which can ensure that each part of the button can work for a long time. The default normally open or normally closed contacts can also be freely installed with contact modules according to customer needs to meet different electrical needs.

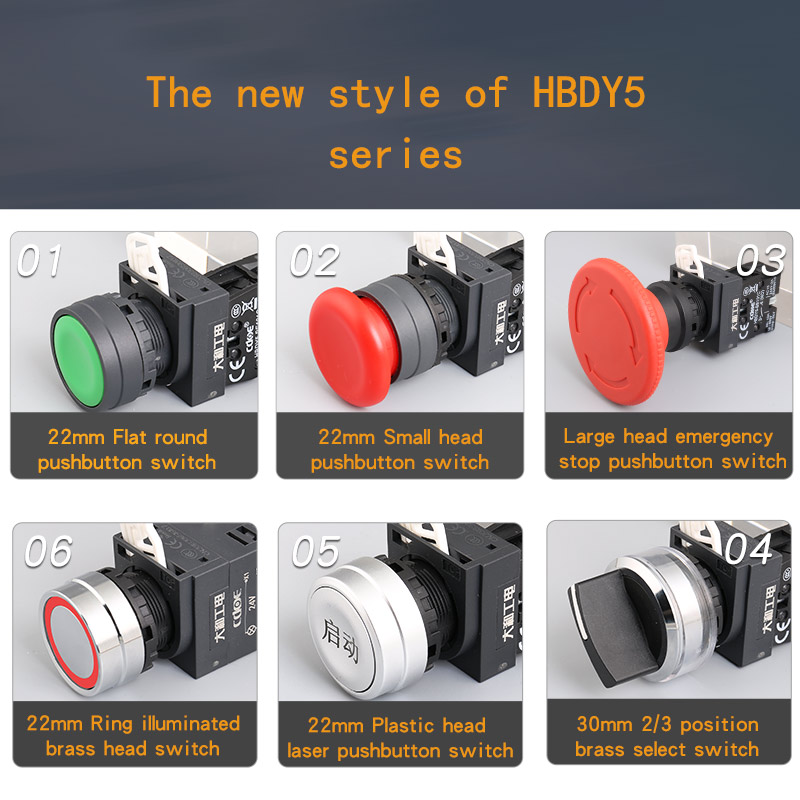

There are various head types to choose from: flat head, high head, emergency stop button, mushroom button, key button, rotary button, two material head: plastic or brass head, head color: red, green, yellow , blue, white, black. Optional common voltages are: DC12V/DC24V/AC220V. The price is cheap and the quality is high.

▶Product Model Specification:


Product Size:

HBDY5-KA-11D-Product size

Technical Parameter:

HBDY5-KA-10 series Flat round head push button switch

Product model: HBDY5-KA-□(D)
Mounting hole size : 22mm
Switch value: Ith:10A,UI:600V
Operation type: Momentary,Latching
Contact configuration: 1NO,1NC,1NO1NC,2NO2NC
Appearance material: Head:PA66;
Switch button surface:PC;
Contact:Silver alloy;
Terminal type: Screw terminal
Working environment temperature: -25℃~+65℃;
Connection form: With wire;
Lamp bead parameters
Rated voltage : 6V/12V/24V/36V;110V/220V;(Other voltages can be customized)
Rated current: ≤20mA
Led color: Red/Green/yellow/orange/blue/white
Led life: 50000 hours
Protection grade: IP65
Contact resistance: ≤50mΩ
Insulation resistance: ≥100MΩ
Electrical resistance: AC2500V,1min,no flicker and breakdown
Electrical part: Operate 50,000 times under rated load without any abnormality.
Mechanical part: No abnormal movement for 1000,000times

Problems Encountered By Buyers:

Q: Can you provide samples? Are the samples free?

A:“Yes, we can provide samples. We will collect samples fee (1-3 pcs) and you have to pay for the shipping cost. When you place an official order, we will refund the sample fee to you.”

Q:How to ensure that the snap-on disassembly is firm?

A:“The head and the base are fixed by rotating clamping method, and the "top" mark of the head and the "top" mark of the base are placed in corresponding positions,Finally through the small buckle rotation fixed, do not worry about the head and base for some reasons fall off”

Q:Does this button type have 3NO3NC or 4NO4NC?

A:“Yes, it can be achieved. This contact is made up of modules.We can produce it according to your needs”

Thank you for your trust and support!
