IP68 Waterproof 16MM 19MM 22MM Touch push button switch ring illuminated led momentary pushbutton with wires
▶Product Description:

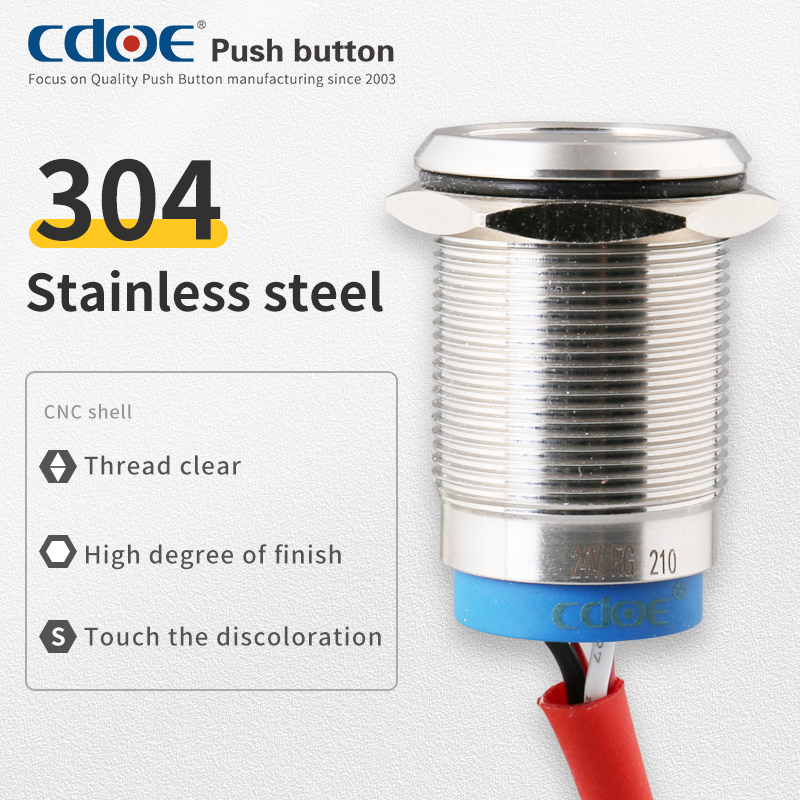

16MM 19MM 22MM bi-color red green lights illumination capacitive touch button with led flat.Metal shell stainless steel waterproof ip68.Concave head ring LED with lead switch.The two operation types are self-replicating and self-locking.9-24V DC wide voltage led lamp bead design brightness uniform.Button default color red led and press the switch change green led.
▶Product Size:
▶Technical Parameter:
|

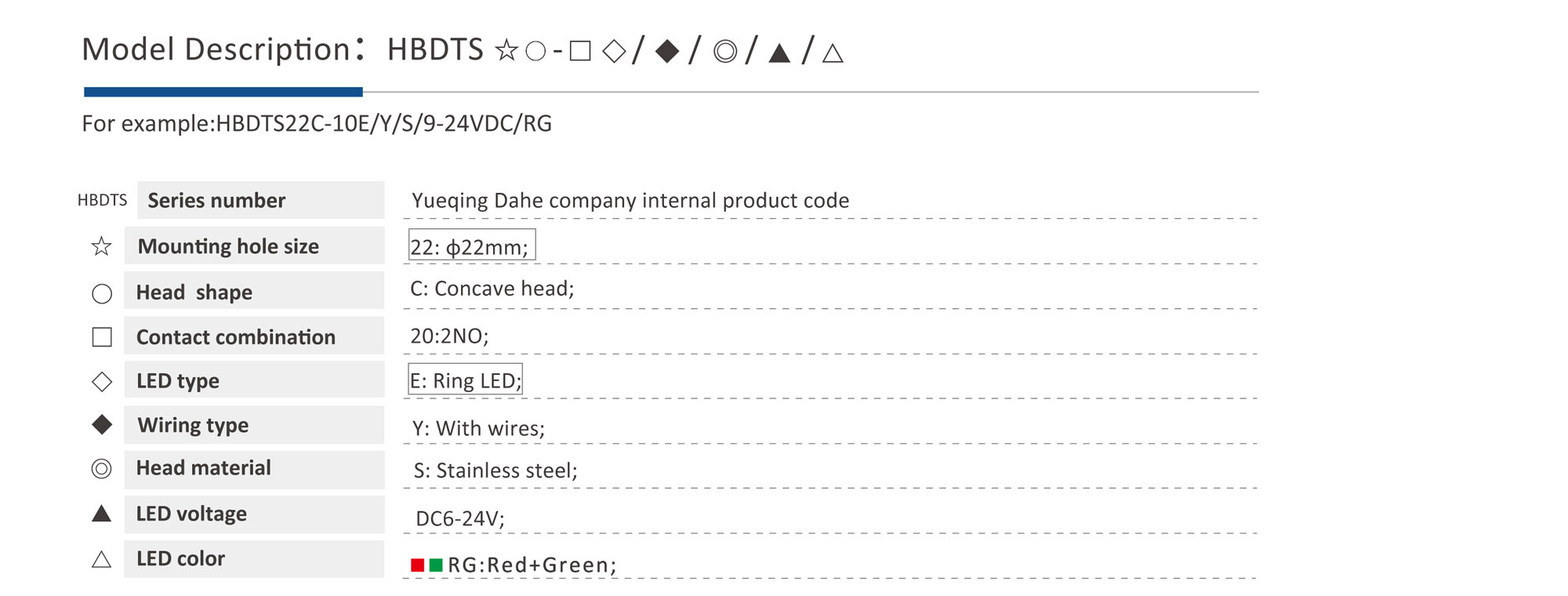

HBD-TS16P、HBD-TS19C、HBD-TS22C-10E Series touch push button switch |
|
| Product model : | HBD-TS16P、HBD-TS19C、HBD-TS22C-10E |
| Mounting hole size : | 16MM 19MM 22MM |
| Switch value: | Ith:3A,UI:24V/DC |
| Operation type: | Momentary,Latching |
| Contact configuration: | 1NO |
| Working environment temperature: | -25℃～+70℃ |
| Connection form: | Welding wire |
| Lamp bead parameters | |
| Rated voltage : | 9V-24v |
| Rated current: | ≤20mA |
| Led color: | Red/Green |
| Led life: | 50000 hours |

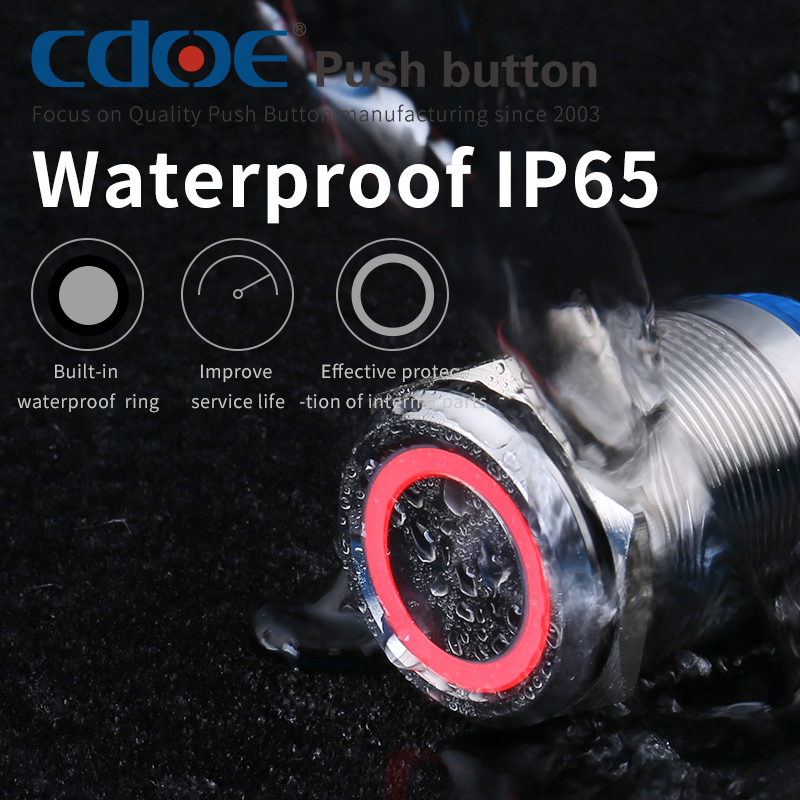

| Protection grade: | IP68 |
FAQ About 16MM 19MM 22MM Touch Push Button Switch
Q1: What product models are available for this touch push button switch?
A1: The available product models are HBD-TS16P, HBD-TS19C and HBD-TS22C-10E.
Q2: What mounting hole sizes does this touch push button switch support?
A2: This touch push button switch supports 16mm, 19mm and 22mm mounting hole sizes.
Q3: Is this touch push button switch waterproof?
A3: Yes. The protection grade of this touch push button switch is IP68.
Q4: What is the switch value of this product?
A4: The switch value is Ith: 3A, UI: 24V/DC.
Q5: What operation types are available?
A5: This touch push button switch supports momentary and latching operation types.
Q6: What contact configuration does this touch switch use?
A6: This touch switch uses a 1NO contact configuration.
Q7: What is the connection form of this touch push button switch?
A7: The connection form is welding wire.
Q8: What LED colors are available?

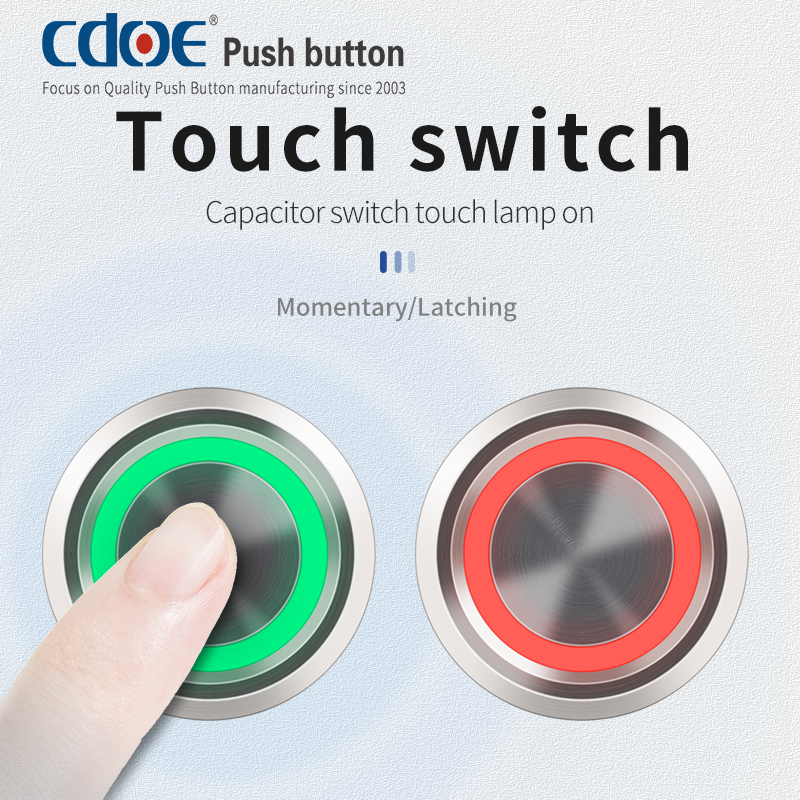

A8: The LED colors are red and green. The default color is red, and the LED changes to green when the switch is pressed.
Q9: What rated LED voltage does this touch switch support?
A9: The rated LED voltage range is 9V to 24V.
Q10: What equipment can this touch push button switch be used for?
A10: It can be used for charging piles, medical equipment, coffee machines, yachts, pump control panels, doorbells, horns, computers, motorcycles, automobiles, tractors, audio equipment, industrial machines, machine tool equipment, purifiers, ice cream machines, model control panels and blenders.
Q11: How can customers contact CDOE for this touch push button switch?
A11: Customers can contact CDOE by email at cdoe@cncdoe.com, by telephone at +86-0577-61780678, or by WhatsApp at +86-13968754347.
