Metallic 19mm Flash Buzzer Waterproof Ip65 Screw Terminal Red Keeps Chirping

Short Description:

Product Model: HBDGQ19G-EM/L/N(S)

Product Type: Buzzer

Mounting Hole Size: 19MM

LED Value: 6V/12V/24V

Min.Order Quantity: 40 Piece/Pieces

Method Of Payment: T/T(Wire transfer), Paypal, Credit card

Related video:  Click

Available equipment: Elevators, charging piles, automation equipment, motor vehicles, yachts, access control, automatic guided vehicles, lathes, lifts, lawn mowers


Product Detail

Why choose us?

Product Tags

youtube
The head of the product home page

Product Description:

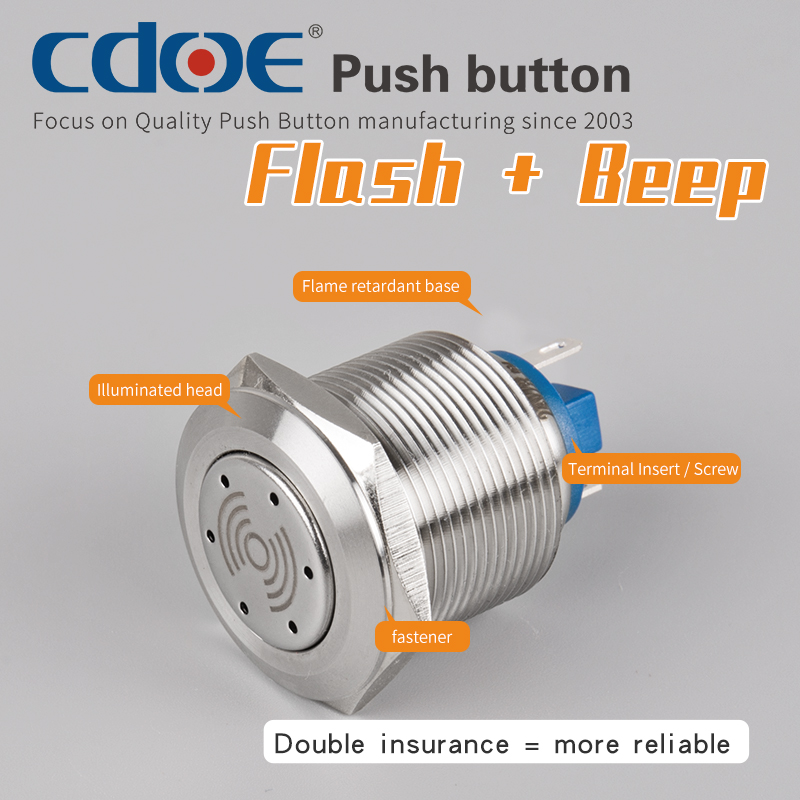

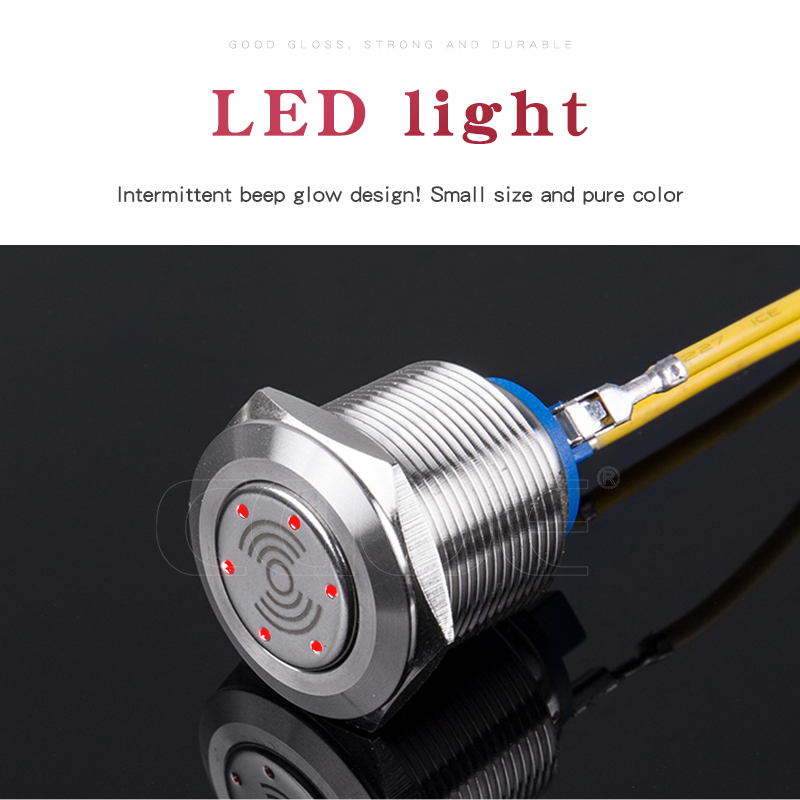

Sound and light alarm continuous buzzer, sensitive response. The head adopts LED lamp bead and sound light alarm, which is more effective and reliable.Red is always bright.Waterproof device built in the head, waterproof grade IP65.Suitable for various occasions, such as fault alarm, warning warning, operation warning and so on.

▶Product Model Specification:

HBDGQ-series-metal-buzzer-product-Model-specification

Product Size:

HBDGQ19G-EM Product size

Technical Parameter:

HBDGQ Series metal buzzer with LED

Product model : HBDGQ19G-EM/L/N(S)
Mounting hole size : 19mm
Appearance material: End face:Stainless steel/Nickel plated brass;
End surface:Stainless steel/Nickel plated brass;
Pedestal:PBT;
Terminal type: Screw terminal
Working environment temperature: -25℃~+65℃
Connection form: With wire
Lamp bead parameters
LED voltage : 6V/12V/24V
LED rated current: ≤20mA
Led color: Red
Led life: 50000 hours
Protection grade: IP65
Sound intensity: ≥75bd (0.1 m)≥65bd (1 m)
Electrical resistance: AC2500V, 1min, no flicker and breakdown

Problems Encountered By Buyers:

Q:Can you record for us how loud the buzzer sounds when it's working?

A:“We have a special product video page, you can look up this buzzer. If you can't find it, you can contact us.”

Q:Is there a metal buzzer for solder terminal? Waterproof ip65?

A:“Yes,we have it.But the waterproof level of the pin is not so high, only IP50.Unable to work in damp conditions.”

Q:Is there any other color light?

A:“Emmm.This metal buzzer only has red light, without other color light for now.”
