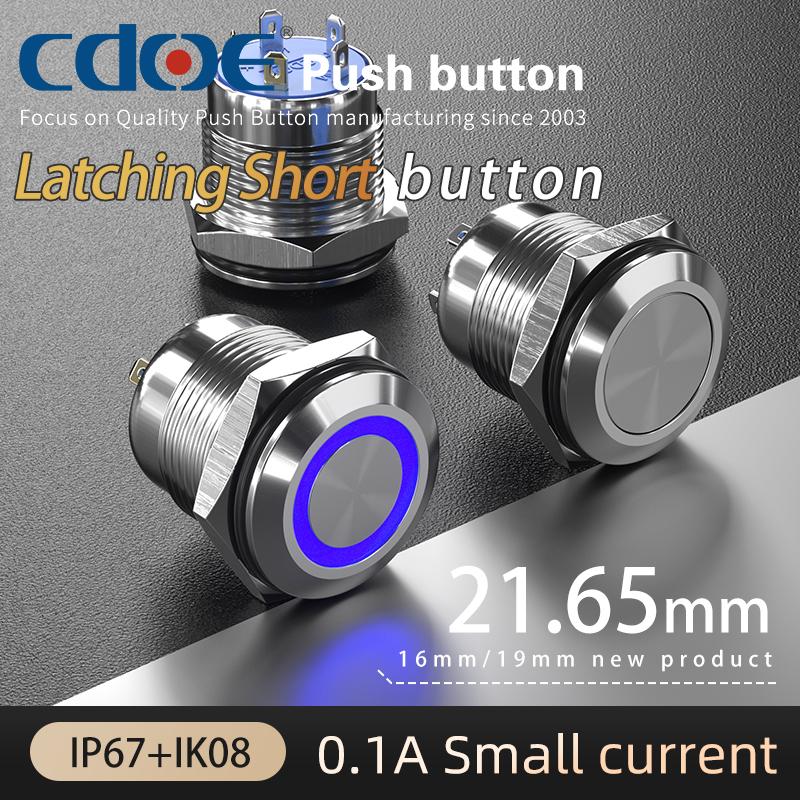

Flat Round ring illuminated 16mm IP67 1no1nc Spdt Small waterproof 12 volt push button switch

Short Description:

Product Model: HBDGQ16F-□E(Z)/J/S

Mounting Hole Size: 16MM

Switch Value: Ith: 0.1A, UI: DC12V

Operation Type: Momentary, Latching

Min.Order Quantity: 40 Piece/Pieces

Method Of Payment: T/T(Wire transfer), Paypal, Credit card

Related video: Click

Available equipment: Elevators, charging piles, automation equipment, motor vehicles, yachts, access control, automatic guided vehicles, lathes, lifts, lawn mowers

Product Detail

Why choose us?

Product Tags

The head of the product home page

▶ Product Description:

Waterproof 12 volt push button switches are indispensable components in various industries, offering reliability and durability in challenging environments. Introducing our premium waterproof 12 volt push button switches, crafted with stainless steel exteriors for exceptional performance. This article will delve into the features and applications of these switches, highlighting their versatility and durability.

Product Features

16mm Mounting Hole: Our waterproof 12 volt push button switches feature a standard 16mm mounting hole, suitable for easy installation in a variety of applications.

Durable Stainless Steel Construction: Built with sturdy stainless steel exteriors, these switches ensure longevity and resistance to corrosion, making them ideal for harsh environments.

Supports Momentary and Latching Operation: With support for both momentary and latching operation, our switches offer versatility in functionality to meet different application requirements.

Selectable Contact Types: Users can choose between normally open and normally closed contact types to suit specific electrical connectivity needs.

Maximum Rated Value of 0.1A, 12V: With a maximum rated value of 0.1A at 12V, our push button switches provide reliable electrical control in low-voltage applications.

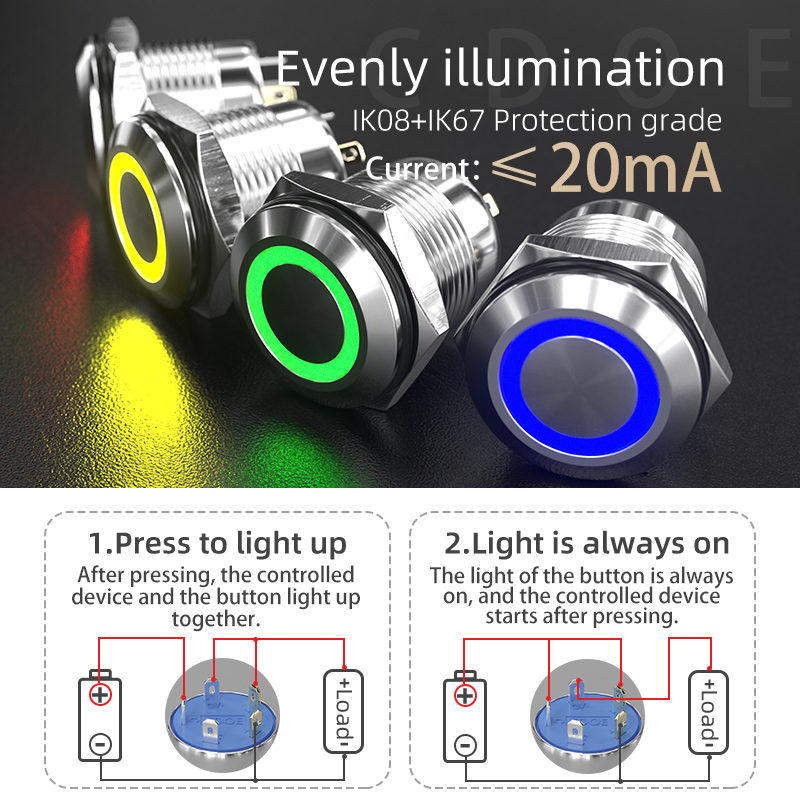

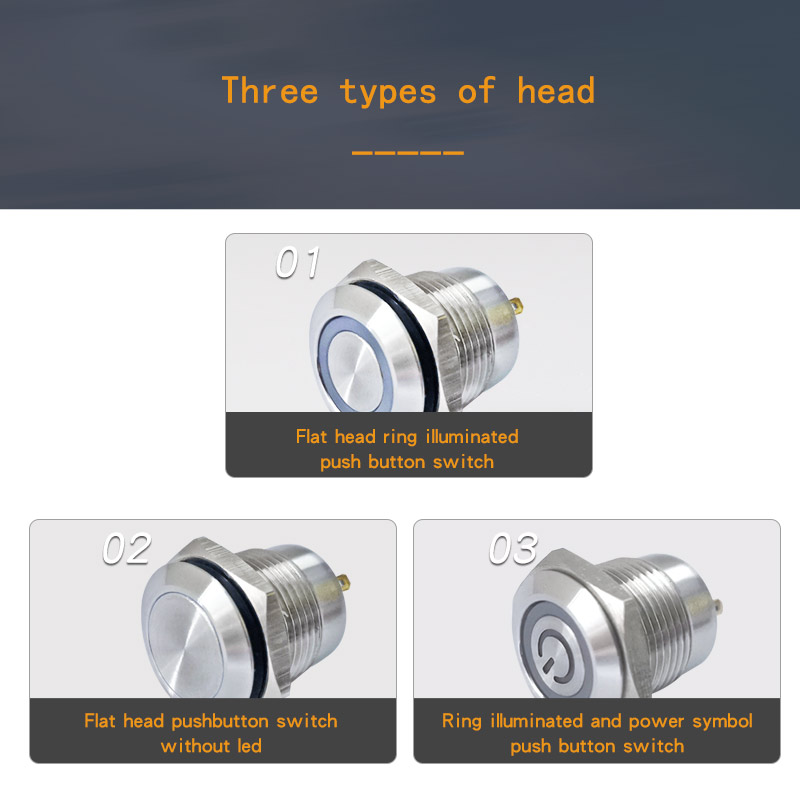

Circular Illuminated Head: Featuring a circular illuminated head, these switches enhance visibility in low-light conditions, ensuring easy operation even in dark environments.

IP67 Waterproof Rating: With an IP67 waterproof rating, our switches are fully protected against dust ingress and immersion in water up to 1 meter deep, making them suitable for outdoor and wet environments.


Our waterproof 12 volt push button switches are widely used in various applications, including marine vessels, outdoor equipment, automotive industry, industrial machinery, and emergency lighting systems.


With their durable stainless steel construction, versatile functionality, and waterproof design, our waterproof 12 volt push button switches are the perfect choice for demanding applications. Whether in marine environments, outdoor settings, or industrial facilities, these switches deliver reliable performance and long-lasting durability.

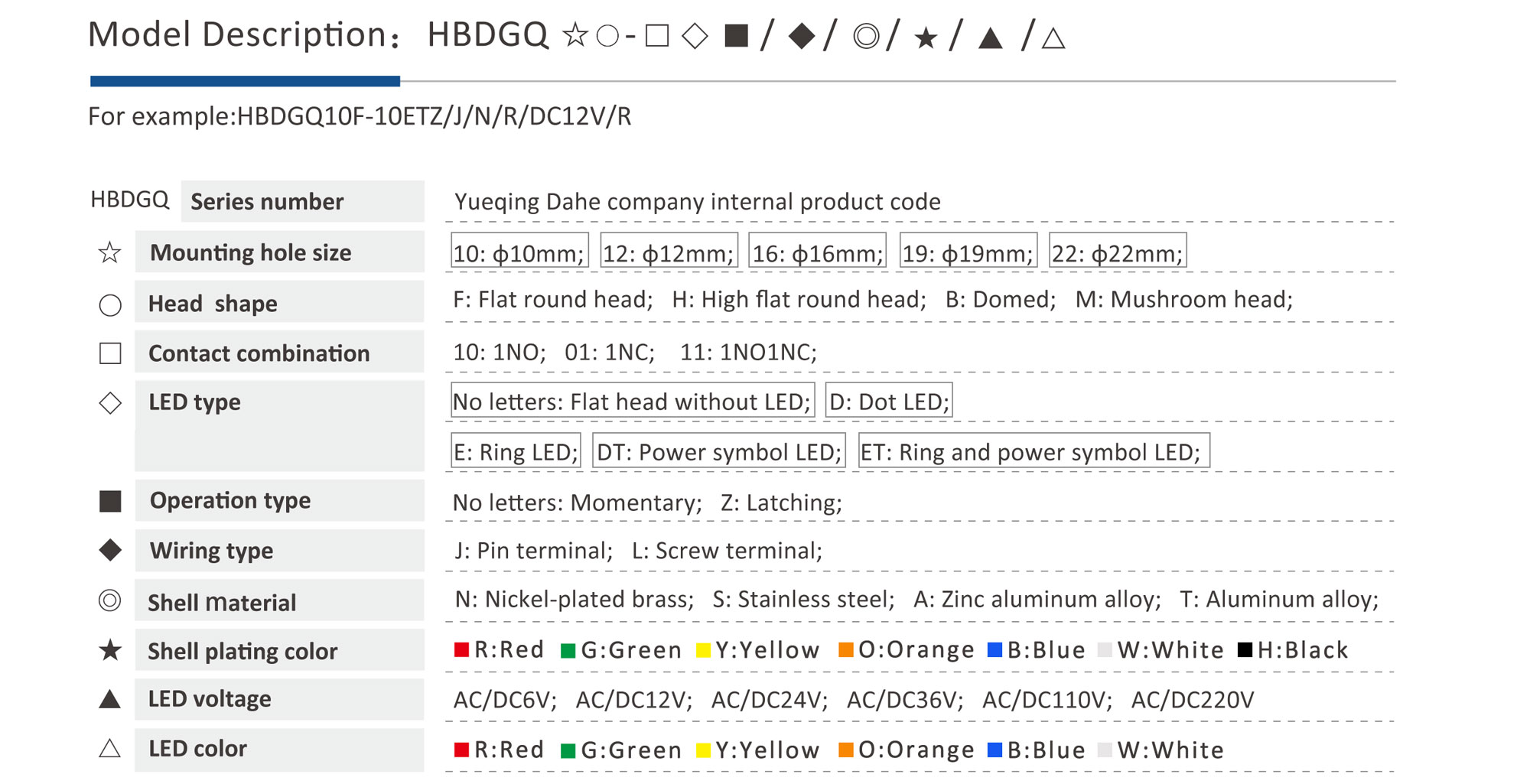

▶ Product Model Specification:

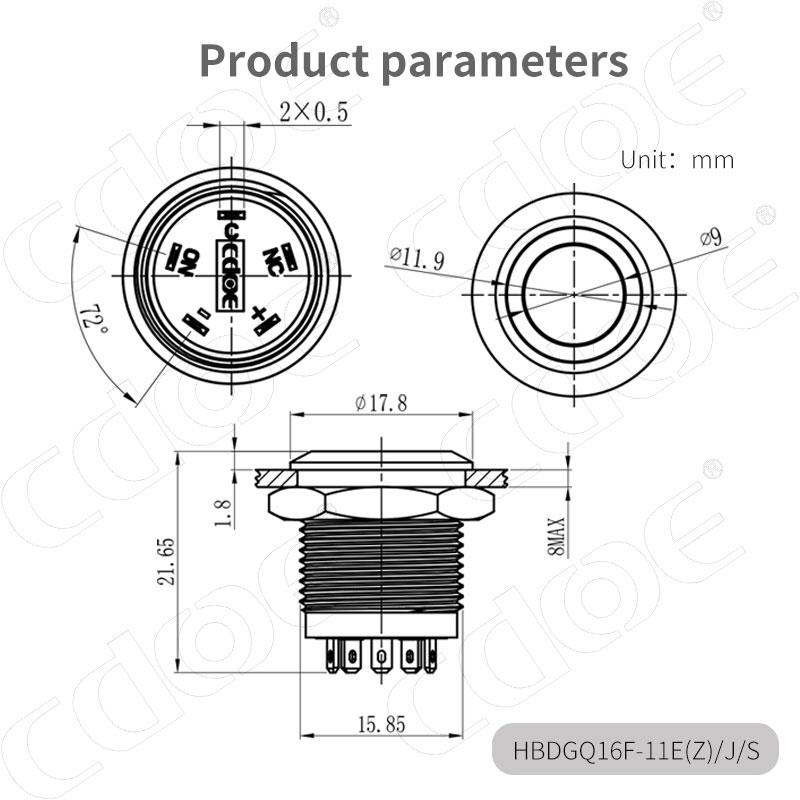

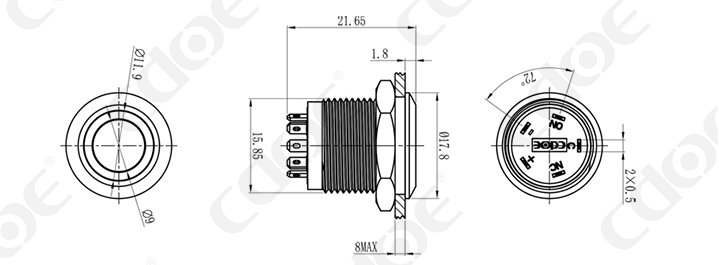

Product Size:


Technical Parameter:

HBDGQ16-11 series waterproof 12 volt push button switch

Product model : HBDGQ16F-□E(Z)/J/S
Mounting hole size : 16mm
Switch value: Ith:0.1A,UI:12V
Operation type: Momentary,Latching
Contact configuration: 1NO1NC
Appearance material: Head:Stainless steel/PC;Switch button surface:Stainless steel/Nickel Plated brass;Pedestal: PBT;Contact:Silver alloy;

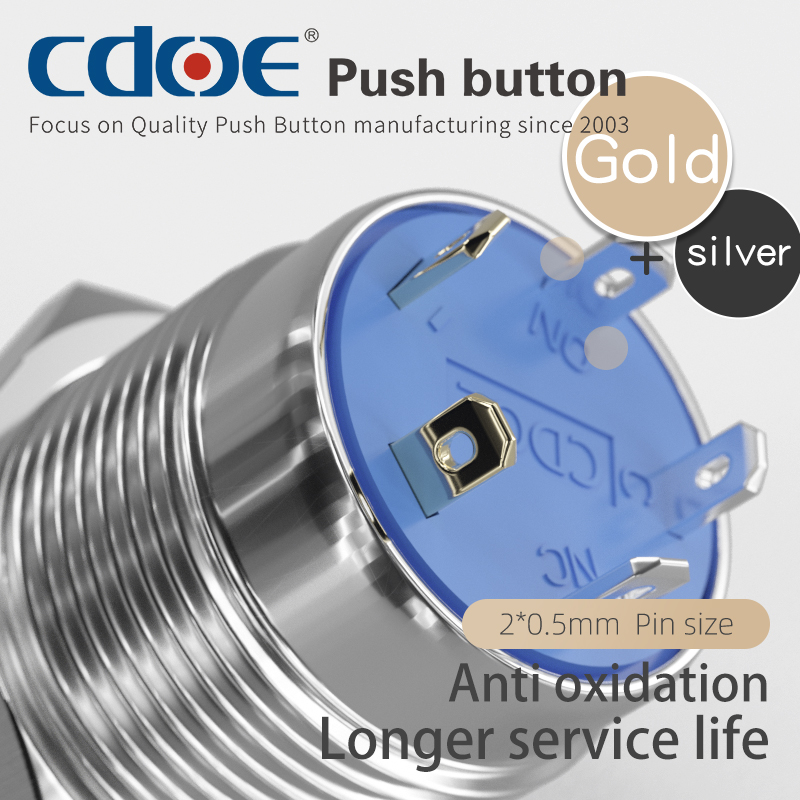

Terminal type: Pin terminal
Working environment temperature: -25℃~+65℃
Connection form: Welding wire
Lamp bead parameters
Rated voltage : 3V/6V/12V
Rated current: ≤20mA
Led color: Red/Green/Yellow/Orange/Blue/White
Led life: 50000 hours
Protection grade: IP67
Contact resistance: ≤100mΩ
Insulation resistance: ≥100MΩ
Electrical resistance: AC250V,1min,no flicker and breakdown
Electrical part: Operate 10,000 times under rated load without any abnormality
Mechanical part: No abnormal movement for 50,000times

▶ Problems encountered by buyers:

Q:Does this button have a 19mm mounting hole?

A:“Hello, at present, our this type has only 16mm mounting hole, and we maybe continue to develop other holes in the future. Please pay attention to us for follow-up information."

Q:Is there a 2NO2NC waterproof 12 volt push button switch?

A:“Yes, we have other series of buttons to fulfil 2NO2NC waterproof IP67.”

Q:Does this one support bi-color lighting?

A:“Sorry,This one is not supported because the internal device is too small to install more lamp beads.”
