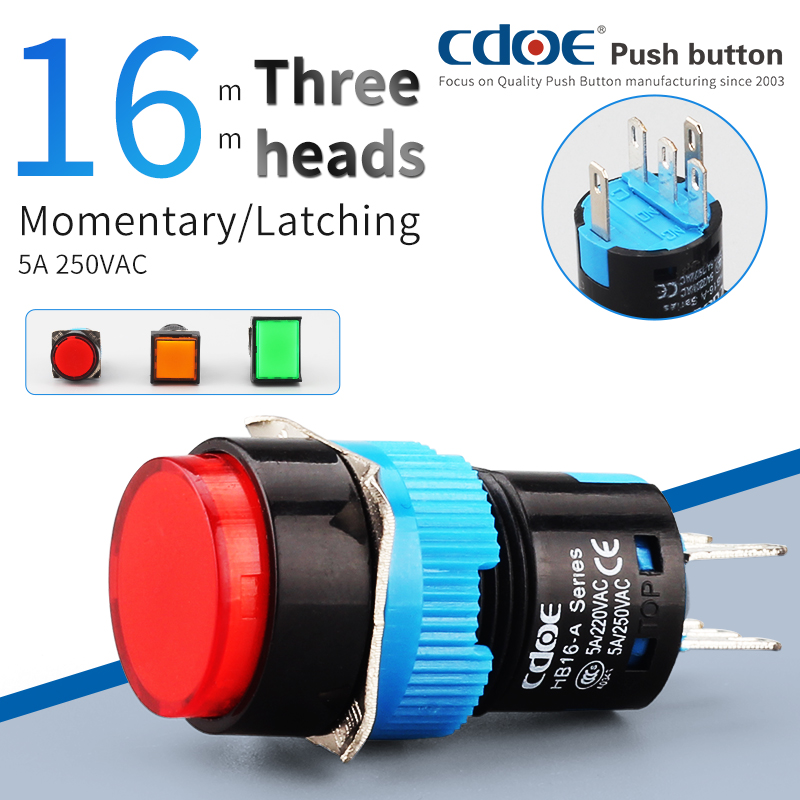

Plastic 16mm Round Square Rectangle Head push switches button red green orange LED Lights 48v

Short Description:

Product Model: HBDS1-A○-□D(Z)

Mounting Hole Size: 16MM

Head Shape: Round/Square/Rectangular

Switch Value: Ith: 5A, UI: 250V

Operation Type: Momentary, Latching

Min.Order Quantity: 40 Piece/Pieces

Method Of Payment: T/T(Wire transfer), Paypal, Credit card

Related video:  Click

Available equipment: Elevators, charging piles, automation equipment, motor vehicles, yachts, access control, automatic guided vehicles, lathes, lifts, lawn mowers

Product Detail

Why choose us?

Product Tags

The head of the product home page

▶Button Red Green Product Description:

button red green are versatile components used in a wide range of applications, offering functionality and visual distinction. Introducing our premium button red green, designed with a 16mm mounting hole and constructed from durable plastic material. This article will explore the features and applications of these switches, showcasing their versatility and reliability.

Product Features

16mm Mounting Hole: Our button red green feature a standard 16mm mounting hole, facilitating easy installation in various equipment and control panels.

Durable Plastic Construction: Constructed from high-quality plastic material, these switches ensure durability and resistance to impact and environmental factors.

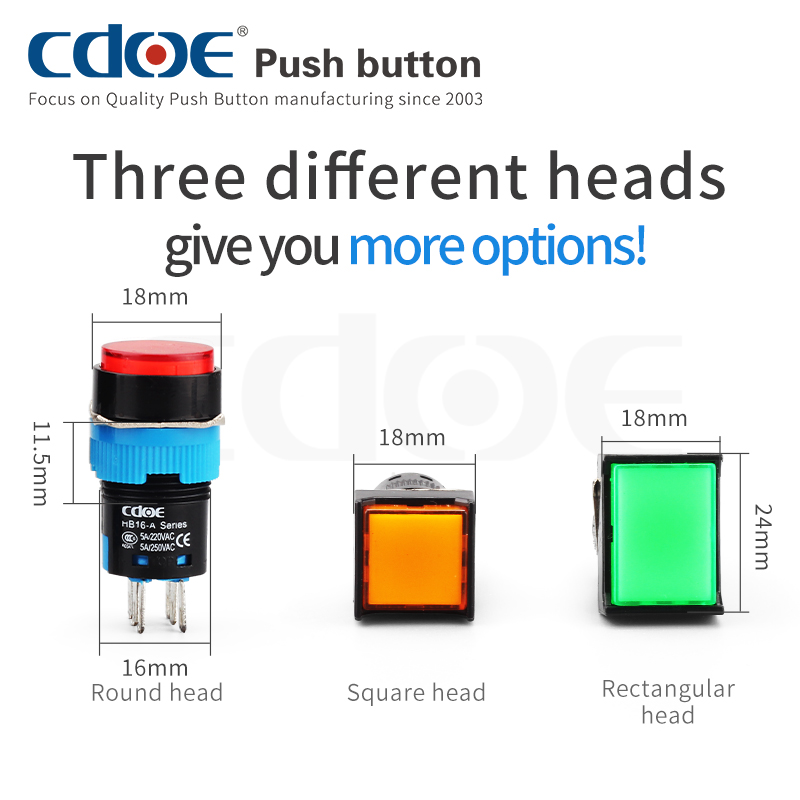

Multiple Head Shapes: Available in circular, rectangular, and square head shapes, our switches offer versatility in design to suit different aesthetic preferences and application requirements.

Supports Momentary and Latching Operation: With support for both momentary and latching operation, our switches provide flexibility in functionality for different user needs.

Selectable Contact Types: Users can choose between normally open and normally closed contact types to accommodate specific electrical connectivity requirements.

Maximum Rated Value of 5A, 250V: With a maximum rated value of 5A at 250V, our button switches deliver reliable electrical control capabilities for various applications.

IP6 Waterproof Rating: Featuring an IP6 waterproof rating, our switches are protected against dust and powerful water jets, ensuring reliable performance in outdoor and wet environments.


Our button red green find applications in diverse industries and settings, including:

- Industrial machinery

- Control panels

- Automotive industry

- Home automation systems

- Security systems


With their durable construction, versatile design options, and waterproof features, our button red green are ideal for a wide range of applications. Whether in industrial environments, automotive systems, or home automation setups, these switches offer reliable performance and visual distinction.

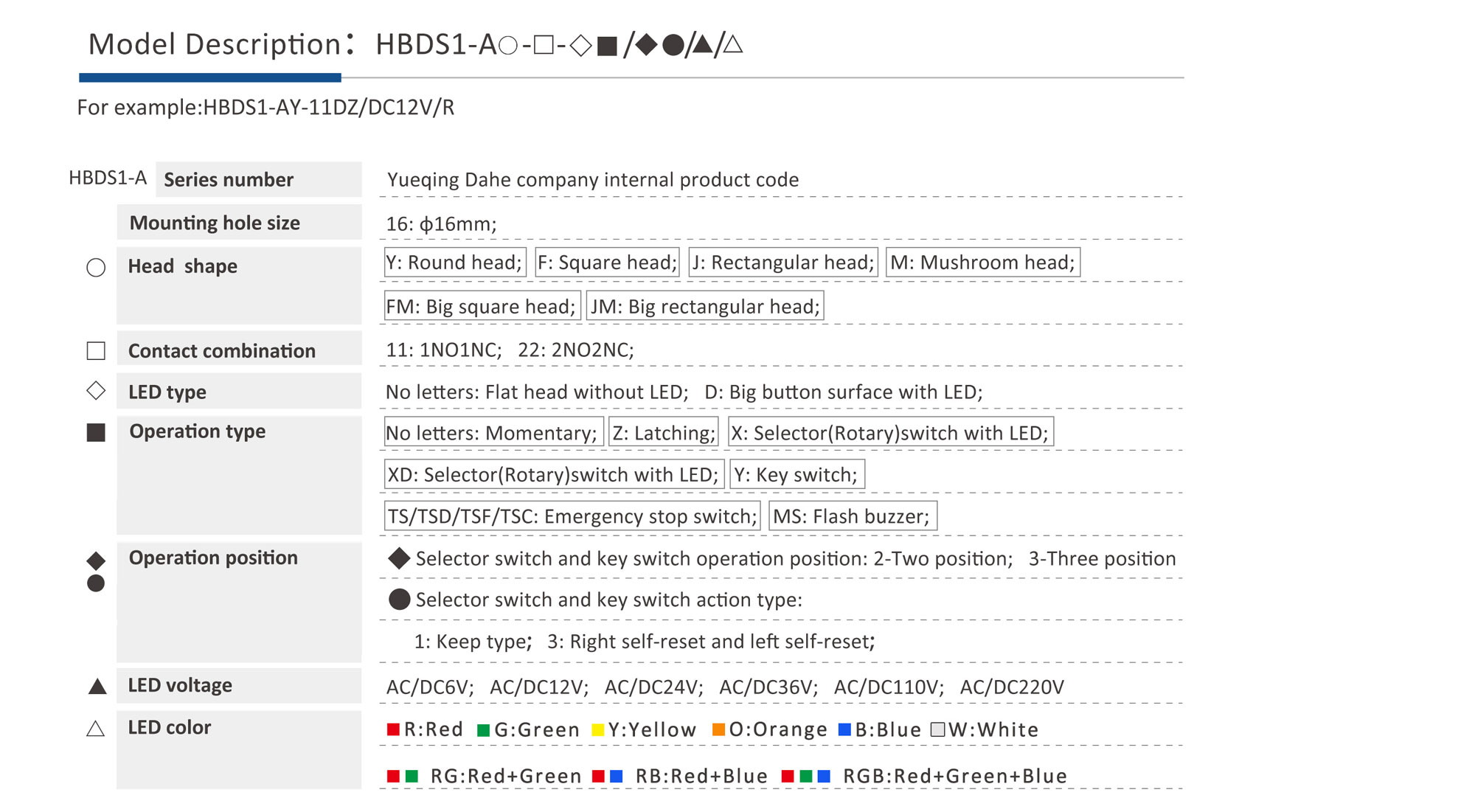

Product Model Specification:

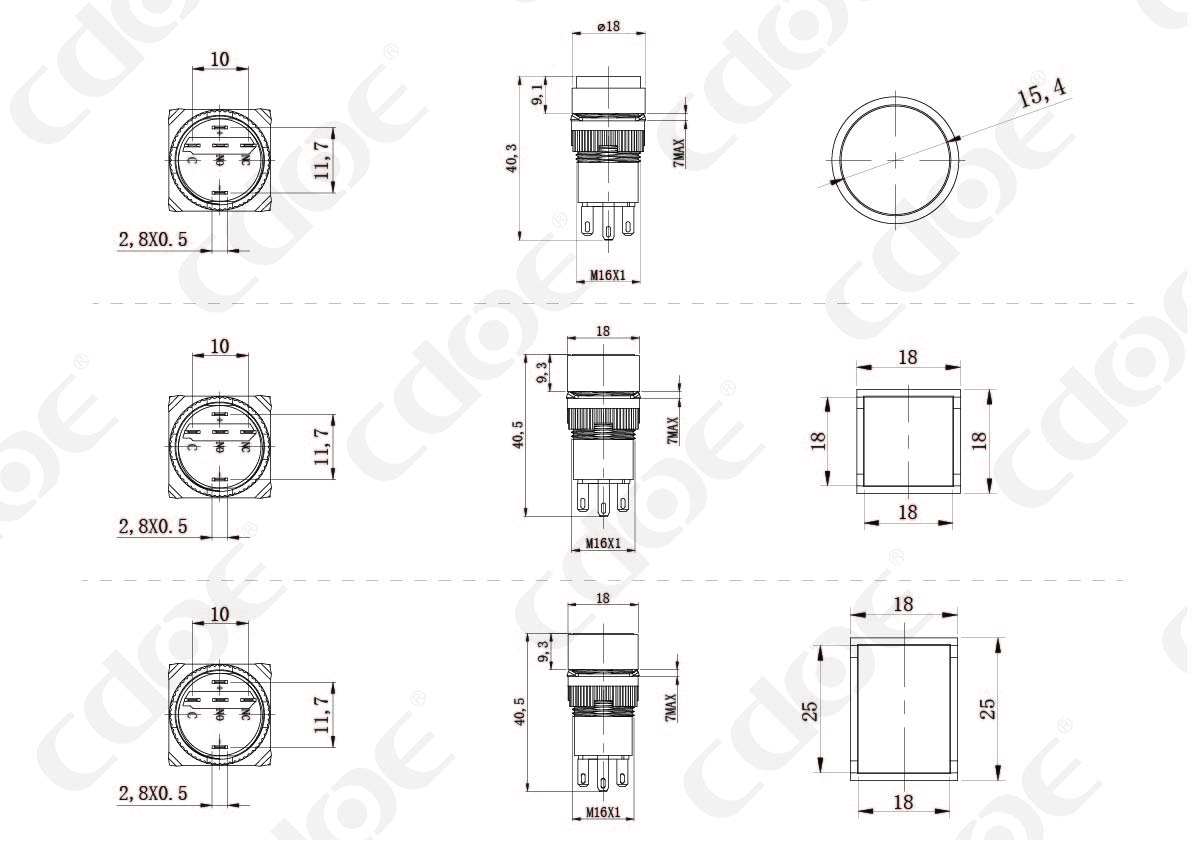

Product Size:

HBDS1-AY,AF,AJ-11D Product size

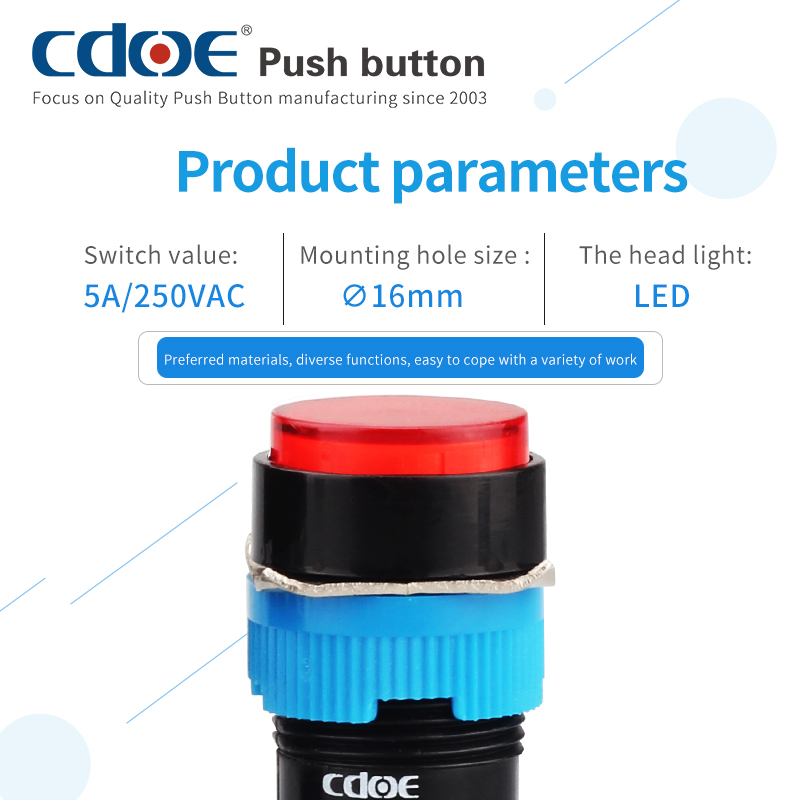

Technical Parameter:

HBDS1-A Series round square rectangle head button red green

Product model : HBDS1-A○-□D(Z)
Mounting hole size : 16mm
Switch value: Ith:5A,UI:250V
Operation type: Momentary,Latching
Contact configuration: 1NO1NC,2NO2NC
Appearance material: Switch button surface:PC;
Contact:Silver alloy;
Terminal type: Pin terminal
Working environment temperature: -25℃~+65℃
Movement stroke: About 3.2mm
Connection form: Supporting connector/Welding wire
Lamp bead parameters
Rated voltage : 6V/12V/24V/36V/110V/220V(Other voltages can be customized)
Rated current: ≤20mA

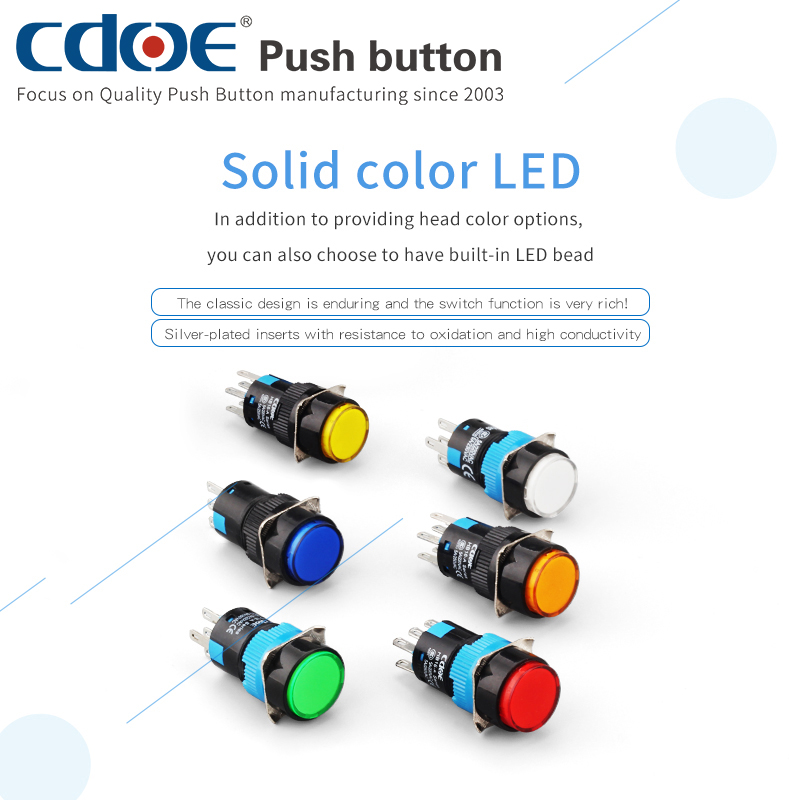

Led color: Red/Green/Yellow/Orange/Blue/White
Led life: 50000 hours
Protection grade: IP40
Contact resistance: ≤50mΩ
Insulation resistance: ≥100MΩ
Electrical resistance: AC2500V, 1min, no flicker and breakdown
Electrical part: Operate 50,000 times under rated load without any abnormality
Mechanical part: No abnormal movement for 1000,000 times

Problems Encountered By Buyers:

Q:Do you have other colored heads?

A:“Yes, this button series led lights is consistent with the color of head.”

Q:Is the product size in mm?

A:“Yeah, that's right.Round head size is 15.4mm, square head size is 18mm*18mm,rectangle head size is 18mm*25mm.”

Q:What's the difference between single control(1NO1NC)and dual control(2NO2NC)?

A:“Single row means there is only on set of switch feet at the bottom.Two rows means there are two sets of switch feet at the bottom.”
