Red Head Domed Nylon Shell 12mm Waterproof Push Button Switch Normally Open 2pins

Short Description:

Product Model: HBDGQ12B-□(Z)/J/PA

Mounting Hole Size: 12MM

Switch Value: Ith: 3A, UI: 250V

Operation Type: Momentary, Latching

Min.Order Quantity: 50 Piece/Pieces

Method Of Payment: T/T(Wire transfer), Paypal, Credit card

Related video: Click

Available equipment: Elevators, charging piles, automation equipment, motor vehicles, yachts, access control, automatic guided vehicles, lathes, lifts, lawn mowers

Product Detail

Why choose us?

Product Tags

The head of the product home page

Product Description:

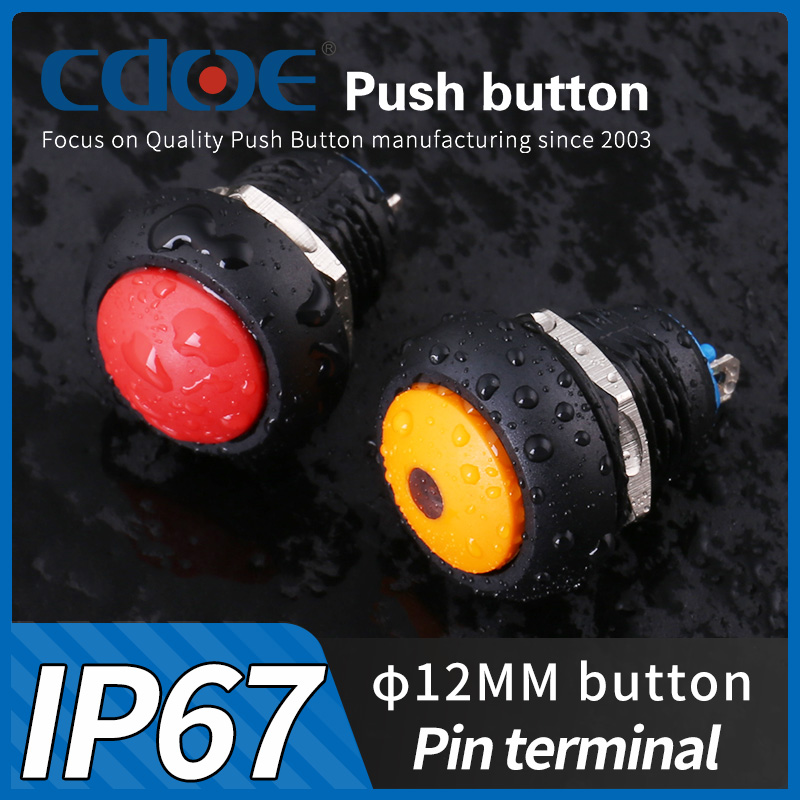

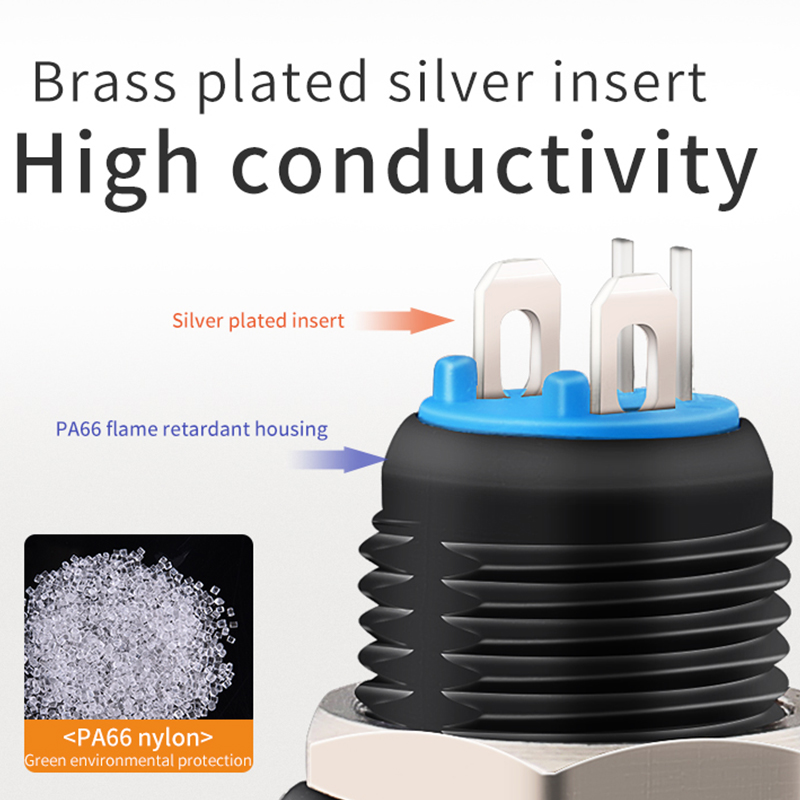

High quality LED beads illumination, colorful head types. 12mm mounting hole waterproof IP67 silver plated pin mini button. Nylon or zinc-aluminum shell for your choice. Often used in Game controller, Excavator Operating handle, Motorcycle handle and Antomatic equipment.

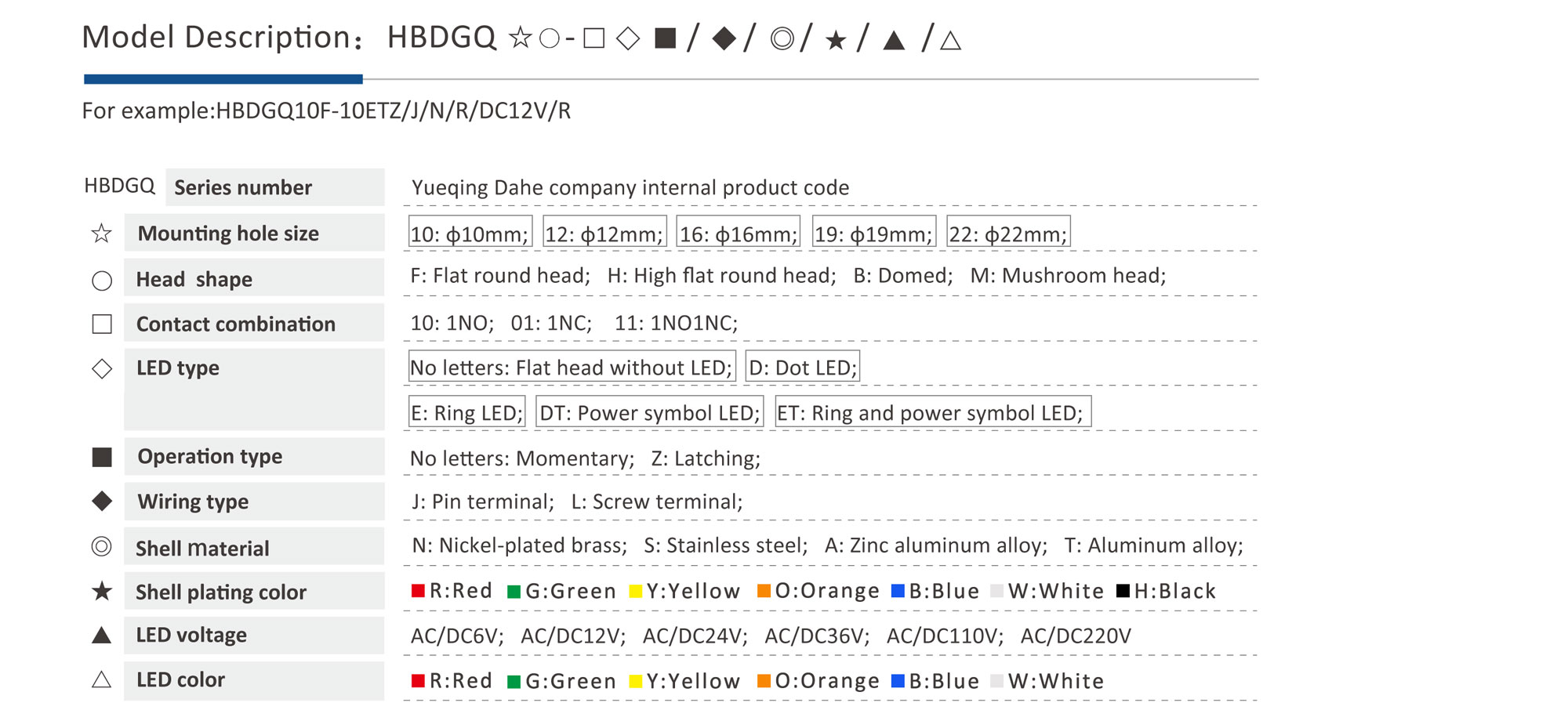

▶Product Model Specification:

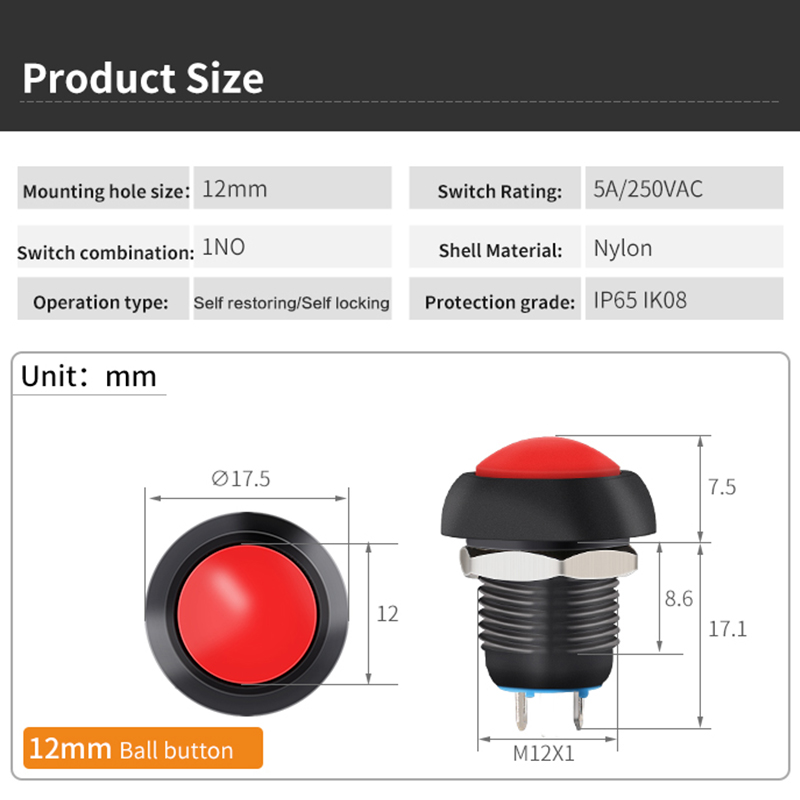

▶Product Size:

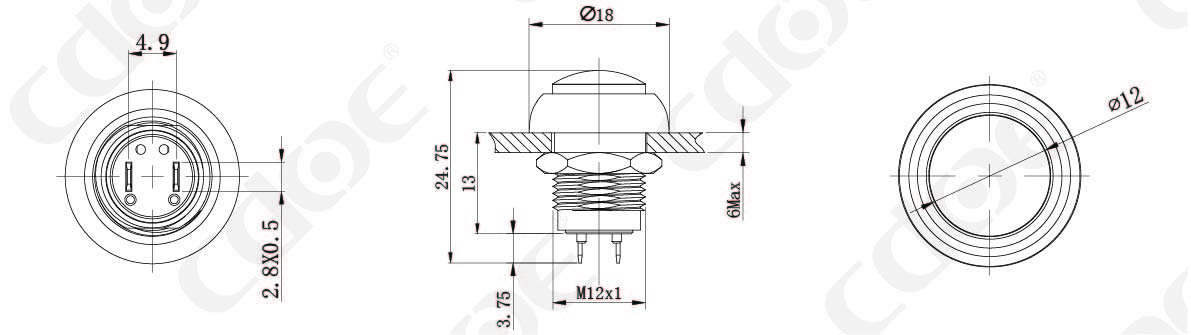

HBDGQ12B-10ZProduct size

Technical Parameter:

HBDGQ Series domed head push button switch

Product model : HBDGQ12B-□(Z)/J/PA
Mounting hole size : 12mm
Switch value: Ith:3A,UI:250V
Operation type: Momentary,Latching
Contact configuration: 1NO
Appearance material: Head:PBT;
Switch button shell:PA66;
Pedestal: PBT;
Terminal type: Pin terminal
Working environment temperature: -25℃~+65℃
Movement stroke: About 2.5mm
Connection form: Supporting connector/Welding wire
Head color: Red/Green/Yellow/Blue/White/Black
Protection grade: IP67
Insulation resistance: ≥100MΩ
Electrical resistance: AC2500V, 1min, No flicker and breakdown

Problems Encountered By Buyers:

Q:Do you have this one with LED?

A: “Yes, This nylon shell has Domed type and Domed with LED type.You can choose different head.Color of head with lamp: red, green, blue, white,yellow.”

Q: I need a large quantity. Can you give me a lower price?

A: “The price is determined according to the actual market price of materials.If your order is large, we can try to apply for a better price.”

Q: Does it have a metal shell?

A: “Yes, if you want to know more about products, you can email us or leave a comment online.”

Thank you for your trust and support!

* Founded in 2003 and experienced in the field of pushbutton switches for more than 20 years.

* We have a complete production line, advanced production equipment, experimental equipment and testing instruments, in strict accordance with the requirements of IS09001 quality assurance system.

* And the world’s top 500 enterprises have cooperation.

Multiple regional offices: Italy, South Korea, Shenzhen, Czech, Spain, South Africa and so on.
* Participated in several exhibitions: Munich, Germany, Korea Electronics Show, Shenzhen Hi-tech Fair, Japan, India, the United States and other international exhibitions.* A number of technical patents: CCC(CQC), UL, Rohs, TUV, UL,CE, etc.

* Main production buttons: Anti-vandal metal push button switches(which are waterproof), plastic push button switches, high current switches for equipment control and panel mounting, micro travel switches(which can be used in elevator),touch switch ,20a high current switch, signal lamp(indicator), buzzers and push button accessories.

* Large quantity can enjoy a certain discount.

*Where can our push button switches be used?Control box,elevator,moving train,industrial lathe machine,New energy machine Charging pile,ice cream machine,blender,Coffee machine,control panel,motorcycle,Cutting Machine,Machine tool equipment,Medicalequipment,automation equipment,solar equipment,yacht,security check equipment,heating equipment,CNC equipment,control handles,Audio equipment,diy panel.,etc

Our buttons are widely used, directly sold by manufacturers, more assured of quality, and have sufficient product inventory for you to choose. One-to-one sales, if you have any dissatisfaction, you can complain


Pay attention to our official social media, send subscribed pictures, you can enjoy discounts and some products 10%  off discount!!!

We will conduct live product explanation every Tuesday or Thursday from time to time. If you have any questions about the product, you can watch our live broadcast to learn more~
Welcome new and old customers to watch!

The latest live broadcast will start at 4 p.m on August 11th(China time)

Thank you for your support!
