China manufacturer ultrathin waterproof 12 volt push button switch momentary 12mm
▶Waterproof 12 volt push button switch 12mm product description:
Enhance your equipment's functionality with our premium waterproof 12-volt push button switch. Crafted with precision and durability in mind, this switch is designed to withstand various environments, making it ideal for a wide range of applications.
Key Features:
Mounting Hole: 12mm diameter, allowing for easy installation in compatible equipment.
Rating: With a rating of 50mA/12V, it ensures reliable performance even under demanding conditions.

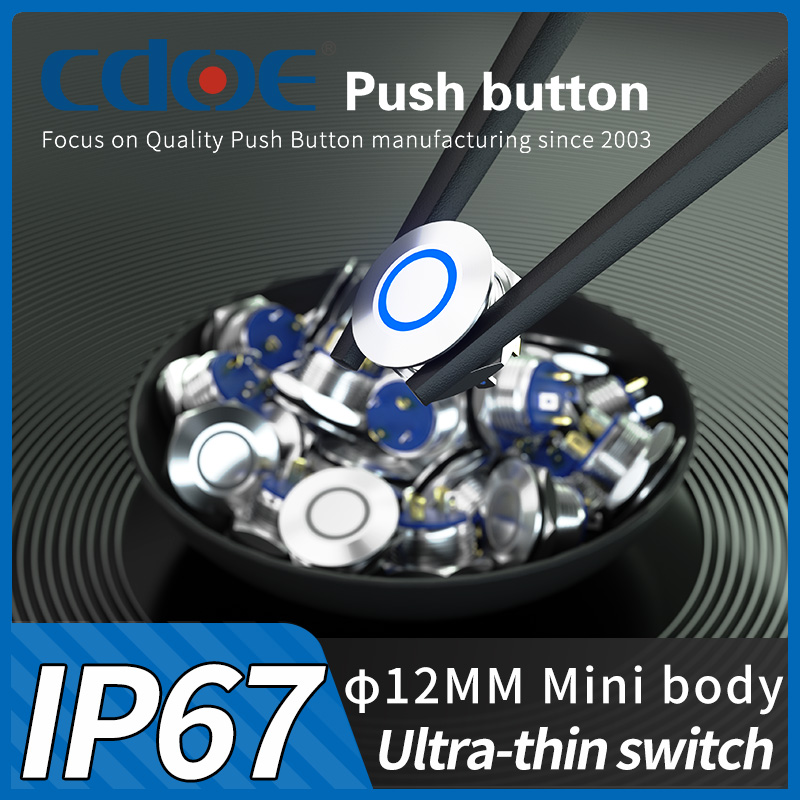

Waterproof Class: IP67 rating guarantees protection against dust ingress and water immersion up to 1 meter depth, ensuring long-lasting durability.
Contact Type: Features one normally open contact for seamless operation.
Contact Terminal: Equipped with pin terminals for secure and stable connections.
LED Color: Available in red, green, and blue options for visual indication and customization.

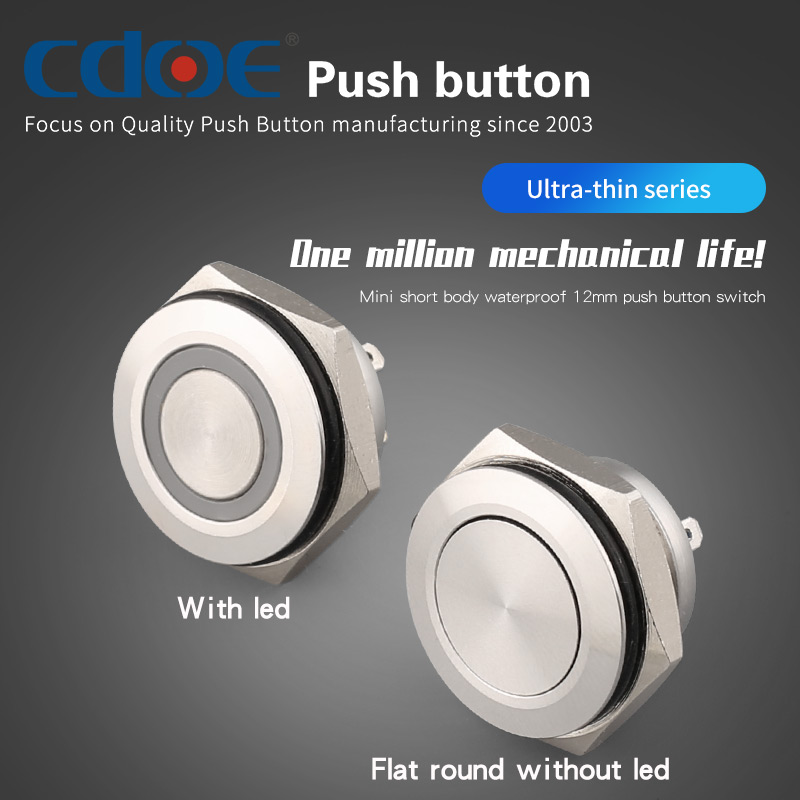

Head Type: Designed with a ring LED head for enhanced visibility and aesthetic appeal.
Type of Operation: Offers momentary operation, perfect for applications requiring temporary electrical connections.
Shell Material: Constructed with stainless steel, ensuring robustness and corrosion resistance.
Application:
Commonly used in coffee machines, pickup machines, filters, and more, our push button switch adds convenience and efficiency to your equipment.
Upgrade your equipment with our waterproof 12-volt push button switch today!
▶Product Model Specification:
▶Product Size:
▶Technical Parameter:
HBDGQ12SF Series waterproof 12 volt push button switch 12mm |
|
Product model : | HBDGQ12SF-□W(E)/J/S |
Mounting hole size : | 12mm |
Head type: | Flat head/Ring illuminated |
Switch value: | Ith:50mA,UI:12V |
Operation type: | Momentary |
Contact configuration: | 1NO |
Appearance material: | Head:Stainless steel; Switch button surface:Stainless steel; Pedestal:PBT; Contact:Silver alloy; |
Terminal type: | With wire |
Working environment temperature: | -25℃~+65℃ |

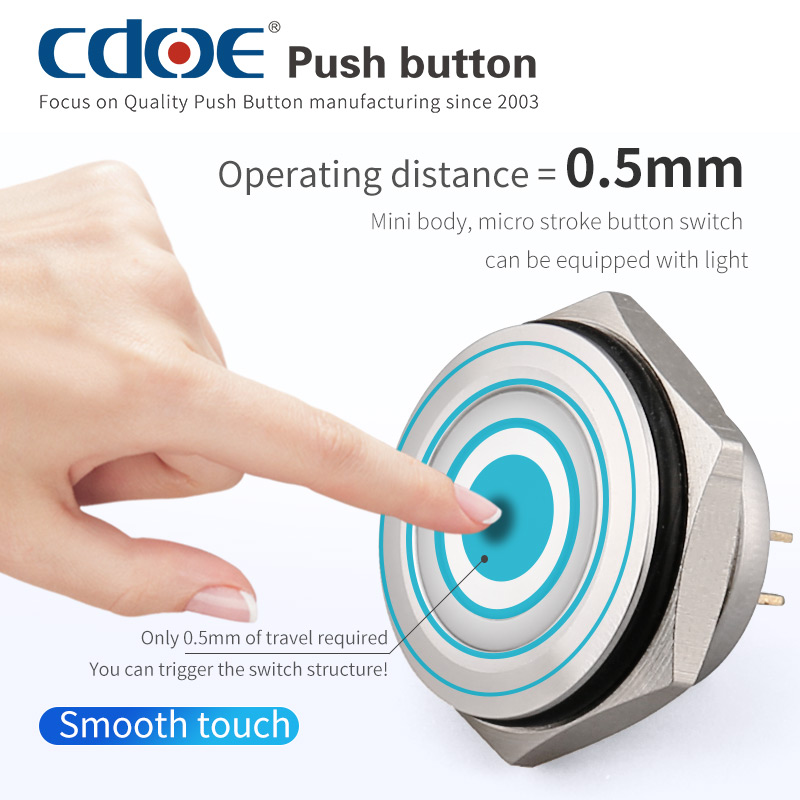

Movement stroke: | About 0.5mm |
Connection form: | Supporting connector/Welding wire; |
Lamp bead parameters | |
Rated voltage : | 6V/12V |
Rated current: | ≤20mA |
Led color: | Red/Green/Yellow/Orange/Blue/White |
Led life: | 50000 hours |
Protection grade: | IP67 |
Contact resistance: | ≤50mΩ |
Insulation resistance: | ≥100MΩ |
Electrical resistance: | AC250V, 1min, no flicker and breakdown |
Life | |
Electrical part: Operate 50,000 times under rated load without any abnormality | |
Mechanical part: No abnormal movement for 1000,000 times |
▶Problems Encountered By Buyers:
Q:Can this button be soaked in water? I use it on submarines?
A:“Long-term immersion in water is not recommended, as the waterproof rating IP67 is only for short periods of contact with water.”
Q:Can you make 19mm mounting hole waterproof 12 volt push button switch 12mm?
A:“Of course.The product is available with 12MM, 16MM and 19MM mounting holes.”
Q:I want 12mm tri-color waterproof push button switch can you do it?

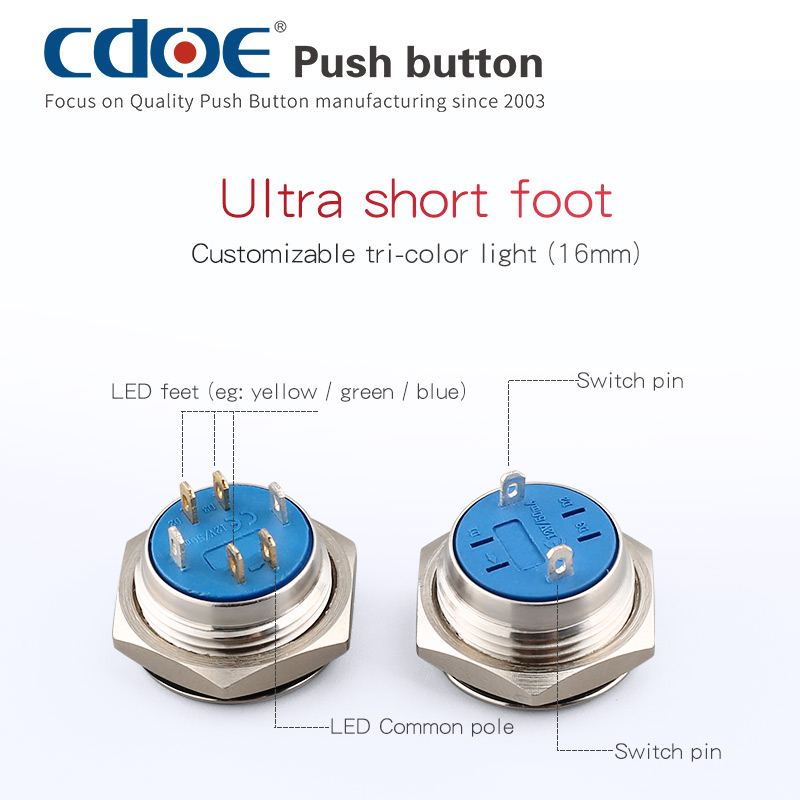

A:“I'm very sorry.The 12mm mounting hole does not support tri-color , because its internal structure is too small to hold the lamp bead.If you need a tri-color button, we support a minimum of 16mm and 19mm mounting holes.”
