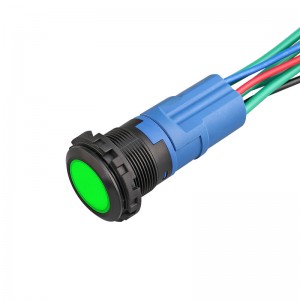

Rgb Momentary Push Button 22mm One Normally Open And One Normally Close Ring Led Switches

Short Description:

Product Model: HBDS1-D22C-□E(Z)/J/S

Mounting Hole Size: 22MM

Switch Value: Ith: 10A, UI: 6-48V

Operation Type: Momentary, Latching

Min.Order Quantity: 20 Piece/Pieces

Method Of Payment: T/T(Wire transfer), Paypal, Credit card

Related video:  Click


Product Detail

Live broadcast

Product Tags

youtube
The head of the product home page

Product Description:

2021 New product 22mm 10 amp high current ring led switch with connect.Support Tri-color light, waterproof up to IP65, purchase button can be equipped with connector without additional payment.A variety of head type selection, commonly used in medical equipment, control machines, CNC equipment.

Product Model Specification:

HBDS1-D-Product-Model-specification4

Product Size:

HBDS1-D22C-11E Product size

Technical Parameter:

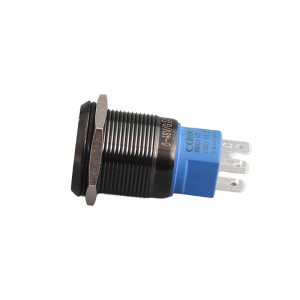

HBDS1-D22C Metal series flat head ring LED switch

Product model : HBDS1-D22C-□E(Z)/J/S
Mounting hole size : 22mm
Switch value: Ith:5A(10A),UI:250V
Operation type: Momentary,Latching
Contact configuration: 1NO1NC
Appearance material: Head:Stainless steel;
Switch button surface:Stainless steel;
Base:Plastic PA66;
Contact:Silver alloy;
Terminal type: Pin terminal
Working environment temperature: -25℃~+65℃
Connection form: Supporting connector/Welding wire;
Lamp bead parameters
Rated voltage : 6V/12V/24V/36V/110V/220V;(Other voltages can be customized)
Rated current: ≤20mA
Led color: Red/Green/Yellow/Orange/Blue/White/RG/RB/RGB
Led life: 50000 hours
Protection grade: IP65
Contact resistance: ≤50mΩ
Insulation resistance: ≥100MΩ
Electrical resistance: AC2500V, 1min, no flicker and breakdown;
Life
Mechanical Life: 0.5 million times for latching,One million times for momentary

Problems Encountered By Buyers:

Q:Whether there is 15A large current button switch?

A:“Emmm,Our buttons support a maximum current of 20A, but they are relatively similar to la38 series buttons and Lay5 series buttons”

Q:Can you make waterproof IP67 metal button RGB?

A:“Yes, we can do. You can contact us by email for more information”

Q:Can you make RGW tri-color button?

A:“This needs decided according to our actual warehouse materials.”
