pushbutton momentary switch 22mm ring led illumianted cnc start button green 660v
▶Product Description:

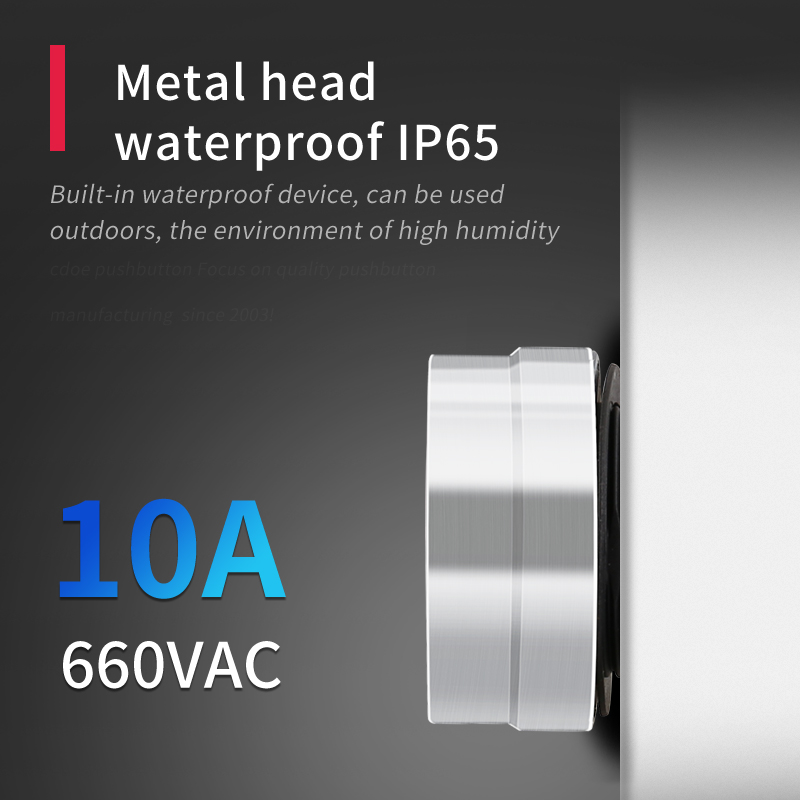

10A high current on off button switch instantaneous la38 series ring lighted button switch, brass chrome plated metal material button Head, with quick disassembly and installation, stable fixed and other characteristics. Built-in waterproof rubber device head waterproof ip65. one piece light beads Structure, simple internal structure, complete functional style. Normally open and normally closed superimposed contacts. Flame-retardant black base material to prevent Accidental fire produced by the adverse effects.
Product Highlights:
·10Amp high current la38 switch
·Ring LED button
·Momentary,Latching;
·1NO1NC,2NO2NC;
·LED color: Red,Blue,white,Green;
·LED voltage:6v,12v,24v,48v,110v,220v
▶Product Model Specification:

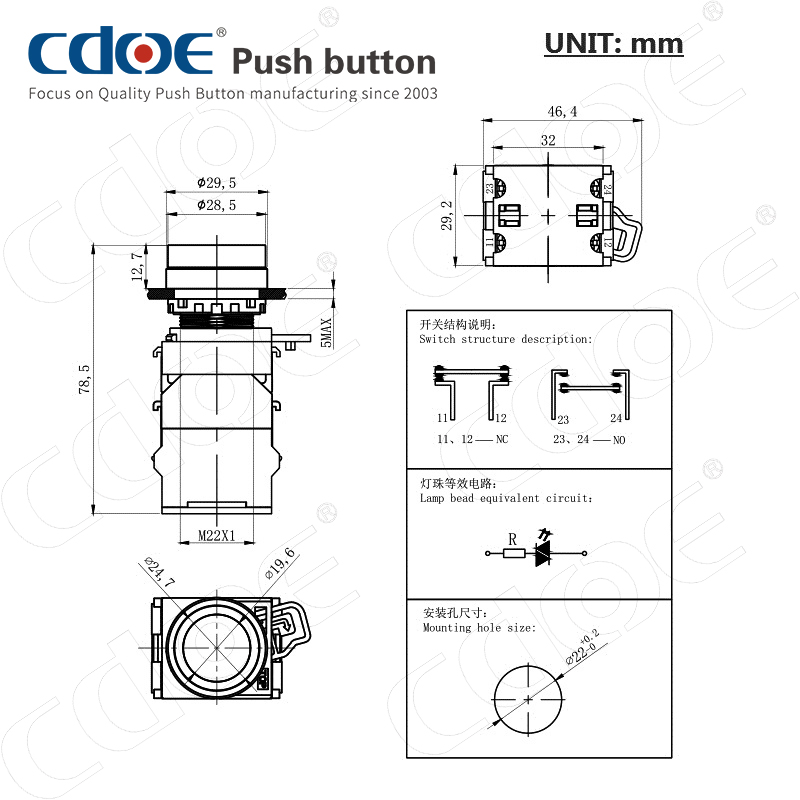

▶Product Size:
▶Technical Parameter:
|
Metal head ring led green 22mm momentary button |
|
| Product model : | HBDS0-KB-11E |
| Mounting hole size : | 22mm |
| Switch value: | Ith:10A,UI:600V |
| Operation type: | Momentary,Latching |

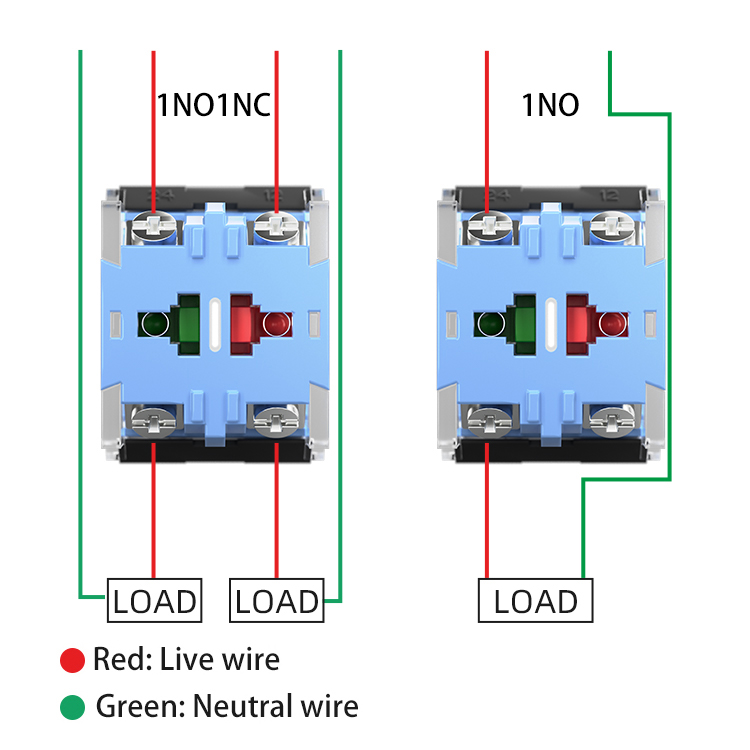

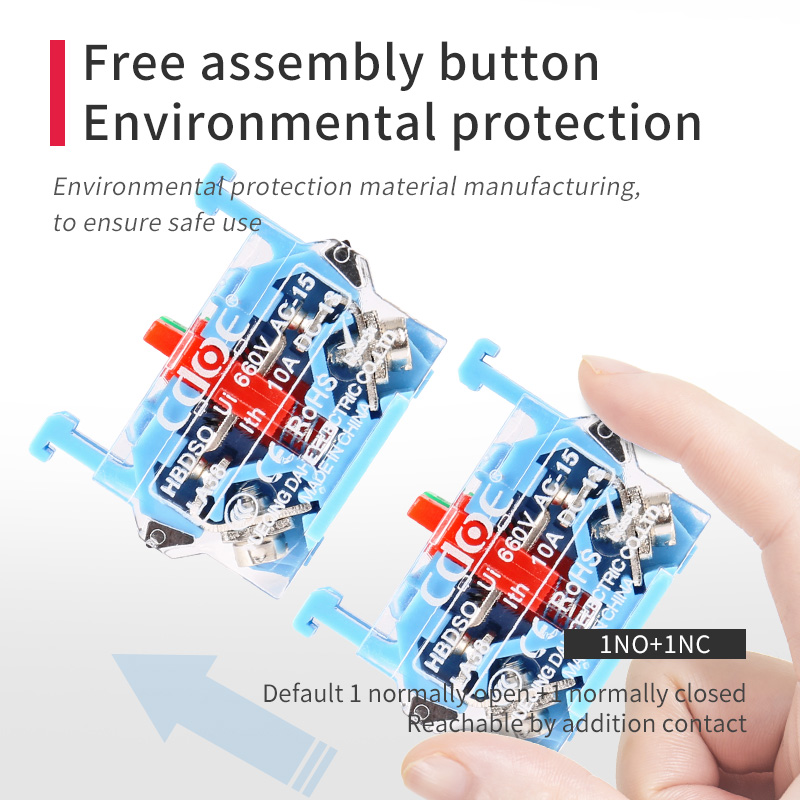

| Contact configuration: | 1NO1NC,2NO2NC |
| Appearance material: | Head:Brass chrome plating; Switch button surface:Brass chrome plating;Contact: Silver alloy; |
| Terminal type: | Screw terminal |
| Working environment temperature: | -25℃～+65℃ |
| Connection form: | Wire |
| Lamp bead parameters | |
| Rated voltage : | 6V/12V/24V/36V;110V/220V(Other voltages can be customized) |
| Rated current: | ≤20mA |
| Led color: | Red/Green/Yellow/Orange/Blue/White |
| Led life: | 50000 hours |
| Protection grade: | IP65 |
| Contact resistance: | ≤50mΩ |
| Insulation resistance: | ≥100MΩ |
| Electrical resistance: | AC2500V, 1min, no flicker and breakdown |
| Life | |
| Electrical part: Operate 50,000 times under rated load without any abnormality | |
| Mechanical part: No abnormal movement for 1000,000 times | |
▶Problems Encountered By Buyers:
Q: How to install the head and base?
A: “Rotating snap safety lock, just pull the yellow snap outward and rotate it to remove the button head,To install the head and base, just find the "top" logo of each part, align and press, and finally push the yellow clips in the initial direction to complete the installation.”
Q: What certificates do you have for this button? Is there an ul certificate?
A: “la38 series push button switch has CCC, CE, Rohs, Reach and other certificate, at present this push button has not ul certificate.”
Q: Can you do oem for this button?
A:“Our company advocates self-created brand, small orders do not support oem, large orders can be applied with the company according to the actual situation.”
Thank you for your trust and support!
