la38-11 22MM on off 10amp momentary push switch start stop button metal red led 220v

Short Description:

Product Model: HBDS0-KB-11(Z)/C

Mounting hole size: 22MM

Switch Value:Ith: 10A, UI: 660V

Operation Type: Momentary,Latching

Min.Order Quantity: 10 Piece/Pieces

Method Of Payment: T/T(Wire transfer), Paypal, Credit card

Related video:  Click

Available equipment: Industrial machinery, machine tool equipment, rocking car, control box, power engine, new energy machine, electromagnetic starter,


Product Detail

Why choose us?

Product Tags

youtube
The head of the product home page

Product Description:

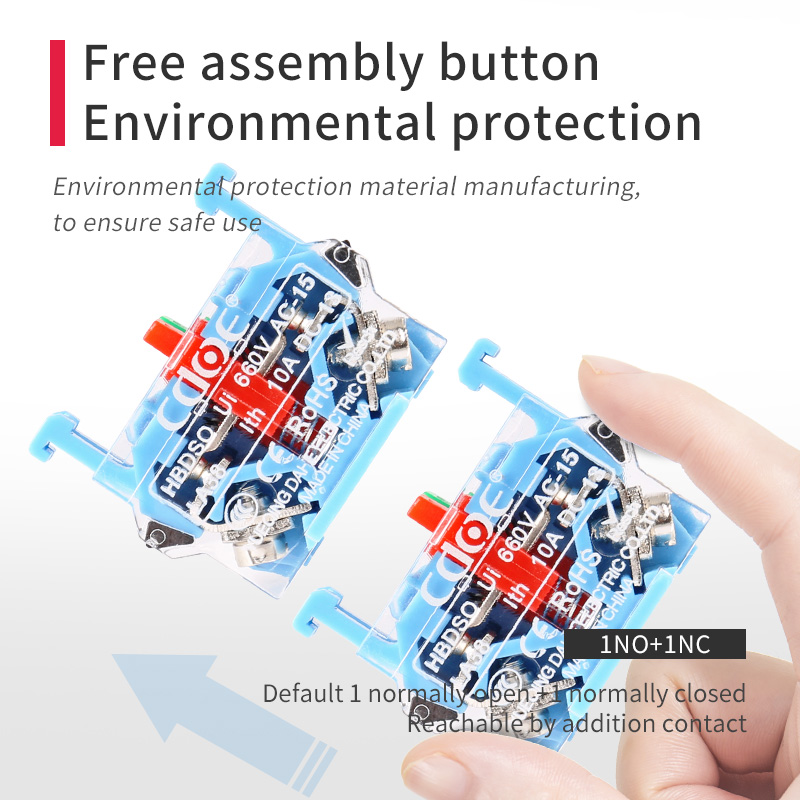

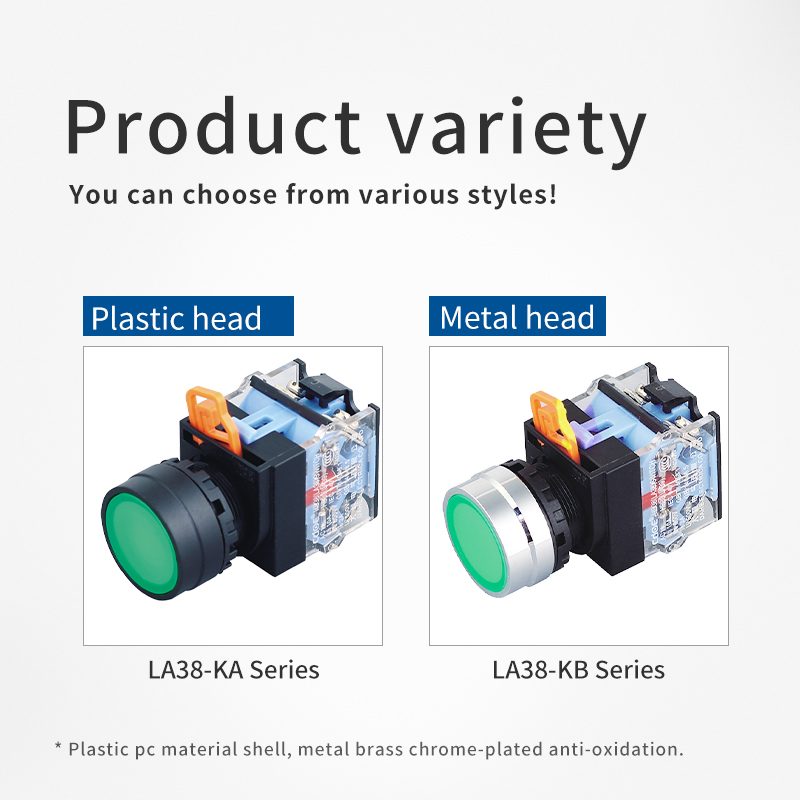

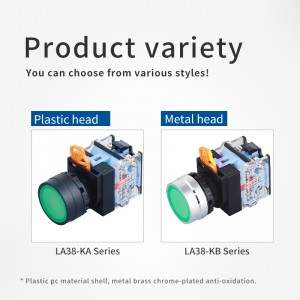

la38 series metal brass chrome plating head 22mm momentary button.Built-in sealed waterproof device, head panel ip65 waterproof, dust and oil.Upgrade silver contacts, balance type contacts, increase the contact area, and effectively prolong the service life. 3.2mm thick insulating bottom cover,flame retardant and safer.Assembled switch contacts are more convenient to use.Red means normally close contact,green means normally open contact.

▶Product Model Specification:

HBDS0

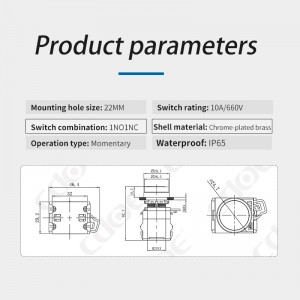

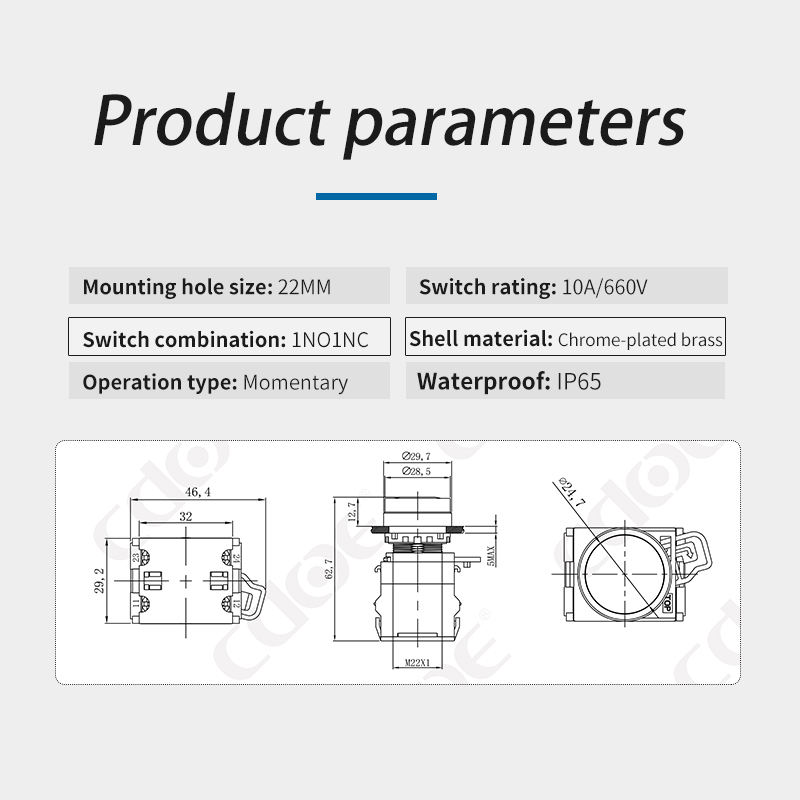

Product Size:

HBDS0-KB-11

Technical Parameter:

Metal head 10amp la38-11 22mm momentary button

Product model : HBDS0-KB-11(Z)/C
Mounting hole size : 22mm
Switch value: Ith:10A,UI:600V
Operation type: Momentary,Latching
Contact configuration: 1NO1NC,2NO2NC
Appearance material: Head: PA66;Switch button surface: PC;

Contact: Silver alloy;

Terminal type: Screw terminal
Working environment temperature: -25℃~+65℃
Connection form: Wire
Lamp bead parameters
Rated voltage : 6V/12V/24V/36V;110V/220V(Other voltages can be customized)
Rated current: ≤20mA
Led color: Red/Green/Yellow/Orange/Blue/White
Led life: 50000 hours
Protection grade: IP65
Contact resistance: ≤50mΩ
Insulation resistance: ≥100MΩ
Electrical resistance: AC2500V, 1min, no flicker and breakdown
Life
Electrical part: Operate 50,000 times under rated load without any abnormality
Mechanical part: No abnormal movement for 1000,000 times

Problems Encountered By Buyers:

Q: Is there a matching button box? I'd like to buy it together?

A: “Yes, we have a dedicated button box for la38 button momentary 22mm switch, plastic and metal two materials.”

Q: Can I buy the switch contacts separately for assembly?

A: “Our la38 normally open and normally closed contacts can only be applied to the push button switches we produce. If it is assembled and used with our la38 buttons, it can be purchased separately.”

Q: What is the price of the product?

A:“This metal head la38 button switch 10a 1no1nc price is about 0.86 USD, and the price of the latching button is 1.21 USD.”



Thank you for your trust and support!


* Founded in 2003 and experienced in the field of pushbutton switches for more than 20 years.

* We have a complete production line, advanced production equipment, experimental equipment and testing instruments, in strict accordance with the requirements of IS09001 quality assurance system.

* And the world’s top 500 enterprises have cooperation.


Multiple regional offices: Italy, South Korea, Shenzhen, Czech, Spain, South Africa and so on.

* Participated in several exhibitions: Munich, Germany, Korea Electronics Show, Shenzhen Hi-tech Fair, Japan, India, the United States and other international exhibitions.* A number of technical patents: CCC(CQC), UL, Rohs, TUV, UL,CE, etc.

* Main production buttons: Anti-vandal metal push button switches(which are waterproof), plastic push button switches, high current switches for equipment control and panel mounting, micro travel switches(which can be used in elevator),touch switch ,20a high current switch, signal lamp(indicator), buzzers and push button accessories.

* Large quantity can enjoy a certain discount.

*Where can our push button switches be used?Control box,elevator,moving train,industrial lathe machine,New energy machine Charging pile,ice cream machine,blender,Coffee machine,control panel,motorcycle,Cutting Machine,Machine tool equipment,Medicalequipment,automation equipment,solar equipment,yacht,security check equipment,heating equipment,CNC equipment,control handles,Audio equipment,diy panel.,etc
