Connectors are also called connectors, and are also called connectors and sockets in China. A device generally used to connect two electrical appliances to transmit current or signals. After the common terminal and the female terminal are in contact, they can transmit information or current, which is also called a connector.
The benefits of using connectors:
1. It can facilitate the assembly process of electronic products, as well as the workload, production time and cost of the batch production process;
2. If the button switch is damaged, the broken button can be quickly removed when the connector is installed
3. The connector can replace the old-fashioned rubber tape, and the follow-up processing is more environmentally friendly and hygienic, and the electronic components are easy to repair when they are faulty. After installing the connector, it can be quickly replaced
4. In the process of installing the button, there is more flexibility. Avoid permanent connections between circuits and conductors.
Which series of buttons can be equipped with dedicated connectors?
HBDS1-AGQ series：The circular connector is combined with the AGQ series circular button 1no1nc pin terminal base, need purchased in combination with the button switch. We will match the corresponding connector according to the contact combination of the button switch you purchased. There are often 3 wires, 5 wires, 6 wires, and 8 wires. The meaning of each wire is as follows: The Red wire represents the normally closed terminal, the Green wire represents the normally open terminal, the White wire represents the LED anode, the Yellow wire represents the common terminal, and the Black wire represents the LED cathode. The meanings represented by other series of connectors are basically the same.
HBDGQ22/25 series：The switch base of the GQ series is a rectangular type, and the shape of the matching connector is also rectangular. The meaning of the wire is the same as that of the AGQ series.
HBDS1-D high current series：The high current button 22mm connector is a special connector for this button, and other series of buttons cannot be used.
New upgrade notice about connectors:
There are four types of button connectors: HBD-T1,HBD-T2,HBD-T3,HBD-T19
HBD-T1: HBDS1-AGQ series
HBD-T2: HBDGQ22 series
HBD-T3: HBDGQ25 series
HBD-T19: HBDS1-D pin terminal 10Amp High current push button

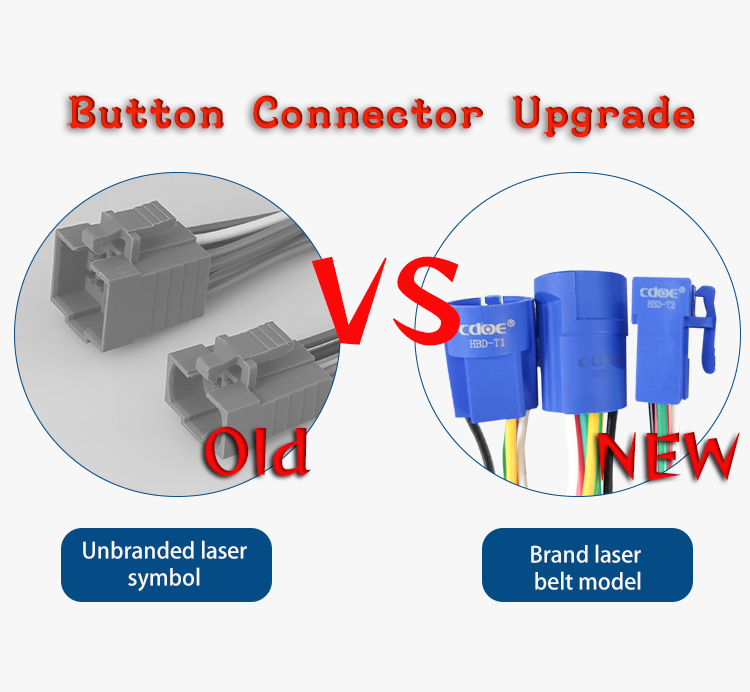

1.According to the material requirements of the factory, the factory button connectors are required first, the material color is blue, and the corresponding model description is lasered at the corresponding designated position. If the connector products received by new and old customers recently are found to be different from the previously purchased connectors Yes, don't worry, it's because our products have been upgraded.
2.The original yellow-green wire was updated to a yellow wire.
