mushroom head push button 9v dot led momentary start Drying machine switch
▶Product Description:
Push Button 9v power supply, 16mm mounting holes and 2-pin terminal connection. This versatile button is designed for a variety of applications, including as a 12v light switch, push button start, and more.

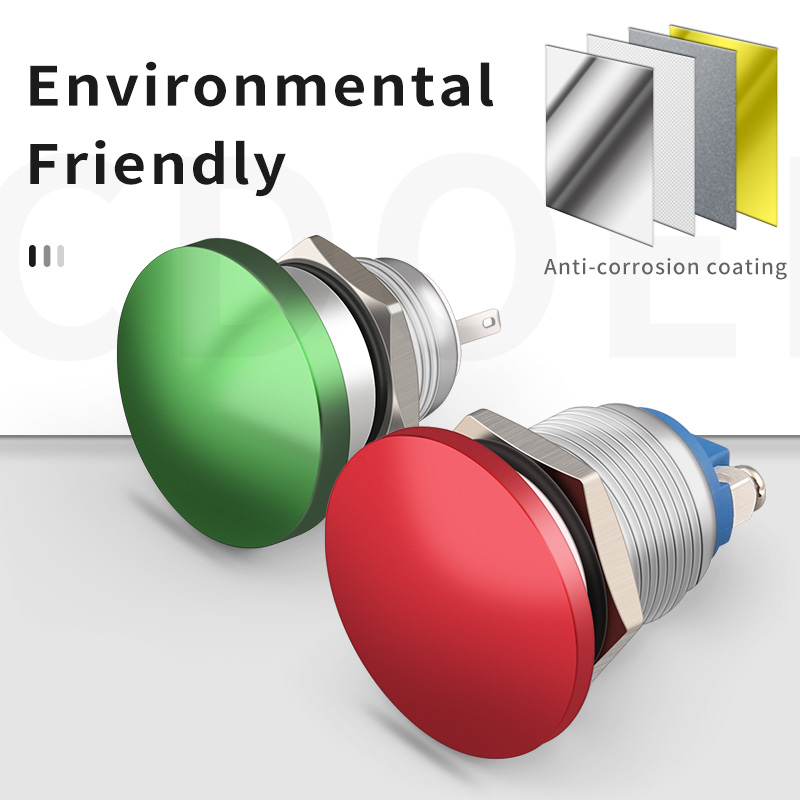

Featuring a bright red or green zinc-aluminum shell, this push button is easy to locate and use in any environment. The two-pin terminal connection allows for easy wiring and installation, while the 16mm size ensures a perfect fit in your equipment or device.
The push button can be used for a momentary or on/off switch depending on your needs, and the 9v power supply ensures reliable performance. It is also designed to work with 12v light systems and is compatible with push button start systems.The red and green shell is not only durable and long-lasting but also adds a stylish and professional touch to your equipment or device.

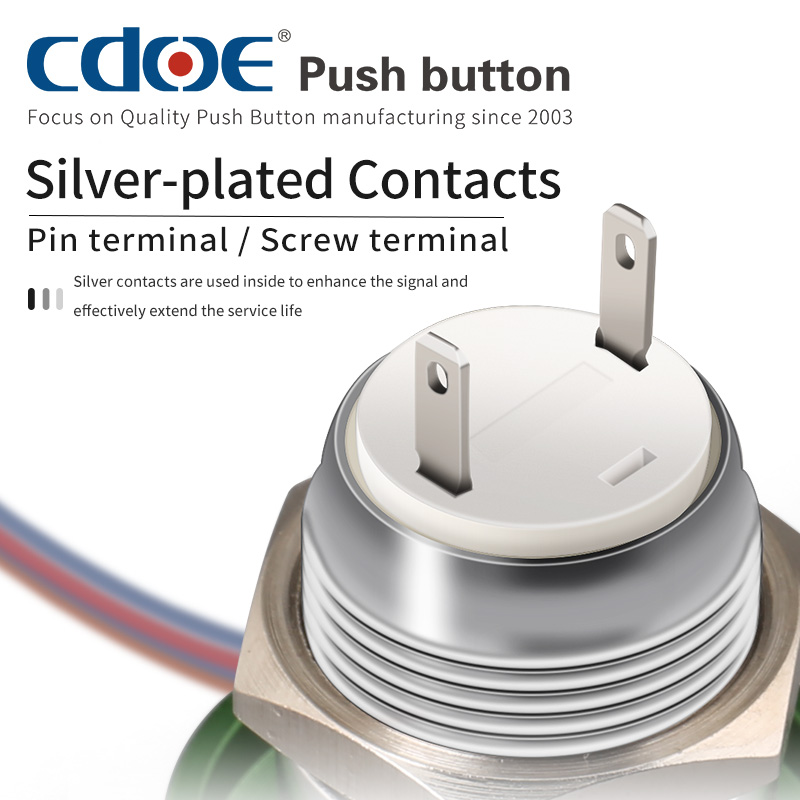

The two-pin terminal connection ensures easy installation and maintenance, while the 16mm size makes it a perfect fit for a wide range of applications.Whether you're looking for a reliable push button for your automotive, industrial, or home automation needs, our Push Button with 9v power supply, 16mm size, and 2-pin terminal connection is the perfect solution. Order yours today and experience reliable performance and easy installation like never before.
▶Product Model Specification:
▶Product Size:
▶Technical Parameter:
|
HBDGQ16M-10 Series mushroom switch zinc-aluminum alloy shell |
|
| Product model : | HBDGQ16M-10/J/S |
| Mounting hole size : | 16mm |
| Head type: | Mushroom head |
| Switch value: | Ith: 3A,UI: 250V |
| Operation type: | Momentary |
| Contact configuration: | 1NO |

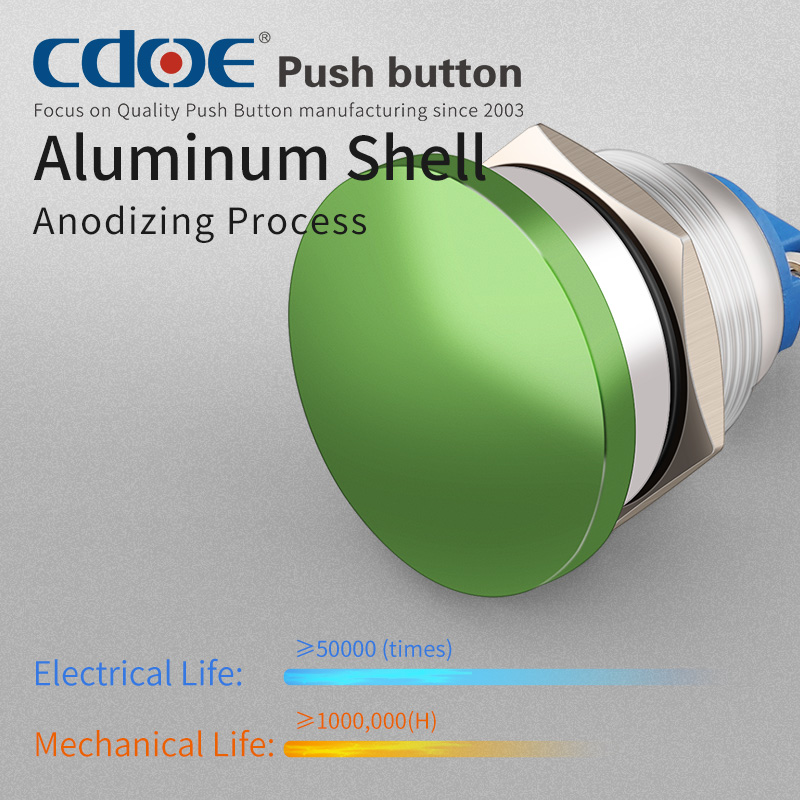

| Appearance material: | Head: Zinc-aluminum alloy; Pedestal: PBT; |
| Terminal type: | Pin terminal |
| Working environment temperature: | -25℃～+65℃ |
| Connection form: | Welding wire |

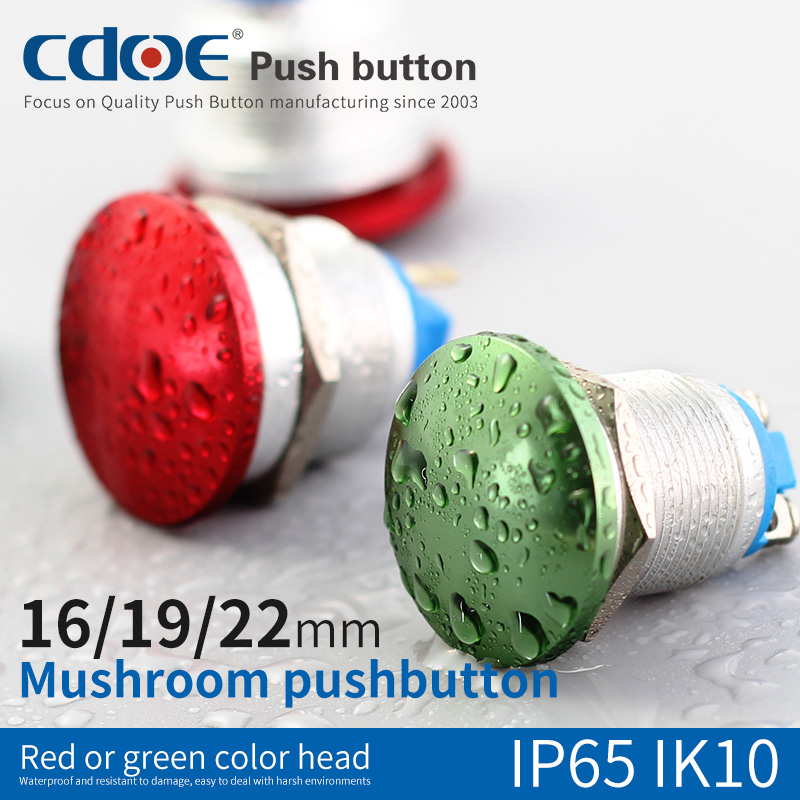

| Protection grade: | IP65 |
| Contact resistance: | ≤50mΩ |
| Insulation resistance: | ≥100MΩ |
| Electrical resistance: | AC250V, 1min, no flicker and breakdown |
| Life | |
| Electrical part: Operate 50,000 times under rated load without any abnormality | |
| Mechanical part: No abnormal movement for 1000,000 times | |
▶Problems Encountered By Buyers:
Q: What voltage does this push button support? Will it work with my specific application or device?
A:“This push-button switch supports 6v, 12v, 24v, 48v and other voltages. You need to see whether it supports our switch rating according to the device you apply.”
Q: Can this push button be used for starting a vehicle or engine?
A: “There is no problem. Many of our cooperative customers use this 16MM metal mushroom button on motorcycles, elevators, dryers and other equipment.”
Q: Is there a 20a current mushroom head type button product?
A: “We have a button switch for 20a, click here.”
