Ip67 Waterproof Stainless Steel Pushbutton 12mm Button Short Momentary for coffee equipment

Short Description:

Product Model: HBDGQ12SF-□(W)E/J/S

Mounting Hole Size: 12MM

Switch Value: Ith: 50mA, UI: 12V

Operation Type: Momentary

Min.Order Quantity: 50 Piece/Pieces

Method Of Payment:  T/T(Wire transfer), Paypal, Credit card

Related video:  Click

Available equipment: Coffee Machines, Computers, Kettles, Filters, Charging Stations, Medical Equipment, Coffee Machines, Yachts, Pump Control Panels, Doorbells, Horns, Computers, Motorcycles, Cars, Tractors, Stereo


Product Detail

Why choose us?

Product Tags

youtube
The head of the product home page

Product Description:

Ultra-thin IP67 waterproof momentary switch, 0.5mm action stroke.12mm, 16mm, 19mm mounting hole mini ring Led button.Touch sense, sensitive control equipment.

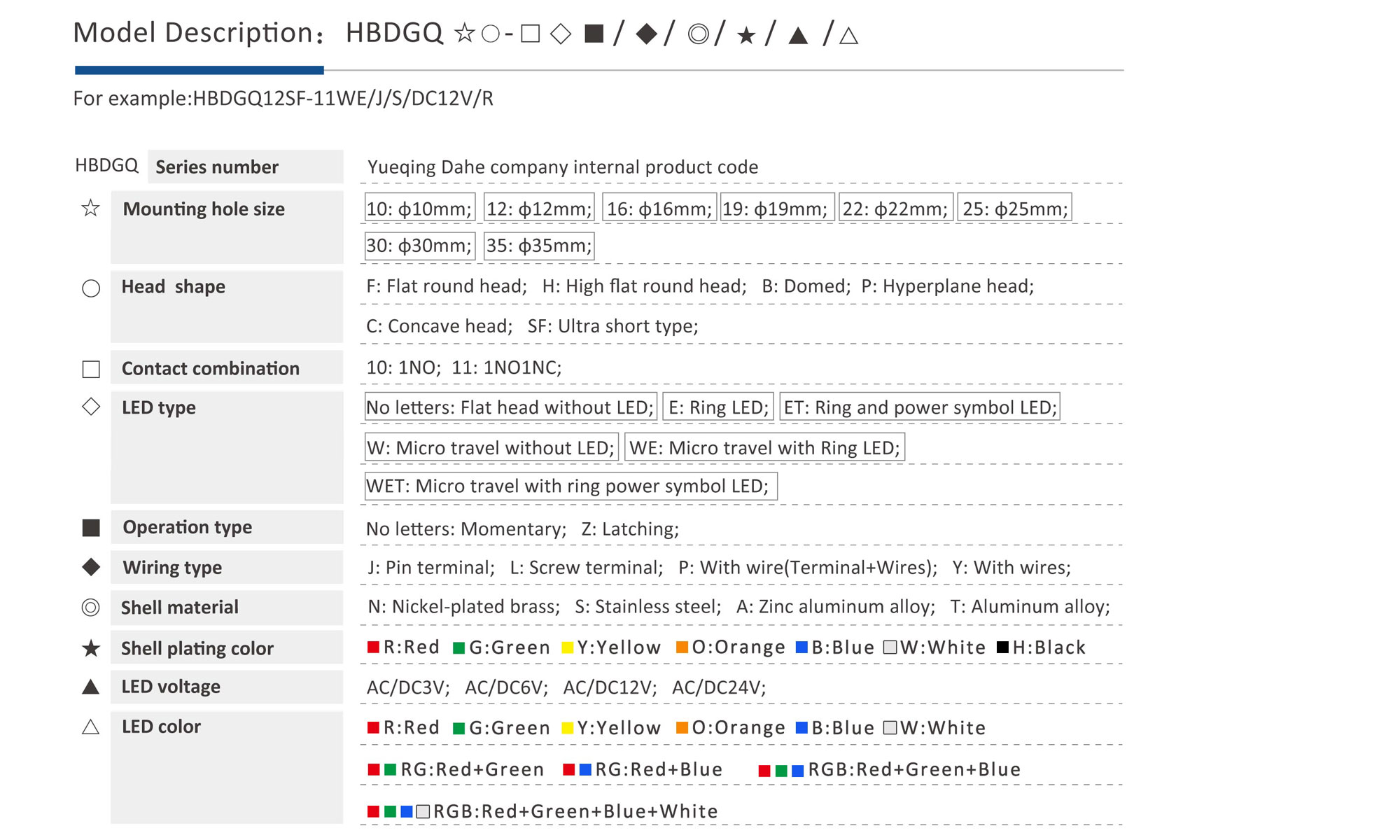

▶Product Model Specification:

HBDGQ-Product-Model-specification9

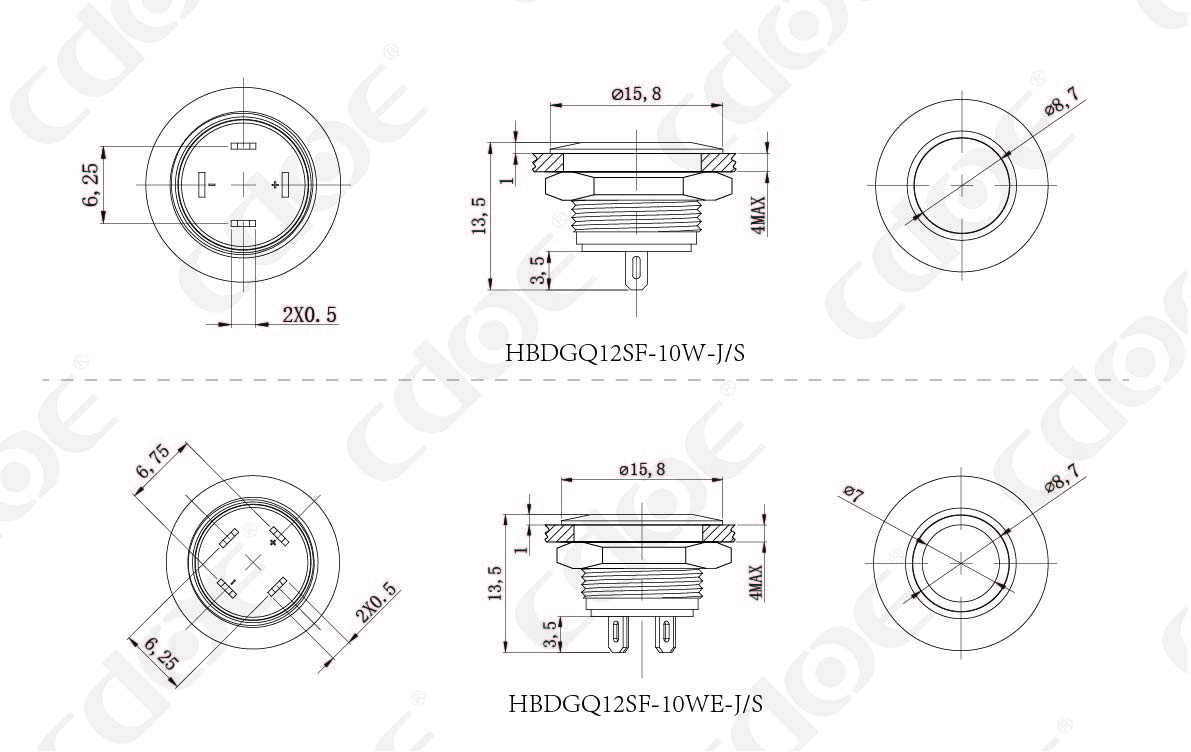

Product Size:

HBDGQ12SF-10W-J Product size

Technical Parameter:

HBDGQ12SF Series Flat head ring led ip67 push button switch

Product model : HBDGQ12SF-□W(E)/J/S
Mounting hole size : 12mm
Head type: Flat head/Ring illuminated
Switch value: Ith:50mA,UI:12V
Operation type: Momentary
Contact configuration: 1NO
Appearance material: Head:Stainless steel;
Switch button surface:Stainless steel;
Pedestal:PBT;
Contact:Silver alloy;
Terminal type: With wire
Working environment temperature: -25℃~+65℃
Movement stroke: About 0.5mm
Connection form: Supporting connector/Welding wire;
Lamp bead parameters
Rated voltage : 6V/12V
Rated current: ≤20mA
Led color: Red/Green/Yellow/Orange/Blue/White
Led life: 50000 hours
Protection grade: IP67
Contact resistance: ≤50mΩ
Insulation resistance: ≥100MΩ
Electrical resistance: AC250V, 1min, no flicker and breakdown
Life
Electrical part: Operate 50,000 times under rated load without any abnormality
Mechanical part: No abnormal movement for 1000,000 times

Problems Encountered By Buyers:

Q:Can this button be soaked in water? I use it on submarines?

A:“Long-term immersion in water is not recommended, as the waterproof rating IP67 is only for short periods of contact with water.”

Q:Can you make 19mm mounting hole pushbutton?

A:“Of course.The product is available with 12MM, 16MM and 19MM mounting holes.”

Q:I want 12mm tri-color can you do it?

A:“I'm very sorry.The 12mm mounting hole does not support tri-color , because its internal structure is too small to hold the lamp bead.If you need a tri-color button, we support a minimum of 16mm and 19mm mounting holes.”
