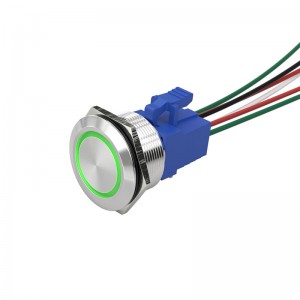

industrial light switch 30mm flat head ss metal waterproof ip67 1no1nc latching pushbutton
▶Product Description:
Introducing our industrial light switch, a beacon of durability and precision designed to redefine your lighting control experience. With a generous 30mm mounting hole, these switches seamlessly integrate into industrial environments, offering a perfect blend of robustness and sophistication.
Uncompromised Performance
Boasting a robust 5A/250V rating, our industrial light switch delivers unwavering performance, ensuring reliable control over your lighting systems. The IP65 waterproof class enhances durability, making these switches ideal for both indoor and outdoor industrial settings where resilience is paramount.
Versatile Contact Configurations
Choose from flexible contact types, including 1NO1N and 2NO2NC, providing adaptability for configuring your lighting control systems. The inclusion of pin terminals with connect wires streamlines installation, ensuring a secure and efficient connection.
Visually Striking LED Indicators
Illuminate your workspace with our industrial light switch featuring vibrant LED colors, including red, green, blue, and more. The distinctive ring LED head not only ensures functionality but also adds a visually striking element to your control setup.
Customized Operation
Whether you prefer momentary or latching operation, our industrial light switch caters to your specific needs. This adaptability makes them suitable for a wide range of industrial applications, providing enhanced control over your lighting systems.
Durable Design
Crafted from high-quality stainless steel, the shell material of our industrial light switch ensures durability and resistance to the rigors of industrial environments. This robust construction guarantees longevity, providing enduring performance in demanding operational conditions.
Illuminate and Control with Precision
Explore the endless possibilities our industrial light switch brings to your workspace. From manufacturing floors to industrial complexes, these switches are designed to elevate operational efficiency, seamlessly integrating into your lighting control systems.
Upgrade Your Lighting Control Experience
Elevate your industrial lighting control with our industrial light switch, where precision meets durability. The 30mm mounting hole, 5A/250V rating, IP65 waterproof class, and customizable LED options make them the ideal choice for a wide range of industrial applications. Illuminate your workspace with vibrant LED colors and experience operation tailored to your requirements. Choose durability; choose precision – opt for our industrial light switch to redefine your lighting control experience.
▶Product Model Specification:

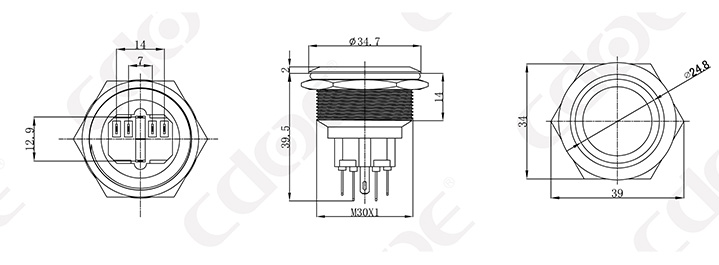

▶Product Size:
▶Technical Parameter:
|
HBDGQ Series industrial light switch |
|
| Product model : | HBDGQ30F-□(Z)/J/S |
| Mounting hole size : | 30mm |
| Switch value: | Ith:5A,UI:250V |
| Operation type: | Momentary,Latching |
| Contact configuration: | 1NO1NC,2NO2NC |
| Appearance material: | Head:Stainless steel; Switch button surface:Stainless steel; Pedestal: PBT; Contact:Silver alloy; |
| Terminal type: | Pin terminal |
| Working environment temperature: | -25℃～+65℃ |
| Movement stroke: | About 2.8mm |
| Connection form: | Supporting connector/Welding wire |
| Protection grade: | IP65 |
| Contact resistance: | ≤50mΩ |
| Insulation resistance: | ≥100MΩ |
| Electrical resistance: | AC2500V, 1min, no flicker and breakdown |
| Life | |
| Electrical part: Operate 50,000 times under rated load without any abnormality | |
| Mechanical part: No abnormal movement for 1000,000 times | |
▶Related Product Knowledge:
>>Emergency stop push button switches
>>How does the Bi-color LED switch work?
