China facturing E stop switch emergency button cover warning ring accessories product

▶Product Description:

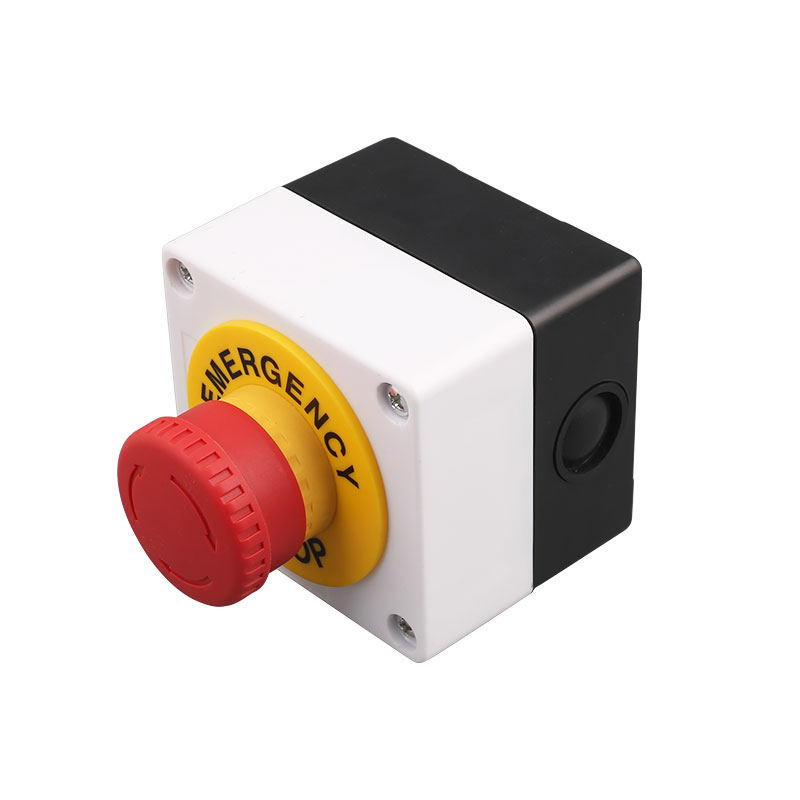

22mm Emergency Stop Switch Box with Warning Circle

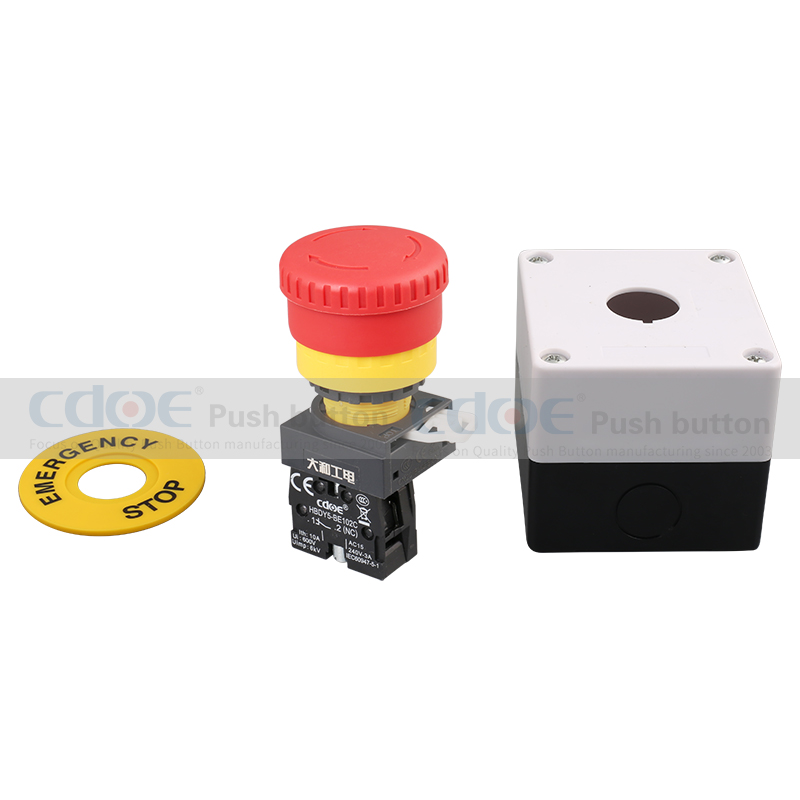

Safety is paramount in any industry that involves machinery or processes that can pose a risk to human lives or property. That is why you need a reliable and durable emergency stop switch box that can quickly and safely stop a machine or a process in case of an emergency. This product is a combination of three components: an emergency stop button, a button box, and a warning circle.

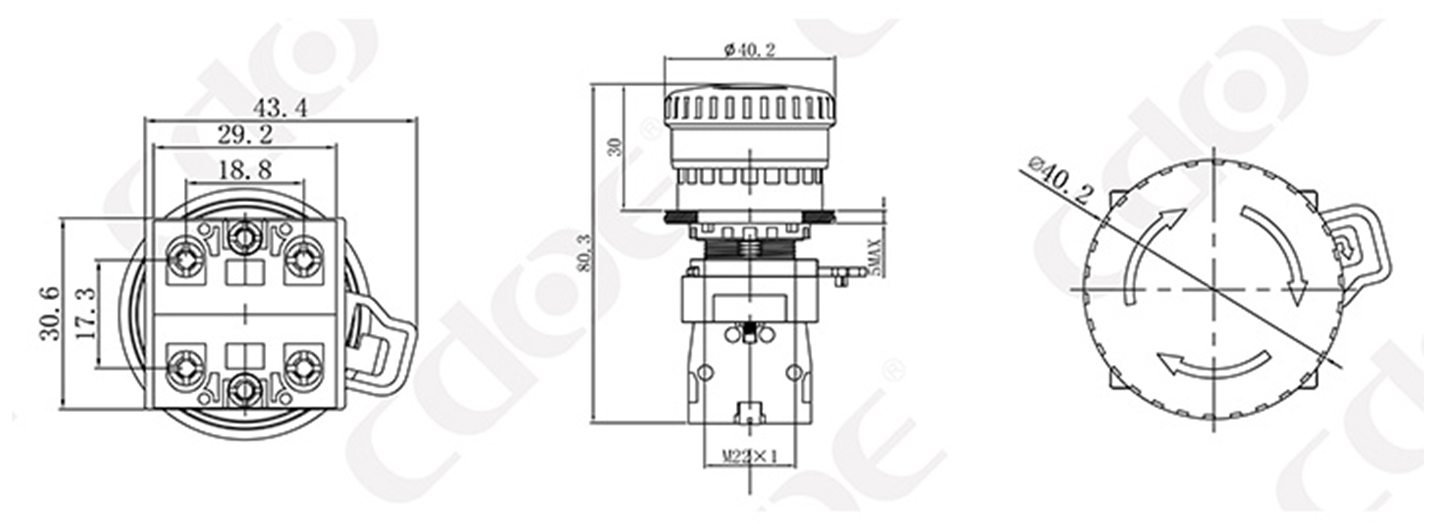

The emergency stop button is the core component of this product. It has a mushroom head type and a latching type of operation, which means it will stay in the pressed position until you twist it to release it. This ensures that the machine or process will not resume until you manually reset the button. The button has a screw terminal contact type and a rating of 10A/600V. It can handle high currents and voltages without overheating or malfunctioning. The button is also waterproof with an IP65 class, making it suitable for outdoor and wet environments. The button has a mounting hole of 22mm and can fit into any standard button box.

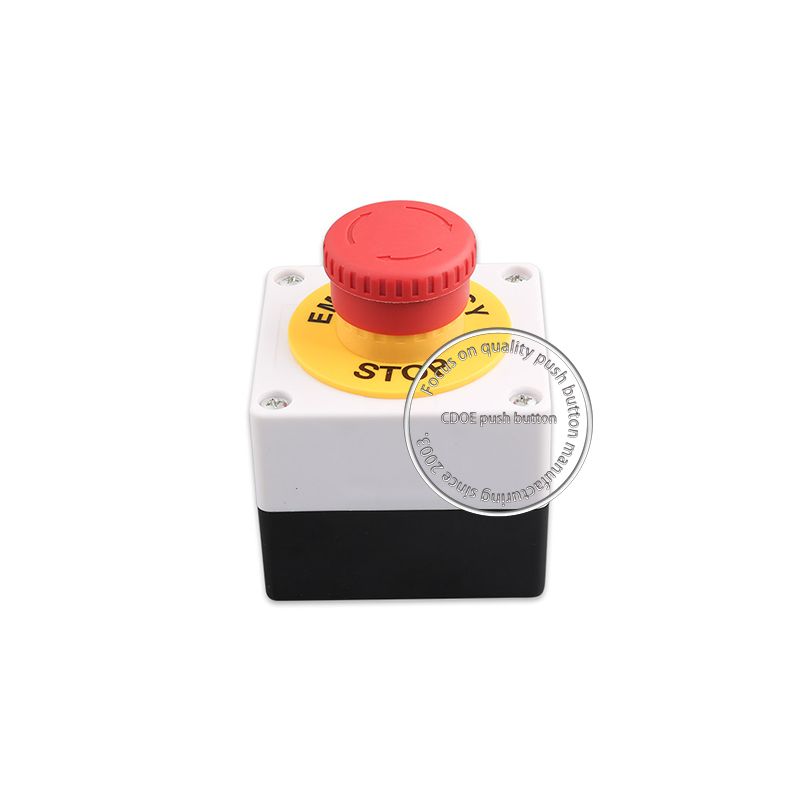

Emergency stop switches box

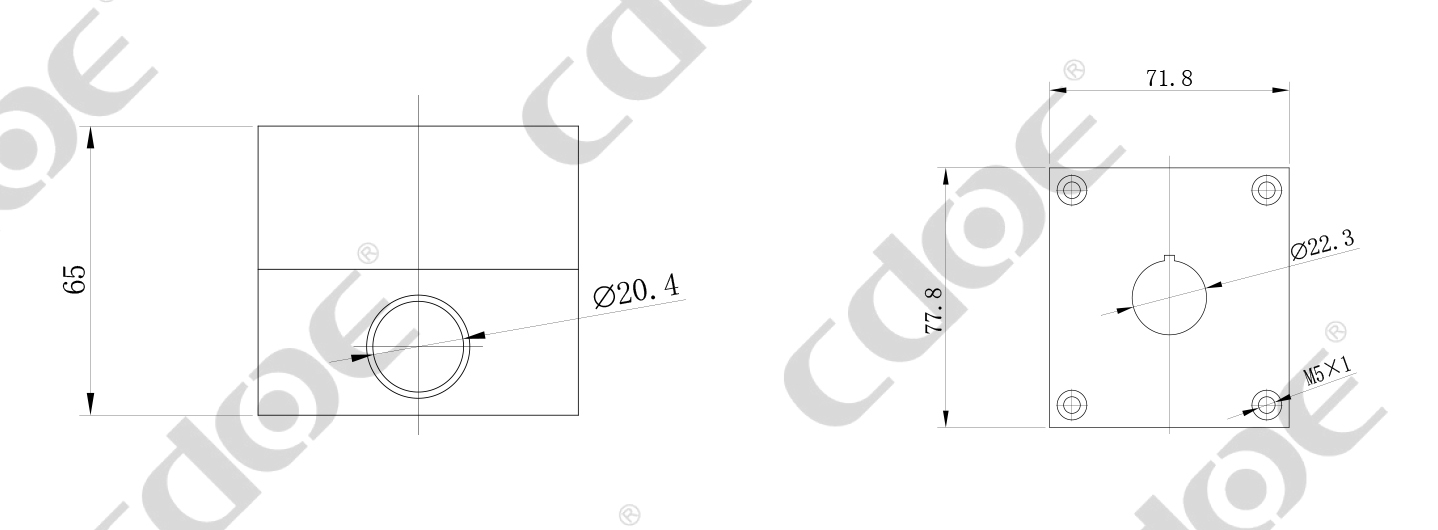

The button box is the enclosure that houses the button and protects it from dust, dirt, and impact. It is made of ABS material and has a white color. It has a sleek and sturdy design that can blend in with any environment. The box has a mounting hole of 22mm and can accommodate one button. The box has a height of 65mm and a length of 77.8mm. It has four screw holes on the back for easy installation on any surface.

Emergency stop switches warning circle

The warning circle is a red ring that surrounds the button and provides a clear visual indication of the emergency stop function. The warning circle has a diameter of 22mm and can be easily attached to the button box. It has a bright and eye-catching color that can alert anyone nearby of the presence and location of the emergency stop switch. The warning circle also enhances the visibility and accessibility of the button, making it easier to find and press in an emergency.

This product is ideal for applications that require a quick and safe way to stop a machine or a process in case of an emergency. It can be used in various industries, such as manufacturing, construction, mining, transportation, and more. The product is easy to install and operate, and has a long service life. With this product, you can ensure the safety of your workers and equipment.
