china 19MM switch 12v ring led 4 pins terminal waterproof ip65 momentary push button

Short Description:

Product Model: HBDGQ19H-10/J/S

Mounting Hole Size: 19MM

Switch Value: Ith: 5A, UI: 250V

Operation Type: Momentary

Min.Order Quantity: 40 Piece/Pieces

Method Of Payment:  T/T(Wire transfer), Paypal, Credit card

Related video: Click

Available equipment: Coffee Machines, Computers, Kettles, Filters, Charging Stations, Medical Equipment, Coffee Machines, Yachts, Pump Control Panels, Doorbells, Horns, Computers, Motorcycles, Cars, Tractors, Stereo


Product Detail

Why choose us?

Product Tags

youtube
The head of the product home page

Product Description:

Looking for a high-quality push button for your industrial or commercial application? Look no further than our China-made 2 pin push button from our factory.With its durable construction and reliable performance, our push button is the perfect choice for a range of applications. Its compact size makes it ideal for use in tight spaces, while the high head design ensures easy operation.Choose from pin or screw terminal options, and a variety of sizes including 16mm, 19mm, and 22mm.

With lamp styles including ring and power symbol heads, and a range of colors such as red, green, white,yellow and blue, our push button is highly customizable to suit your specific needs.And with its self-resting functionality, our push button ensures easy and efficient operation. Don't settle for a subpar solution - upgrade to our high-quality push button for superior performance and reliability

▶Product Model Specification:

HBGQ button

Product Size:

19mm Switch high head button

Technical Parameter:

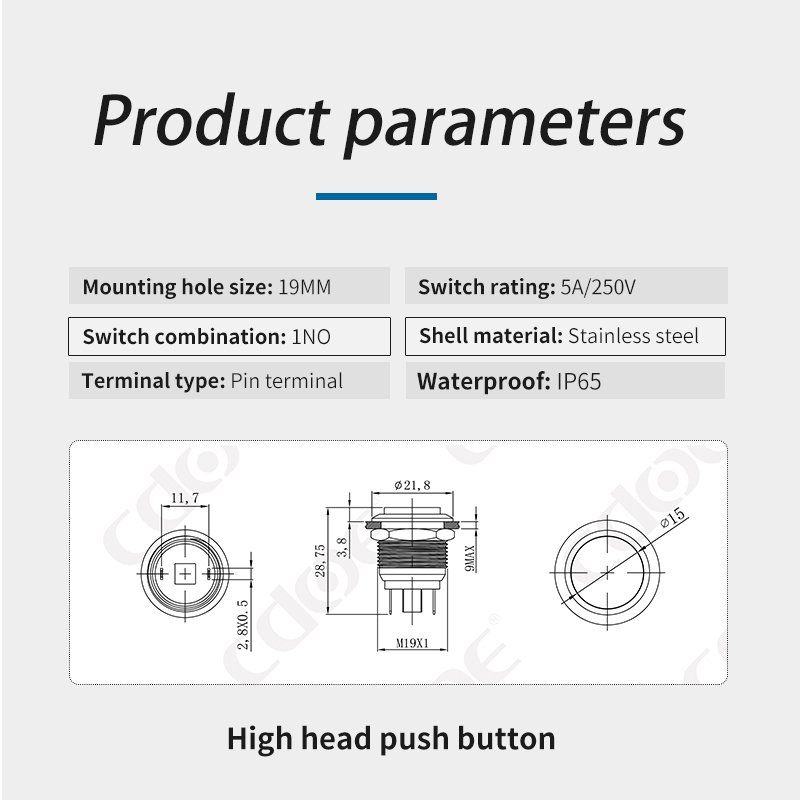

HBDGQ19H-10 Series normally open push button

Product model : HBDGQ19H-10/J/S
Mounting hole size : 19mm

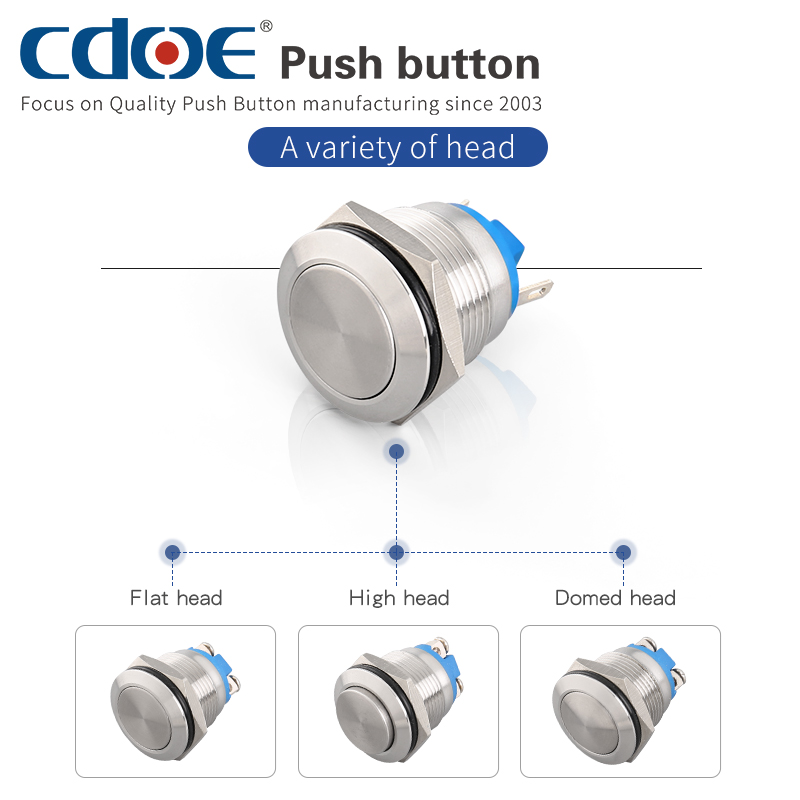

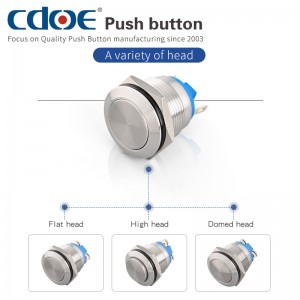

Head type: High head

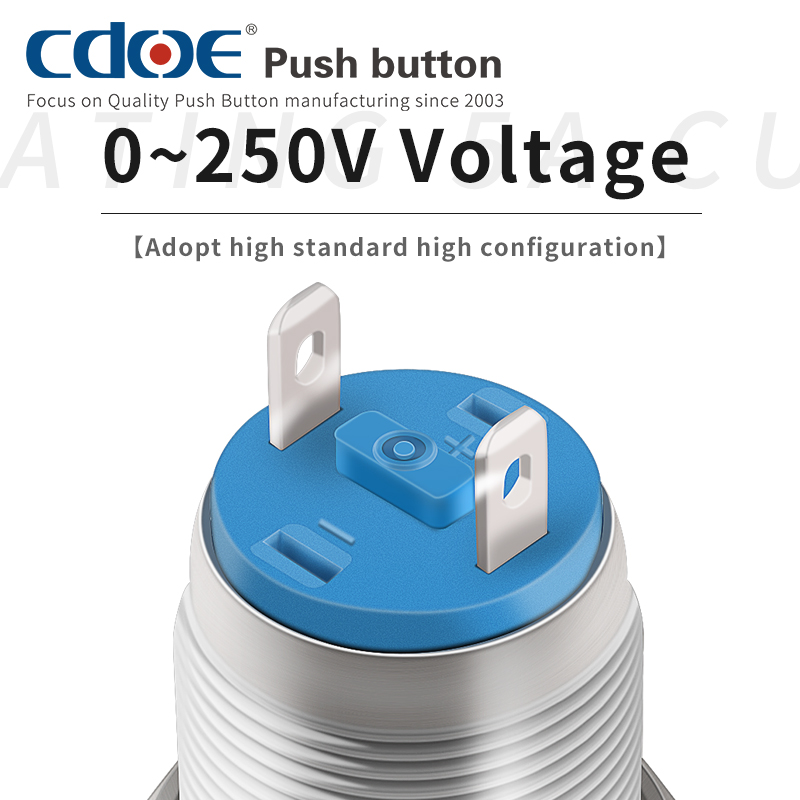

Switch value: Ith: 5A,UI: 250V
Operation type: Momentary
Contact configuration: 1NO
Appearance material: Head: Stainless steel;
Switch button surface: Stainless steel;
Pedestal: PBT;
Terminal type: Pin terminal
Working environment temperature: -25℃~+65℃
Connection form: Welding wire

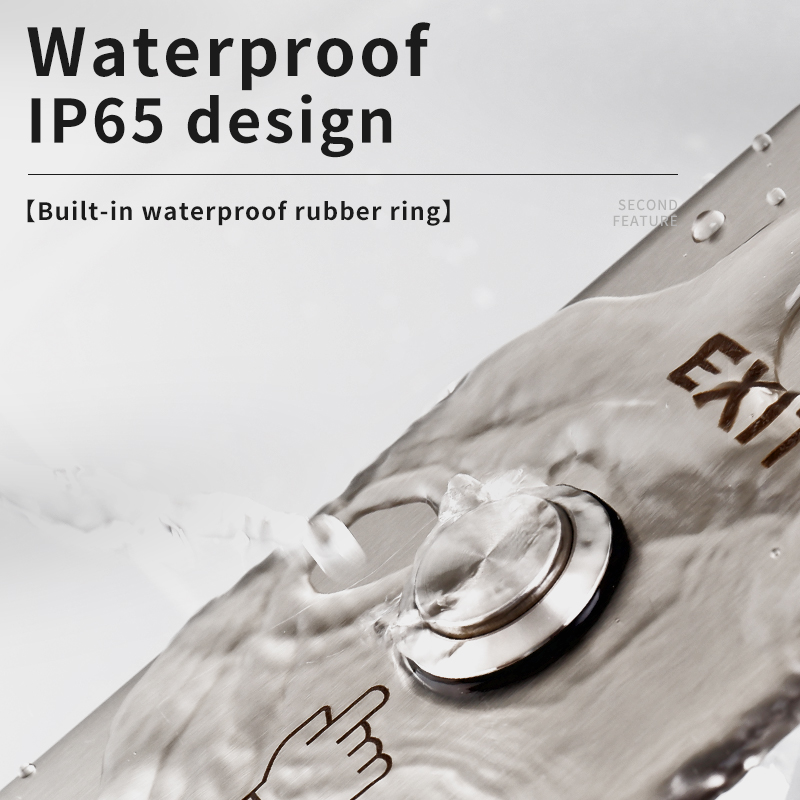

Protection grade: IP65
Contact resistance: ≤50mΩ
Insulation resistance: ≥100MΩ
Electrical resistance: AC250V, 1min, no flicker and breakdown
Life
Electrical part: Operate 50,000 times under rated load without any abnormality
Mechanical part: No abnormal movement for 1000,000 times

Problems Encountered By Buyers:

Q: Can I get the push button with a screw terminal instead of a pin terminal?

A:“Yes, this product offers the option of either a pin or screw terminal for easy installation.”

Q: Are there any other voltage options available besides 12v?

A: “Yes, this product is available in multiple voltage options including 12v, 24v, and 220v.”

Q: Is the push button illuminated?

A: “Yes, this push button series comes with the option of a ring-style lamp in a variety of colors, as well as the option for a power symbol head.”
