16mm Pushbutton plastic 1no1nc switch power custom symbol
▶Product Description:
Experience the convenience and versatility of the 16mm Push Button Switch, designed to meet your unique control needs.
With a mounting hole of 16mm, this switch offers easy installation and integration into various systems and applications.
Features and Specifications
- Contact Type: 1No1NC and 2no2nc
- Pin Terminal: Allows for flexible wiring configurations

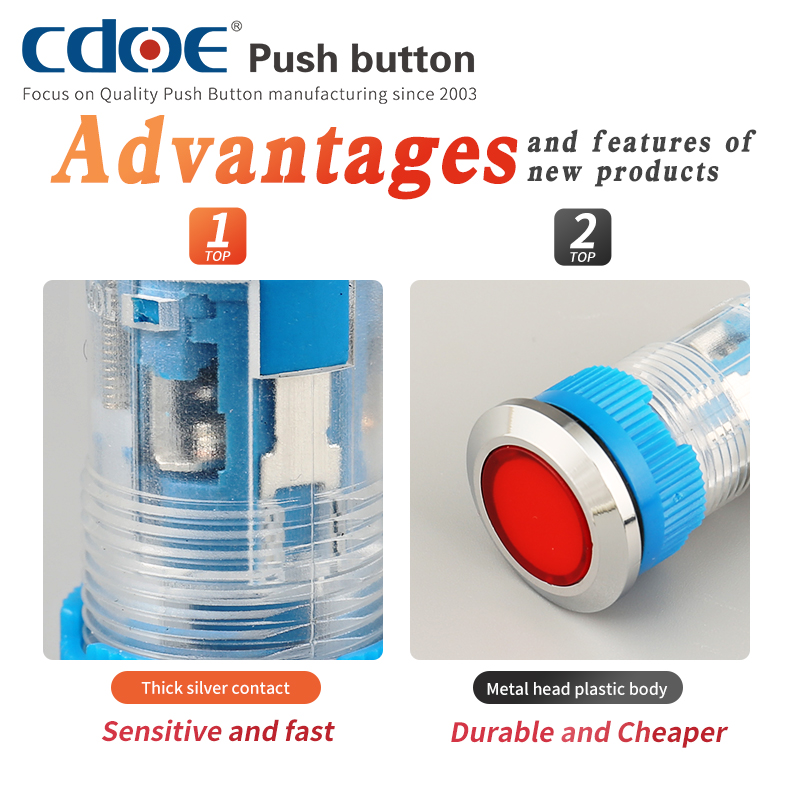

- Durable Construction: Thickened silver-plated pin and oxidation-resistant terminal
- Customizable Head Type: Add your desired logo or symbol
- LED Colors: Available in red, green, blue, yellow, and white
Customization Options
One of the key advantages of this switch is its dual independent circuit design. With two sets of independent circuits, you can easily control and operate devices or systems in two different ways, providing flexibility and versatility in your applications.
As a Chinese manufacturer of high-quality switches, we pride ourselves on our ability to customize and cater to your specific requirements. Whether you need different types, text, or pattern customization, we can accommodate your requests, ensuring that the switch perfectly aligns with your project goals.
Waterproof and Durable
The 16mm Push Button Switch not only offers reliable functionality but also boasts an IP65 waterproof class. It can withstand dust, water, and other environmental factors, making it suitable for both indoor and outdoor applications, even in challenging conditions.
Conclusion
Unlock control and power up your projects with the customizable and reliable 16mm Push Button Switch. Benefit from its easy installation, dual independent circuits, and customization options to create the perfect control solution for your applications.
Experience the convenience, durability, and versatility of the 16mm Push Button Switch, designed to meet your unique control needs.

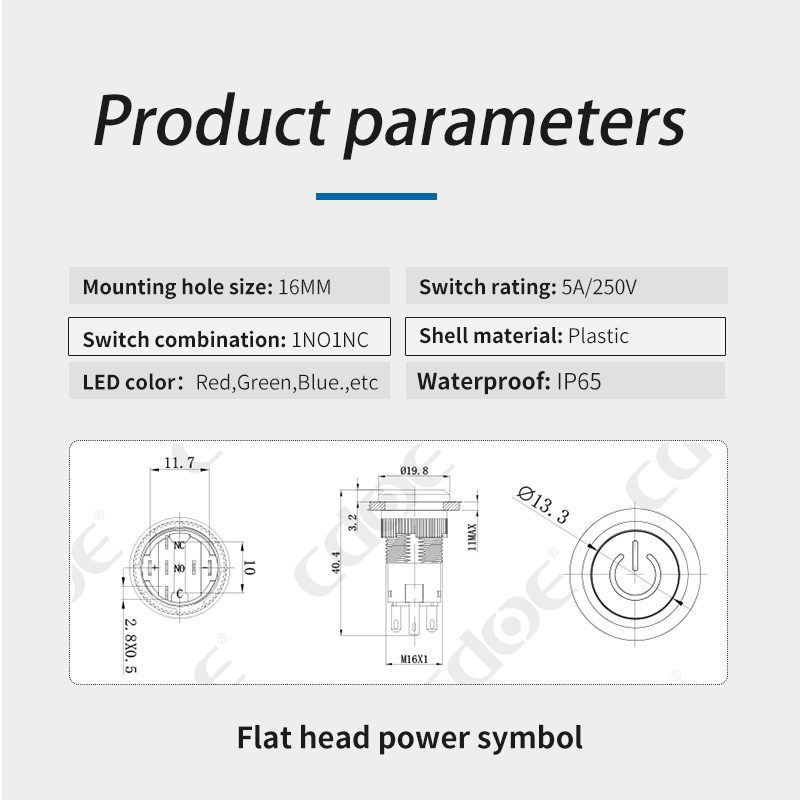

▶Product Model Specification:

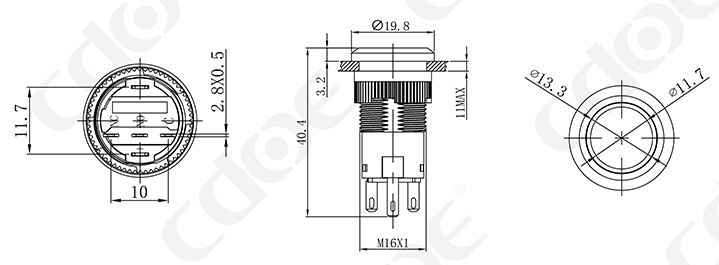

▶Product Size:
▶Technical Parameter:
|
Plastic shell 12v Button 16mm Pushbutton 1no1nc |
|
| Product model : | HBDS1-AGQ16F-□SP(Z)/J/PC |
| Mounting hole size : | 16MM |
| Switch value: | Ith:5A,UI:250V |
| Operation type: | Momentary,Latching |
| Contact configuration: | 1NO1NC,2NO2NC |
| Appearance material: | Head: Plastic; Switch button surface: Plastic; |
| Terminal type: | Pin terminal |
| Connection form: | Supporting connector/Welding wire |
| Lamp bead parameters | |
| LED voltage : | 6V/12V/24V/36V/110V/220V |
| Led color: | Red/Green/Yellow/Orange/Blue/White |
| Led life: | 50,000 hours |
| Protection grade: | IP65 |
▶Problems Encountered By Buyers:
Q:Can you explain the difference between the 1No1NC and 2no2nc contact types and their respective applications?
A:"The 1NO1NC pushbutton switch can only control one circuit, while the 2NO2NC can control two different circuits."
Q:Is there a minimum order quantity for purchasing the 16mm Push Button Switch, especially for customizations?
A:"The MOQ of 16mm Pushbutton is 40pcs. The MOQ of customized head symbol button of this series is the same as the conventional one."
Q:What are the lead time and shipping options for ordering the 16mm Push Button Switch?
A:"Usually, the production time of button switch products is 3-7 working days, and the transportation modes are DHL, UPS, Fedex, EMS, etc."
