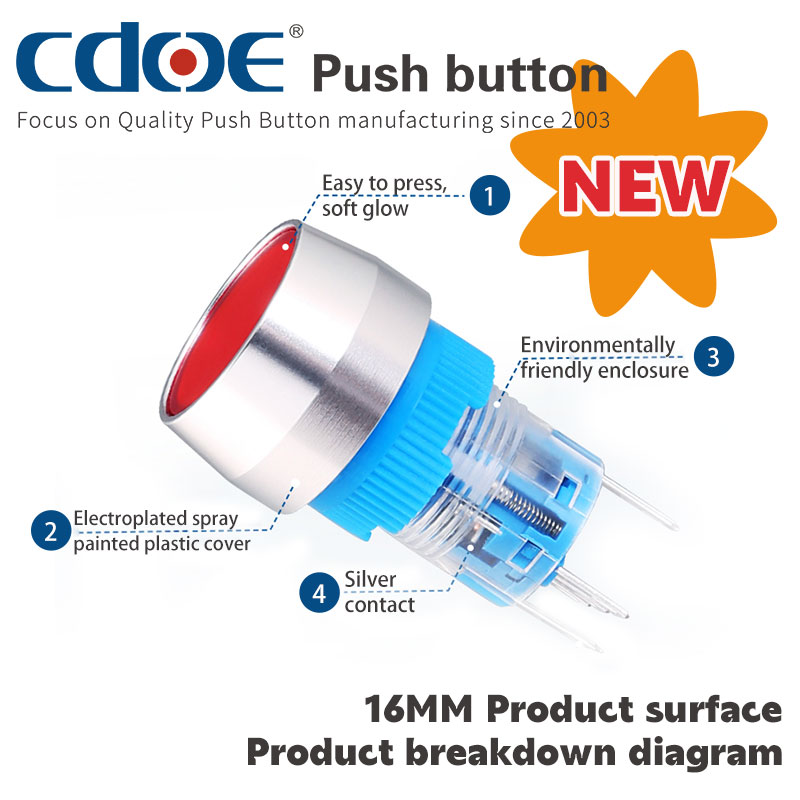

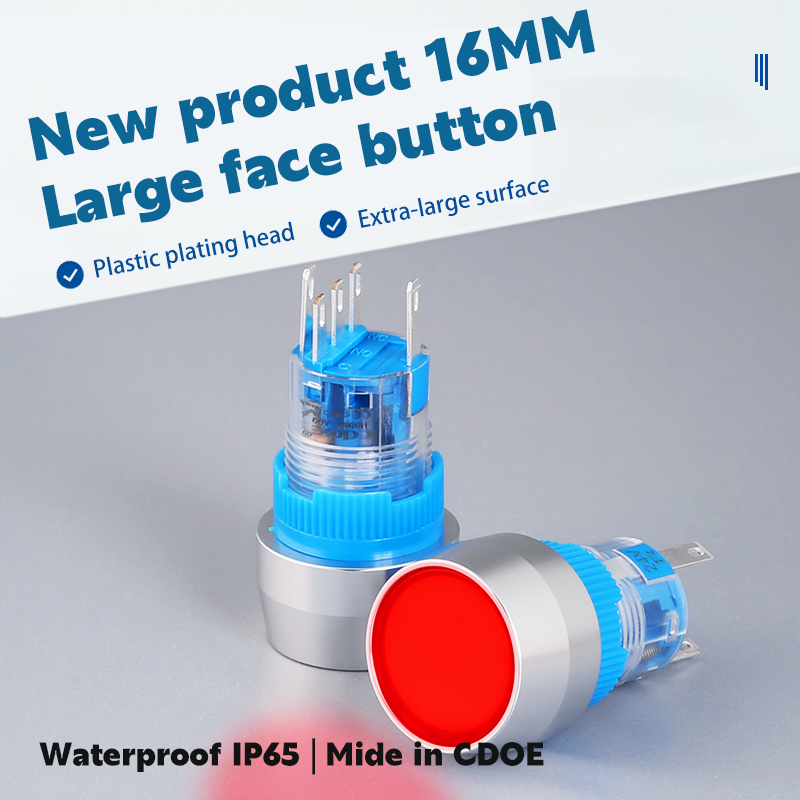

New product Dot led 16mm latching button on off power switch 12v led light
▶Product Description:
Introducing our versatile and reliable 16mm Latching Button Switch, designed to provide seamless On/Off control for various applications. With its robust construction and user-friendly design, this switch offers exceptional performance and durability.
The 16mm Latching Button Switch features a compact and ergonomic design, making it suitable for installations with limited space. The 16mm mounting hole ensures easy integration into your existing control panels or devices. Rated at 5A/220V, this switch is capable of handling high-power electrical circuits with ease.
Designed to withstand challenging environments, the 16mm Latching Button Switch boasts an IP65 waterproof rating. This means it is resistant to dust and water ingress, making it suitable for both indoor and outdoor applications. Whether it's a control panel in an industrial setting or a home automation system, this switch ensures reliable operation even in demanding conditions.
The switch offers versatile contact types, including 1NO1NC and 2NO2NC, providing flexibility in circuit configurations. The pin terminal contact terminals ensure secure connections and easy installation. Additionally, the switch is available in a range of head colors, including yellow, red, green, blue, bi-color, and tri-color. Choose the color that best suits your application or use multiple colors for visual distinction.
Featuring a dot LED head, this switch provides clear visual feedback of its status. The LED enhances visibility, especially in low-light conditions, allowing users to easily identify the switch's state at a glance. The LED's brightness and color can be customized to meet your specific requirements.With its high-quality construction, reliable performance, and wide range of options, the 16mm Latching Button Switch is an ideal choice for industries such as industrial automation, machinery control, home appliances, and more. It meets stringent quality standards and is built to withstand continuous operation.
If you are looking for a reliable, durable, and versatile On/Off control solution, our 16mm push button switch is the perfect fit. Experience seamless operation, easy installation, and enhanced control with this exceptional switch.
▶Product Model Specification:

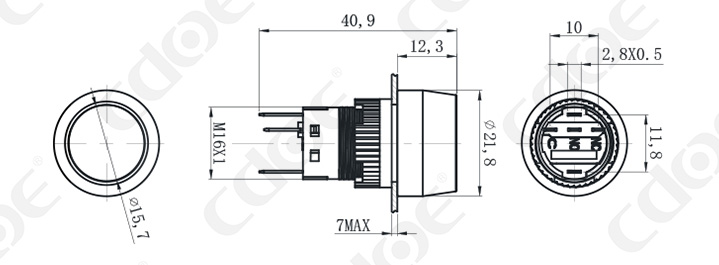

▶Product Size:

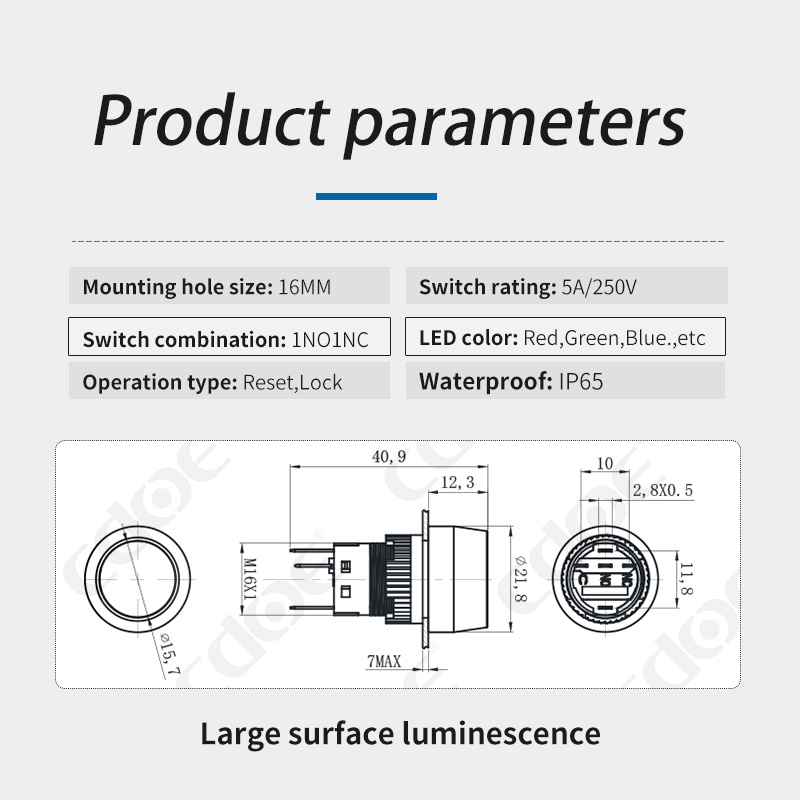

▶Technical Parameter:
| Product model : | HBDGQ16DF-11P/J/PC |
| Mounting hole size : | 16mm |
| Head type: | Dot led |
| Switch value: | Ith: 5A,UI: 250V |
| Operation type: | Momentary,Latching |
| Contact configuration: | 1NO1NC |
| Appearance material: | Head:Plastic; Switch button surface: Plastic; Pedestal: PBT; |
| Terminal type: | Pin terminal |
| Connection form: | Welding wire |
| Protection grade: | IP65 |
| Contact resistance: | ≤50mΩ |
| Insulation resistance: | ≥100MΩ |
| Electrical resistance: | AC250V, 1min, no flicker and breakdown |
| Life | |
| Electrical part: Operate 50,000 times under rated load without any abnormality | |
| Mechanical part: No abnormal movement for 1000,000 times | |
▶Problems Encountered By Buyers:
Q: Can the 16mm Latching Button Switch be used for both AC and DC applications?
A:“Yes, it can be used. The rating of this push-button switch is 5A/250V.”
Q: Are there any specific maintenance or cleaning instructions for the switch to ensure its longevity and performance?
A: “To maintain the longevity and performance of the switch, it is recommended to periodically inspect and clean the switch using a soft, lint-free cloth and non-abrasive cleaner. Avoid using harsh chemicals or excessive moisture during the cleaning process.”
Q: Can the switch be used in outdoor applications or exposed to harsh weather conditions?
A: “Yes, the 16mm On Off Button Switch is designed with an IP65 waterproof rating, making it suitable for outdoor use and providing protection against dust and water splashes.”
