12v button 16mm plastic momentary waterproof push switch 1no1nc
▶Product Description:
Introducing the 16mm Waterproof Momentary Switch: Reliable and Customizable.
Experience the versatility and reliability of the 16mm Waterproof Momentary Switch, designed for a wide range of applications. With a mounting hole of 16mm, this switch is built to meet your specific needs. Rated at 5A/220V, it ensures efficient power delivery while maintaining safety.
Crafted by a leading China Plastic Button Manufacturer, this switch combines a durable plastic shell with a metal head for enhanced durability. Made from environmentally friendly materials, it meets the highest quality standards and is ideal for medical equipment use.
The 1no1nc contact kind and pin terminal offer flexibility in wiring configurations, bearing in mind seamless integration into your projects. The switch also functions a ring led head type, presenting a fashionable and visually appealing indicator. Choose from a spread of led hues including crimson, inexperienced, blue, yellow, and white, permitting for customization to healthy your precise requirements.
One of the key advantages of this switch is its ability to support laser custom symbols, knob accessories, and key knobs, providing additional flexibility and customization options. This ensures that the switch perfectly aligns with your desired functionality and aesthetic preferences.
Whether you're looking to upgrade your medical equipment or seeking a versatile switch for other projects, the 16mm Waterproof Momentary Switch delivers the reliability, customization, and durability you need. Experience the seamless operation and peace of mind that comes with a high-quality switch designed for your specific requirements.
Choose the 16mm Waterproof Momentary Switch for your next project and unlock a world of possibilities. Trust in its exceptional performance, ease of installation, and reliable functionality. Elevate your projects with a switch that is built to last..
▶Product Model Specification:

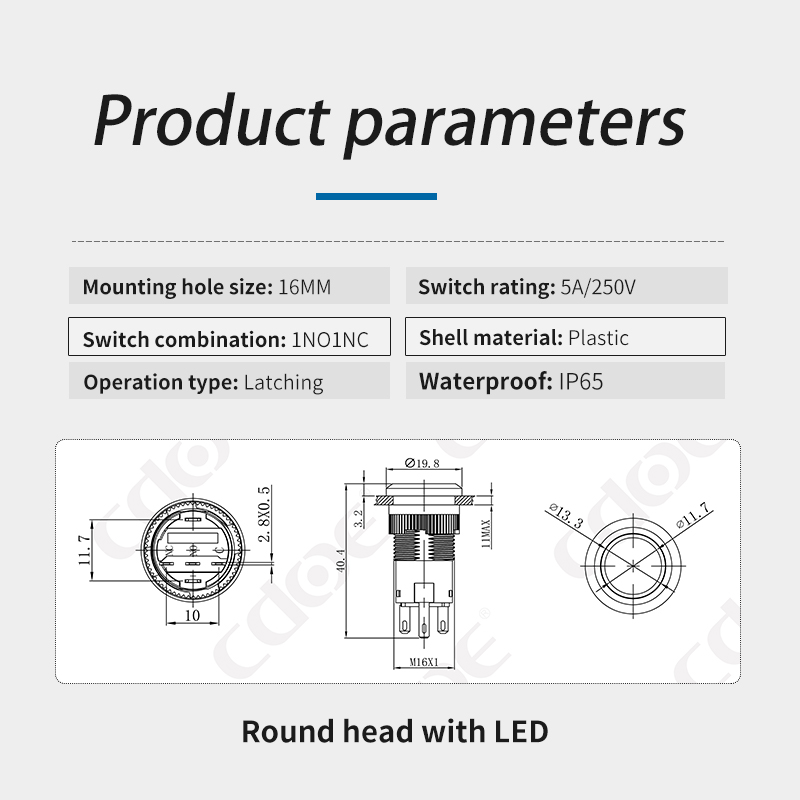

▶Product Size:
▶Technical Parameter:
|
Plastic shell 12v Button 16mm waterproof 1no1nc pushbutton |
|
| Product model : | HBDS1-AGQ16F-□E(Z)/J/PC |
| Mounting hole size : | 16mm |
| Switch value: | Ith:5A,UI:250V |
| Operation type: | Momentary,Latching |
| Contact configuration: | 1NO1NC,2NO2NC |
| Appearance material: | Head: Metal; Switch button surface: Metal; |
| Terminal type: | Pin terminal |
| Working environment temperature: | -25℃～+65℃ |
| Movement stroke: | About 3.2mm |
| Connection form: | Supporting connector/Welding wire |
| Lamp bead parameters | |
| Rated voltage : | 6V/12V/24V/36V/110V/220V |
| Rated current: | ≤20mA |
| Led color: | Red/Green/Yellow/Orange/Blue/White |
| Led life: | 50,000 hours |
| Protection grade: | IP65 |
| Contact resistance: | ≤50mΩ |
| Insulation resistance: | ≥100MΩ |
| Electrical resistance: | AC2500V, 1min, no flicker and breakdown |
| Life | |
| Electrical part: Operate 50,000 times under rated load without any abnormality | |
| Mechanical part: No abnormal movement for 1000,000 times | |
▶Problems Encountered By Buyers:
Q:What certifications or quality standards does the switch meet?
A:"This button has 3C, CE and other certifications, and the production process strictly complies with ISO9001 standards. You can rest assured that you can buy and use our button products."
Q:Can you provide examples or case studies of applications where this switch has been successfully used in the past?
A:"Yes, there is no problem. The related cases are as follows:."
Q:Is there a minimum order quantity for purchasing the 16mm Waterproof Momentary Switch?
A:"The MOQ of button switch with 16mm mounting hole is 40pcs."
