16mm push button switch flat head 2pins waterproof ip65 one normally open for Guitar

Short Description:

Product Model: HBDGQ16F-10/J/S

Mounting Hole Size: 16MM

Switch Value: Ith: 3A, UI: 250V

Operation Type: Momentary

Min.Order Quantity: 40 Piece/Pieces

Method Of Payment:  T/T(Wire transfer), Paypal, Credit card

Related video: Click

Available equipment: Coffee Machines, Computers, Kettles, Filters, Charging Stations, Medical Equipment, Coffee Machines, Yachts, Pump Control Panels, Doorbells, Horns, Computers, Motorcycles, Cars, Tractors, Stereo

Product Detail

Why choose us?

Product Tags

The head of the product home page

Product Description:

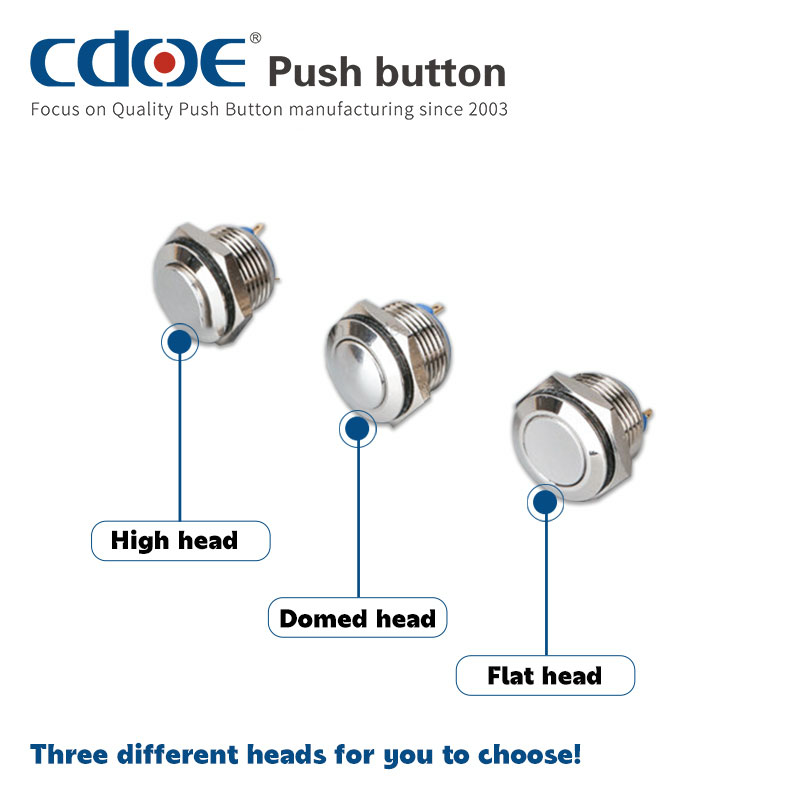

High quality industrial antivandal push button.Momentary spst 1 Normally open contact flat head 2 pin terminal control station 16mm waterproof ip65 durable switch.A variety of head types, respectively flat head, high head, ball head.The shell is made of stainless steel or brass nickel-plated material.

▶Product Model Specification:

HBGQ button

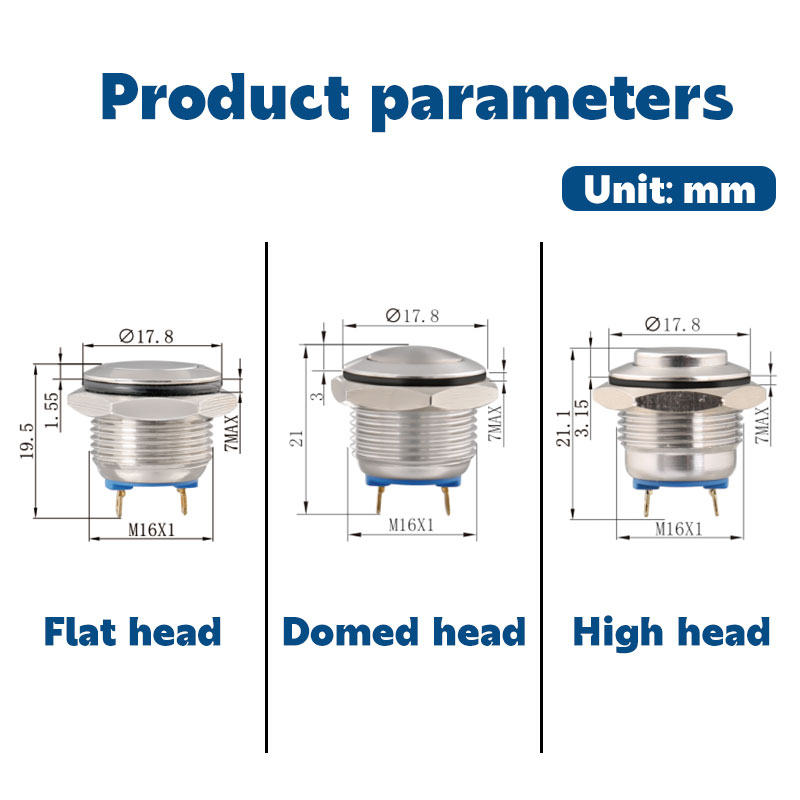

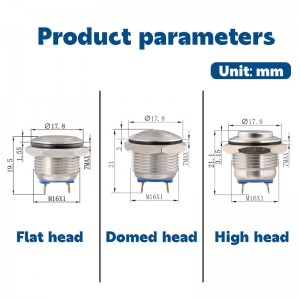

Product Size:


Technical Parameter:

HBDGQ16F-10 Series Antivandal flat head 16mm push button switch

Product model : HBDGQ16F-10/J/S
Mounting hole size : 16mm
Head type: Flat head
Switch value: Ith: 3A,UI: 250V
Operation type: Momentary
Contact configuration: 1NO
Appearance material: Head: Stainless steel;
Switch button surface: Stainless steel;
Pedestal: PBT;
Terminal type: Pin terminal
Working environment temperature: -25℃~+65℃
Movement stroke: About 0.5mm
Connection form: Welding wire
Protection grade: IP65
Contact resistance: ≤50mΩ
Insulation resistance: ≥100MΩ
Electrical resistance: AC250V, 1min, no flicker and breakdown
Electrical part: Operate 50,000 times under rated load without any abnormality
Mechanical part: No abnormal movement for 1000,000 times

Problems Encountered By Buyers:

Q: Do you have this type with lights??

A:“Hello, we have this type of illuminated buttons, there are ring LED, power symbol with lighted, high head with lighted.”

Q: Does your company have an online sales platform? I want to buy products online.?

A: “Our online sales platforms include Alibaba and AliExpress. You can search our company or our CDOE brand to find our store.”

Q: Can you support free samples?

A: “We can provide samples (1-3pcs) and charge the sample fee. When you place an order, the sample fee will be deducted accordingly.”

* Founded in 2003 and experienced in the field of pushbutton switches for more than 20 years.

* We have a complete production line, advanced production equipment, experimental equipment and testing instruments, in strict accordance with the requirements of IS09001 quality assurance system.

* And the world’s top 500 enterprises have cooperation.

Multiple regional offices: Italy, South Korea, Shenzhen, Czech, Spain, South Africa and so on.
* Participated in several exhibitions: Munich, Germany, Korea Electronics Show, Shenzhen Hi-tech Fair, Japan, India, the United States and other international exhibitions.* A number of technical patents: CCC(CQC), UL, Rohs, TUV, UL,CE, etc.

* Main production buttons: Anti-vandal metal push button switches(which are waterproof), plastic push button switches, high current switches for equipment control and panel mounting, micro travel switches(which can be used in elevator),touch switch ,20a high current switch, signal lamp(indicator), buzzers and push button accessories.

* Large quantity can enjoy a certain discount.

*Where can our push button switches be used?Control box,elevator,moving train,industrial lathe machine,New energy machine Charging pile,ice cream machine,blender,Coffee machine,control panel,motorcycle,Cutting Machine,Machine tool equipment,Medicalequipment,automation equipment,solar equipment,yacht,security check equipment,heating equipment,CNC equipment,control handles,Audio equipment,diy panel.,etc

Our buttons are widely used, directly sold by manufacturers, more assured of quality, and have sufficient product inventory for you to choose. One-to-one sales, if you have any dissatisfaction, you can complain
