Anti Vandal Waterproof momentary switch normally open push button 12mm ip65
▶Product Description:
12mm metal flat head stainless steel instantaneous waterproof momentary switch reset , 40 pieces in a pack, supporting sample supply (partial charge). Two pin terminal for this waterproof momentary switch sereis. Normally open contact type switch. Momentary button operated type, with black waterproof rubber ring with head waterproof ip65.
▶Product Model Specification:

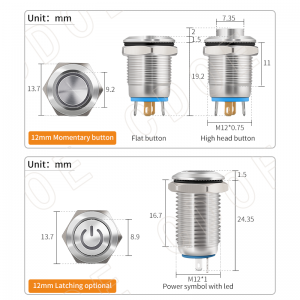

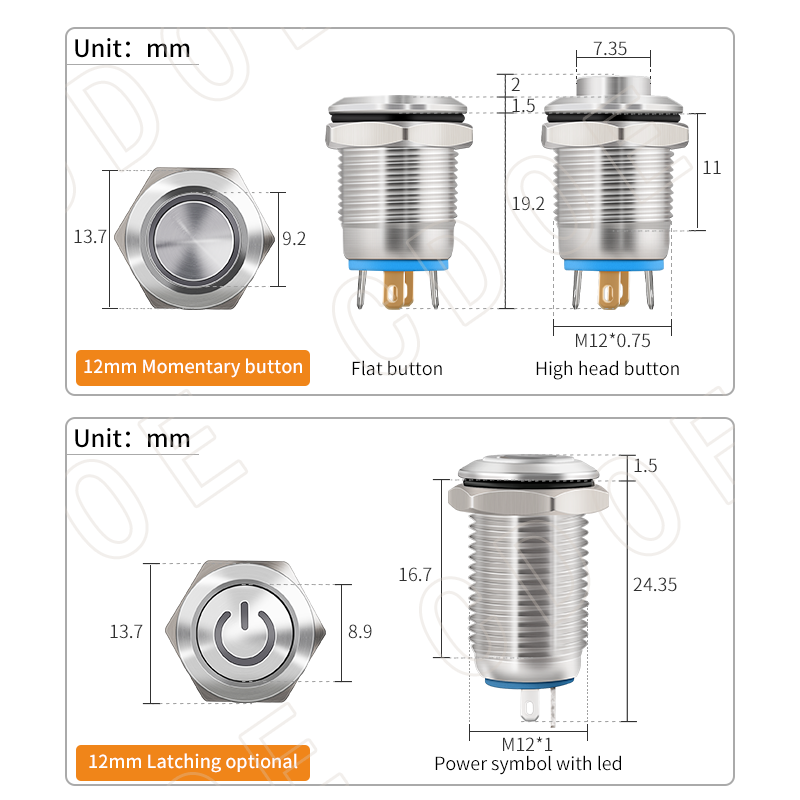

▶Product Size:
▶Technical Parameter:
|
HBDGQ12F Series Waterprood momenatry switch normaly open |
|
| Product model : | HBDGQ12F-□/J/S(N) |
| Mounting hole size : | 12mm |
| Switch value: | Ith:1A,UI:12V |
| Operation type: | Momentary |
| Contact configuration: | 1NO |
| Appearance material: | Head: Stainless steel; Switch button surface: Stainless steel; Pedestal: PBT; Contact: Silver alloy; |
| Terminal type: | Pin terminal |
| Working environment temperature: | -25℃～+65℃ |
| Movement stroke: | About 1.6mm |
| Connection form: | Supporting connector/Welding wire |
| Protection grade: | IP65 |
| Contact resistance: | ≤50mΩ |
| Insulation resistance: | ≥100MΩ |
| Electrical resistance: | AC2500V, 1min, no flicker and breakdown |
| Life | |
| Electrical part: Operate 50,000 times under rated load without any abnormality | |
| Mechanical part: No abnormal movement for 100,000 times | |
▶Problems Encountered By Buyers:
Q: Do you have other head for this series of waterproof momentary switch?
A: “In addition to the flat head button mentioned in the article. The GQ12-10 series also has high head, ring led head, and high head ring head options.”
Q：Whether you can oxidize the color shell?
A：“Can be produced without lamp type oxide plating color. Many customers have purchased orange, green, blue, red and other plating colors from us...”
Q: I want ip67 for waterproof grade and 12mm for button latching Can you make it?
A:“At present, our manufacturing technology 12mm micro travel model can achieve waterproof ip67, but the latching function is still under development. You want latching and 12mm, our highest waterproof is ip65.”
