6 pin Momentary 12v button switch dot led 5amp Self-Resetting Self-Locking for Diverse Applications
▶Product Description:
Are you in search of a reliable and versatile momentary push button switch for your electronic devices? Look no further! Our 12v button switch are designed to cater to all your switching needs, providing an exceptional 5 Amp Push Button Switch, Push Button Momentary Switch, and a 6 Pin Push Button Switch all in one package.Our 16MM installation hole large-surface light-emitting type head self-resetting and self-locking button switch is a game-changer in the industry. With a metal stainless steel and brass nickel-plated material shell, these switches are not only durable but also incredibly stylish. The luminous color options – red, green, blue, orange, and white – add a touch of sophistication to your devices, making them visually appealing.The 12v button switch are designed to support one normally open and one normally closed contact type, ensuring optimal functionality and reliability. These switches can handle a wide range of voltages, including 6V, 12V, and 24V. For additional special voltage requirements, customization is available to suit your specific needs.The same series of button heads come in various types, allowing you to choose from options such as ring, ring power symbol, and high head. This versatility makes our 12v button switch perfect for an array of applications, from automotive to industrial equipment and everything in between.
Key Features of Our 12v button switch:
1. 12V Push Button: Engineered for optimal performance, our 12V Push Button switches are perfect for use in various electronic devices and automotive applications.
2. 5 Amp Push Button Switch: Designed to handle higher currents, our 5 Amp Push Button Switch is ideal for heavy-duty electronic equipment and machinery.
3. Push Button Momentary Switch: Providing quick and efficient switching, our Push Button Momentary Switches are perfect for applications where momentary action is required.
4. 6 Pin Push Button Switch: With a 6 Pin configuration, our Push Button Switches offer enhanced versatility and compatibility with a wide range of electronic devices.

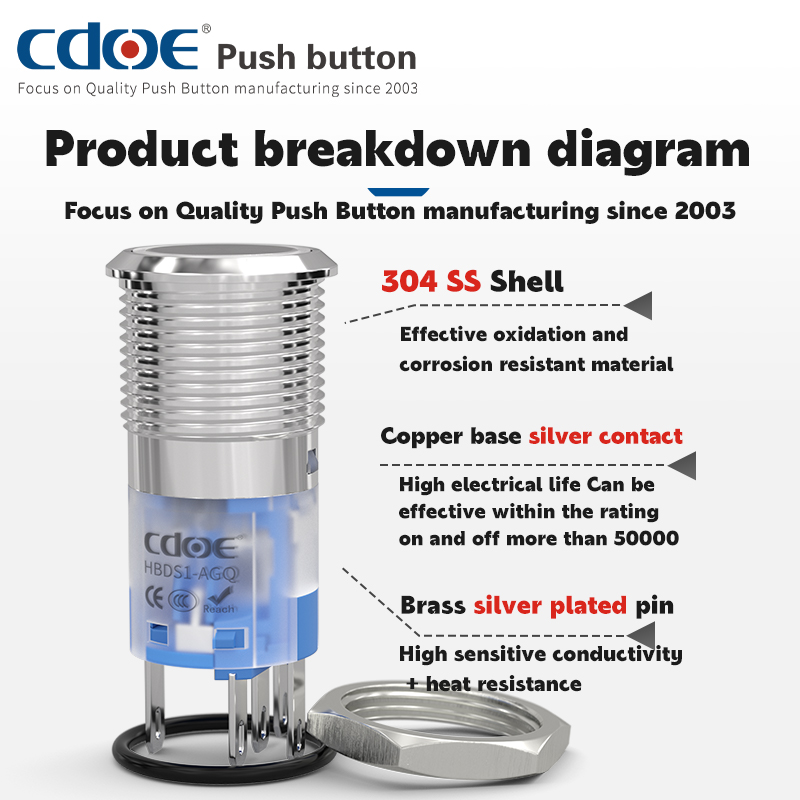

5. Durable and Stylish: The metal stainless steel and brass nickel-plated material shell ensures durability and a sleek, stylish appearance.

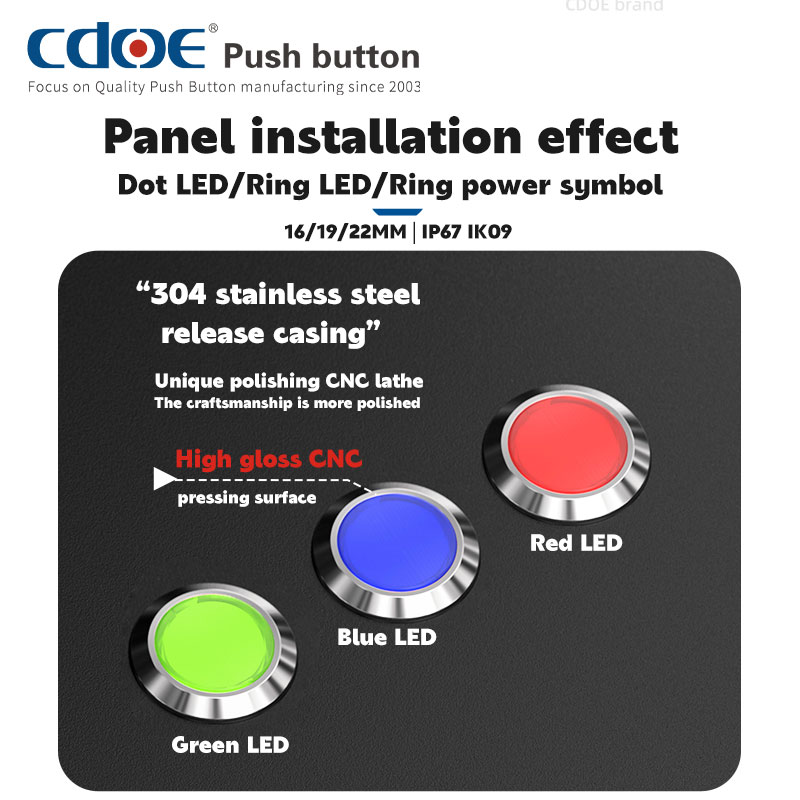

6. Customizable Luminous Colors: Choose from red, green, blue, orange, and white to match your device's aesthetics.
7. Wide Voltage Range: Our 12v button switch are compatible with 6V, 12V, and 24V systems, with customization available for additional special voltages.

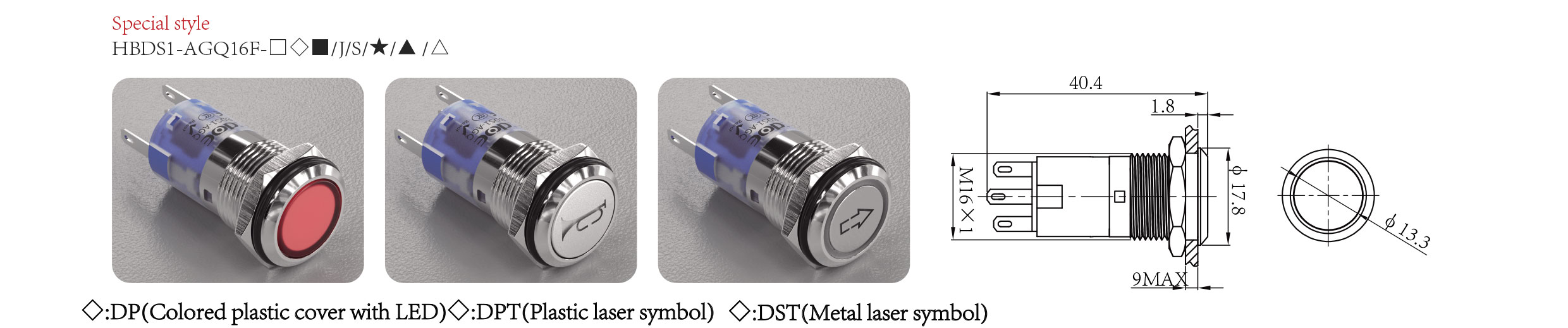

8. Versatile Button Head Options: Select from various types, including ring, ring power symbol, and high head, to suit your specific requirements.Upgrade your electronic devices and equipment with our state-of-the-art 12v button switch. These switches are designed to deliver exceptional performance, durability, and versatility, making them the perfect solution for all your switching needs. Order yours today and experience the difference that our 12v button switch can make!
▶Product Model Specification:

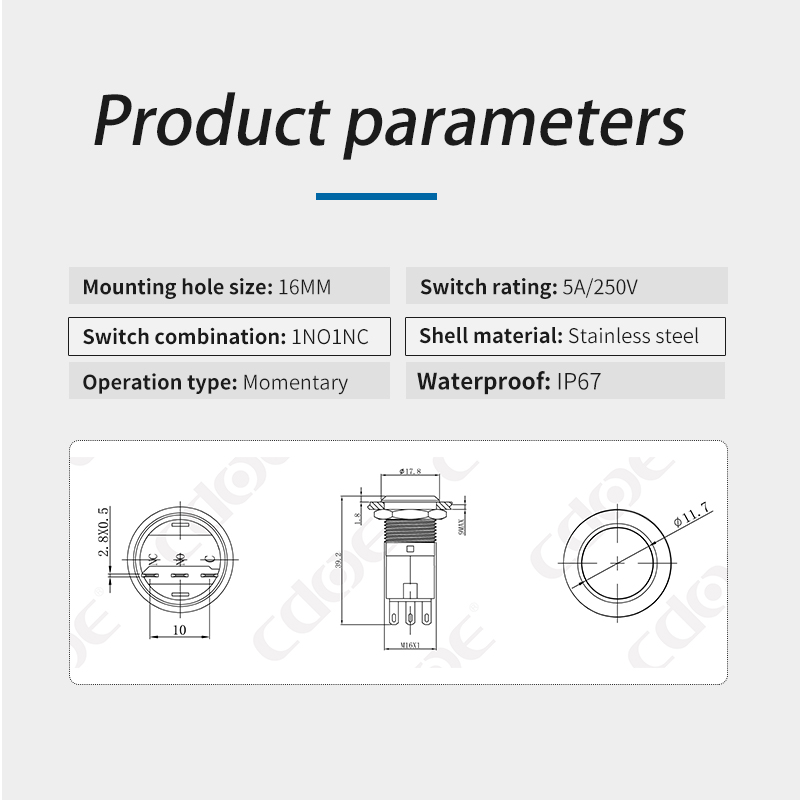

▶Product Size:
▶Technical Parameter:
|
HBDS1-AGQ16F Series 12v button switch |
|
| Product model : | HBDS1-AGQ16F-□P(Z)/J/N(S) |
| Mounting hole size : | 16mm |
| Switch value: | Ith:5A,UI:250V |
| Operation type: | Momentary,Latching |
| Contact configuration: | 1NO1NC,2NO2NC |
| Appearance material: | Head: PC; Switch button surface: PC; Pedestal: PBT; Contact:Silver alloy; |
| Terminal type: | Pin terminal |
| Working environment temperature: | -25℃～+65℃ |
| Movement stroke: | About 3.2mm |
| Connection form: | Supporting connector/Welding wire |
| Lamp bead parameters | |
| Rated voltage : | 6V/12V/24V/36V/110V/220V;(Other voltages can be customized) |
| Rated current: | ≤20mA |
| Led color: | Red/Green/Yellow/Orange/Blue/White |
| Led life: | 50000 hours |
| Protection grade: | IP67 |
| Contact resistance: | ≤50mΩ |
| Insulation resistance: | ≥100MΩ |
| Electrical resistance: | AC2500V, 1min, no flicker and breakdown |
| Life | |
| Electrical part: Operate 50,000 times under rated load without any abnormality | |
| Mechanical part: No abnormal movement for 1000,000 times | |
▶Problems Encountered By Buyers:
Q:Are these switches waterproof or water-resistant?
A:“The Momentary Push Button Switches of this series are designed with an IP67 rating, which means they are waterproof and dust-tight. The IP67 rating ensures that the switches can withstand temporary immersion in water (up to 1 meter for 30 minutes) and are protected from dust ingress, making them suitable for use in various environments where exposure to water or dust is a concern.”
Q:What is the difference between a momentary switch and a self-locking switch?
A:“A momentary switch is a type of switch that only remains in the ON state while being pressed, and returns to the OFF state when released. A self-locking switch, on the other hand, stays in the ON position when pressed once and returns to the OFF position when pressed again..”
Q: Can the Momentary Push Button Switches be used for both residential and industrial purposes?
A:“Yes, the Momentary Push Button Switches can be used for both residential and industrial purposes, as they are designed to handle a wide range of voltages and currents, making them suitable for various applications.”
