Led indicator lights manufacturer 8mm domed head stainless steel signal lamp ip67 product with wire

Short Description:

Product Model: HBDGQ8G-D/Y/S(N)

Mounting Hole Size: 8MM

Rated Voltage: 3V/6V/12V/24V/36V/110V/220V

Led Color: Red/Green/Yellow/Orange/Blue/White

Min.Order Quantity: 50 Piece/Pieces

Method Of Payment: T/T(Wire transfer), Paypal, Credit card

Related video:  Click

Available equipment: Control panels, solar equipment, heating equipment, camera monitoring, kettles, switch plugs, diy panels, cutting machines, electric vehicles, charging piles, automation equipment, yachts, chargers, audio


Product Detail

Why choose us?

Product Tags

youtube
The head of the product home page

Product Description:

Metal flat head waterproof housing ip67 rating indicator lamp, Use bright lamp bead, can do a variety of lighting colors.Such as red, green, blue, orange, white, yellow.Support Bi-color and Tri-color customized lighting to meet different needs, silver-plated pins, wiring is more convenient and quick.8mm mounting hole, 30.55mm in total length, 0.8mm in total length of terminal, 0.3mm in width.

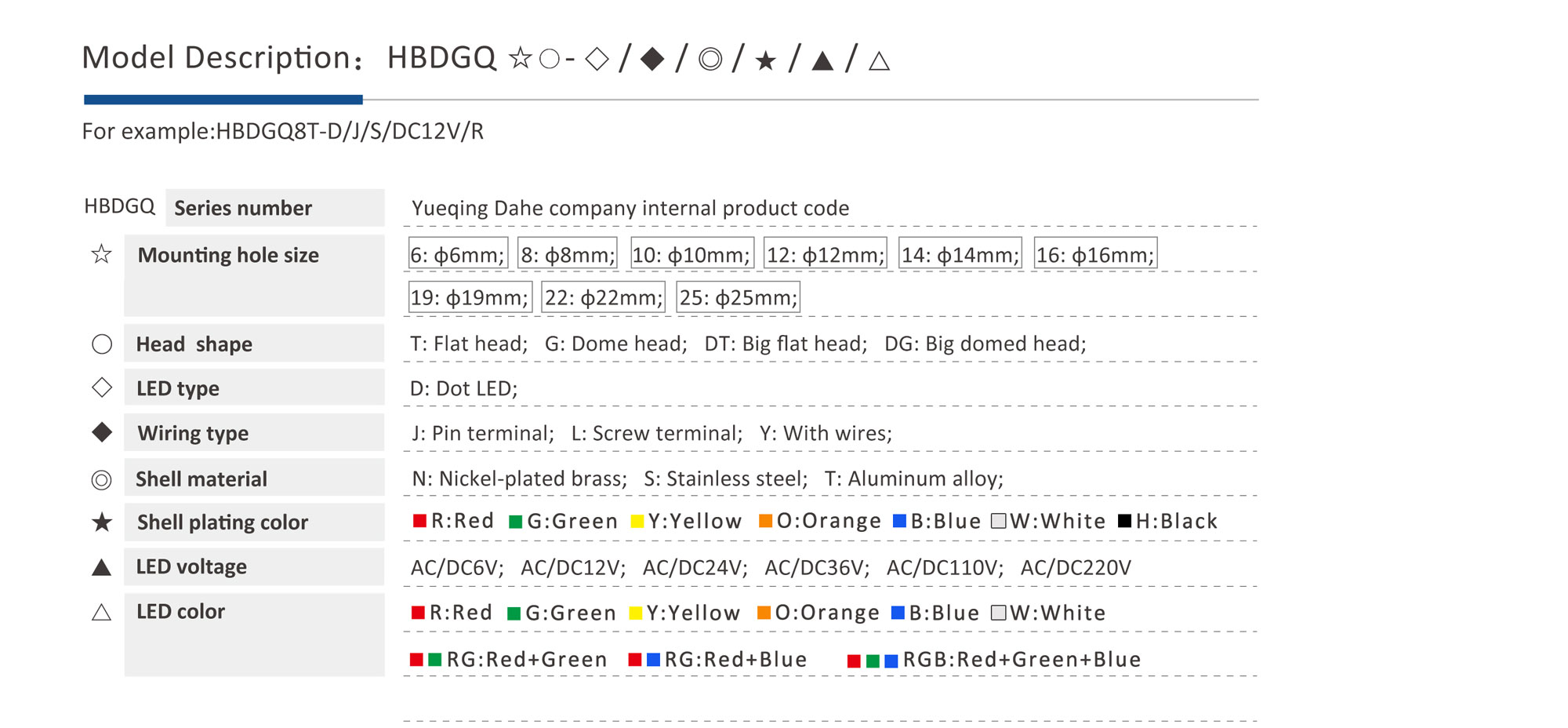

▶Product Model Specification:

HBDGQ

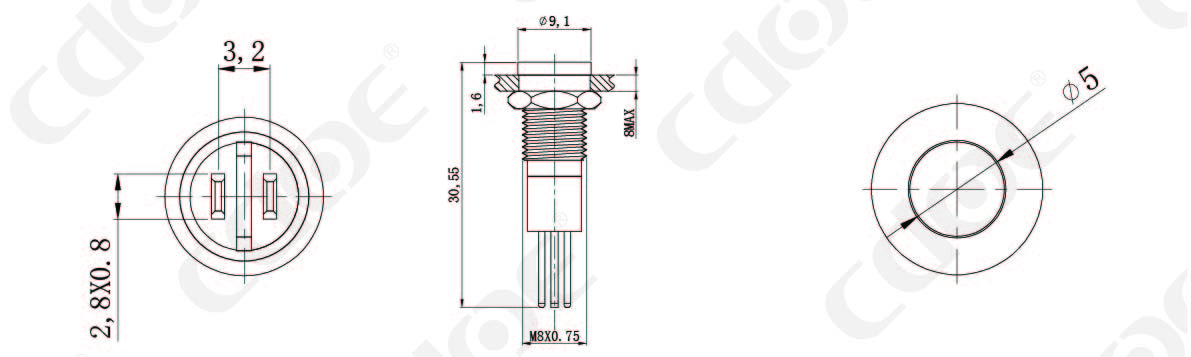

Product Size:

HBDGQ8T-D-J-01

▶Technical Parameter:

HBDGQ 8mm Metal signal lamp series flat head green led

Product model : HBDGQ8T-D/J/S(N)
Mounting hole size : 8mm
Appearance material: Signal lamp surface:Stainless steel/Nickel plated brass;
Pedestal: PBT
Terminal type: Pin terminal
Working environment temperature: -25℃~+65℃
Lamp bead parameters
Rated voltage : 3V/6V/12V/24V/36V/110V/220V
Rated current: ≤20mA
Led color: Red/Green/Yellow/Orange/Blue/White
Led life: 50000 hours
Connection form: Welding wire
Protection grade: IP67

Problems Encountered By Buyers:

Q:What's the difference between the two heads?

A:“Spherical head: The lights are more concentrated and look better than flat lights;Flat head,:more uniform illumination, Visual effects are mediocre.

Q:Is it a polarized lamp bead signal light?

A:“NO,This metal indicator lamp is the default non-polarized lamp bead.”

Q:I want to know the length of the thread part of the metal signal lamp, I need to compare the thickness of the panel?

A:“OK,The thread length is approximately 14mm.”
