IP67 push button switch HBDS1-AGQ16H Custom horn symbols high head UL CE

Short Description:

Product Model: HBDS1-AGQ16H-□EC(Z)/J/T

Mounting Hole Size: 16MM

Switch Value: Ith: 5A, UI: 250V

Operation Type: Momentary, Latching

Min.Order Quantity: 40 Piece/Pieces

Method Of Payment: T/T(Wire transfer), Paypal, Credit card

Related video: Click

Available equipment: Elevators, charging piles, automation equipment, motor vehicles, yachts, access control, automatic guided vehicles, lathes, lifts, lawn mowers

Send email to us

Product Detail

Why choose us？

Product Tags

▶Product Description:

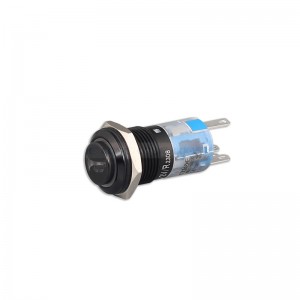

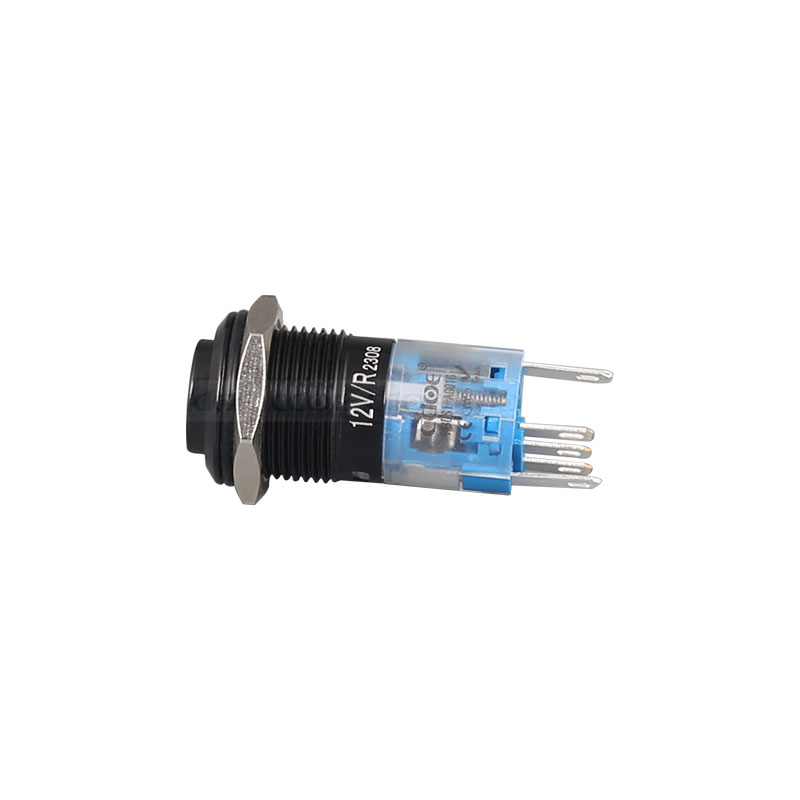

HBDS1-AGQ16H-EC(Z) series IP67 push button switch, with a mounting hole diameter of 16mm, is suitable for a variety of devices and control panels.

Do you need a button with excellent protection performance? This IP67 push button switch has IP67-level waterproof and dustproof capabilities, and can work stably even in challenging conditions.

In terms of electrical performance, this switch has a rated current and voltage of 5A/250V, which can meet a variety of industrial and commercial applications. In addition, it supports two contact configurations of 1NO1NC and 2NO2NC, which is convenient for you to choose according to your needs.

To ensure product quality and safety, this IP67 push button switch has passed multiple international certifications such as UL, CE, CCC, TUV, etc., so you can use it with confidence.

To facilitate your wiring, this IP67 push button switch uses pin terminals, which are reliable in connection and can be used with quick connectors to improve efficiency.

If you are looking for an IP67 push button switch that is waterproof and dustproof, has flexible configurations, and has passed multiple international certifications, the HBDS1-AGQ16H-EC(Z) series will be your ideal choice. Welcome to contact us for more details!

▶Product Model Specification:

▶Product Size:

▶Technical Parameter:

HBDS1-AGQ16H Series IP67 push button switch
Product model :	HBDS1-AGQ16H-□EC(Z)/J/T
Mounting hole size :	16mm
Switch value:	Ith:5A,UI:250V
Operation type:	Momentary,Latching
Contact configuration:	1NO1NC,2NO2NC
Appearance material:	Head: Aluminum plated black; Switch button surface: Aluminum plated black; Pedestal: PBT; Contact: Silver alloy;
Terminal type:	Pin terminal
Working environment temperature:	-25℃～+65℃
Movement stroke:	About 3.2mm
Connection form:	Supporting connector/Welding wire
Lamp bead parameters
Rated voltage :	6V/12V/24V/36V/110V/220V;(Other voltages can be customized)
Rated current:	≤20mA
Led color:	Red/Green/Yellow/Orange/Blue/White
Led life:	50000 hours
Protection grade:	IP67
Contact resistance:	≤50mΩ
Insulation resistance:	≥100MΩ
Electrical resistance:	AC2500V, 1min, no flicker and breakdown
Life
Electrical part: Operate 50,000 times under rated load without any abnormality
Mechanical part: No abnormal movement for 1000,000 times

▶Problems Encountered By Buyers:

Q: Can I return the product if the pattern produced is different from what I imagined?

A: "Customized products do not accept returns. Before production, we will provide 2-3 samples with customized symbols to send to you for confirmation. After confirming the sample products, we will proceed with mass production."

Q: Can you customize the shell in red or other colors?

A: "We are a manufacturer. If the materials are available, we can produce. If it is a special product shell color, a minimum order quantity of 500pcs or 5000pcs is required for production. No returns or exchanges are accepted."

Q: I want a custom housing for 22mm buttons, can you produce it?

A:"The 22mm mounting hole can be customized for non-light or ring-shaped models. If you have other needs, please contact us for further production."

Thank you for your trust and support!
