emergency button 19MM one normally close stop push lock switch ip65 waterpoof small head CDOE brand

Short Description:

Product Model: HBDS1-AGQ19F-11TSA/J/T/R

Mounting Hole Size: 16MM

Switch Value: Ith: 5A, UI: 250V

Operation Type: Latching

Min.Order Quantity: 40 Piece/Pieces

Method Of Payment: T/T(Wire transfer), Paypal, Credit card

Related video:  Click

Available equipment: Elevators, charging piles, automation equipment, motor vehicles, yachts, access control, automatic guided vehicles, lathes, elevators, lawn mowers, ice cream machines, motor controllers, remote control panels




Product Detail

Why choose us?

Product Tags

youtube
The head of the product home page

Product Description:

Emergency button 19MM is a button switch that can be used to stop or cut off the power of a device or a system in case of an emergency, such as a fire, a fault, an accident, etc. Emergency button 19MM is an essential device for your safety and protection, as it can prevent or reduce the damage or injury caused by the emergency situation.

What are the Features and Benefits of Emergency Button 19MM?

Emergency button 19MM has many features and benefits that make it suitable for various emergency situations, such as:

    • It has a mounting hole of 19mm, which means it can fit in most of the panels or devices, and can be easily installed and replaced.
    • It has a rating of 5A/250V, which means it can handle high currents and voltages, and can work well with different types of devices or systems.
    • It has a waterproof class of ip65, which means it can resist water and dust, and can work well in harsh environments.
    • It has a contact type of 1NO1NC or 2NO2NC, which means it can control one or two circuits, and switch between normally open or normally closed states.
    • It has a pin terminal, which means it can be easily connected to the wires, without the need for soldering or crimping.
    • It has a red head color, which means it can attract attention and indicate the emergency situation.
    • It has a white arrow or stop head type, which means it can clearly show the function and meaning of the button switch.
    • It has a latching operation type, which means it can maintain the position after being pressed, and only reset when rotated again.
    • It has an aluminum alloy shell material, which means it has a high-quality and durable metal surface, and can resist corrosion and abrasion.

What are the Applications of Emergency Button 19MM?

Emergency button 19MM is widely used in various applications, such as:

    • Industrial applications, such as machine tools, elevators, cranes, robots, automation systems, etc.
    • Household applications, such as appliances, lamps, fans, alarms, etc.
    • Automotive applications, such as car dashboards, steering wheels, windows, doors, horns, etc.
    • Medical applications, such as medical equipment, devices, instruments, etc.
    • Communication applications, such as phones, radios, intercoms, etc.
    • Entertainment applications, such as toys, games, musical instruments, etc.

How to Order Our Emergency Button 19MM?

Ordering our emergency button 19MM is easy and convenient. You can simply follow these steps:

    1. Visit our website and find the emergency button 19MM product page. You can also contact us and tell us your requirements, and we will help you find the best emergency button 19MM for you.
    2. Select the options for the contact type, the head type, and the operation type of the emergency button 19MM, and add them to your cart. You can also specify the quantity and the delivery time of the emergency button 19MM.
    3. Check out and pay for the emergency button 19MM, and we will start the production as soon as possible. We accept various payment methods, such as PayPal, credit card, bank transfer, etc.
    4. Receive the emergency button 19MM, and enjoy the quality and functionality of our products. We will pack the emergency button 19MM carefully and ship them to you by express, air, or sea, according to your preference. We will also provide you with the tracking number and the after-sales service.

Don't hesitate, order our emergency button 19MM now, and enjoy the best price and service from us. Our emergency button 19MM will bring you the best performance and experience for your safety and protection. We look forward to hearing from you soon!

▶Product Model Specification:

HBDS1-AGQ-Product-Model-specification

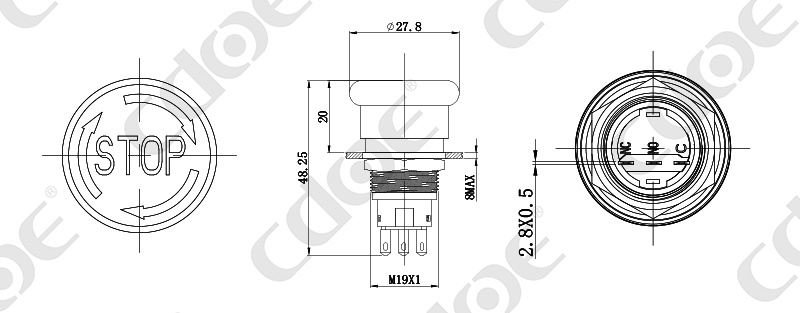

Product Size:

19mm emergency stop red button

Technical Parameter:

HBDS1-AGQ19F-TSA/J/T/R Series emergency button 19MM

Product model : HBDS1-AGQ19F-TSA/J/T/R
Mounting hole size : 19MM
Switch value: Ith:5A,UI:250V
Operation type: Latching
Contact configuration: 1NO1NC,2NO2NC
Appearance material: Head:Aluminum alloy;
Switch button surface:Aluminum alloy;
Pedestal:PBT
Contact:Silver alloy;
Terminal type: Pin terminal
Connection form: Supporting connector/Welding wire
Protection grade: IP65
Contact resistance: ≤50mΩ
Insulation resistance: ≥100MΩ
Electrical resistance: AC2500V, 1min, no flicker and breakdown
Life
Electrical part: Operate 50,000 times under rated load without any abnormality
Mechanical part: No abnormal movement for 300,000 times
