New style emergency stop 16mm Plastic Shell push button Switch with 5A Capacity and White Arrow Logo
▶Product Description:
Introducing our new product, a high-quality switch designed for a range of electrical applications. With a 16mm mounting hole, this switch is easy to install and perfect for a variety of uses.Featuring a 5A switch rating, this switch can handle high currents, making it ideal for heavy-duty applications. The switch length of 40.5mm ensures that it can fit into even the tightest of spaces, making it versatile and easy to use.

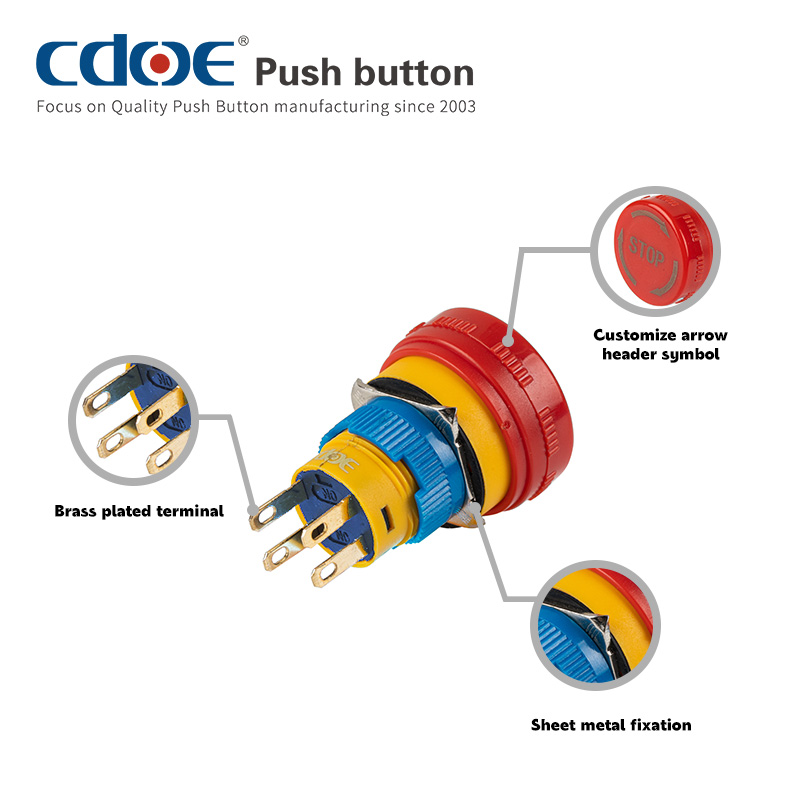

This switch has a 1NO1NC configuration, which means it has one normally open and one normally closed contact. This makes it perfect for applications that require a choice between two different circuits.Made with brass pin terminals, this switch is highly durable and resistant to wear and tear. It is built to last, ensuring that your electrical systems are reliable and long-lasting.
Whether you are working on a DIY project or need a reliable switch for a commercial application, our 16mm mounting hole, 5A switch rating, switch length 40.5mm, 1NO1NC, brass pin terminal switch is the perfect choice. Order now and experience the high-quality and reliability that our product offers.
▶Product Model Specification:

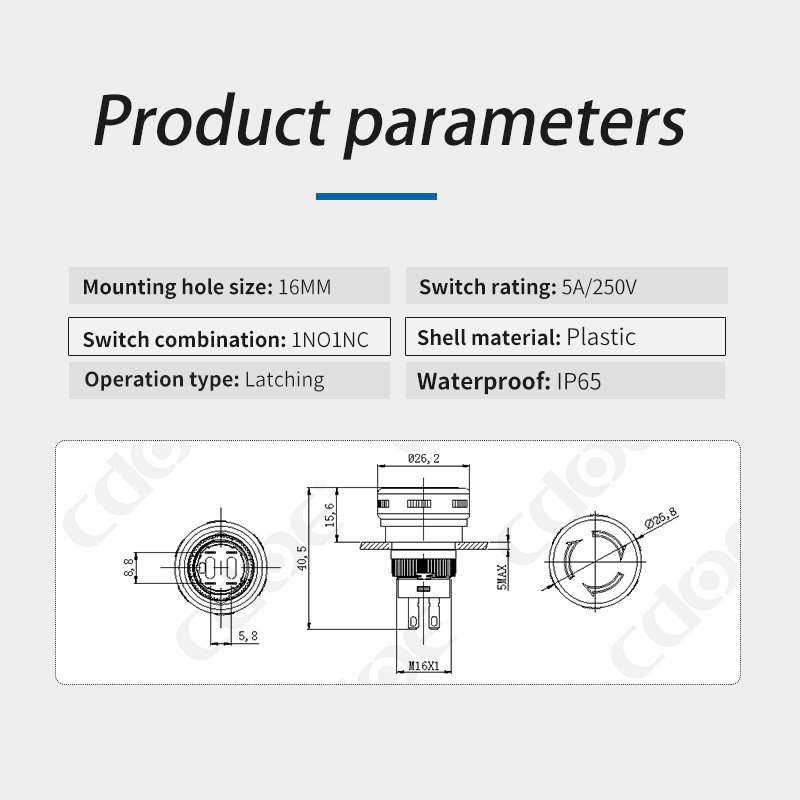

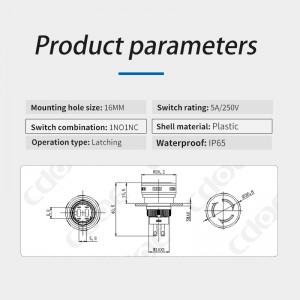

▶Product Size:
▶Technical Parameter:
|

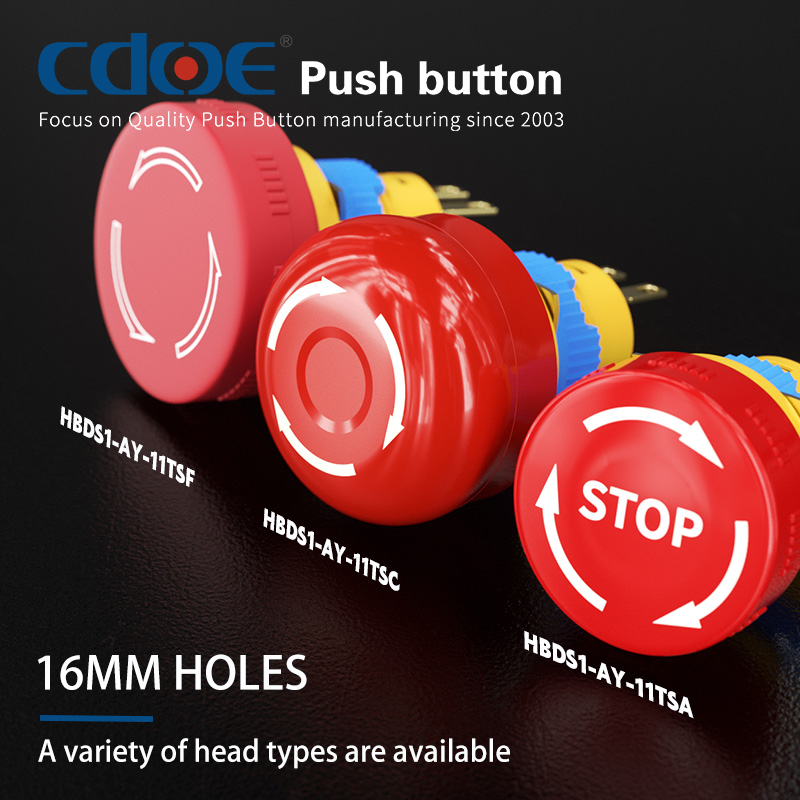

HBDS1-A Series 16mm emergency stop switch |
|
| Product model : | HBDS1-AY-11TSA |
| Mounting hole size : | 16mm |
| Switch value: | Ith:5A,UI:250V |

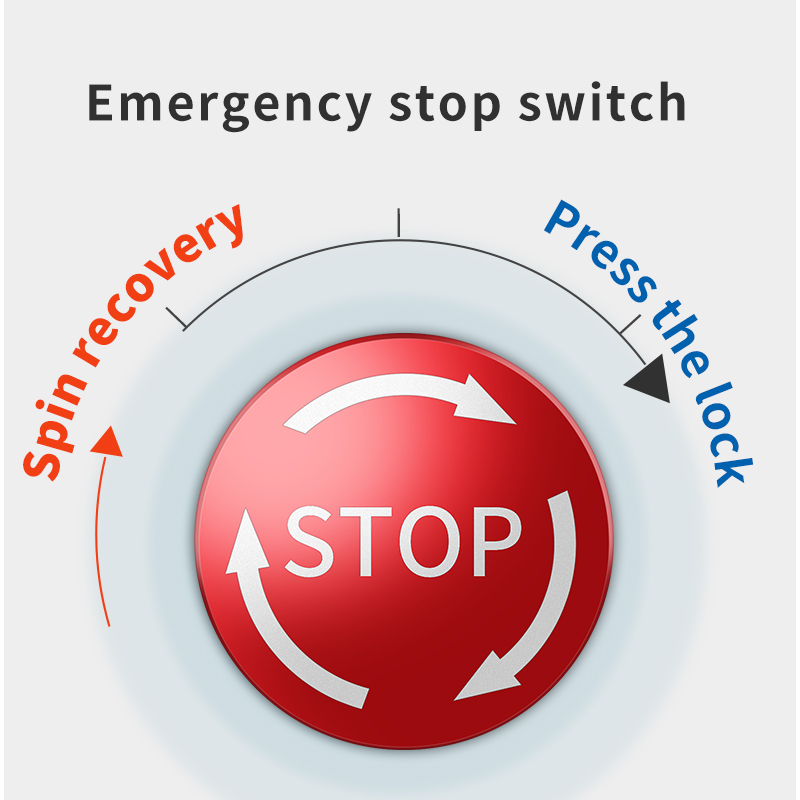

| Operation type: | Latching |
| Contact configuration: | 1NO1NC |
| Appearance material: | Head:PC; Switch button surface:PC; Pedestal:PBT Contact:Silver alloy; |
| Terminal type: | Pin terminal |
| Working environment temperature: | -25℃～+65℃ |
| Connection form: | Supporting connector/Welding wire |
| Protection grade: | IP65 |
▶Problems Encountered By Buyers:
Q:Can this switch handle higher currents than 5A?
A:“No, this switch is rated for a maximum current of 5A. It is important to select a switch with a current rating that matches or exceeds the maximum current of the application.”
Q:Is this switch easy to install?
A:“Yes, this switch is designed for easy installation with its 16mm mounting hole and brass pin terminals. However, proper installation procedures should be followed to ensure that the switch is securely installed and electrically connected.”
Q: Can this switch be used for both AC and DC applications?
A:“Yes, this switch is designed for use with both AC and DC applications. ”
