elevator emergency button 1no1nc stop white arrow head push switch 19mm waterproof push latching keep type

Short Description:

Product Model: HBDS1-AGQ19F-TSD/J/T/R

Mounting Hole Size: 19MM

Switch Value: Ith: 5A, UI: 250V

Operation Type: Latching

Min.Order Quantity: 40 Piece/Pieces

Method Of Payment: T/T(Wire transfer), Paypal, Credit card

Related video: Click

Available equipment: Elevators, charging piles, automation equipment, motor vehicles, yachts, access control, automatic guided vehicles, lathes, elevators, lawn mowers, ice cream machines, motor controllers, remote control panels

Send email to us

Product Detail

Why choose us？

Product Tags

▶Product Description:

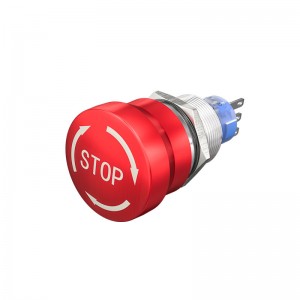

Elevator Emergency Button

Introducing our advanced Elevator Emergency Button, a crucial safety feature designed for elevator systems. Boasting a 19mm mounting hole, this button is engineered to meet the highest standards, ensuring optimal safety for passengers and efficient operation for system operators.

Key Features

With a robust rating of 5A/250V, this button is built to handle the demands of elevator applications. The IP65 waterproof class ensures reliable performance, even in challenging environments where protection against water and dust is essential.

The contact type includes both 1NO1NC and 2NO2NC, providing versatility in its application. The pin terminal facilitates easy and secure connections, enhancing the overall reliability of the elevator's safety system.

The head of the button is distinguished by its eye-catching red color and mushroom-shaped design. This distinctive feature allows for quick identification during emergencies, enabling swift response times when every second counts.

Operational convenience is guaranteed with the latching mechanism, allowing for a push-lock functionality. The aluminum alloy shell ensures durability, making it well-suited for the demanding conditions within elevators.

Reliable Safety Solution

Our Elevator Emergency Button is not just a component; it's a reliable safety solution that meets the stringent requirements of modern elevators. Elevate the safety standards in your elevator systems with this carefully crafted button.

Enhance Safety in Every Ride

Invest in the safety of your elevators with our dependable Elevator Emergency Button. Elevate the standard of safety for passengers and operators alike, providing peace of mind with each ride.

Contact us today to integrate this safety solution into your elevator systems. Elevate safety with Yueqing Dahe Electric Co.,Ltd.

▶Product Model Specification:

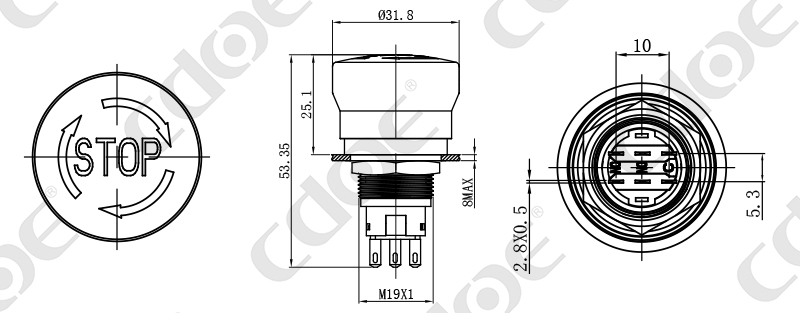

▶Product Size:

CDOE elevator emergency button AGQ19F-11TSD-J-T-R

▶Technical Parameter:

HBDS1-AGQ19F-TSD/J/T/R Series emergency button 19MM
Product model :	HBDS1-AGQ19F-TSD/J/T/R
Mounting hole size :	19MM
Switch value:	Ith:5A,UI:250V
Operation type:	Latching
Contact configuration:	1NO1NC,2NO2NC
Appearance material:	Head:Aluminum alloy; Switch button surface:Aluminum alloy; Pedestal:PBT Contact:Silver alloy;
Terminal type:	Pin terminal
Connection form:	Supporting connector/Welding wire
Protection grade:	IP65
Contact resistance:	≤50mΩ
Insulation resistance:	≥100MΩ
Electrical resistance:	AC2500V, 1min, no flicker and breakdown
Life
Electrical part: Operate 50,000 times under rated load without any abnormality
Mechanical part: No abnormal movement for 300,000 times
