Stainless Steel Green Led Illumination 25mm Signal Lamp With Wire

Short Description:

Product Model: HBDGQ25DT-D/Y/S(N)

Mounting Hole Size: 25MM

Rated Voltage: 3V/6V/12V/24V/36V/110V/220V

Led Color: Red/Green/Yellow/Orange/Blue/White

Min.Order Quantity: 20 Piece/Pieces

Method Of Payment: T/T(Wire transfer),Paypal, Credit card

Related video:  Click

Available equipment: Control panels, solar equipment, heating equipment, camera monitoring, kettles, switch plugs, diy panels, cutting machines, electric vehicles, charging piles, automation equipment, yachts, chargers, audio


Product Detail

Why choose us?

Product Tags

youtube
The head of the product home page

Product Description:

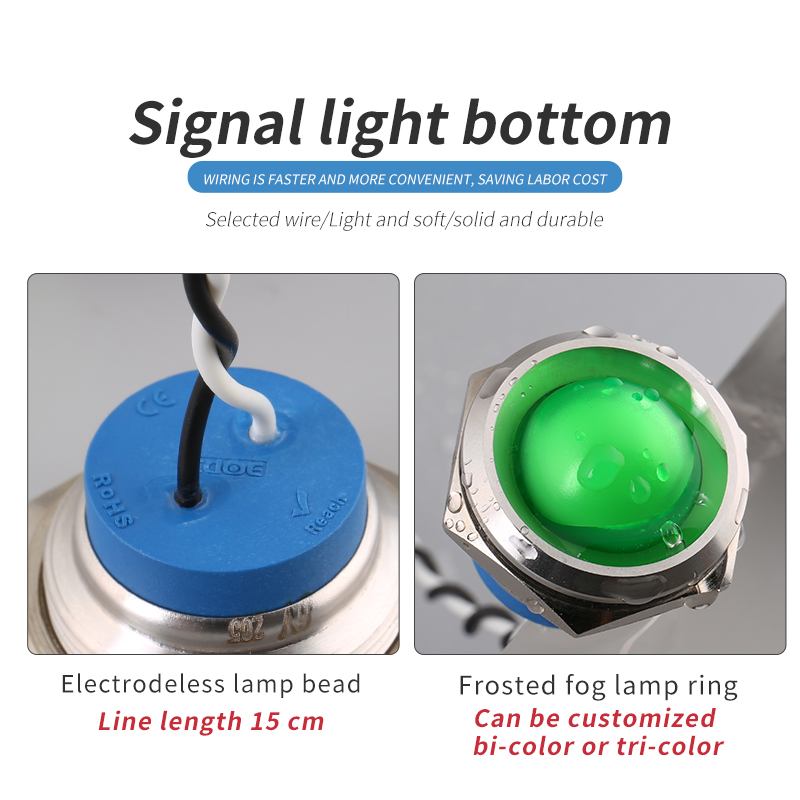

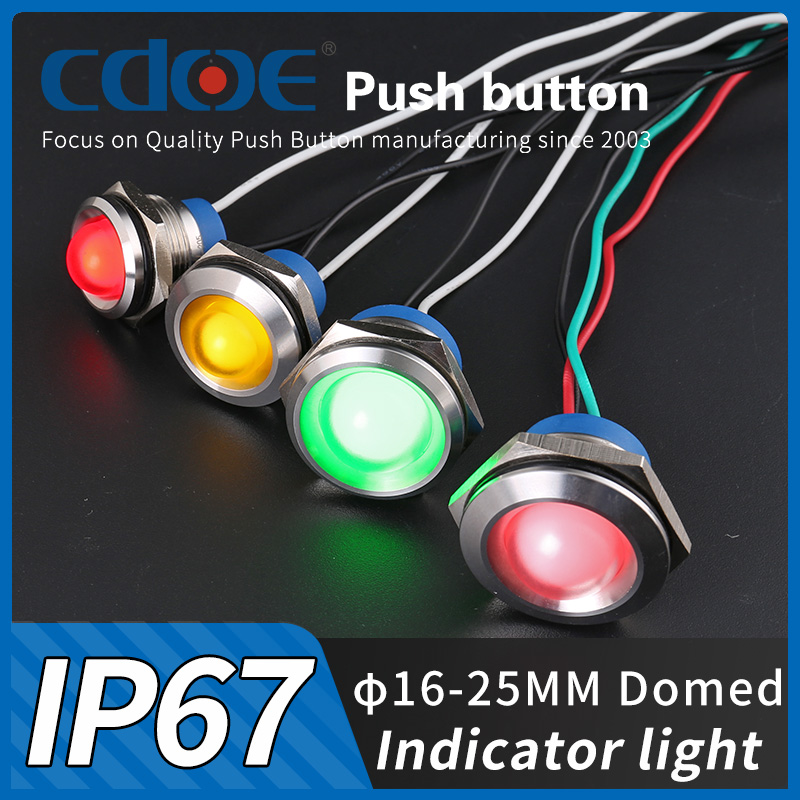

25mm green led flat round head signal lamp with wire.Black rubber ring head waterproof IP67.Built-in leads do not require additional connection.

A variety of mounting aperture sizes are available.Stainless steel shell material, corrosion resistance and long life.

▶Product Model Specification:

HBDGQ-Product-Model-specification9

▶Product Size:

HBDGQ25DT-D-Y-01

Technical Parameter:

HBDGQ25 Green metal signal lamp series

Product model : HBDGQ25DT-D/Y/S(N)
Mounting hole size : 25mm
Appearance material: Signal lamp surface:Stainless steel/Nickel plated brass;
Base:PBT;
Lamp bead parameters
Rated voltage : 3V/6V/12V/24V/36V/110V/220V
Rated current: ≤20mA
Led color: Red/Green/Yellow/Orange/Blue/White
Led life: 50000 hours

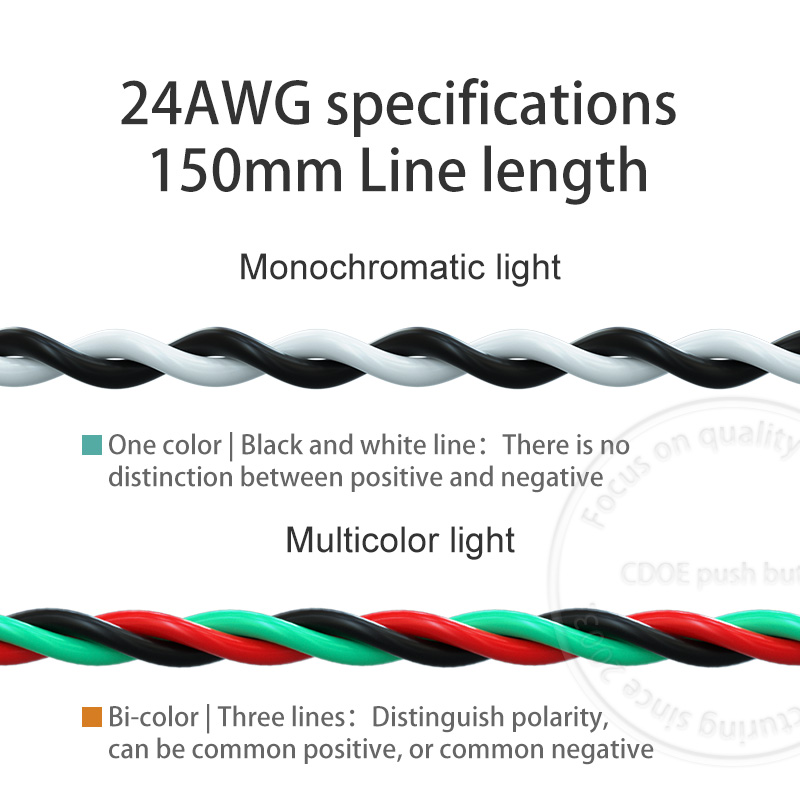

Connection form: With wiring
Protection grade: IP67

Problems Encountered By Buyers:

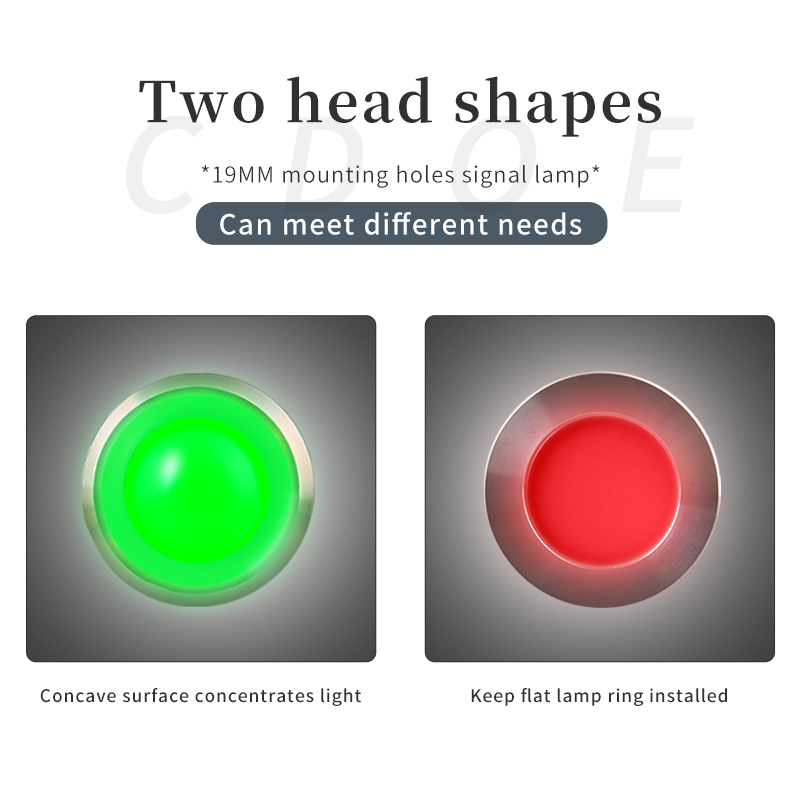

Q:Can we produce signal lights with concave heads?

A: “I'm sorry that the concave signal lamp belongs to the old type of signal lamp, so we stopped producing it. The signal lamp we sell now has the same effect as the concave signal lamp, but the appearance is different. I suggest buying our new indicator lamp.”

Q:Do you have a signal light for AD16-22DS? I'd rather have that light?

A: “Yes.We produce this signal light.We can send you the specific information by email or WhatsApp.”

Q:Can I use it on the stereo?I want to attach it with a signal light?

A: “Hello,The voltage and current of the stereo should be less than that of the signal lamp you buy.Otherwise there will be a failure.”
