China Anti Vandal Push Button 19MM metal ip67 waterproof electric switch
▶ Product Description:

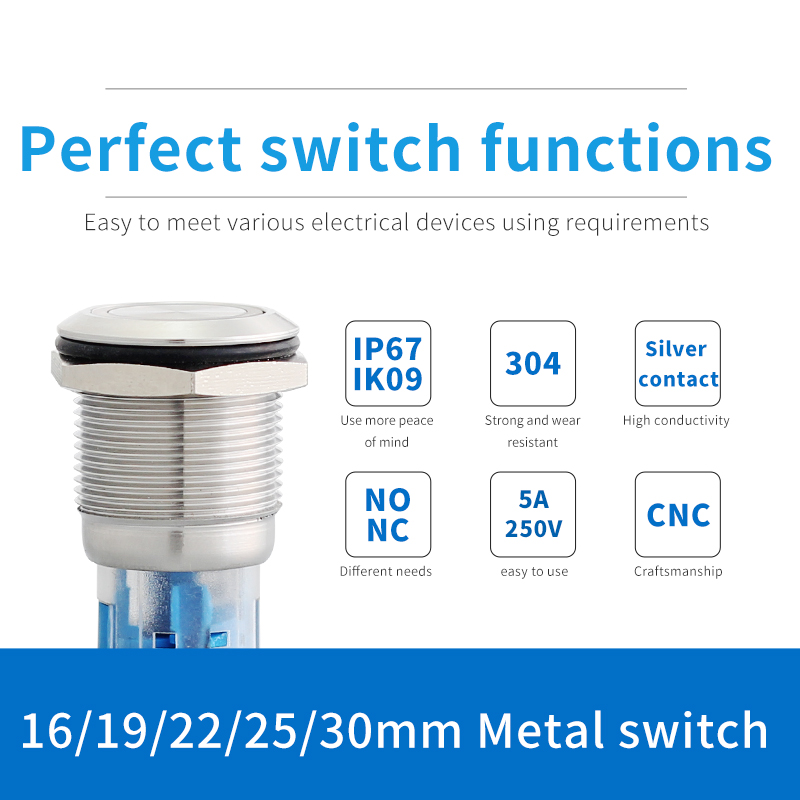

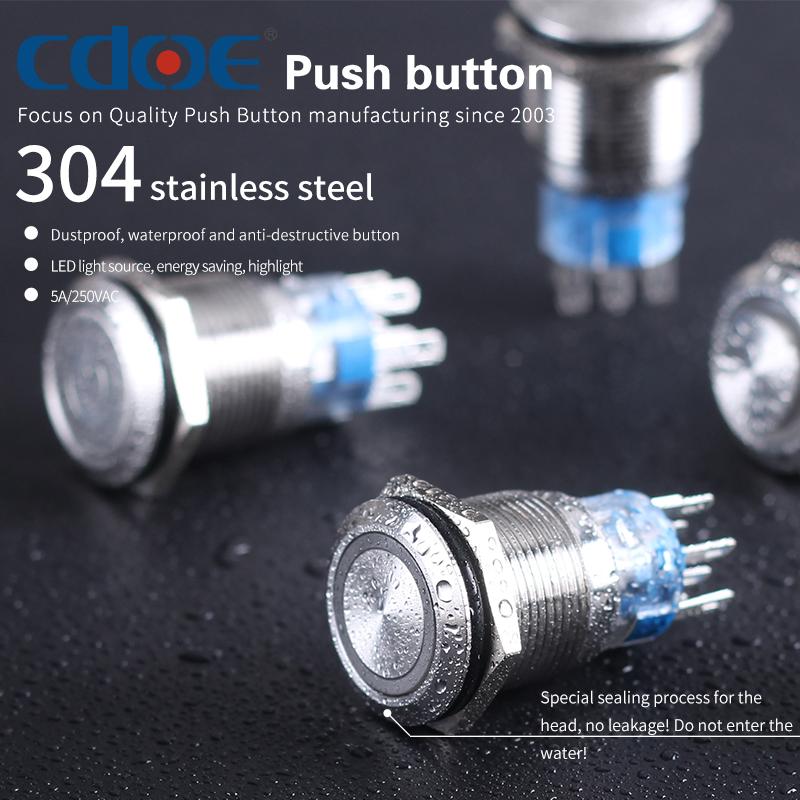

These 304 stainless steel metal anti vandal push button switches are sturdy and vandal-resistant, and are very convenient to use and connect. Just drill a 19mm hole in the panel with a thickness of no more than about 13mm, and you can put our 19MM button normally open. Close the switch and install it on it. When purchasing this series of buttons, we also have the same number of black waterproof rubber rings, which can prevent water from entering the case during use. After the waterproof test, the button is waterproof up to ip67. Flat head push button switch without light, there are 3 pins at the bottom (common pin terminal, normally open pin terminal and normally closed pin terminal). If you have difficulty in wiring, you can consult our salesman. We will show you how to wire it in a video.
▶ Product Model Specification:

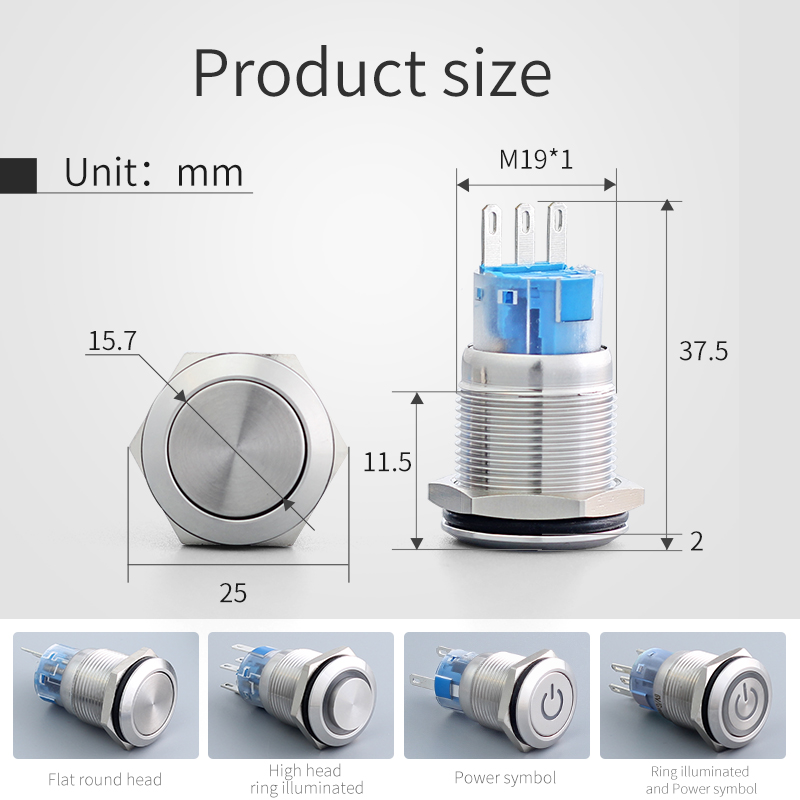

▶Product Size:
▶Technical Parameter:
| Product model : | HBDS1-AGQ19F-□(Z)/J/S(N) |
| Mounting hole size : | 19MM |
| Switch value: | Ith:5A,UI:250V |
| Operation type: | Momentary,Latching |

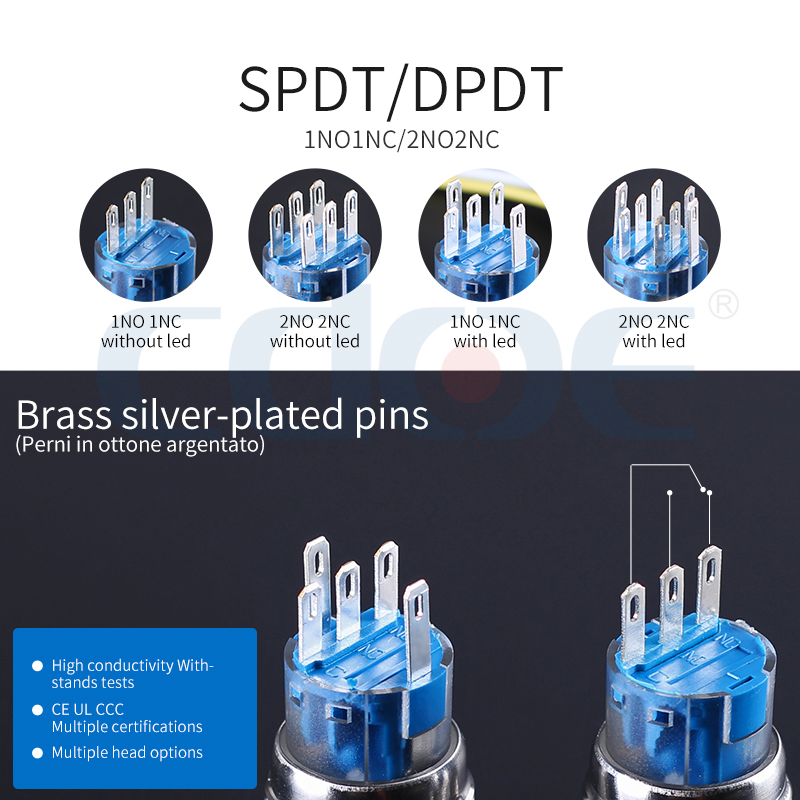

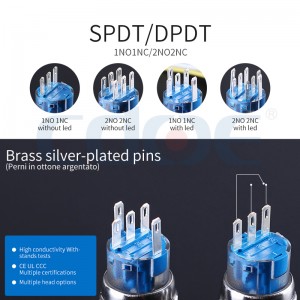

| Contact configuration: | 1NO1NC,2NO2NC |
| Appearance material: | Head:Stainless steel/PC; Switch button surface:Stainless steel/Nickel plated brass; Pedestal: PBT; Contact:Silver alloy; |
| Terminal type: | Pin terminal |
| Working environment temperature: | -40℃～+65℃ |
| Movement stroke: | About 3.2mm |
| Connection form: | Supporting connector/Welding wire; |
| Lamp bead parameters | |
| Rated current: | ≤20mA |
| Protection grade: | IP67 |
| Contact resistance: | ≤50mΩ |
| Insulation resistance: | ≥100MΩ |
| Electrical resistance: | AC2500V, 1min, no flicker and breakdown |
| Life | |
| Electrical part: Operate 50,000 times under rated load without any abnormality | |
| Mechanical part: No abnormal movement for 1000,000 times | |
▶ Problems encountered by buyers:
Q: Can it do blue base? like 16mm mounting holes?
A: “Sorry dear, only grey bases can be produced. Because the material types of 19mm and 16mm are different, the colors produced will be different.”
Q:Can you explain to me what is normally open and what is normally closed?
A:“Yes,no problem.Normally open: when the button is not pressed, the circuit is disconnected, and the load does not work by default;Normally closed: when the button is not pressed, the circuit is powered on, and the load starts by default.If you still have questions, we can send relevant videos to let you understand the functions of the product more directly.”
Q:What is the contact material of the button made of?
A:“Our button contact material is silver plated brass.”
Thank you for your trust and support!
* Founded in 2003 and experienced in the field of pushbutton switches for more than 20 years.
* We have a complete production line, advanced production equipment, experimental equipment and testing instruments, in strict accordance with the requirements of IS09001 quality assurance system.
* And the world’s top 500 enterprises have cooperation.
* Main production buttons: Anti-vandal metal push button switches(which are waterproof), plastic push button switches, high current switches for equipment control and panel mounting, micro travel switches(which can be used in elevator),touch switch ,20a high current switch, signal lamp(indicator), buzzers and push button accessories.
* Large quantity can enjoy a certain discount.
*Where can our push button switches be used?Control box,elevator,moving train,industrial lathe machine,New energy machine Charging pile,ice cream machine,blender,Coffee machine,control panel,motorcycle,Cutting Machine,Machine tool equipment,Medicalequipment,automation equipment,solar equipment,yacht,security check equipment,heating equipment,CNC equipment,control handles,Audio equipment,diy panel.,etc
Our buttons are widely used, directly sold by manufacturers, more assured of quality, and have sufficient product inventory for you to choose. One-to-one sales, if you have any dissatisfaction, you can complain
* Pay attention to our official social media, send subscribed pictures, you can enjoy discounts and some products 10% off discount!!!
We will conduct live product explanation every Tuesday or Thursday from time to time. If you have any questions about the product, you can watch our live broadcast to learn more~Welcome new and old customers to watch!
The latest live broadcast will start at 4 p.m on August 11th(China time)
Thank you for your support!
