19MM high current momentary switch waterproof ip67 mechanical push button 2 pins
▶Product Description:
Metal 19mm latching 10amp push button led waterproof stainless steel shell .Switch head ring led illuminated support multiple color lamp beads.The appearance is clean, the wiring is simple, and there are special wiring harness connectors provided.The switch is equipped with a high waterproof device, and the head is waterproof ip67.Often used in some household appliances, car modification, ship modification, equipment and other application equipment.
▶Product Model Specification:

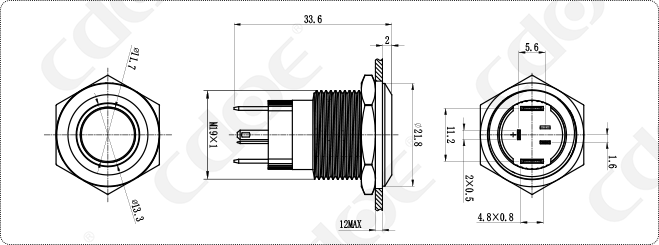

▶Product Size:
▶Technical Parameter:
|
HBDS1-D19C 10a flat head metal press button |
|
| Product model : | HBDS1-D19C-□E(Z)/J/S |
| Mounting hole size : | 19mm |
| Switch value: | Ith:10A,UI:250V |
| Operation type: | Momentary,Latching |
| Contact configuration: | 1NO（SPST） |
| Appearance material: | Head: Stainless steel; Switch button surface: Stainless steel; Base: Plastic PA66; Contact: Silver alloy; |
| Terminal type: | Pin terminal |
| Working environment temperature: | -25℃～+65℃ |
| Connection form: | Supporting connector/Welding wire; |
| Rated voltage : | 6V/12V/24V/36V/110V/220V;(Other voltages can be customized) |
| Rated current: | ≤20mA |
| Protection grade: | IP67 |
| Contact resistance: | ≤50mΩ |
| Insulation resistance: | ≥100MΩ |
| Electrical resistance: | AC2500V, 1min, no flicker and breakdown; |
| Life | |
| Mechanical Life: 0.5 million times for latching,One million times for momentary | |
▶Problems Encountered By Buyers:
Q:What is a high current switch?
A:“Also known as high-inrush current switches, these switches can handle starting currents up to 10 times greater than their rating, such as when a motor starts.”
Q: What are the mounting apertures for 10a high current switches?
A: “Metal 10A high current mechanical switch Our company has buttons with 16mm,19mm, 22MM, 25mm, 30mm mounting holes.”
Q: Do you have 8mm push button switches?
A: “Very sorry, our smallest button mounting holes start at 10mm.”
