High head ring illuminated on off 16mm 5 amp push button switch 12v ip67
▶Product Description:
Introducing our 16mm LED On-Off Push Button Power Switch, a versatile and reliable solution for your electrical control needs. With its sleek stainless steel design, this switch not only offers excellent performance but also adds a touch of sophistication to your applications. Let's explore the key features and specifications of this product.
Designed with a 16mm mounting hole, our switch is suitable for a wide range of applications, from industrial control panels to automotive systems. Its compact size and easy installation make it a convenient choice for both professionals and DIY enthusiasts.
With a rating of 5A/220V, this switch is capable of handling moderate electrical loads, ensuring efficient and safe operation. Whether you need to control lights, motors, or other electrical circuits, our switch is up to the task.
Featuring an IP67 waterproof rating, it offers reliable performance even in challenging environments. This means that our switch is resistant to dust, water splashes, and other contaminants, making it suitable for both indoor and outdoor applications. You can trust it to withstand the elements and continue functioning reliably.The contact type of our switch is 1NO1NC or 2NO2NC, providing you with flexibility in circuit control. This allows you to customize the switch based on your specific requirements and easily adapt it to various applications.Our switch is designed with pin terminals, ensuring secure and stable electrical connections. The sturdy construction minimizes the risk of signal interruptions or failures, providing you with peace of mind during operation.

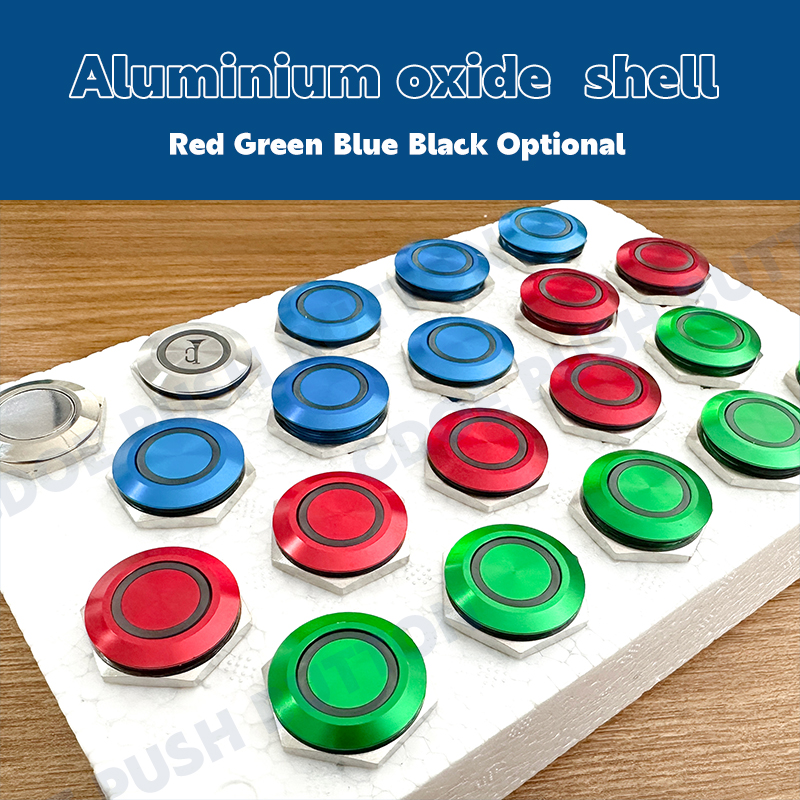

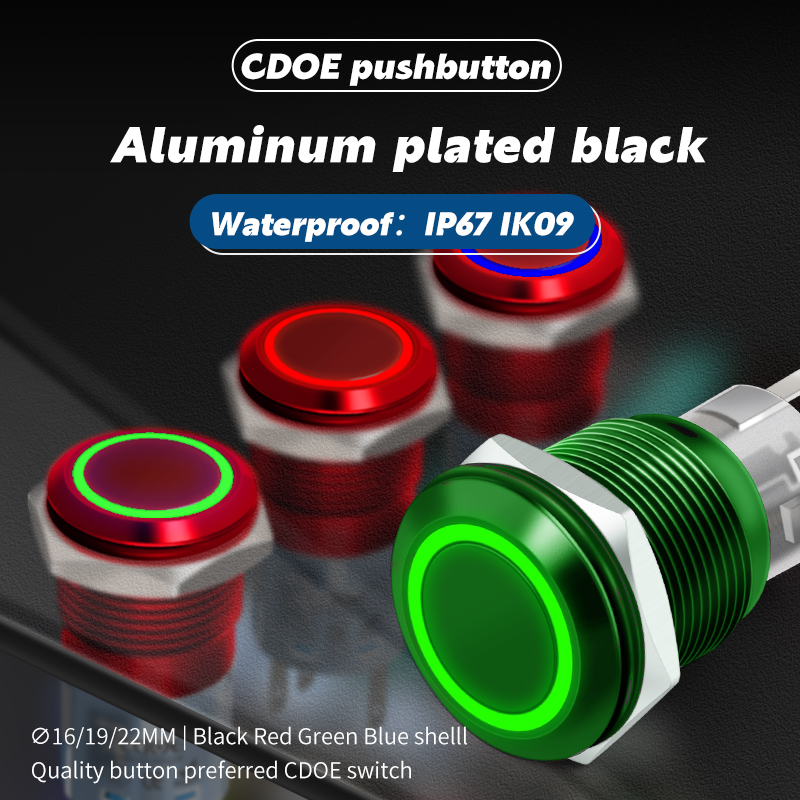

The switch head is available in various vibrant colors, including yellow, red, green, blue, and even bi-color or tri-color options. This allows you to choose the color that best suits your application or aids in visual identification.Furthermore, our 16mm LED On-Off Push Button Power Switch features an illuminated ring LED design. The LED light provides clear visual feedback, indicating the switch's status at a glance. This is particularly useful in low-light environments or situations where quick identification is essential.
To further enhance its durability and aesthetics, the switch is crafted with a custom alumina red high head design. The stainless steel construction not only adds a touch of elegance but also ensures long-lasting performance, even in demanding conditions.
In conclusion, our 16mm LED On-Off Push Button Power Switch combines functionality, durability, and visual appeal. With its versatile features, robust stainless steel construction, and various customization options, it is an ideal choice for a wide range of applications. Whether you're working on industrial machinery, automotive systems, or control panels, our switch provides reliable operation and enhances the overall look and feel of your applications.Please note that this product description is written to meet the provided requirements and presents the product's features, specifications, and benefits in a human-readable format.
▶Product Model Specification:
▶Product Size:

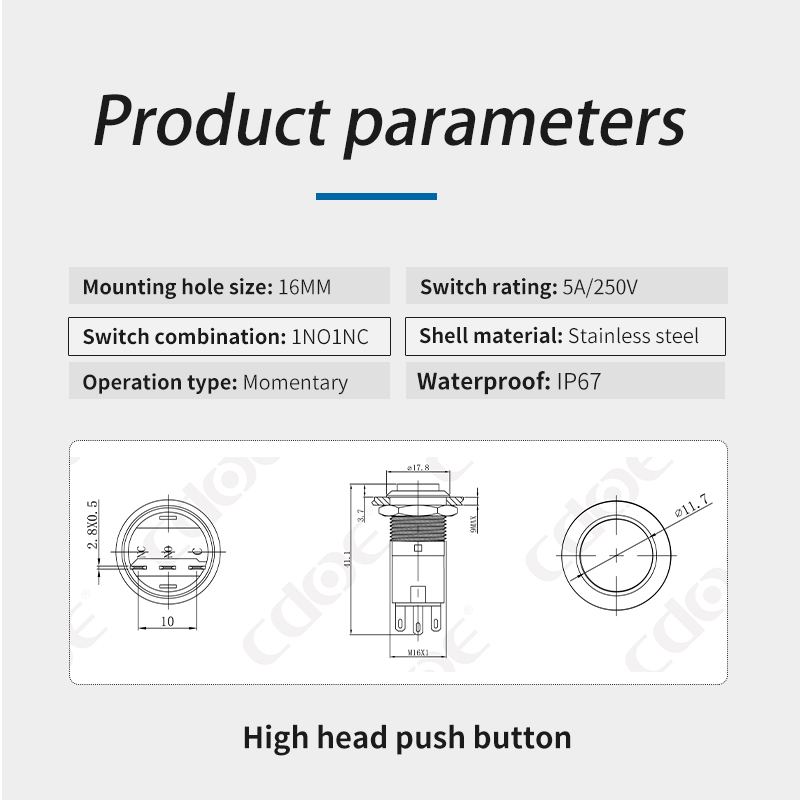

▶Technical Parameter:
|
HBDS1-AGQ16H Series Aluminum plated red push button switch |
|
| Product model : | HBDS1-AGQ16H-□E(Z)/J/T/R |
| Mounting hole size : | 16mm |
| Switch value: | Ith:5A,UI:250V |
| Operation type: | Momentary,Latching |
| Contact configuration: | 1NO1NC,2NO2NC |
| Appearance material: | Head: Aluminum plated black; Switch button surface: Aluminum plated black; Pedestal: PBT; Contact: Silver alloy; |
| Terminal type: | Pin terminal |
| Working environment temperature: | -25℃～+65℃ |
| Movement stroke: | About 3.2mm |
| Connection form: | Supporting connector/Welding wire |
| Lamp bead parameters | |
| Rated voltage : | 6V/12V/24V/36V/110V/220V;(Other voltages can be customized) |
| Rated current: | ≤20mA |
| Led color: | Red/Green/Yellow/Orange/Blue/White |
| Led life: | 50000 hours |
| Protection grade: | IP67 |
| Contact resistance: | ≤50mΩ |
| Insulation resistance: | ≥100MΩ |
| Electrical resistance: | AC2500V, 1min, no flicker and breakdown |
| Life | |
| Electrical part: Operate 50,000 times under rated load without any abnormality | |
| Mechanical part: No abnormal movement for 1000,000 times | |
▶Problems Encountered By Buyers:
Q: Is the switch suitable for high-vibration environments, such as in automotive or industrial applications?
A: “The push button switch you see here is a destruction proof push button switch that can be used in high vibration environments.”
Q: Can the 16mm On-Off Button Switch withstand extreme temperatures or harsh environmental conditions?
A: “This button can be used at -25 degrees Celsius to 65 degrees Celsius.”
Q: Can you make 16mm ring and power symbol head plated black？
A:“You can adjust the light of the button switch by purchasing special controllers.”
Thank you for your trust and support!
* Founded in 2003 and experienced in the field of pushbutton switches for more than 20 years.
* We have a complete production line, advanced production equipment, experimental equipment and testing instruments, in strict accordance with the requirements of IS09001 quality assurance system.
* And the world’s top 500 enterprises have cooperation.
* Main production buttons: Anti-vandal metal push button switches(which are waterproof), plastic push button switches, high current switches for equipment control and panel mounting, micro travel switches(which can be used in elevator),touch switch ,20a high current switch, signal lamp(indicator), buzzers and push button accessories.
* Large quantity can enjoy a certain discount.

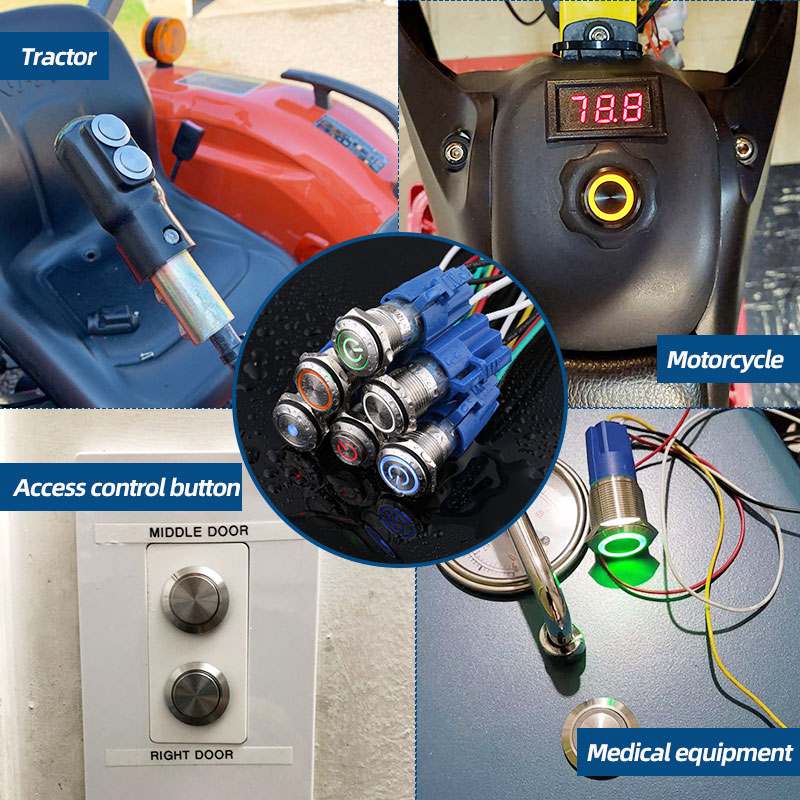

*Where can our push button switches be used?Control box,elevator,moving train,industrial lathe machine,New energy machine Charging pile,ice cream machine,blender,Coffee machine,control panel,motorcycle,Cutting Machine,Machine tool equipment,Medicalequipment,automation equipment,solar equipment,yacht,security check equipment,heating equipment,CNC equipment,control handles,Audio equipment,diy panel.,etc
