10mm Metal Indicator Led 12v Light Blue Lights Waterproof Ip67

Short Description:

Product Model: HBDGQ10G-D/J/S(N)-ce

Mounting Hole Size: 10MM

Rated Voltage: 3V/6V/12V/24V/36V/110V/220V

Led Color: Red/Green/Yellow/Orange/Blue/White

Min.Order Quantity: 50 Piece/Pieces

Method Of Payment: T/T(Wire transfer), Paypal, Credit card

Related video:  Click

Available equipment:  Control panels, solar equipment, heating equipment, camera monitoring, kettles, switch plugs, diy panels, cutting machines, electric vehicles, charging piles, automation equipment, yachts, chargers, audio


Product Detail

Why choose us?

Product Tags

youtube
The head of the product home page

Product Description:

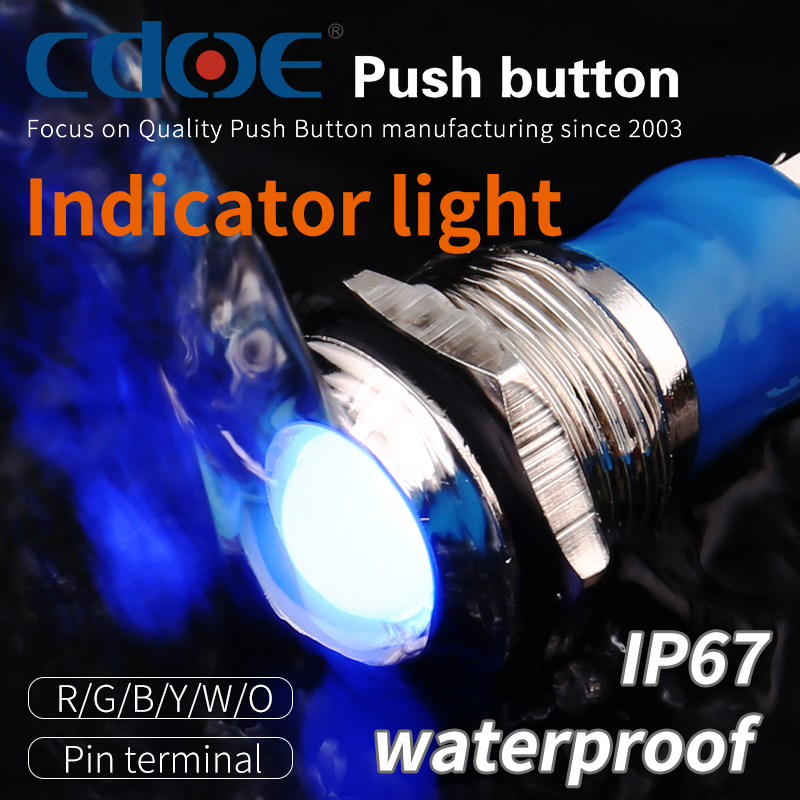

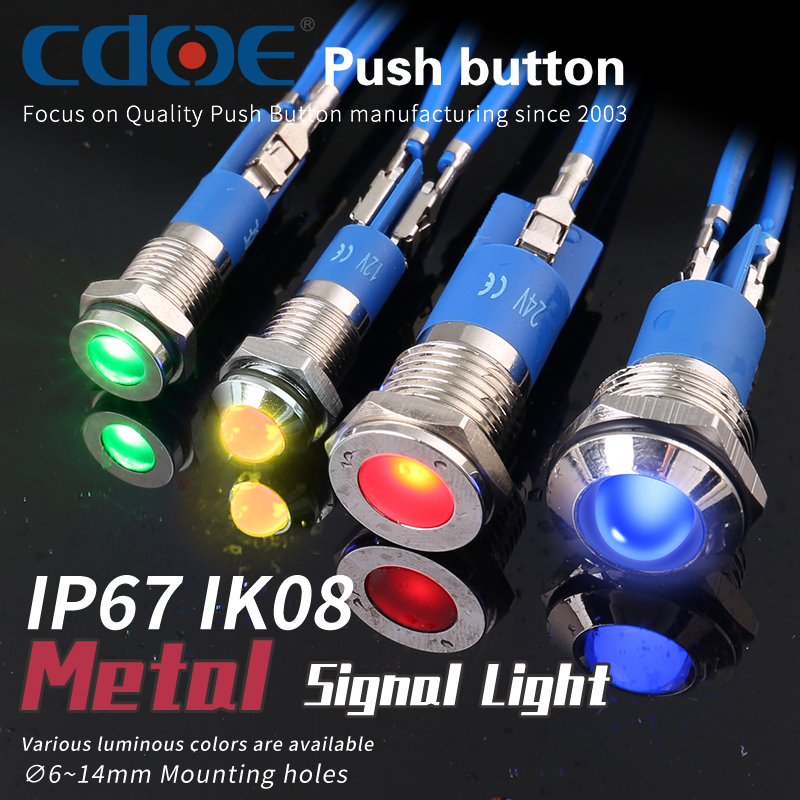

10mm metal 12V indicator lamp housing is made of stainless steel or nickel plated brass, beautiful appearance, high precision. Non-polar led beads, no need to distinguish positive and negative levels.Pin terminal indicator light Can be customized 3 volt,6 volt,12 volt,24 volt,220 volt,etc.Internal waterproof rubber ring, head waterproof grade up to IP67. It can work in humid environment for a short time.Widely used in coffee machines, water dispensers, testing equipment, cleaning machines and so on.

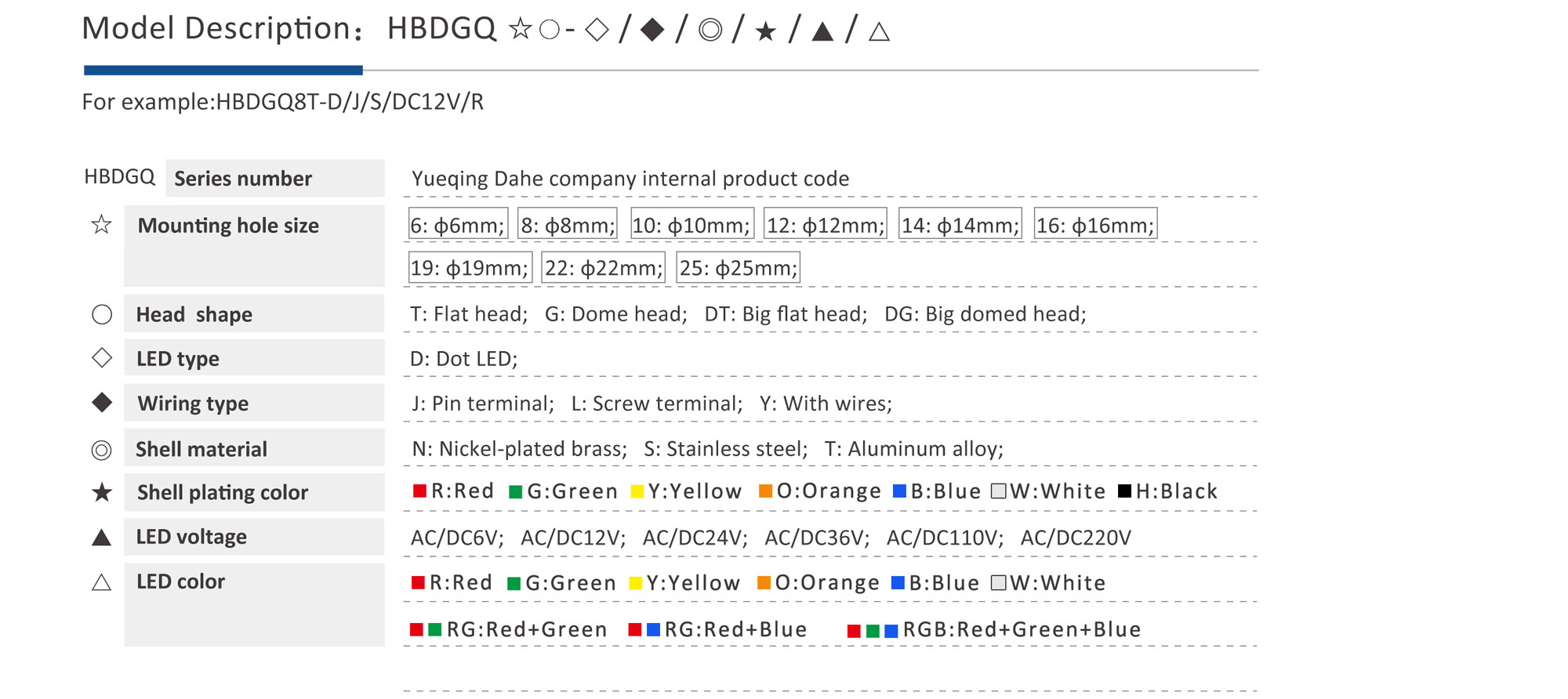

▶Product Model Specification:

HBDGQ-Product-Model-specification3

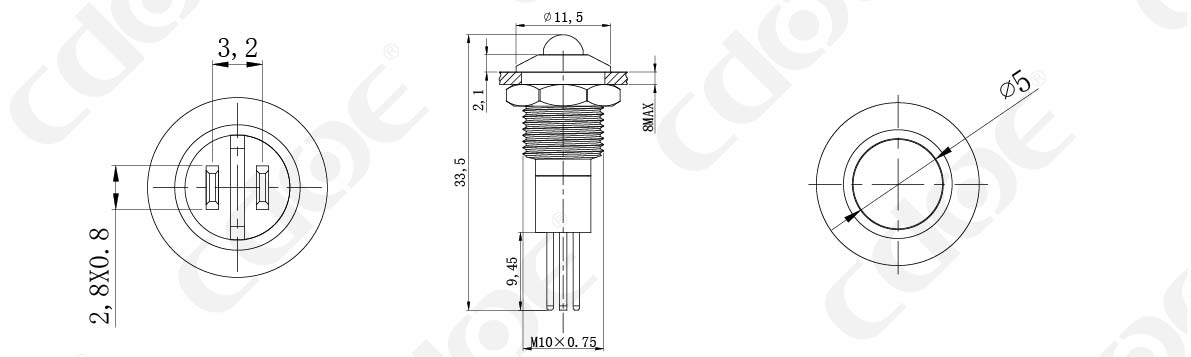

▶Product Size:

HBDGQ10G-D-J Product size

▶Technical Parameter:

HBDGQ10 Waterproof ip67 metal indicator lamp series

Product model : HBDGQ10G-D/J/S(N)
Mounting hole size : 10mm
Appearance material: Signal lamp surface:Stainless steel/Nickel plated brass;
Base:PBT;
Lamp bead parameters
Rated voltage : 3V/6V/12V/24V/36V/110V/220V
Rated current: ≤20mA
Led color: Red/Green/Yellow/Orange/Blue/White
Led life: 50000 hours

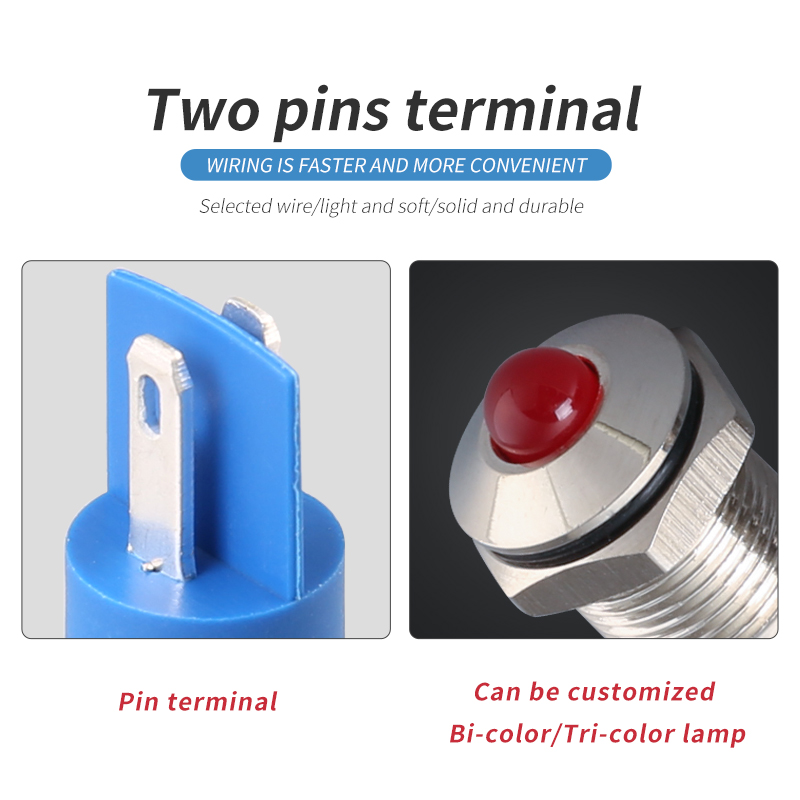

Connection form: With wire
Protection grade: IP67

Problems Encountered By Buyers:

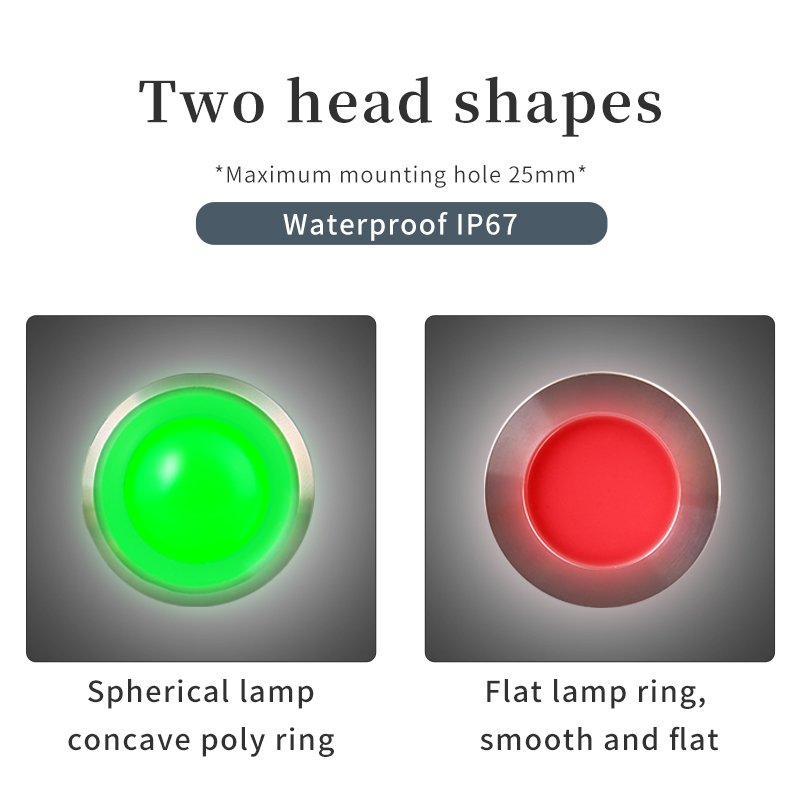

Q:What's the difference between the two heads?

A:“Spherical head: The lights are more concentrated and look better than flat lights;Flat head,:more uniform illumination, Visual effects are mediocre.

Q:Does this one have a flat signal lamp?

A:“Yes,our metal signal lamp has flat head and domed head.If you need a flat head signal lamp, leave a comment below or send us an email.”

Q:What is the rating power of your metal signal lamp?

A:“Hello,Our signal lights are rated at about 0.25w.”
