10a emergency stop switch metal Aluminum alloy spdt wateproof ip67 e stop push button 22mm HBDS1-D22C-11(D)TSC

▶Product Description:

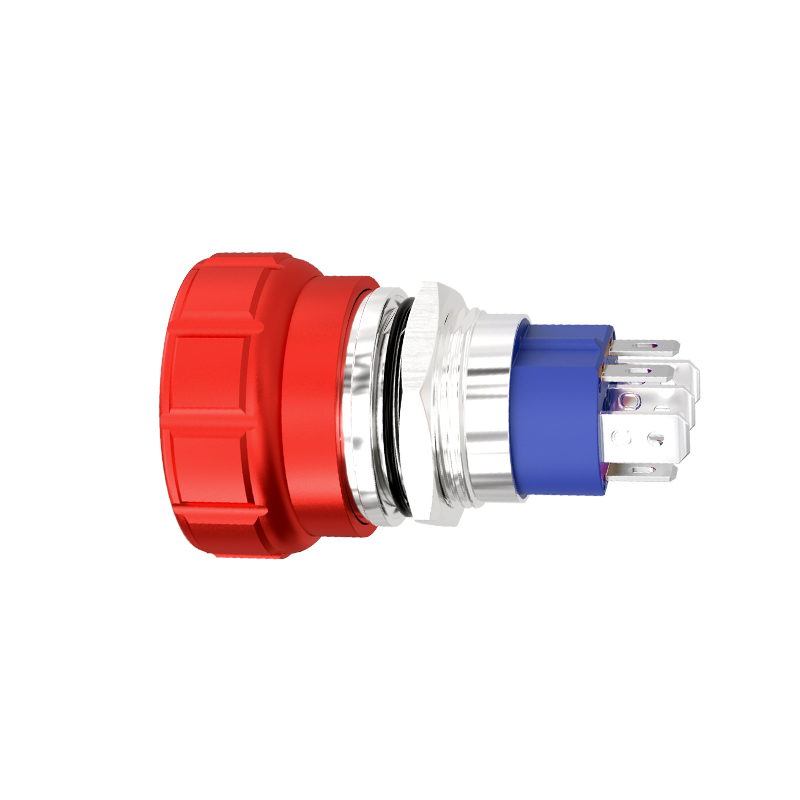

This HBDS1-D22C-11(D)TSC/J/S series emergency stop button is a reliable component designed for demanding industrial safety applications. It uses a standard 22mm mounting hole diameter and is easy to integrate into various control panels and equipment, providing fast and reliable emergency braking functions for your mechanical operations.

The core advantage of this emergency stop button lies in its excellent electrical performance - rated current up to 10A. Among similar metal emergency stop buttons, the 10A current carrying capacity is an industry-leading highlight, ensuring stable and reliable electrical connections in applications with higher power or higher loads, providing stronger safety protection for your equipment. The button head is made of solid aluminum alloy, the button surface is made of wear-resistant stainless steel, and the bottom is durable PA66 plastic. The combination of these high-quality materials ensures long-term stability and impact resistance of the button in harsh industrial environments. The internal contacts are made of silver alloy, providing excellent conductivity and electrical ratings up to UI:250V.

HBDS1-D22C-11(D)TSC/J/S is a latching emergency stop button that remains in the braked state until manually reset, meeting the core safety requirements of emergency stop buttons. The contact configuration is 1 normally open and 1 normally closed (1NO1NC), providing flexible wiring options. The product is connected via pin terminals and supports two connection methods: matching connectors or welding wires, which is convenient for on-site installation and maintenance.

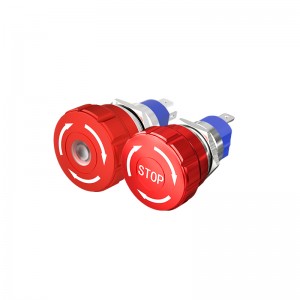

The button integrates a red LED indicator, provides a clear visual warning by default, and can be selected from a variety of voltages such as DC12V, DC24V, AC220V. It can operate stably in a wide temperature range of -25℃ to +80℃ and has an excellent IP67 protection level. This means that the button is completely dustproof and can be effectively waterproof under certain conditions (such as immersion in 1 meter of water for 30 minutes), making it an ideal choice for extreme environments such as outdoor, humid or dusty.
