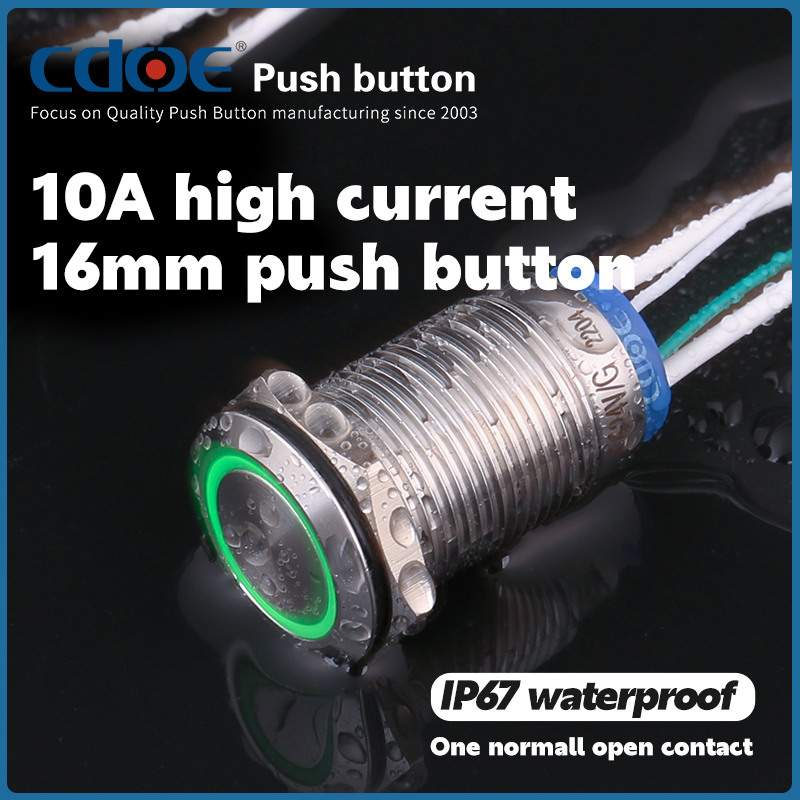

10A 16mm pushbutton switch 12v led on off power stainless steel latching ring light
▶Product Description:
Introducing our 16mm Latching Button with LED illumination, the perfect solution for your power control needs. Designed with durability and versatility in mind, this push button switch is ideal for various applications. With its 16mm mounting hole, it provides a secure and easy installation process.
Featuring a high-quality construction, our 16mm Latching Button ensures reliable performance. It has a rating of 5A/220V, making it suitable for a wide range of voltage requirements. The IP67 waterproof rating ensures its resistance to dust and water, making it suitable for both indoor and outdoor use.
The contact type of this button switch is 1NO (Normally Open), which means it is in an open state when not pressed. When pressed, the circuit closes, allowing for smooth power control. The contact terminal is equipped with wires, ensuring a secure and stable connection.
With a variety of head colors available, including yellow, red, green, blue, and bi-color, you can customize the switch to meet your specific needs or match your existing equipment. The ring LED illumination adds a stylish touch and enhances visibility, making it easy to locate and operate the switch, even in low-light environments.
Our 16mm Latching Button is constructed with stainless steel, providing excellent durability and resistance to corrosion. This ensures a long lifespan, even in challenging environments.Whether you need a reliable power switch for industrial machinery, automotive applications, or home automation projects, our 16mm Latching Button with LED illumination is the perfect choice. Its versatile design and high-quality construction make it a reliable solution for various power control requirements.
Experience the convenience and reliability of our 16mm Latching Button with LED illumination. Upgrade your power control system today with this exceptional button switch.

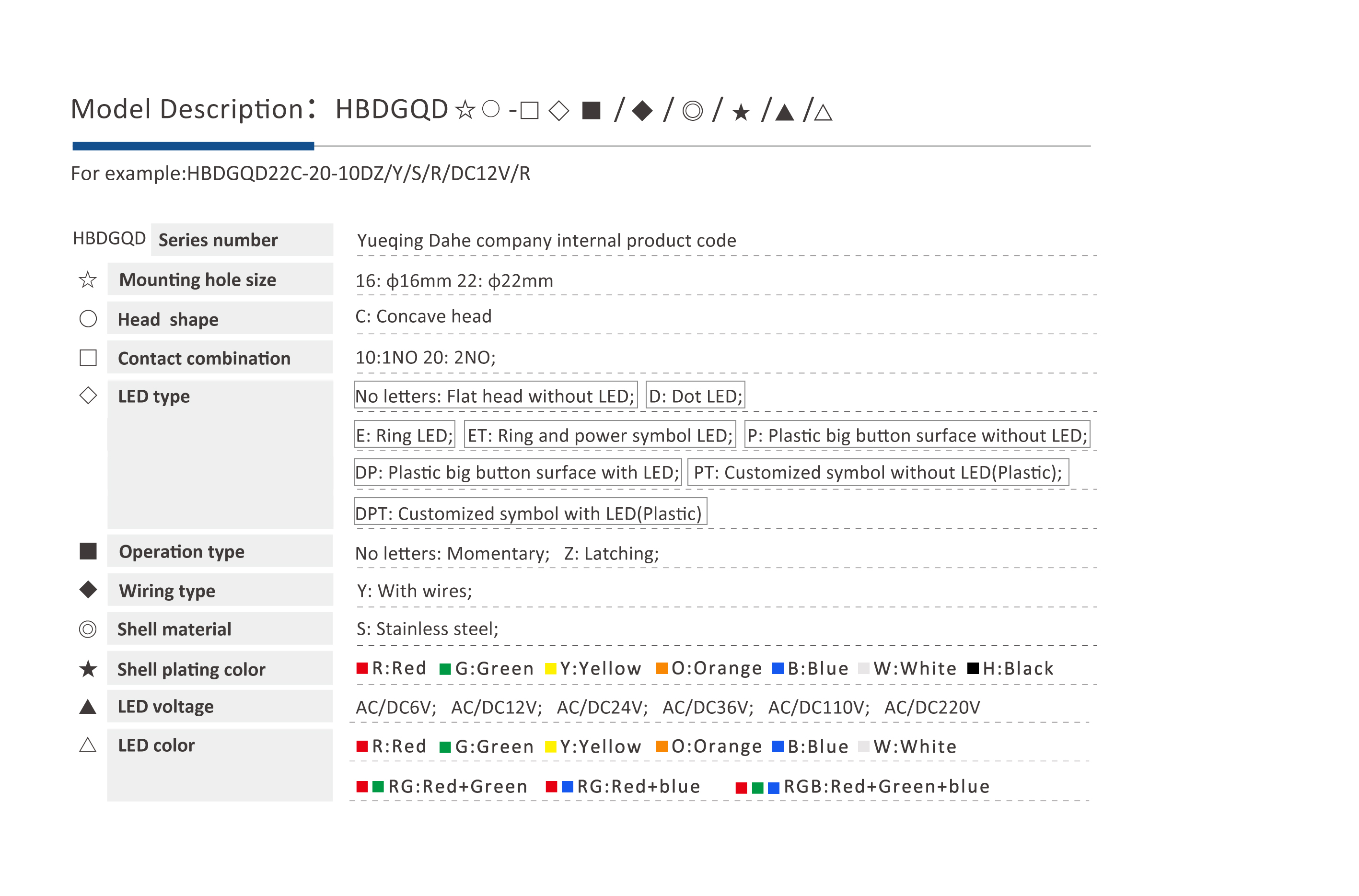

▶Product Model Specification:

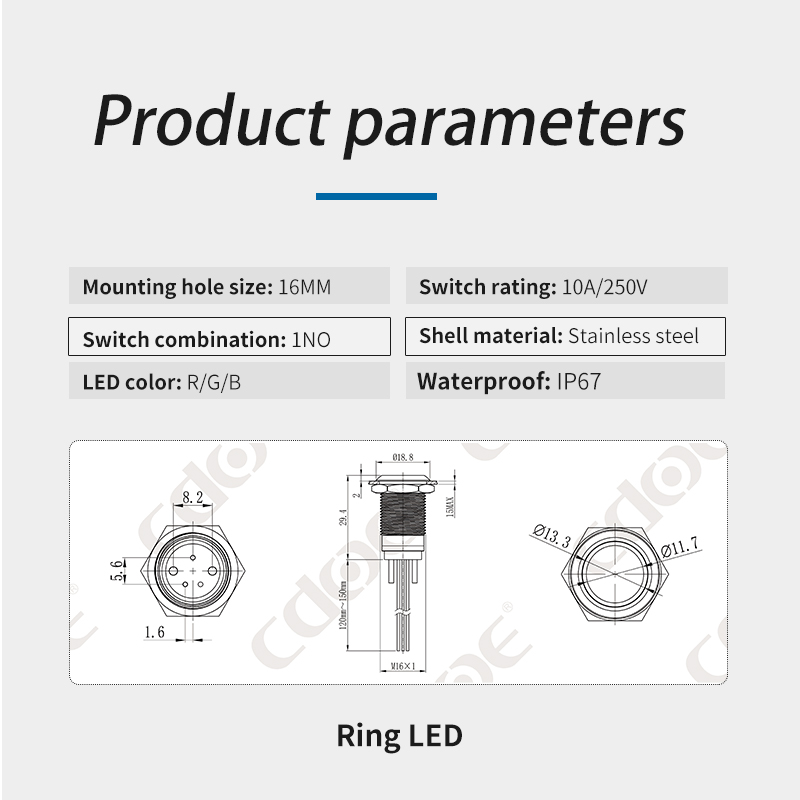

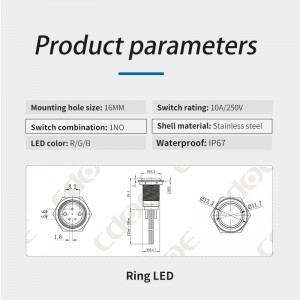

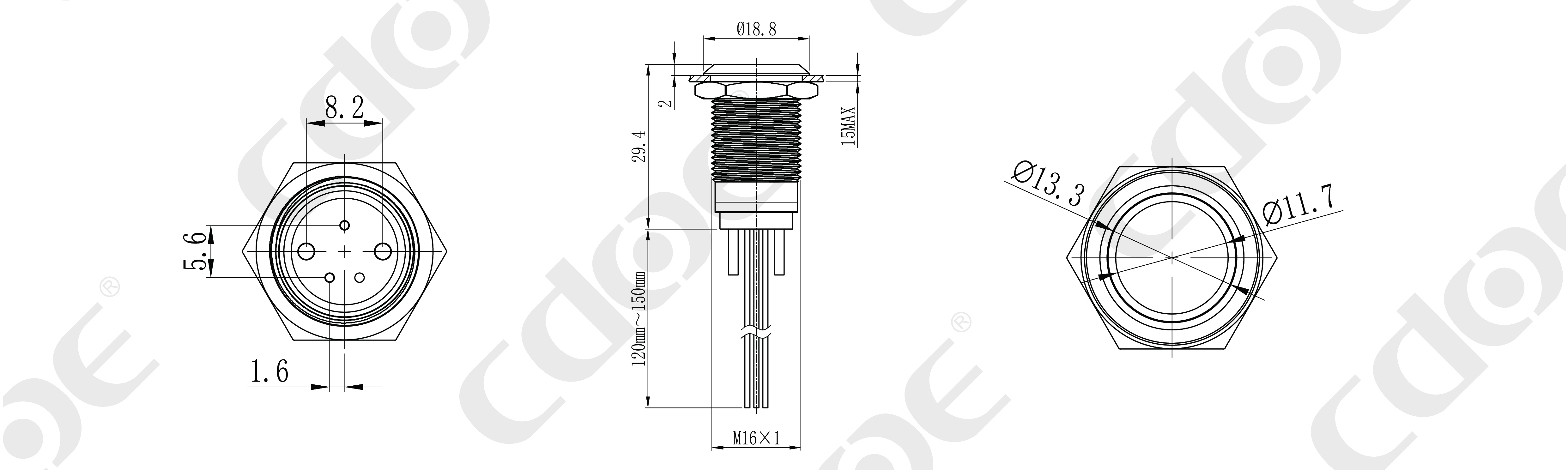

▶Product Size:
▶Technical Parameter:
|
HBDGQ-D16C led ring illuminated 10a push button |
|
| Product model : | HBDGQ-D16C-□E(Z)/Y/S |
| Mounting hole size : | 16mm |
| Switch value: | Ith:10A),UI:250V |
| Operation type: | Momentary,Latching |
| Contact configuration: | 1NO（SPST） |
| Appearance material: | Head: Stainless steel; Switch button surface: Stainless steel; Base: Plastic PA66; Contact: Silver alloy; |
| Terminal type: | With wire |
| Working environment temperature: | -25℃～+65℃ |
| Lamp bead parameters | |
| Rated voltage : | 6V/12V/24V/36V/110V/220V;(Other voltages can be customized) |
| Rated current: | ≤20mA |
| Led color: | Red/Green/Yellow/Orange/Blue/White/RG/RB/RGB |
| Led life: | 50000 hours |
| Protection grade: | IP67 |
| Contact resistance: | ≤50mΩ |
| Insulation resistance: | ≥100MΩ |
| Electrical resistance: | AC2500V, 1min, no flicker and breakdown; |
| Life | |
| Mechanical Life: 0.5 million times for latching,One million times for momentary | |
▶Problems Encountered By Buyers:

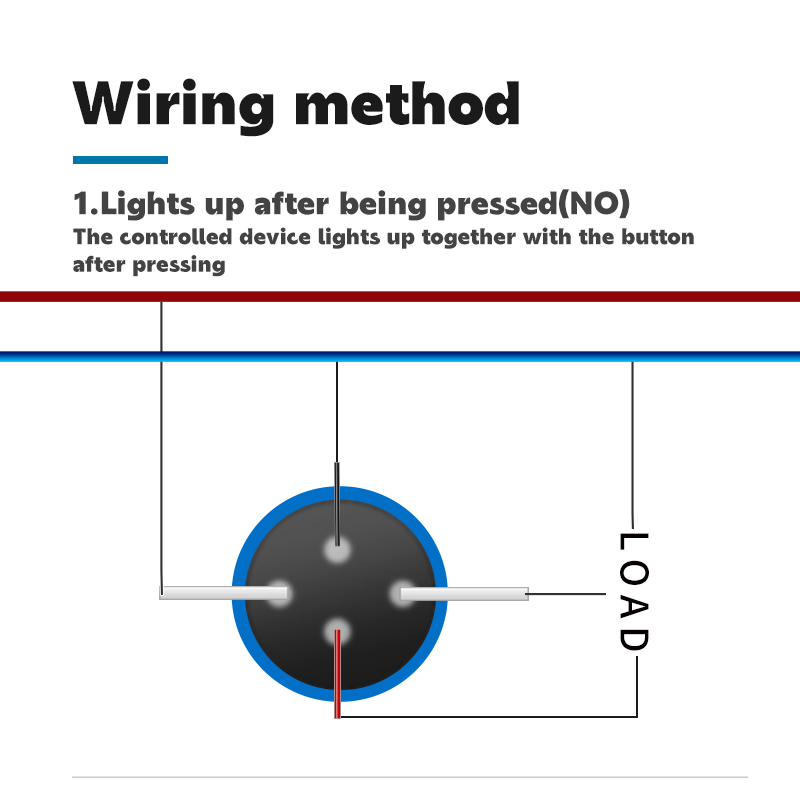

Q: Are there any specific wiring instructions or diagrams provided?
A:“We have the wiring method of this button attached in the package, if you can't find or lost, you can consult our relevant salesman for it, thank you.”
Q: Can the head color be customized to match our branding or specific requirements?
A: "Our company can support OEM production of some products, which needs to be determined according to specific demand quantity."
Q: How long is the wire connected to the contact terminal?
A: “The button line is about 15cm long.”
