rotary selector switch 2 position 16mm keep type plastic 1no1nc made in china
▶Product Description:
Introducing the Rotary Selector Switch 2 Position, a versatile and reliable solution for your projects. Designed with a 16mm mounting hole, this switch easily fits into various applications. The switch boasts a rating of 5A and 250V, ensuring optimal performance and durability.Featuring a 1NO1NC contact type, this rotary switch offers a knob switch design with an illuminated arrow head for easy operation. The head is made of durable plastic plating material, providing a long-lasting and stylish finish.With an IP65 waterproof rating, the switch is well-suited for various environments, ensuring reliable performance even in challenging conditions. Our rotary selector switch is available in both 2 position and 3 position configurations, offering the flexibility needed to meet your specific project requirements.Choose our Selector Switch 2 Position for a high-quality and convenient switching solution, brought to you by leading distributors, manufacturers, and dealers in the industry.
▶Product Model Specification:
▶Product Size:

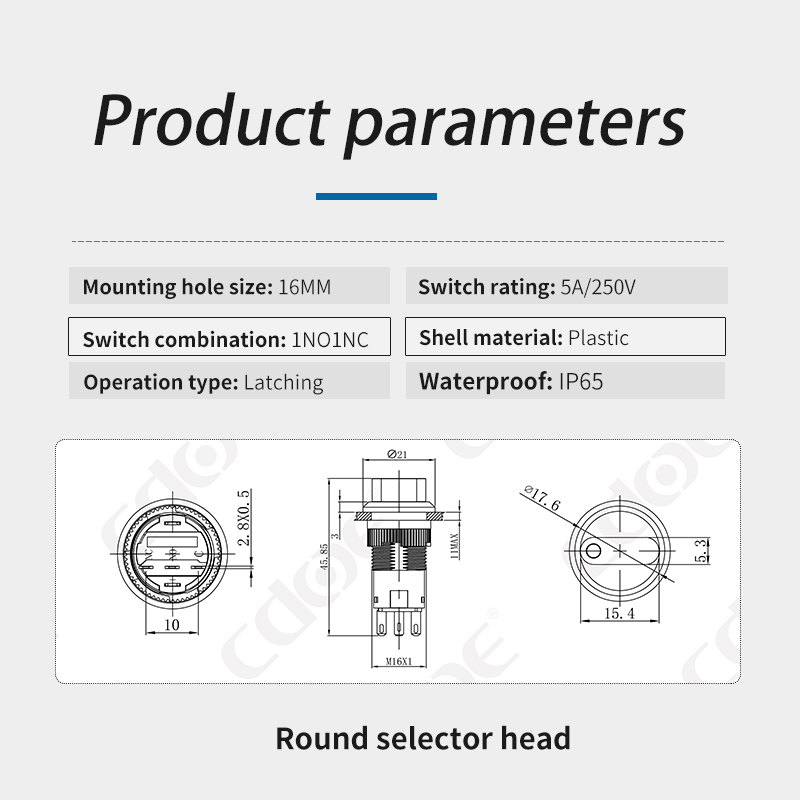

▶Technical Parameter:
|
16mm rotary selector switch 2 position |
|
| Product model : | HBDS1-AGQ16F-□X/J/PC |
| Mounting hole size : | 16mm |
| Switch value: | Ith:5A,UI:250V |

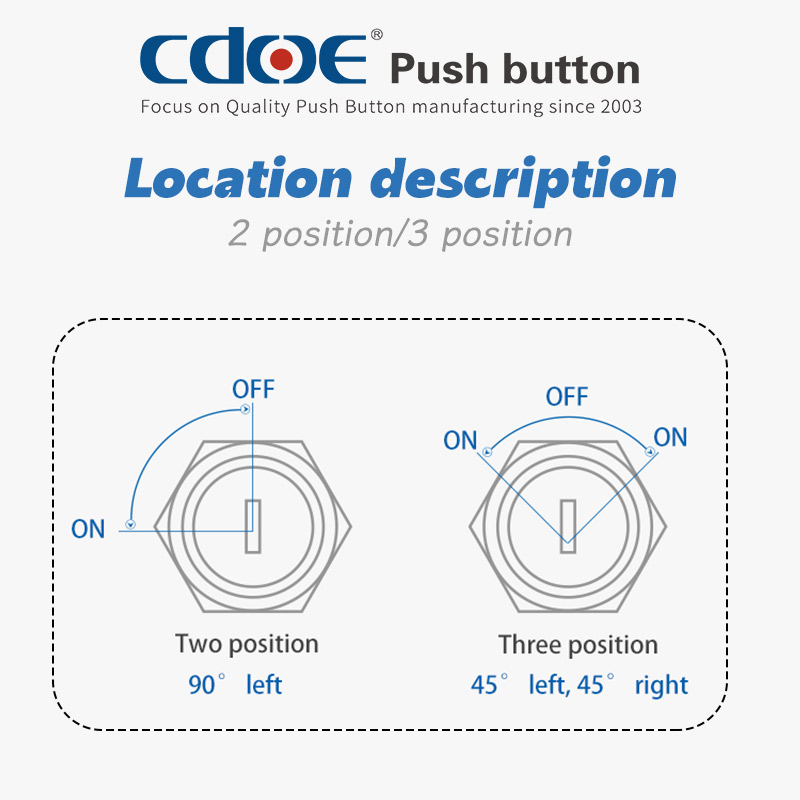

| Operation type: | Latching |
| Contact configuration: | 1NO1NC |
| Appearance material: | Head: Plastic plasting; Switch button surface: PC; |
| Terminal type: | Pin terminal |
| Connection form: | Supporting connector/Welding wire |
| Lamp bead parameters | |
| Rated voltage : | 6V/12V/24V/36V/110V/220V |
| Rated current: | ≤20mA |
| Led color: | Red/Green/Yellow/Orange/Blue/White |
| Led life: | 50,000 hours |
| Protection grade: | IP65 |
| Contact resistance: | ≤50mΩ |
| Insulation resistance: | ≥100MΩ |
| Electrical resistance: | AC2500V, 1min, no flicker and breakdown |
| Life | |
| Electrical part: Operate 50,000 times under rated load without any abnormality | |
| Mechanical part: No abnormal movement for 1000,000 times | |
▶Problems Encountered By Buyers:
Q:Are there any bulk order discounts available?
A:"Hello, if you order button switches in bulk, we can apply for discounts and enjoy certain benefits".
Q:Are there any other light colors available for the illuminated arrow head?
A:"The conventional colors of this electroplated knob switch are red, green, and blue. If you have other requirements, it needs to be determined according to our lamp inventory. For more details, please contact us".
Q:Can I purchase the switch directly from the manufacturer, or do I need to go through a distributor or dealer?
A:"If you are in Korea or Turkey, you can buy from our local agent, which is more convenient. If not, you can contact us to buy, we are the founder of the brand, all goods are sent from us, no need to worry about quality problems."
Thank you for your trust and support!
* Founded in 2003 and experienced in the field of pushbutton switches for more than 20 years.
* We have a complete production line, advanced production equipment, experimental equipment and testing instruments, in strict accordance with the requirements of IS09001 quality assurance system.
* And the world’s top 500 enterprises have cooperation.
* Main production buttons: Anti-vandal metal push button switches(which are waterproof), plastic push button switches, high current switches for equipment control and panel mounting, micro travel switches(which can be used in elevator),touch switch ,20a high current switch, signal lamp(indicator), buzzers and push button accessories.
* Large quantity can enjoy a certain discount.
*Where can our push button switches be used?Control box,elevator,moving train,industrial lathe machine,New energy machine Charging pile,ice cream machine,blender,Coffee machine,control panel,motorcycle,Cutting Machine,Machine tool equipment,Medicalequipment,automation equipment,solar equipment,yacht,security check equipment,heating equipment,CNC equipment,control handles,Audio equipment,diy panel.,etc
Our buttons are widely used, directly sold by manufacturers, more assured of quality, and have sufficient product inventory for you to choose. One-to-one sales, if you have any dissatisfaction, you can complain
* Pay attention to our official social media, send subscribed pictures, you can enjoy discounts and some products 10% off discount!!!
We will conduct live product explanation every Tuesday or Thursday from time to time. If you have any questions about the product, you can watch our live broadcast to learn more~Welcome new and old customers to watch!
The latest live broadcast will start at 4 p.m on August 11th(China time)
Thank you for your support!
