Sealed waterproof 12mm push button switch for harsh environments and industrial settings
▶Product Description:
2MM metal Power Symbol Head Push-Button Switch, the perfect solution for a wide range of applications. With a rated voltage of 2A and a waterproof rating of IP65, this switch can be used in outdoor and harsh environments with confidence.The switch features a contact configuration of one normally open contact, which allows it to be used in a variety of circuits and systems.
The momentary operation type ensures that the switch is only activated while it is being pressed, making it ideal for applications that require precision control or that need to prevent accidental activation.The power symbol head design is not only visually appealing, but also easy to recognize, which makes it an ideal choice for use in control panels or other applications where quick and accurate identification is essential. The switch is also highly durable, thanks to its high-quality construction and design.
With its versatile functionality and robust construction, the Power Symbol Head Push-Button Switch is the perfect choice for applications where reliability, durability, and ease-of-use are essential. The same series of products have a variety of head types, lamp beads support a variety of color choices.Whether you need to control lighting, power, or other systems, this switch provides the performance and reliability that you need to get the job done. So why wait? Upgrade your system with the Power Symbol Head Push-Button Switch today!

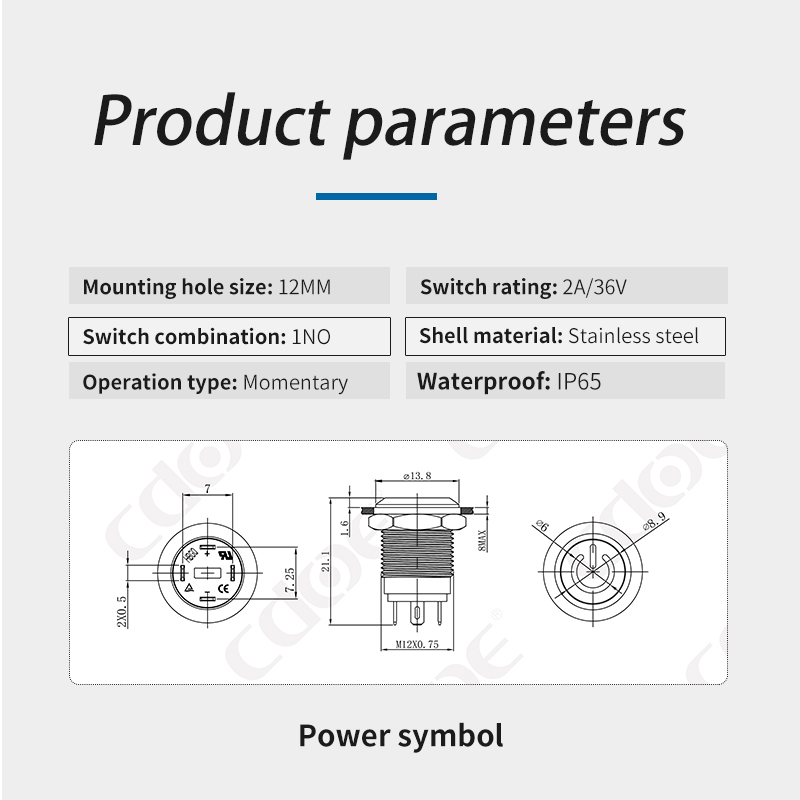

▶Product Model Specification:
▶Product Size:
▶Technical Parameter:
|
HBDGQ12F Series 12MM momentary switch normaly open |
|
| Product model : | HBDGQ12F-□DT/J/S(N) |
| Mounting hole size : | 12mm |
| Switch value: | Ith:2A,UI:36V |
| Operation type: | Momentary |
| Contact configuration: | 1NO |
| Appearance material: | Head: Stainless steel; Switch button surface: Stainless steel; Pedestal: PBT; Contact: Silver alloy; |
| Terminal type: | Pin terminal |
| Working environment temperature: | -25℃～+65℃ |
| Movement stroke: | About 1.6mm |
| Connection form: | Supporting connector/Welding wire |
| Protection grade: | IP65 |
| Contact resistance: | ≤50mΩ |
| Insulation resistance: | ≥100MΩ |
| Electrical resistance: | AC2500V, 1min, no flicker and breakdown |
| Life | |
| Electrical part: Operate 50,000 times under rated load without any abnormality | |
| Mechanical part: No abnormal movement for 100,000 times | |
▶Problems Encountered By Buyers:
Q: Is the switch suitable for use in high-temperature environments??
A: “What high temperature do you need to use it at? Our buttons usually work at 65 degrees Celsius.”
Q: Can this push-button switch be used on the alarm device of the bank ATM to activate the alarm when the button is pressed?
A：“It can be used in the ATM alarm machine of the bank. Usually, our customers will buy the red led button of this series for use. It is the momentary button that triggers the alarm when it is pressed.”
Q: How to install the 12MM metal button correctly. Does the purchase of the button come with a clear installation manual?
A:“We will include a manual in the box, if you do not receive the manual, please consult our online sales staff, they will provide videos or instructions to show you how to install.”
