push button led lights 19MM IP67 ring illuminated plastic spdt switches 2 pins terminal

Short Description:

Product Model: HBDS1-AGQ19F-□E(Z)/J/PC

Mounting Hole Size: 19MM

Switch Value: Ith: 5A, UI: 250V

Operation Type: Momentary, Latching

Min.Order Quantity: 40 Piece/Pieces

Method Of Payment: T/T(Wire transfer), Paypal, Credit card

Related video: Click

Available equipment: New energy machines, electromagnetic starters, control panels, motor cars, cutting machines, industrial machines, machine tool equipment


Product Detail

Why choose us?

Product Tags

youtube
The head of the product home page

Product Description:

Looking for a reliable and versatile solution to meet your electrical control needs? Our push button LED lights are the perfect choice, featuring a mounting hole of 19mm and designed for a wide range of applications. These switches are built to offer high performance and ease of use.

Key Specifications:

  • Rating: 5A/250V
  • Waterproof Class: IP65
  • Contact Type: 1NO1NC (Normally Open and Normally Closed)
  • Contact Terminal: Pin Terminal
  • LED Colors Available: Yellow, Red, Green, Blue, and more
  • Head Type: Flat Head Ring LED
  • Type of Operation: Momentary or Latching
  • Material: High-Quality Plastic

Highly Versatile and Durable

Our push button LED lights are designed to meet the most demanding requirements. With a mounting hole of 19mm, they fit perfectly in various control panels and equipment. The IP65 waterproof rating ensures they can withstand harsh environmental conditions, making them suitable for both indoor and outdoor applications.

Multiple LED Color Options

Choose the LED color that suits your specific needs. Whether you require yellow for caution, red for stop, green for go, or blue for a unique indication, we offer a range of colors to match your application.

Easy to Use and Install

These switches feature a user-friendly design with a flat head ring LED for clear visibility. The momentary or latching operation options provide flexibility in control. The 1NO1NC contact type ensures compatibility with a variety of circuits, and the pin terminal simplifies installation.

Wide Range of Applications

Our push button LED lights find applications in industrial control systems, machinery, automation, and more. Their durability, reliability, and wide range of features make them an excellent choice for any electrical control solution.

Upgrade your control panel with our push button LED lights today. Contact us to discuss your specific requirements and discover how these versatile switches can benefit your project.

▶Product Model Specification:

HBDS1-AGQ-Product-Model-specification1

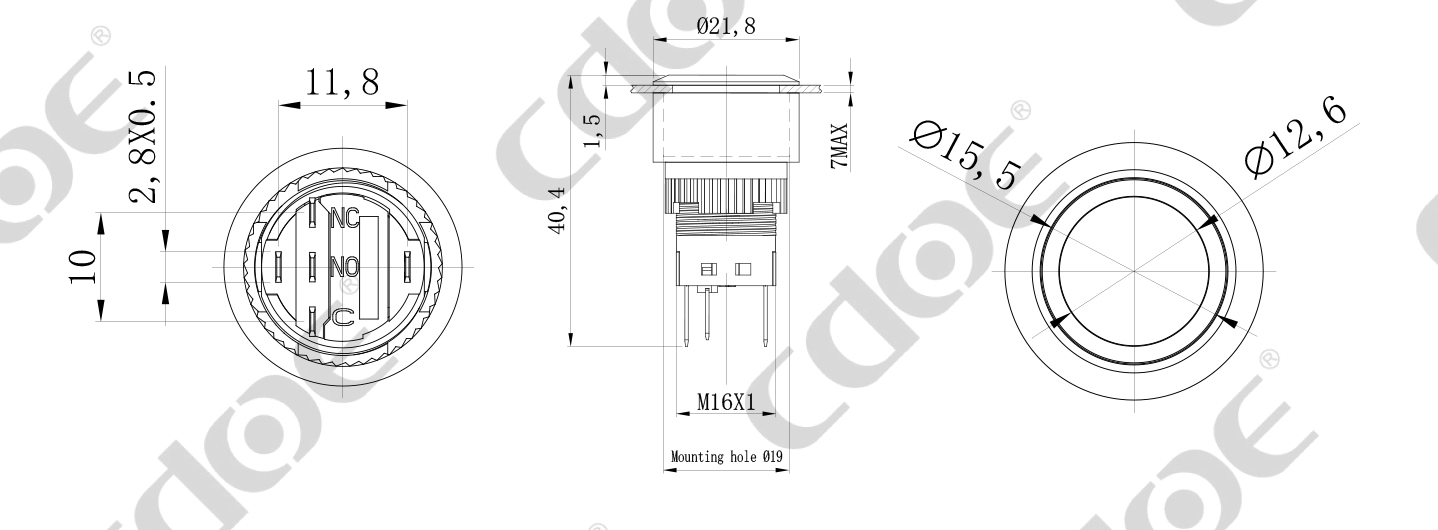

Product Size:

19mm plastic push button switches

Technical Parameter:

Plastic shell 19MM push button led lights

Product model : HBDS1-AGQ19F-□E(Z)/J/PC
Mounting hole size : 19mm
Switch value: Ith:5A,UI:250V
Operation type: Momentary,Latching
Contact configuration: 1NO1NC,2NO2NC
Appearance material: Head: Stainless steel/PC;
Switch button surface: Stainless steel;
Terminal type: Pin terminal
Connection form: Supporting connector/Welding wire
Lamp bead parameters
Rated voltage : 6V/12V/24V/36V/110V/220V
Led color: Red/Green/Blue
Protection grade: IP65

* Founded in 2003 and experienced in the field of pushbutton switches for more than 20 years.

* We have a complete production line, advanced production equipment, experimental equipment and testing instruments, in strict accordance with the requirements of IS09001 quality assurance system.

* And the world’s top 500 enterprises have cooperation.


Multiple regional offices: Italy, South Korea, Shenzhen, Czech, Spain, South Africa and so on.

* Participated in several exhibitions: Munich, Germany, Korea Electronics Show, Shenzhen Hi-tech Fair, Japan, India, the United States and other international exhibitions.* A number of technical patents: CCC(CQC), UL, Rohs, TUV, UL,CE, etc.

* Main production buttons: Anti-vandal metal push button switches(which are waterproof), plastic push button switches, high current switches for equipment control and panel mounting, micro travel switches(which can be used in elevator),touch switch ,20a high current switch, signal lamp(indicator), buzzers and push button accessories.

* Large quantity can enjoy a certain discount.

*Where can our push button switches be used?Control box,elevator,moving train,industrial lathe machine,New energy machine Charging pile,ice cream machine,blender,Coffee machine,control panel,motorcycle,Cutting Machine,Machine tool equipment,Medicalequipment,automation equipment,solar equipment,yacht,security check equipment,heating equipment,CNC equipment,control handles,Audio equipment,diy panel.,etc

Our buttons are widely used, directly sold by manufacturers, more assured of quality, and have sufficient product inventory for you to choose. One-to-one sales, if you have any dissatisfaction, you can complain



Pay attention to our official social media, send subscribed pictures, you can enjoy discounts and some products 10%  off discount!!!


We will conduct live product explanation every Tuesday or Thursday from time to time. If you have any questions about the product, you can watch our live broadcast to learn more~
Welcome new and old customers to watch!

The latest live broadcast will start at 4 p.m on August 11th(China time)

Thank you for your support!
