22mm power push button light switches starter momentary 20a green illuminated
▶Product Description:
HBD-K20B-□11(Z) series push button switch combines momentary and latching operation.
Designed for harsh industrial environments, this HBD-K20B-□11(Z) series push button switch combines excellent performance with high-end texture. It uses a standard 22mm mounting aperture to ensure seamless integration with various devices. The switch head is made of chrome-plated brass, giving the product a sturdy metal appearance and excellent corrosion resistance, while the button surface is made of high-quality plastic for comfortable operation.
This series supports both momentary and latching operation types, providing flexible control options. The contact configuration can be selected as 1 normally open and 1 normally closed (1NO1NC) or 2 normally open and 2 normally closed (2NO2NC), with a rating of up to Ith:10A/20A, UI:400V, meeting diverse electrical connection needs. Connection is via pin terminal** to ensure easy installation and maintenance.
The built-in LED lamp beads provide a variety of color options such as red, green, yellow, orange, blue, and white, and support multiple voltages such as 6V, 12V, 24V, 36V, 110V, and 220V, providing clear device status indication. The LED lamp bead life is up to 50,000 hours, ensuring long-term stable operation.
This product has an IP65 protection rating, which can effectively resist dust and withstand the impact of low-pressure water jets, making it an ideal choice for applications that require higher durability and protection performance.

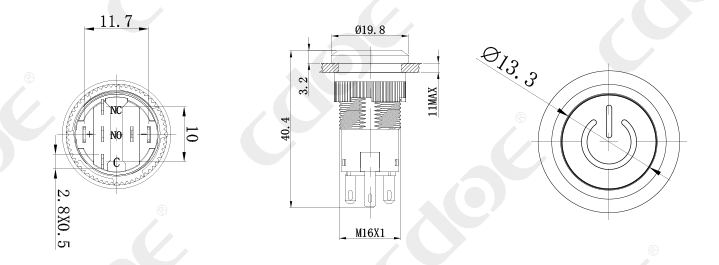

▶Product Size:

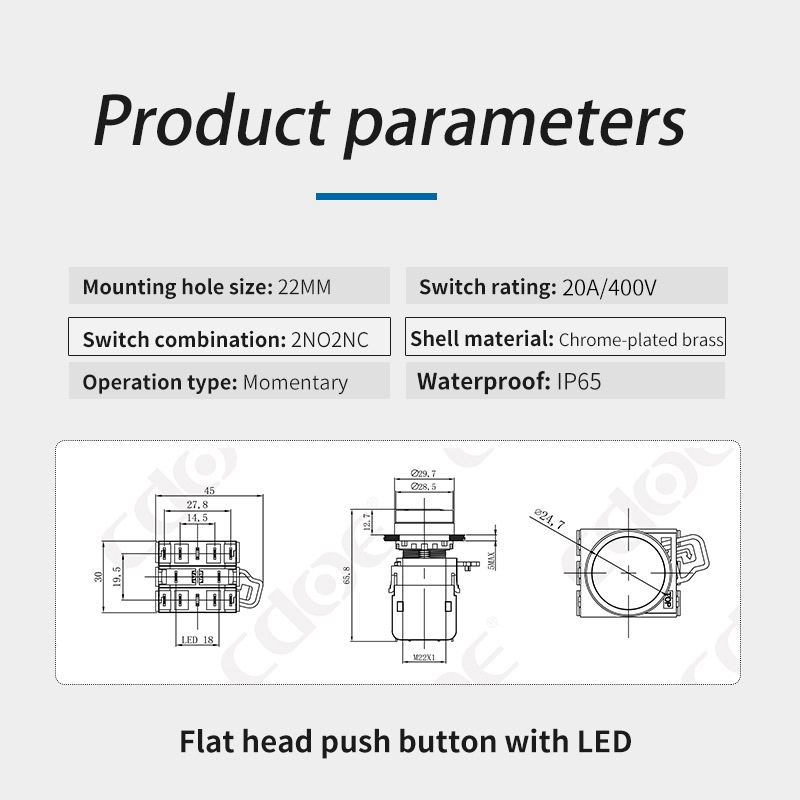

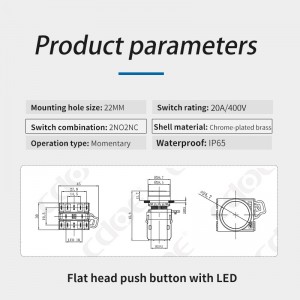

▶Technical Parameter:
|
power push button light switches |
|
| Product model : | HBD-K20B-□11(Z) |
| Mounting hole size : | 22MM |
| Switch value: | Ith:10A/20A,UI:400V |
| Operation type: | Momentary,Latching |
| Contact configuration: | 1NO1NC,2NO2NC |
| Appearance material: | Head: Brass chrome plating; Switch button surface: Plastic; |
| Terminal type: | Pin terminal |
| Lamp bead parameters | |
| LED voltage : | 6V/12V/24V/36V/110V/220V |
| Led color: | Red/Green/Yellow/Orange/Blue/White |
| Led life: | 50,000 hours |
| Protection grade: | IP65 |
