Illuminated Metal 19mm Panel Switches 12V 24V Latching Push Button with Tri-Color Support
▶ Product Description:

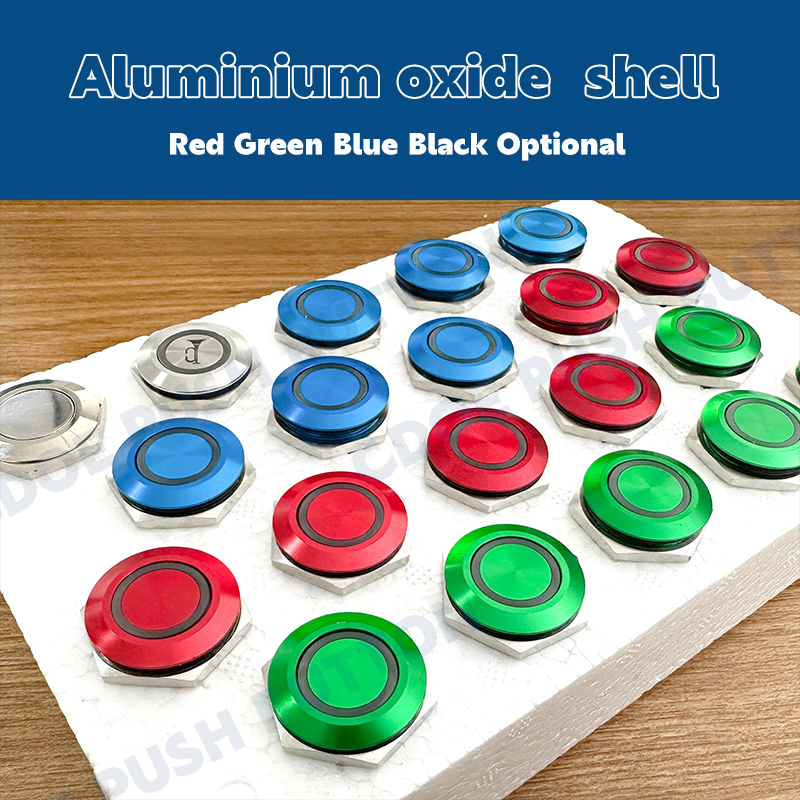

Our illuminated metal 19mm panel switches are perfect for a variety of applications. Featuring a 19mm mounting hole, these switches come in both momentary and latching operation types, and can support bi-color or tri-color illumination options. The 1no1nc and 2no2nc options give you flexibility in your wiring options, while the regular colors of red, green, and blue add a touch of customization to your panel. These switches are durable and reliable, with a long lifespan that ensures they will stand up to frequent use.
▶ Product Model Specification:
▶Product Size:
▶Technical Parameter:
HBDS1-AGQ19 Series button illuminate metal 19mm switch |
|
Product model : | HBDS1-AGQ19F-□E/J/T |
Mounting hole size : | 19MM |
Switch value: | Ith:5A,UI:250V |
Operation type: | Momentary,Latching |
Contact configuration: | 1NO1NC,2NO2NC |

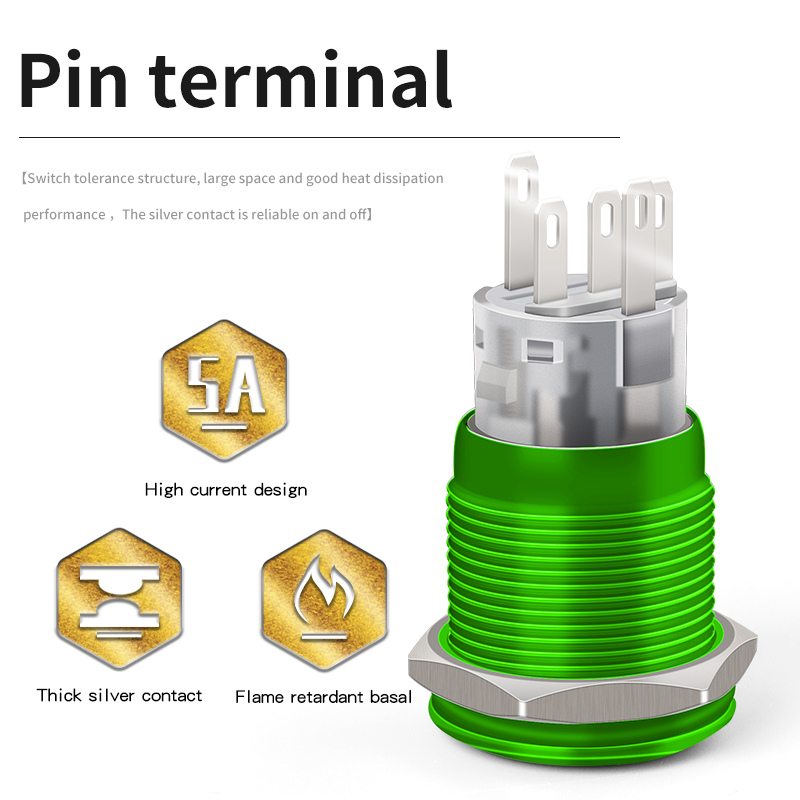

Appearance material: | Head:Aluminum oxidation; Switch button surface:Aluminum oxidation; Pedestal: PBT; Contact:Silver alloy; |
Terminal type: | Pin terminal |
Working environment temperature: | -40℃~+65℃ |
Movement stroke: | About 3.2mm |
Connection form: | Supporting connector/Welding wire; |
Lamp bead parameters | |
Rated voltage : | 6V/12V/24V |
Rated current: | ≤20mA |
Led color: | Red/Green/Yellow/Orange/Blue/White |
Led life: | 50000 hours |
Protection grade: | IP67 |
Contact resistance: | ≤50mΩ |
Insulation resistance: | ≥100MΩ |
Electrical resistance: | AC2500V, 1min, no flicker and breakdown |
Life | |
Electrical part: Operate 50,000 times under rated load without any abnormality | |
Mechanical part: No abnormal movement for 1000,000 times |
▶ Problems encountered by buyers:
Q: Can these switches be used with both 12V and 24V systems?
A: “Yes, the rated value of this button switch is 5A, 250V, but because it is a three-color lamp bead, the most lamp bead color can only be 24v.”
Q:Do the switches come with wiring instructions?
A: “We have an electronic version of the wiring diagram, if necessary, we can send it to you by email.”
Q:How do I wire the 1no1nc and 2no2nc options?

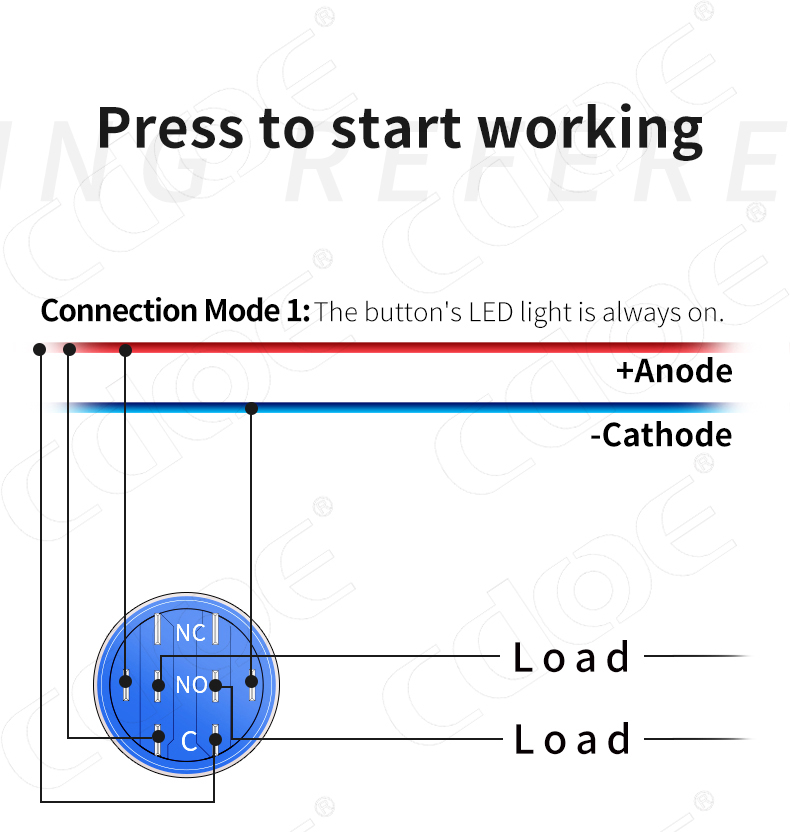

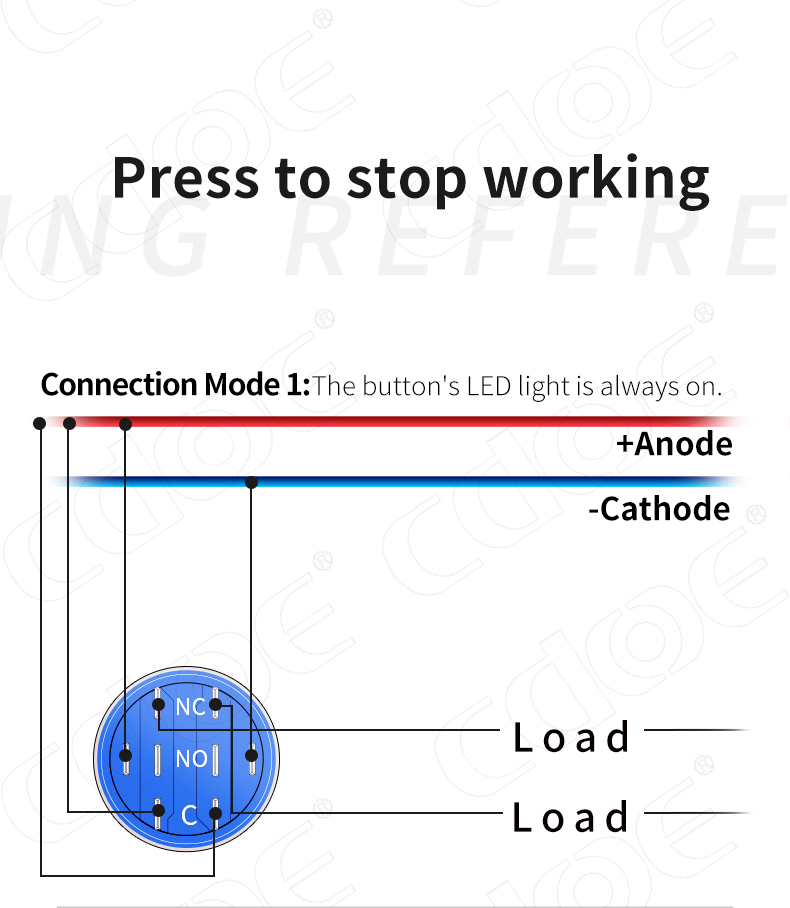

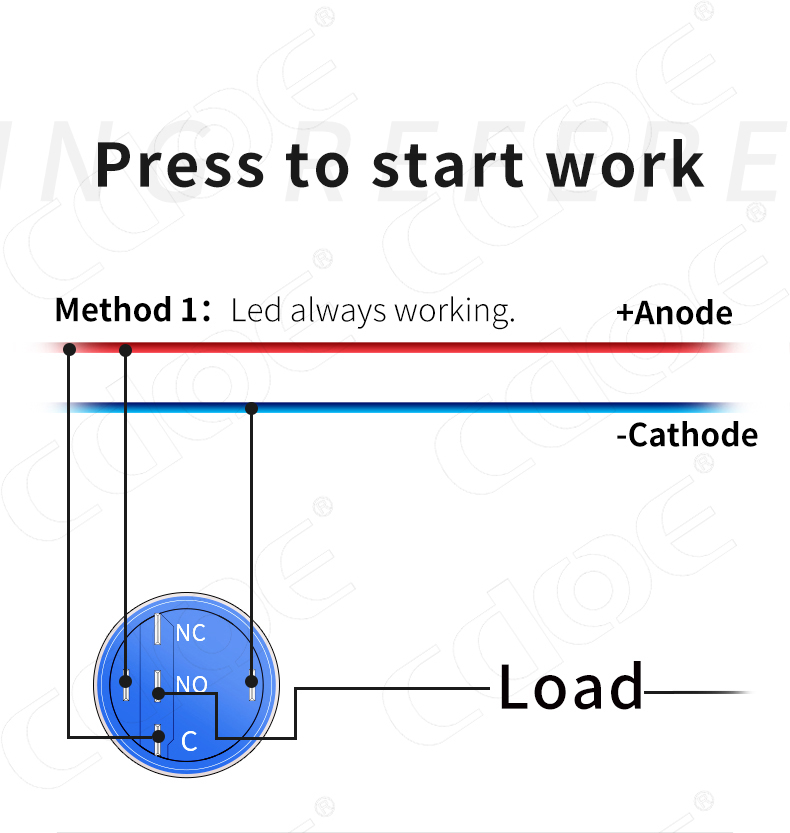

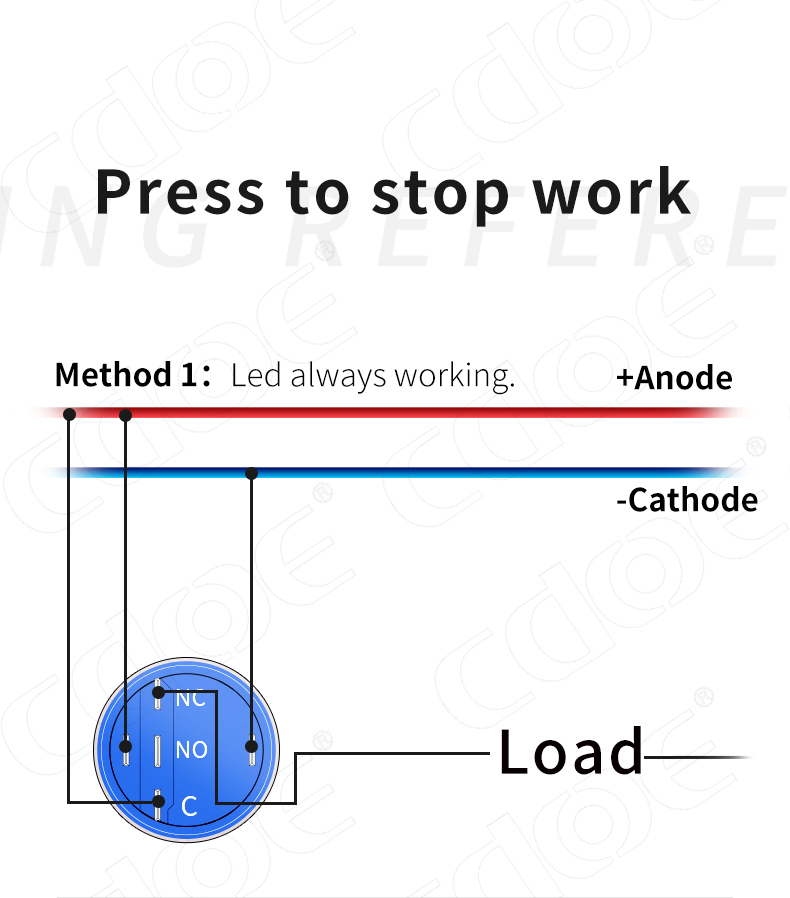

A:“The following is a part of the wiring diagram of our picture version, one normally open and one normally closed. If there is something you don’t understand, you can also go to our youtube video library to view the corresponding video.”
