LED illuminated high head control small equipment spst panel mount pushbutton switch 12mm
▶Product Description:

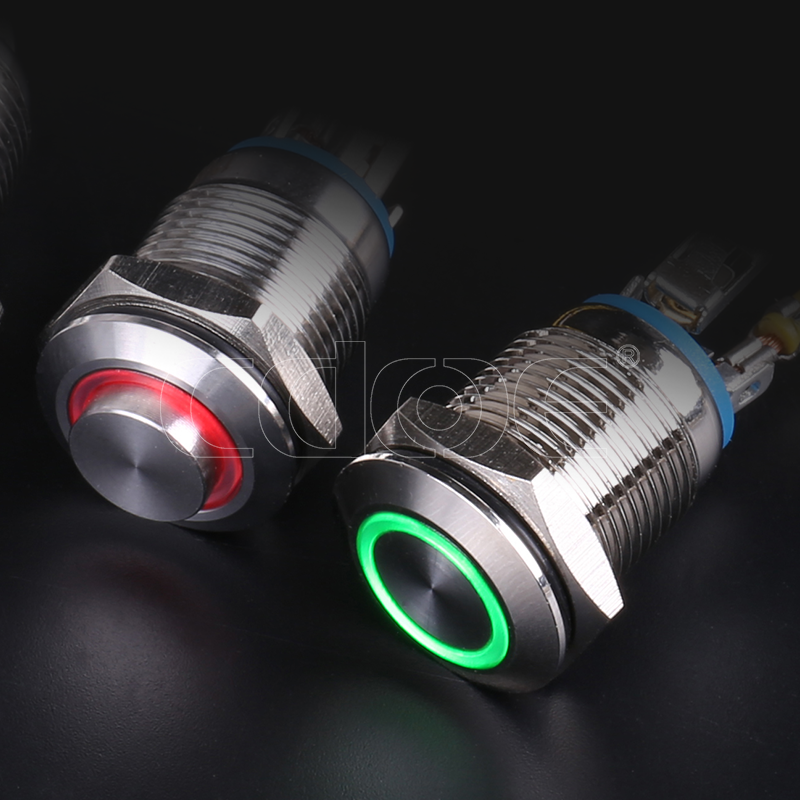

Momentary pushbutton switch with a high head ring head, a sleek and stylish choice for any application requiring a pushbutton switch. This switch features an eye-catching design with a glowing LED light that illuminates when the switch is activated. The high head ring head provides a comfortable and easy-to-use target for pressing the button, making it easy to operate even in low light conditions.
This switch is built to last, with a durable metal construction that can withstand the rigors of daily use. It is rated for a maximum voltage and current of 250V AC and 3A, making it suitable for a wide range of low-power applications. The switch is designed for momentary operation, meaning that it is only active while it is being pressed, and it features a normally open contact configuration.
The glowing pushbutton switch with a high head ring head is also waterproof and rated for an IP65 protection level, making it suitable for use in outdoor or harsh environments. It is also easy to install, with a standard 12mm mounting hole size and a threaded design that allows for easy installation and removal. This switch is available in a range of colors, including red, green, blue, and yellow, allowing you to choose the perfect option for your specific application. Whether you need a reliable and stylish switch for your industrial equipment, a custom project, or for use in your home or office, our glowing pushbutton switch with a high head ring head is the perfect choice.
▶Product Model Specification:

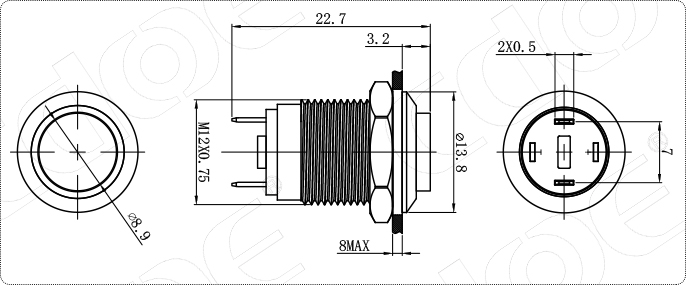

▶Product Size:

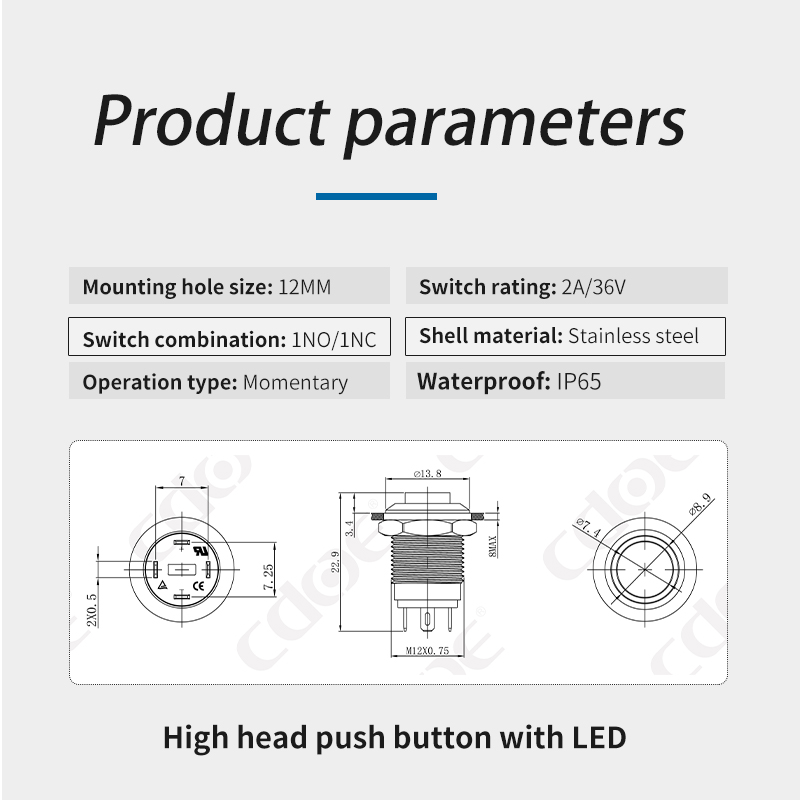

▶Technical Parameter:
|
HBDGQ12H Series LED illuminated pushbutton switch 12mm |
|
| Product model : | HBDGQ12H-□E/J/S(N) |
| Mounting hole size : | 12mm |
| Switch value: | Ith:2A,UI:36V |
| Operation type: | Momentary |
| Contact configuration: | 1NO |
| Appearance material: | Head: Stainless steel; Switch button surface: Stainless steel; Pedestal: PBT; Contact: Silver alloy; |
| Terminal type: | Pin terminal |
| Working environment temperature: | -25℃～+65℃ |
| Movement stroke: | About 1.6mm |
| Connection form: | Supporting connector/Welding wire |
| Protection grade: | IP65 |
| Contact resistance: | ≤50mΩ |
| Insulation resistance: | ≥100MΩ |
| Electrical resistance: | AC2500V, 1min, no flicker and breakdown |
| Life | |
| Electrical part: Operate 50,000 times under rated load without any abnormality | |
| Mechanical part: No abnormal movement for 100,000 times | |
▶Problems Encountered By Buyers:
Q: What is the material of the switch and is it resistant to corrosion or other types of damage?
A: “Available in nickel brass and stainless steel, the buttons are resistant to corrosion and can be used in a variety of harsh environments.”
Q: Can the switch be customized with different colors or markings?
A: “Regular aluminum oxide blackening is available if other colors are required. The minimum order quantity will be determined according to the material condition of the warehouse at that time.”
Q: Is technical support or customer service available to answer any questions or concerns?
A: “We will have a special salesman to connect with you product problems, one to one service to provide technical support.”
Thank you for your trust and support!
